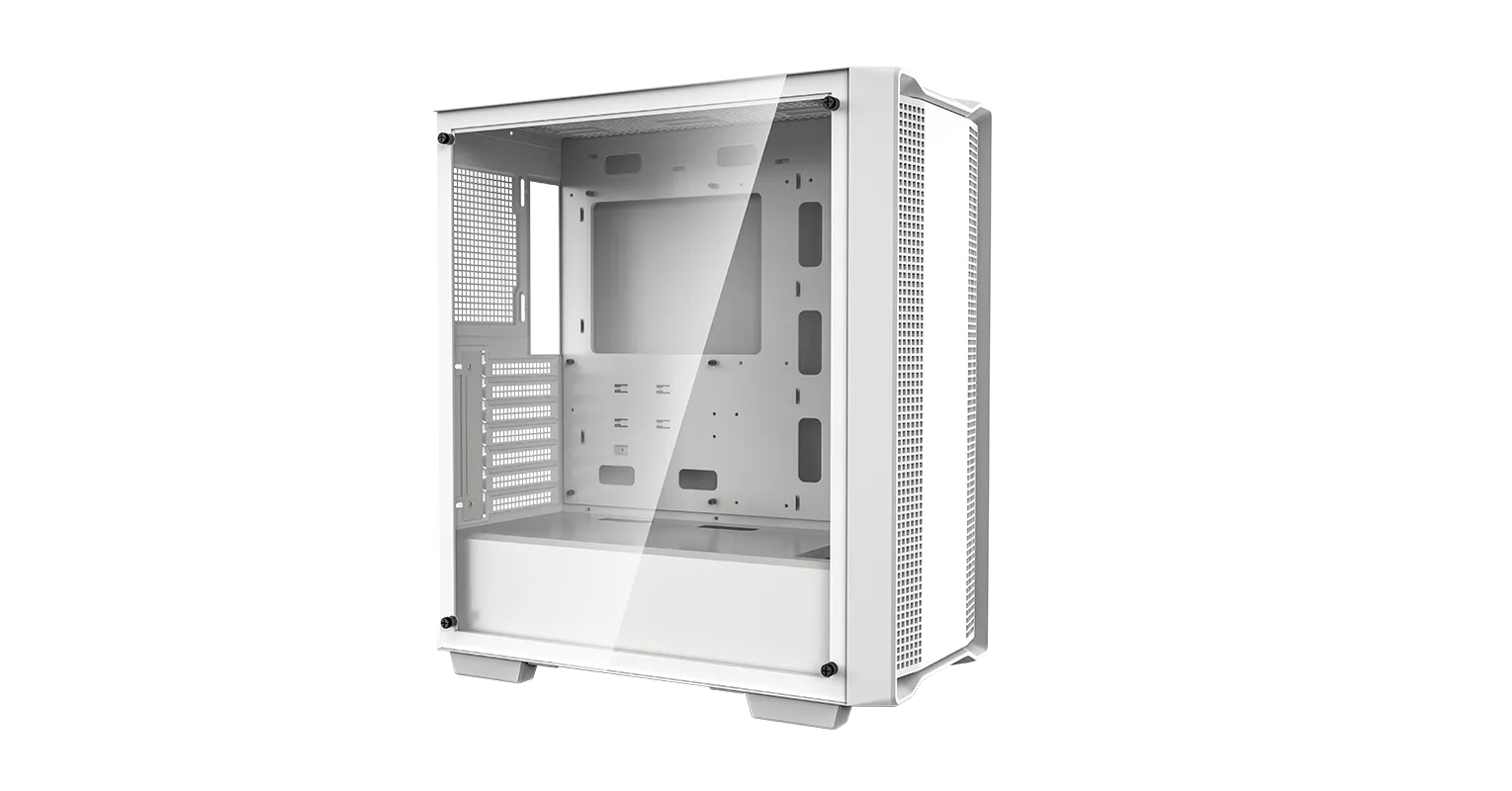

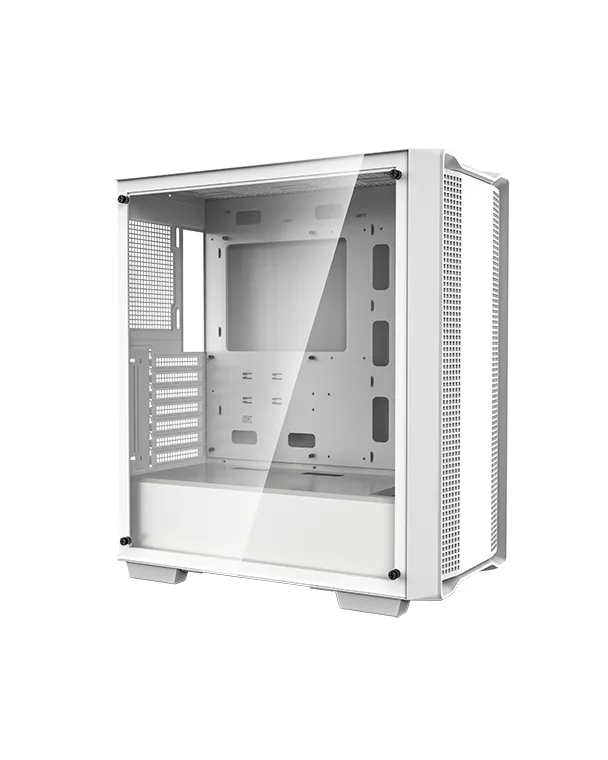

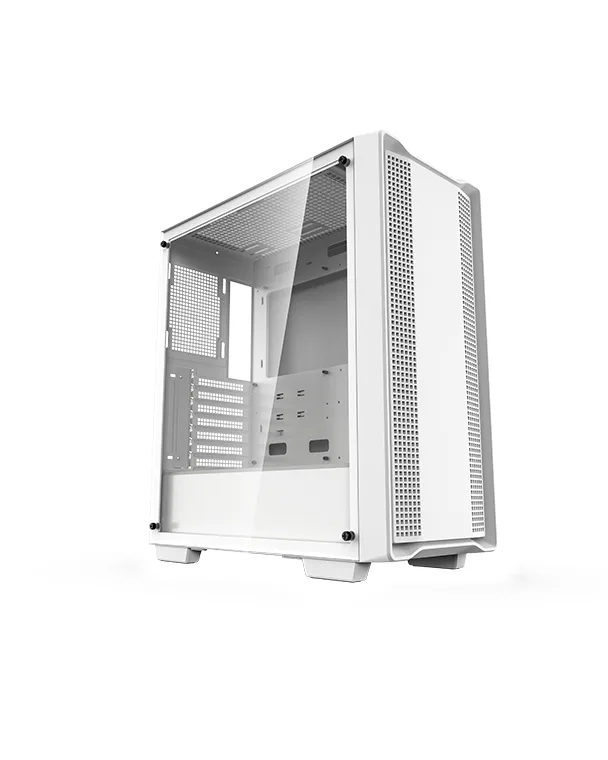

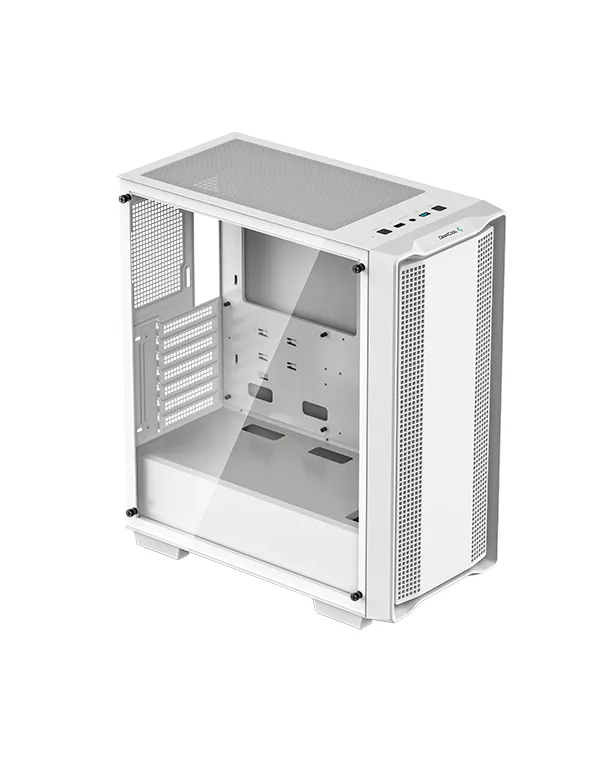

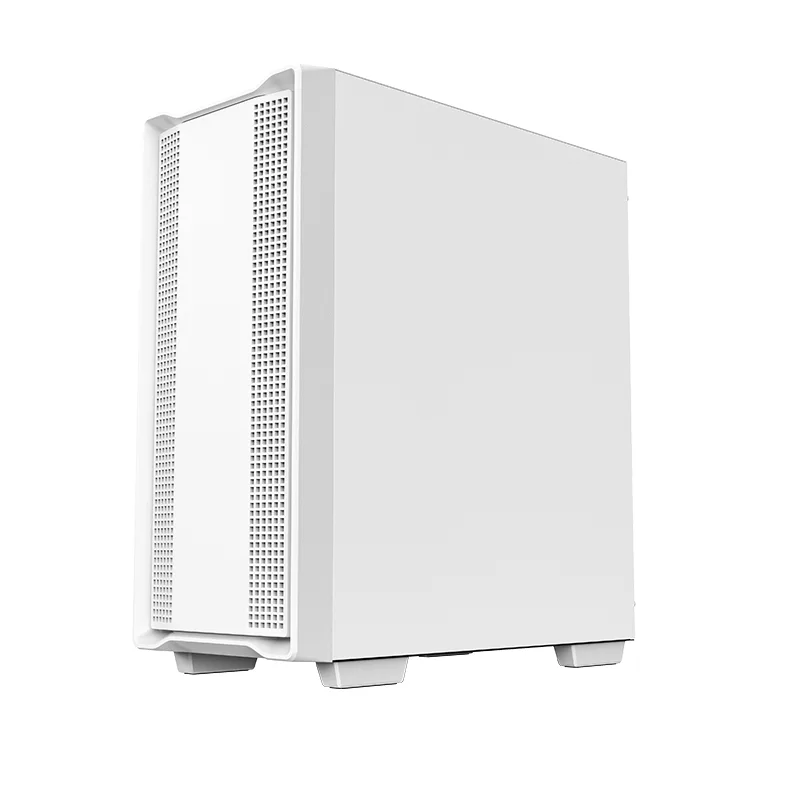

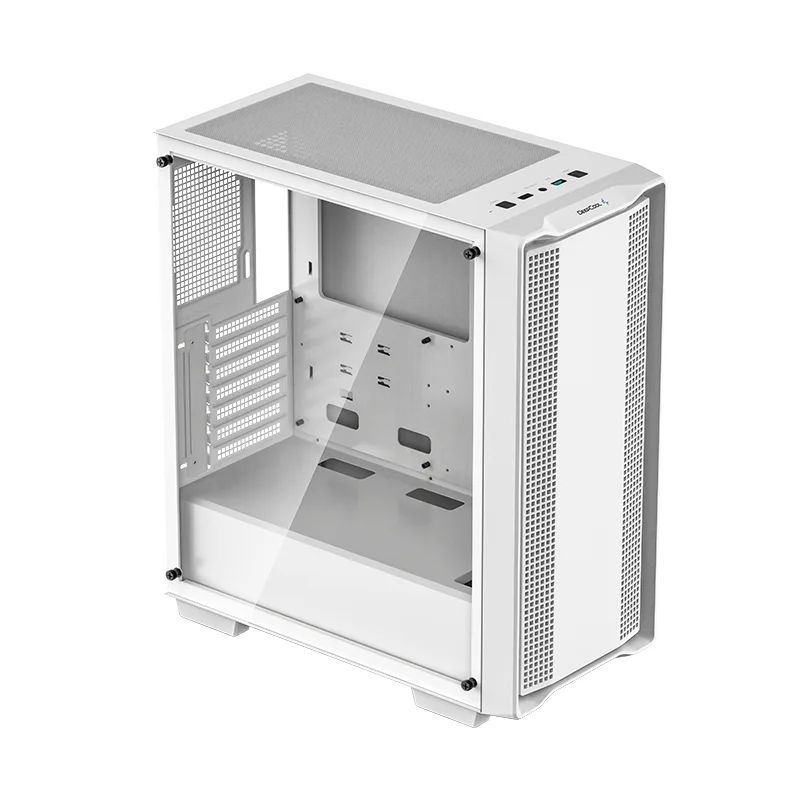

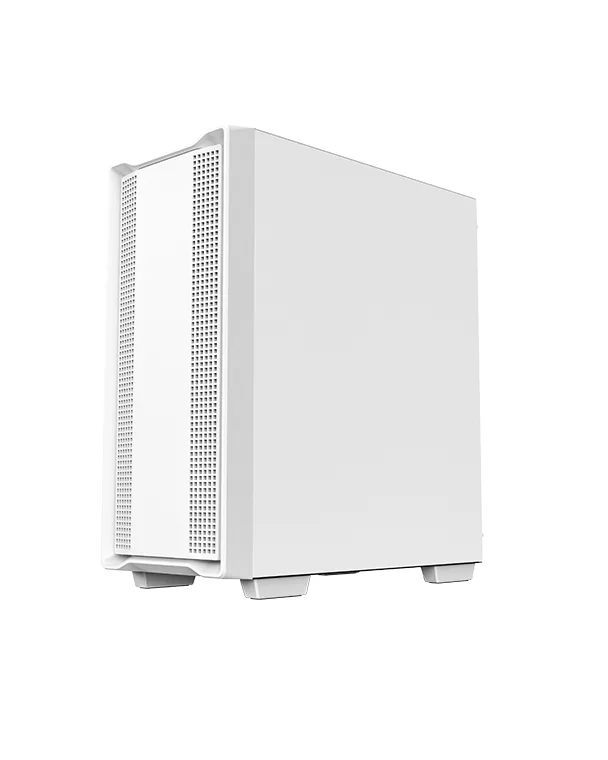

CC560 WH Limited

Mid-Tower Case

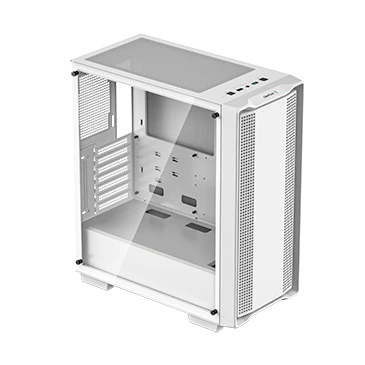

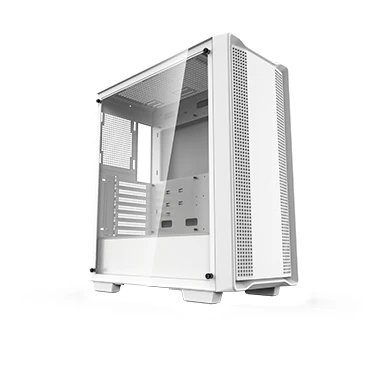

The DeepCool CC560 WH Limited Mid-Tower Case offers outstanding value with spacious component compatibility and a full-sized tempered glass window. The CC560 WH Limited is an excellent option for users looking to add a personal touch with their own fans.

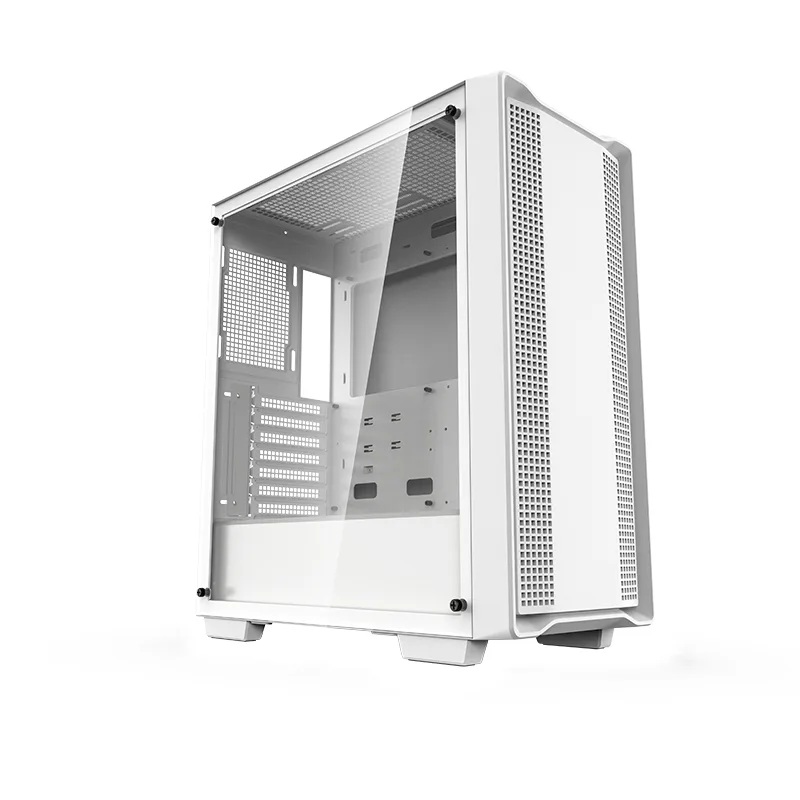

Abundant Airflow Performance

Well ventilated throughout the entire chassis, the CC560 WH Limited sports an airflow front panel and a large mesh top panel to ensure fresh air is circulating.

Wide Cooling Support

Enough space to support high-performance AIO liquid coolers with room for 360mm radiators in front or 240mm on top. Cooling fan support for up to 6x 120mm or 4x 140mm.

6 120mm

4 140mm

CASE FANS

1 360mm

1 280mm

2 240mm

1 140mm

3 120mm

RADIATOR

Compatibility

Max CPU Cooler Height: 163mm

Max GPU Length: 370mm

Max PSU Length: 170mm

Storage Solutions

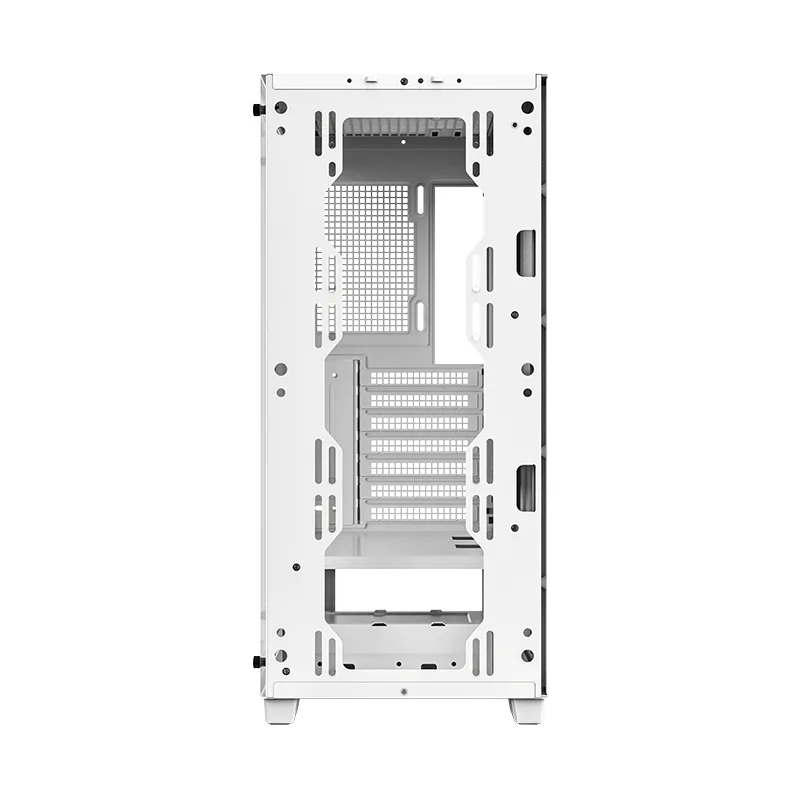

Install up to 2x 2.5” SSDs directly on the backplate and 2x 3.5” HDDs underneath the shroud in a removeable drive cage for adjustability.

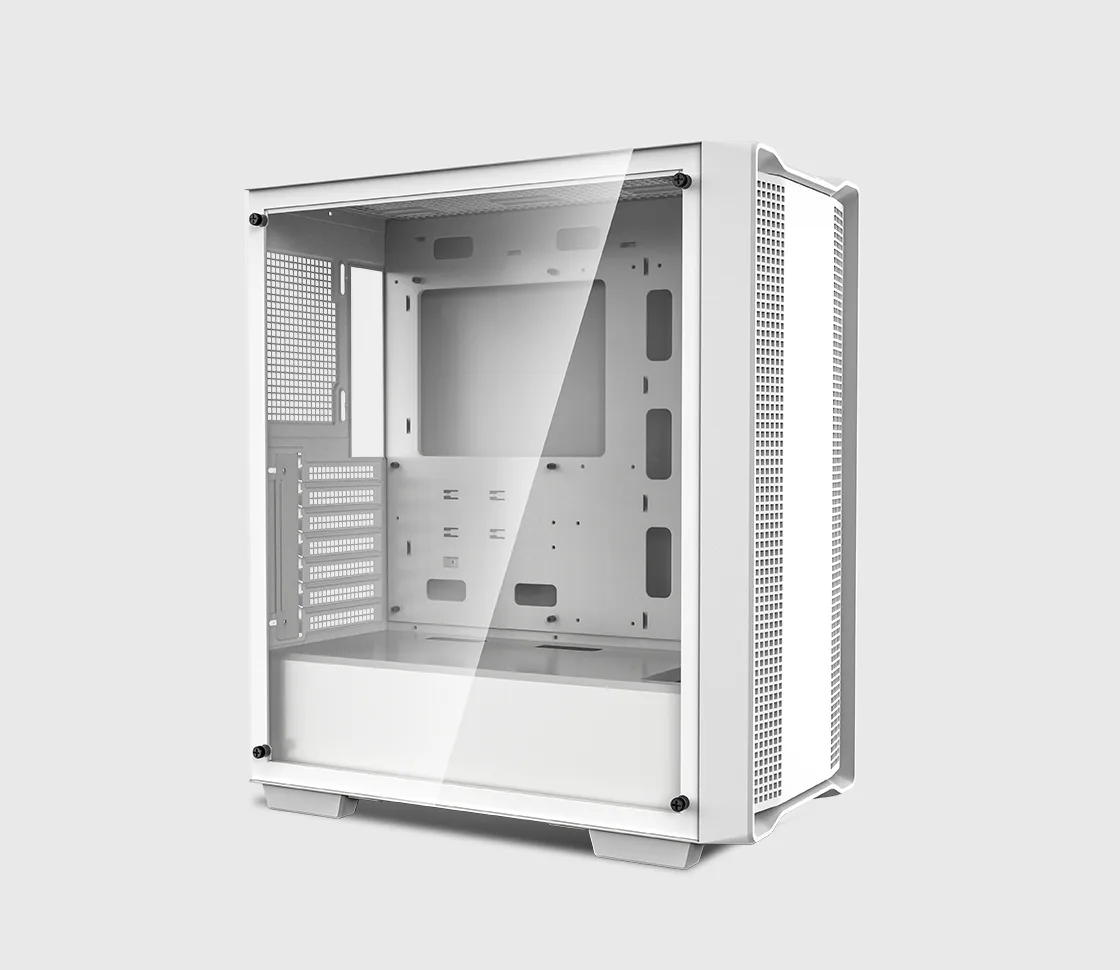

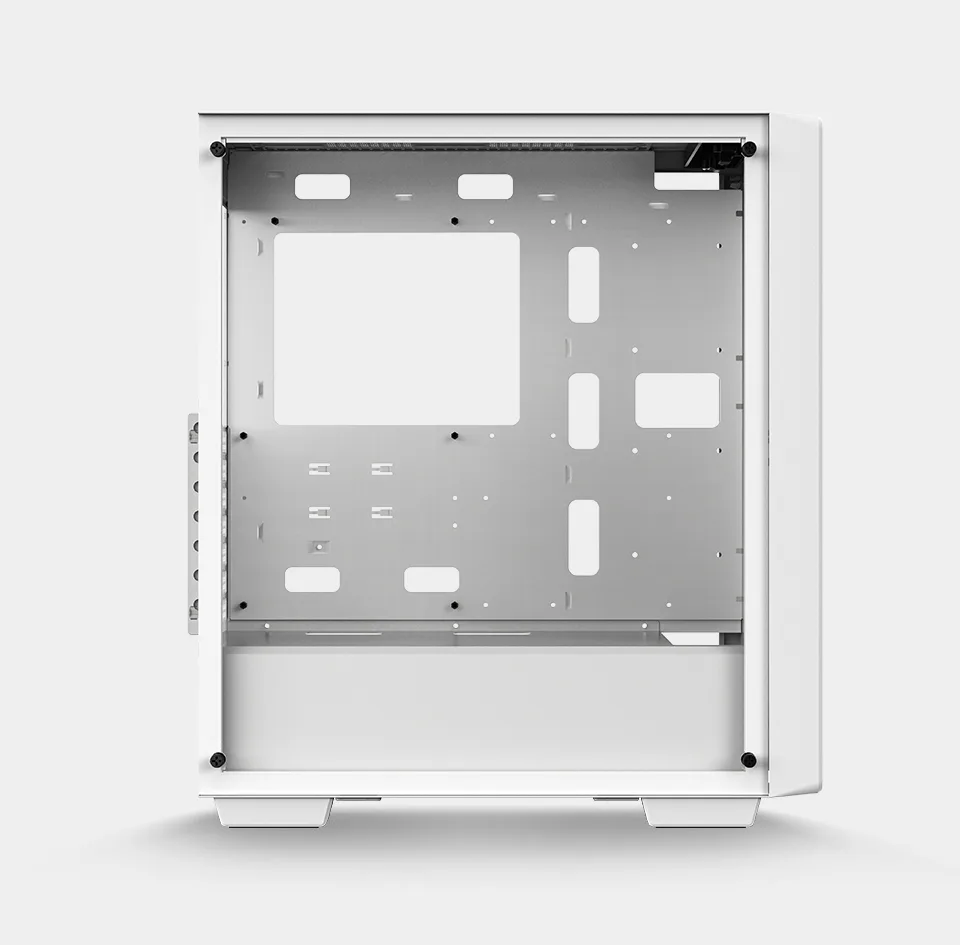

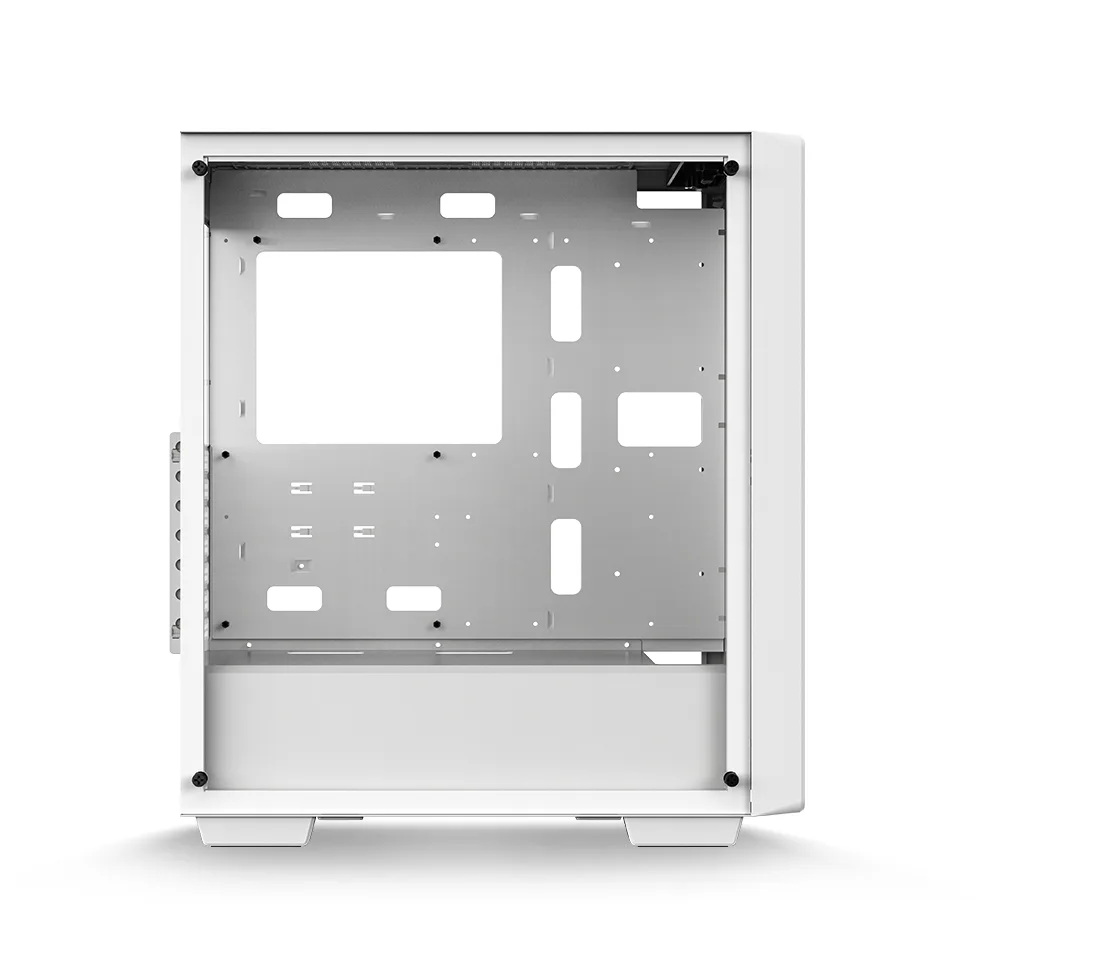

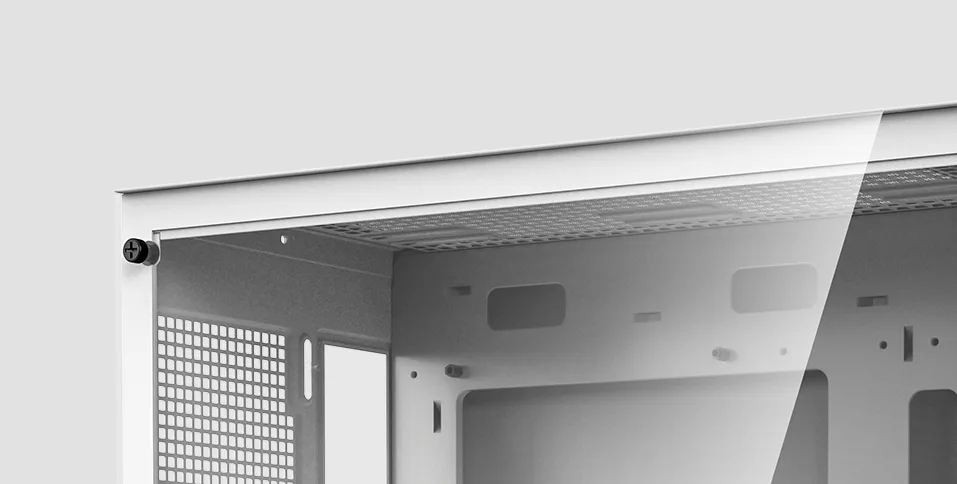

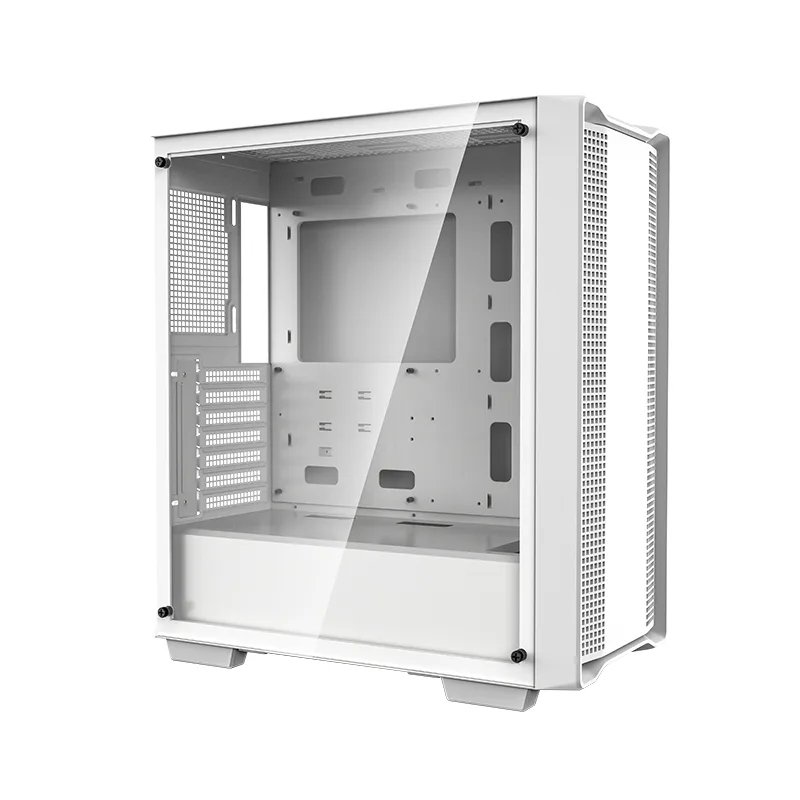

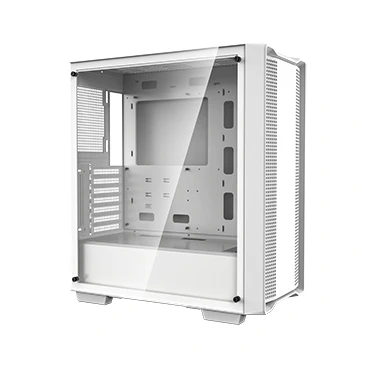

Full-Sized Tempered Glass Window

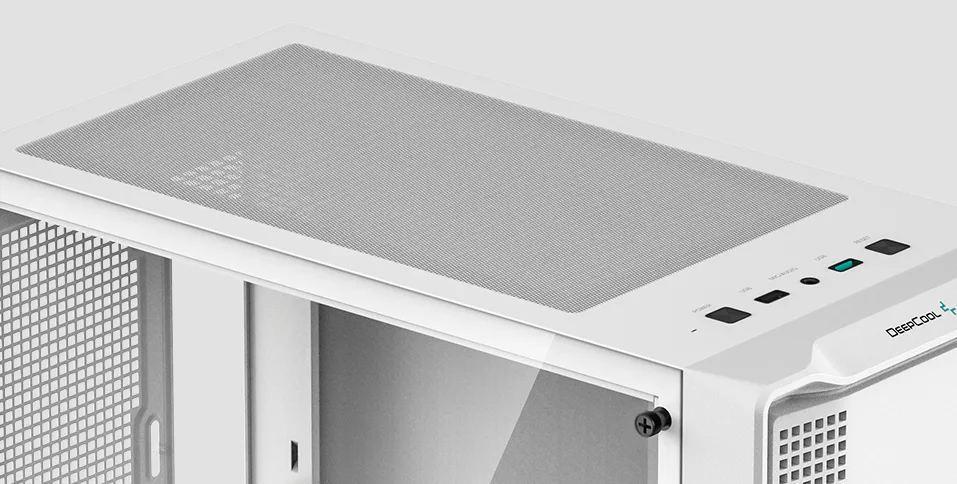

Top Panel Magnetic Dust Filter

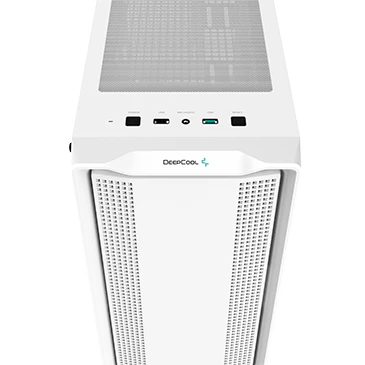

Front I/O Panel

Features USB 3.0, USB 2.0, and a combo audio jack.

Front I/O Panel

Features USB 3.0, USB 2.0, and a combo audio jack.

Technical Spec

Product Dimensions	416×210×477mm(L×W×H)
Net Weight	5Kg
Materials	ABS+SPCC+Tempered Glass
Motherboard Support	Mini-ITX / Micro-ATX / ATX
Front I/O Ports	USB3.0×1、USB2.0×1、Audio×1
3.5" Drive Bays	2
2.5" Drive Bays	2+1
Expansion Slots	7 Slots
Pre-Installed Fans	None
Fan Support	Front: 3×120 / 2×140mm Top: 2×120 / 2×140mm Rear: 1×120mm
Radiator Support	Front: 120/140/240/280/360mm Top: 120/240mm Rear: 120mm
CPU Cooler Height Limit	163mm
GPU Length Limit	370mm
Power Supply Type	ATX PS2（maximum length: 170mm）
EAN	6933412715023
P/N	R-CC560-WHNAA0-C-1

Product Dimension

Download

CC560 WH Limited Manual.pdf
