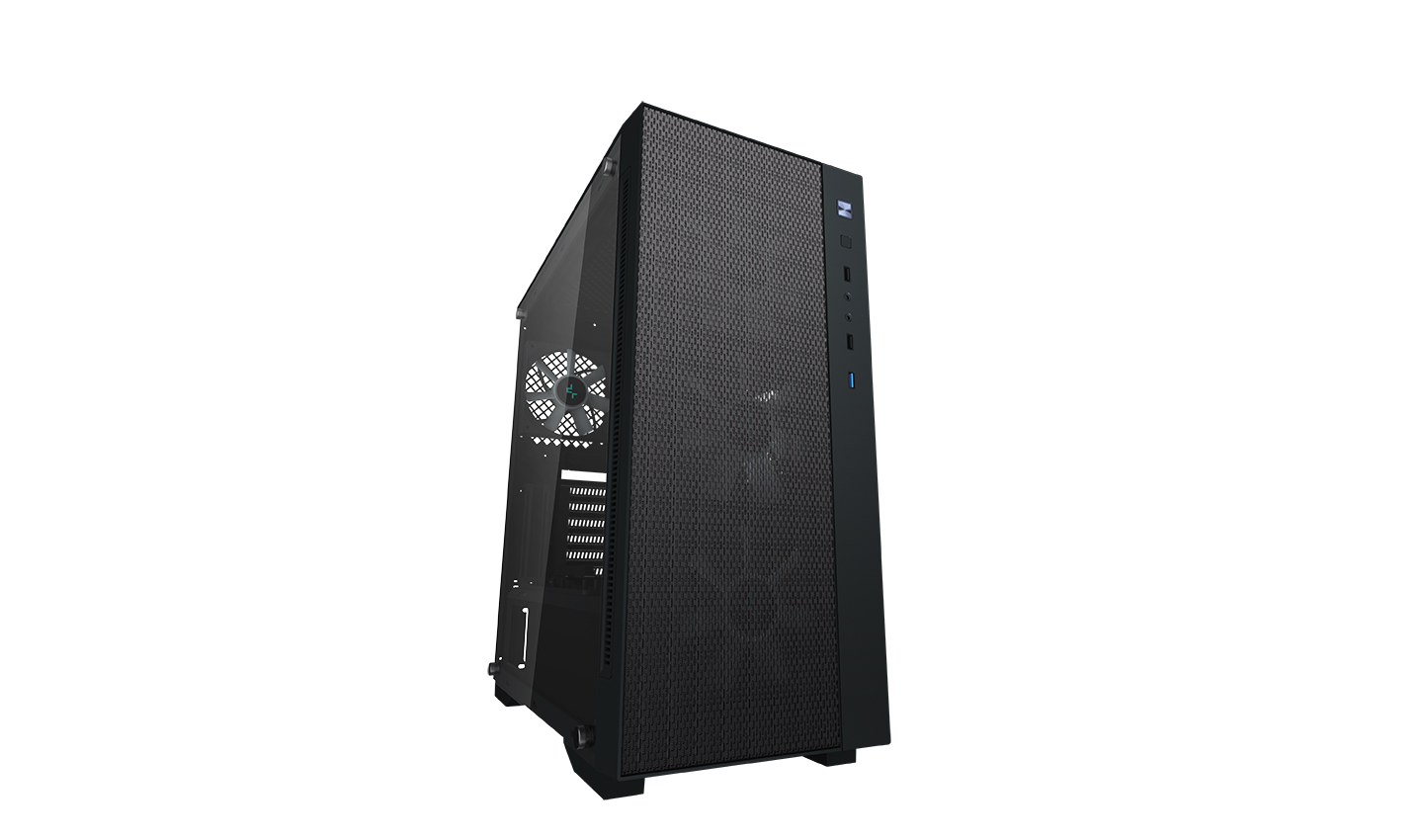

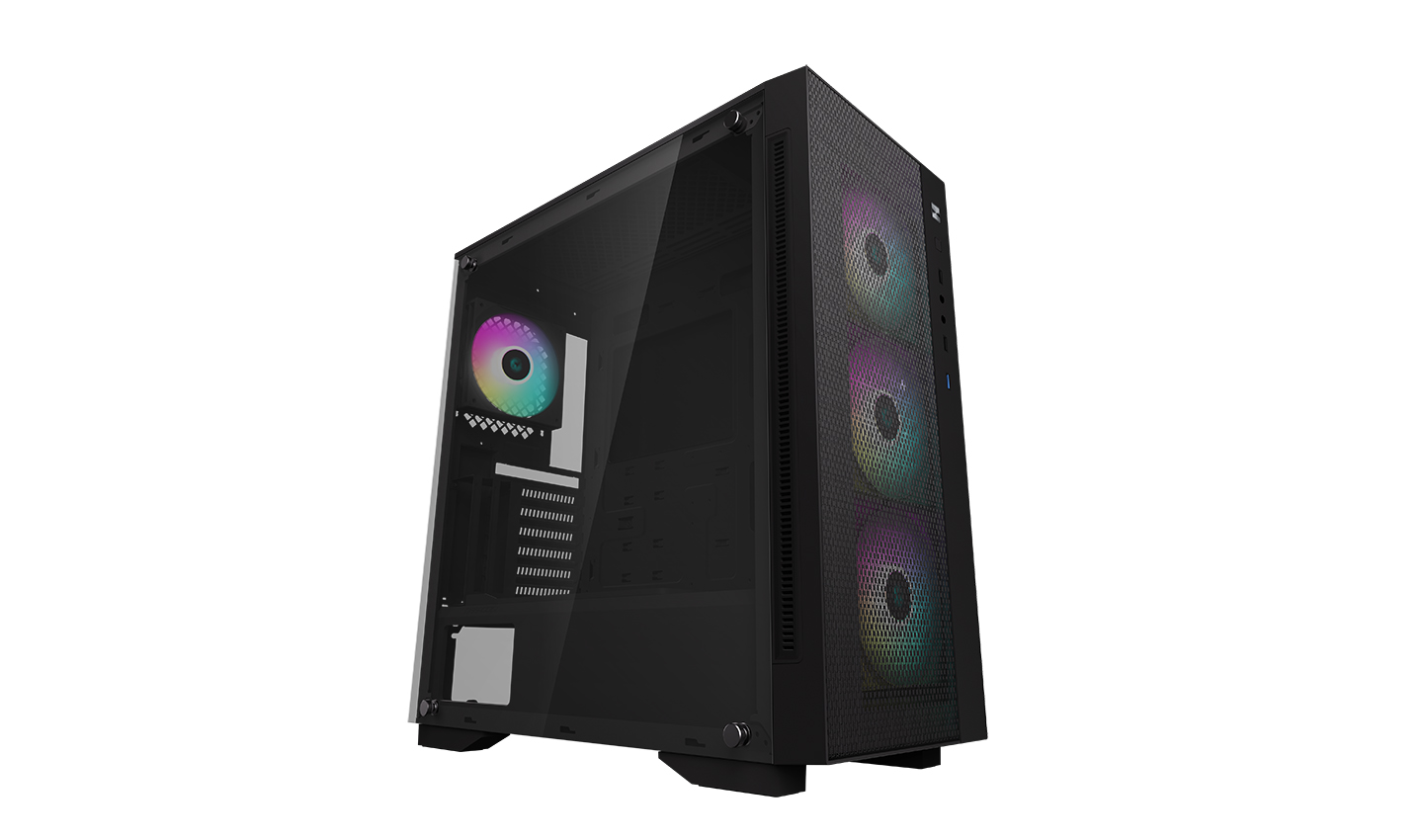

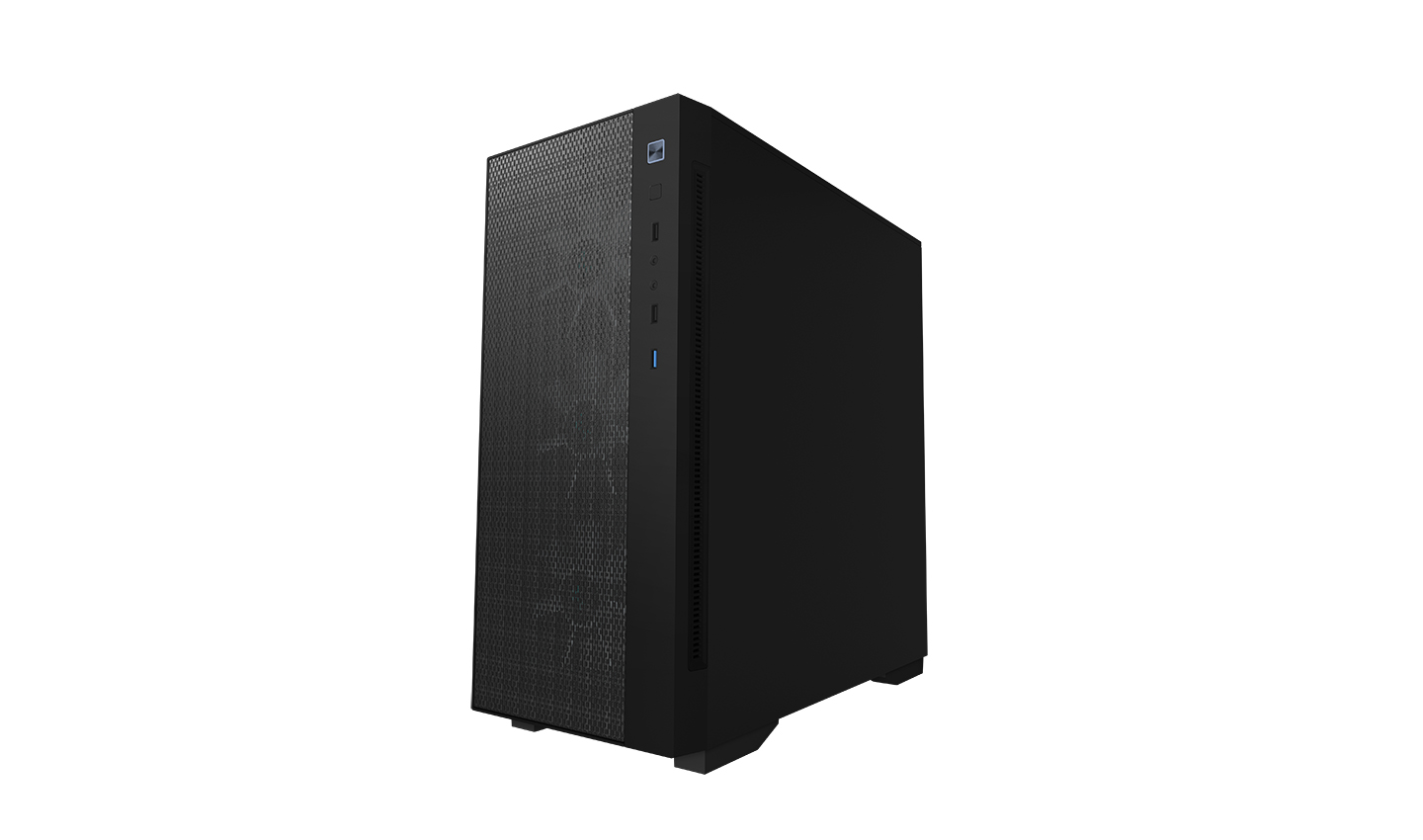

MATREXX 55 MESH ADD-RGB 4F
Matrexx 55 Mesh ADD-RGB 4F is a high airflow case that comes with an included A-RGB lighting system and full size tempered glass.
COLOR
black
MODEL
MATREXX 55 MESH ADD-RGB 4F
The clear choice
Matrexx 55 Mesh ADD-RGB 4F is a high airflow case that comes with included A-RGB lighting system and full size tempered glass.
4mm Thick Tempered Glass
Full sized 4mm thick, tempered glass side panel gives the case a unique look to perfectly show off your inner structure
Massive Cooling Compatibility
Optimized airflow is guaranteed with large air intakes on both sides of the front panel and an air exhaust in the back and on top, to keep your components cool
ADD-RGB Lighting System Included
4 ADD-RGB fans are included in the system, as well as 2 control approaches.
Case Button control:
Connect fans to case control module, and power up with PSU SATA cable, then control with RGB button.
Motherboard control:
Connect fans to motherboard header and use software to control.( Please note: When using motherboard control, disconnect PSU SATA cable. )
Cooling Compatibility:
Supports the installation of liquid cooler:
1
120/140/240/280mm radiator liquid cooling system on the top
2
120mm radiator liquid cooling system at the rear
3
120/140/240/280/360mm radiator liquid cooling system at the front
Supports the installation of cooling fans:
1
2×120/ 2×140mm fan on the top
2
1×120mm fan at the rear
3
3×120mm/2×140mm fan at the front
PSU Shroud Added
The Matrexx 55 Mesh version is equipped with a PSU Shroud to hide the cables and to keep the system neat and tidy
PSU Shroud Added
The Matrexx 55 Mesh version is equipped with a PSU Shroud to hide the cables and to keep the system neat and tidy
Easy Cable Management
Cable managing is now easy with a 20mm wide tower compartment (23mm clearance)
Supporting 160mm (max) CPU cooler height
Power Supply: ATX PS2 (maximum length: 170mm)
Supports 380mm (Max) graphic cards installation
2x2.5'' SSD slots and 2x3.5'' HDD cages
The magnet-mounted dust filter provided at the front panel, offers users easy removal and cleaning
1×USB3.0/2×USB2.0/1×Audio (HD)/1×Mic
Technical Spec
Product Dimensions460×215×480mm(L×W×H)
Net Weight7.2Kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportMini-ITX / Micro-ATX / ATX
Front I/O PortsUSB2.0×2、USB3.0×1、Audio×1、Mic×1
3.5" Drive Bays2
2.5" Drive Bays2
Pre-Installed FansFront: 3×120mm
Rear: 1×120mm
Fan SupportFront: 3×120 / 2×140mm
Top: 2×120 / 2×140mm
Rear: 1×120mm
Radiator SupportFront: 120/140/240/280/360mm
Top: 120/140/240/280mm
Rear: 120mm
CPU Cooler Height Limit160mm
GPU Length Limit380mm
Power Supply TypeATX PS2(maximum length: 170mm)
EAN6933412714149
P/NDP-ATX-MATREXX55-MESH-AR-4F
Product Dimension
