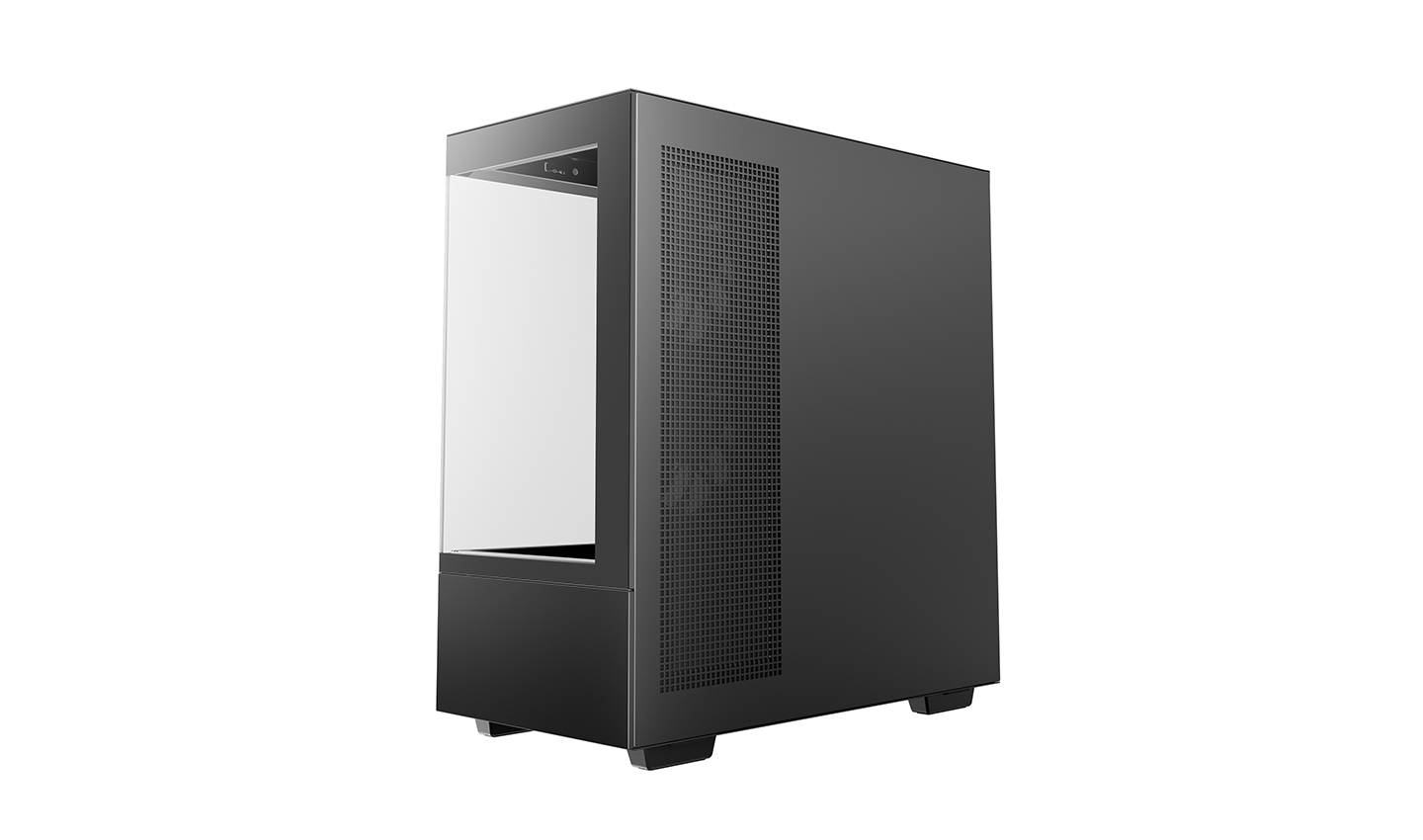

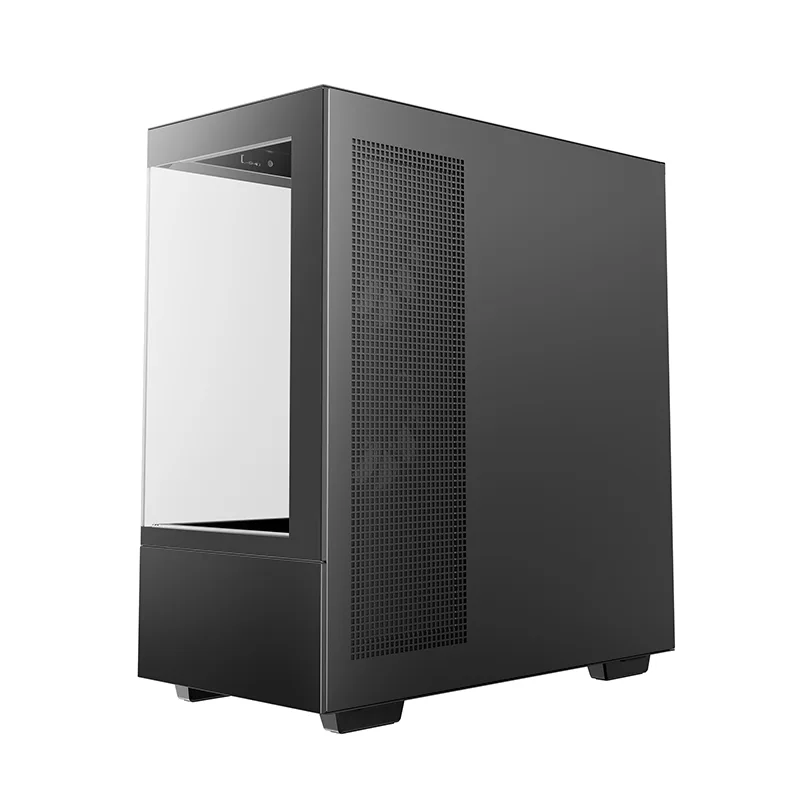

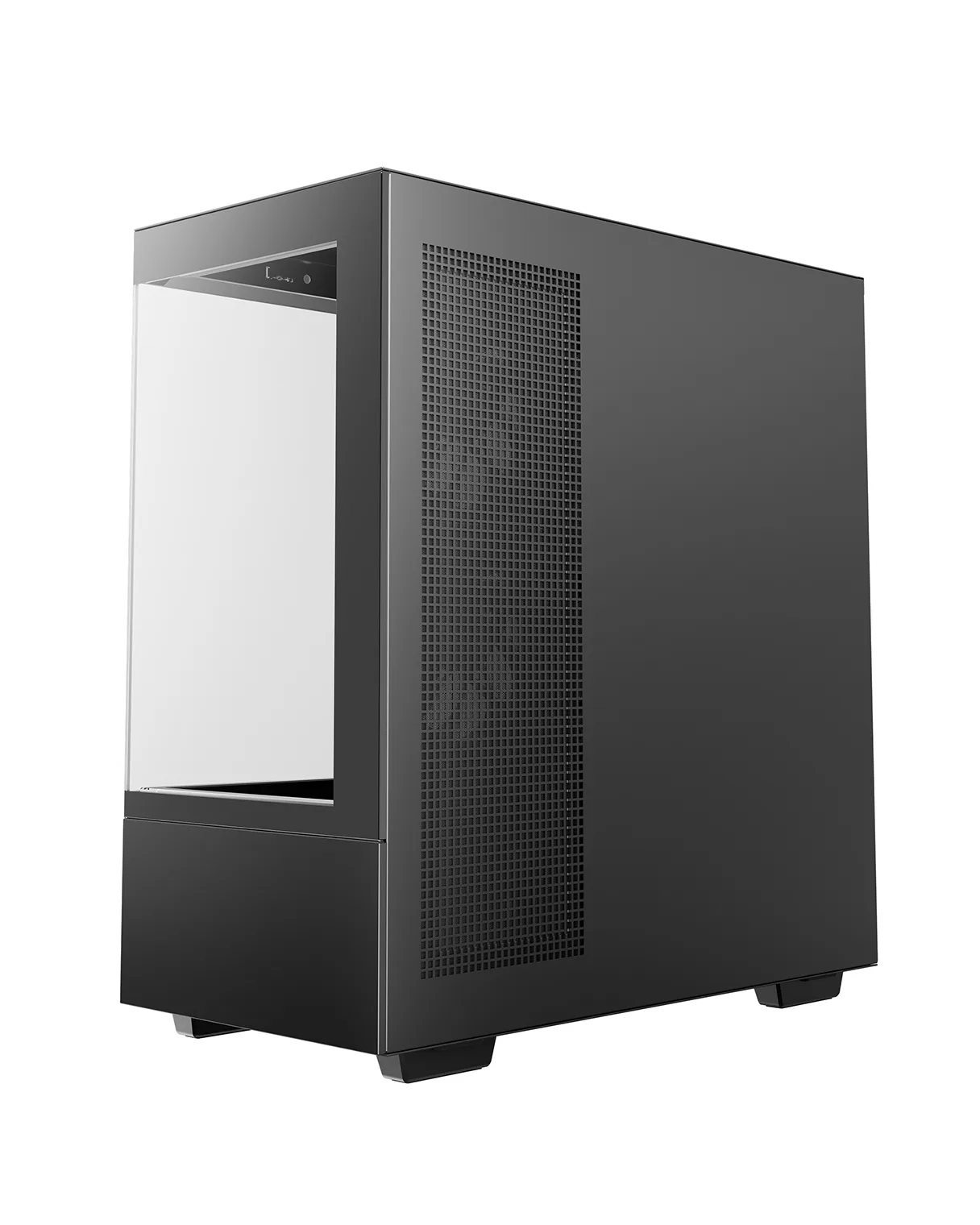

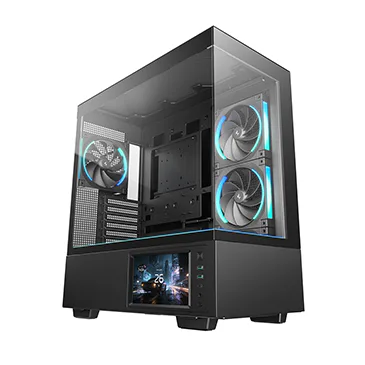

CH690 LCD

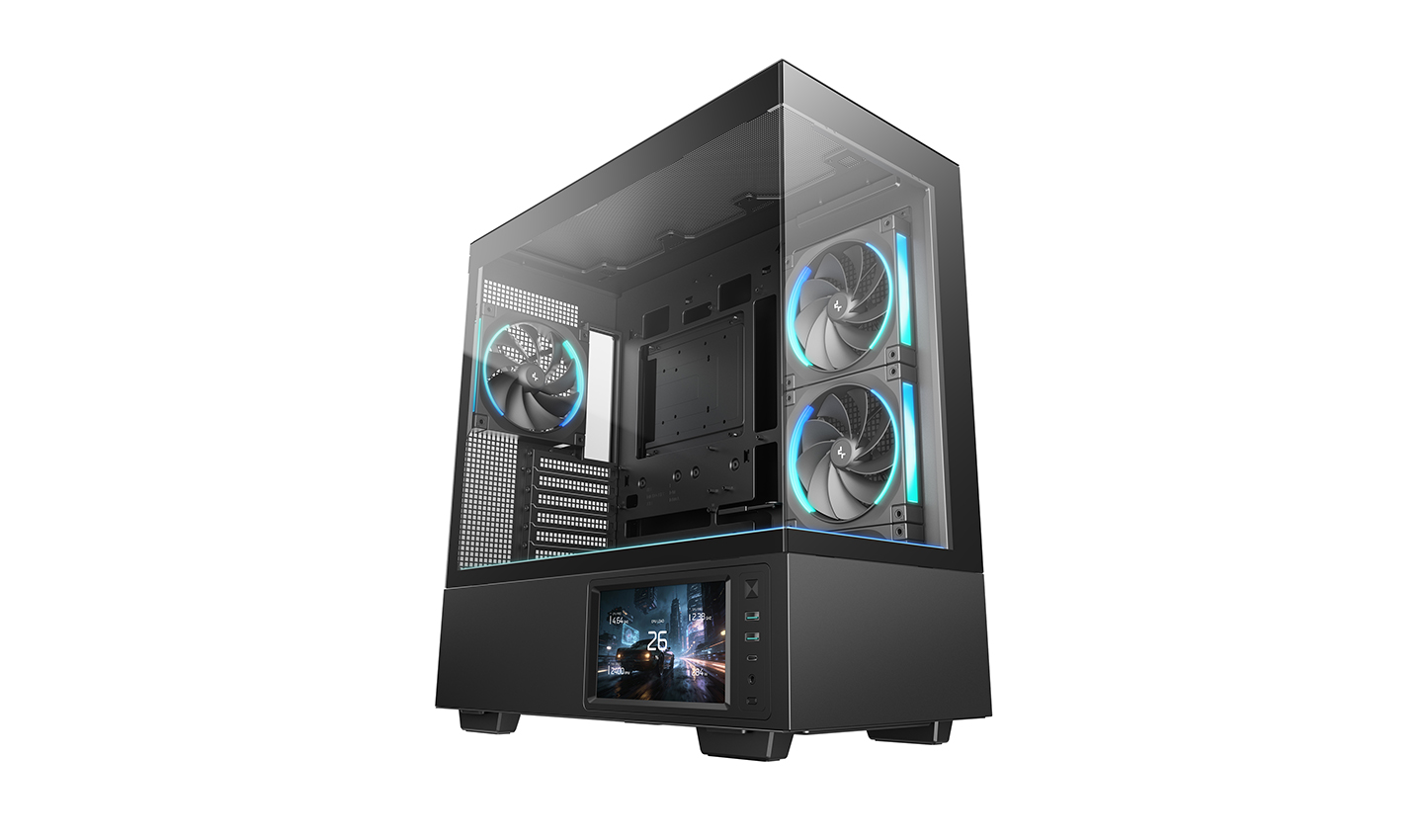

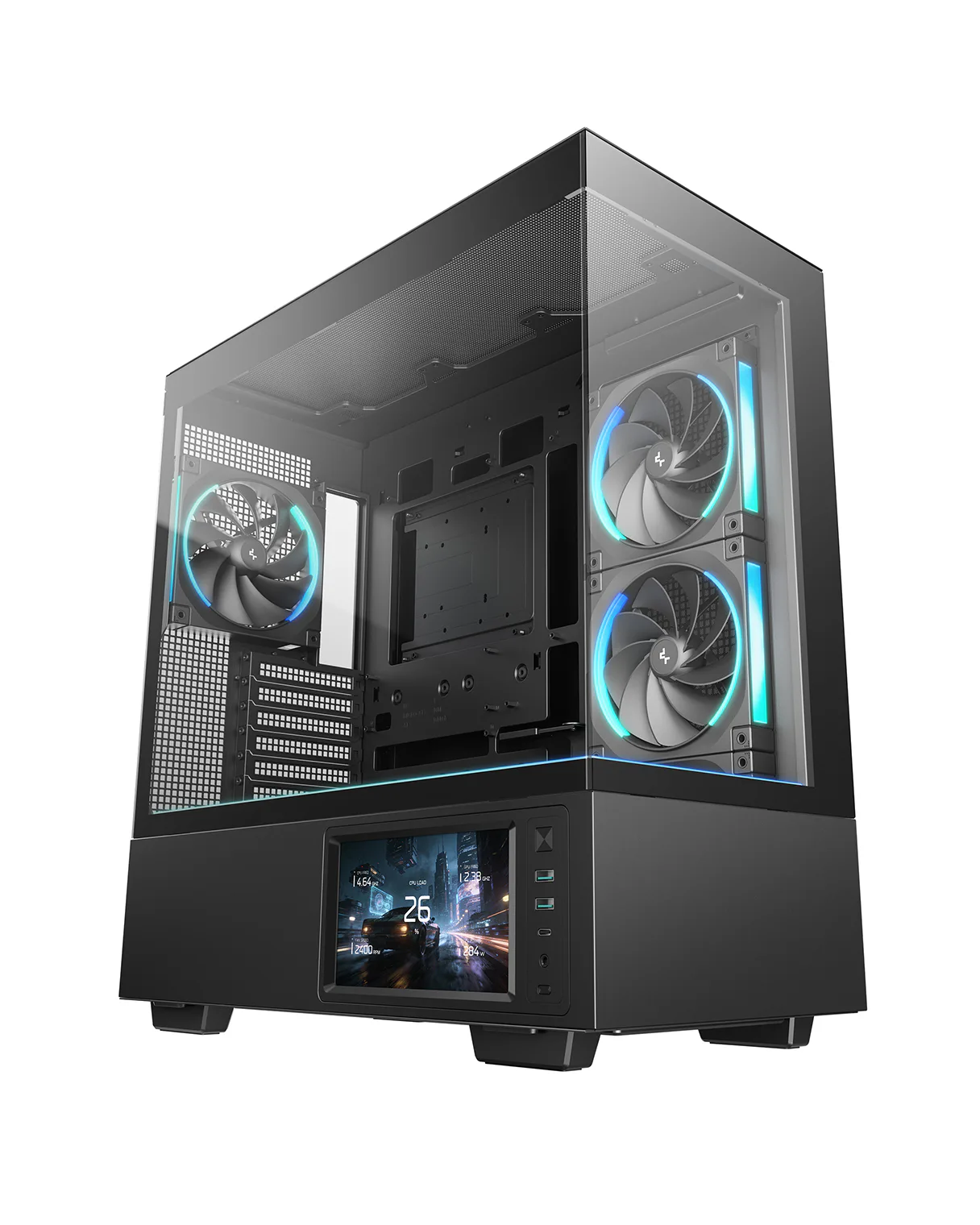

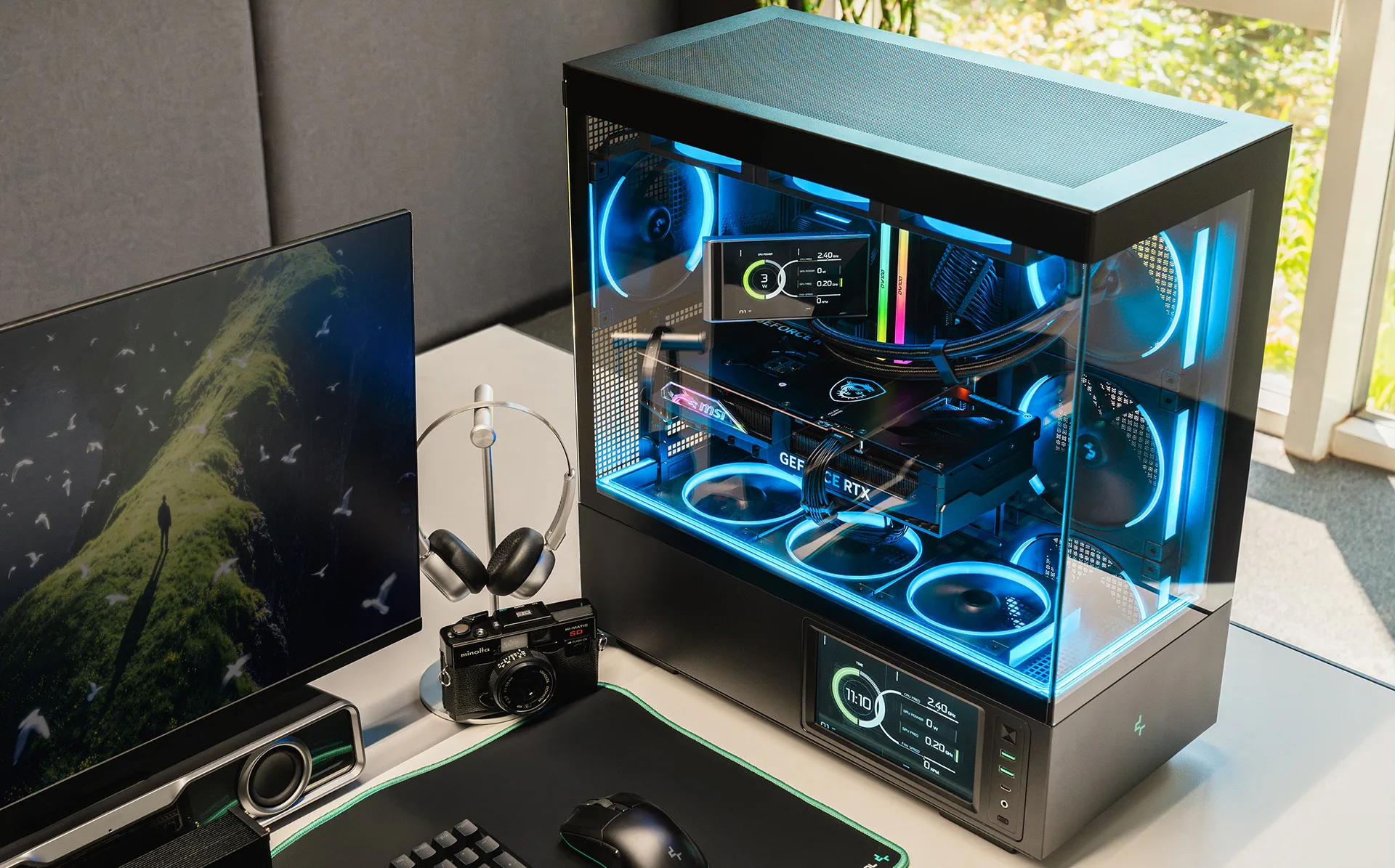

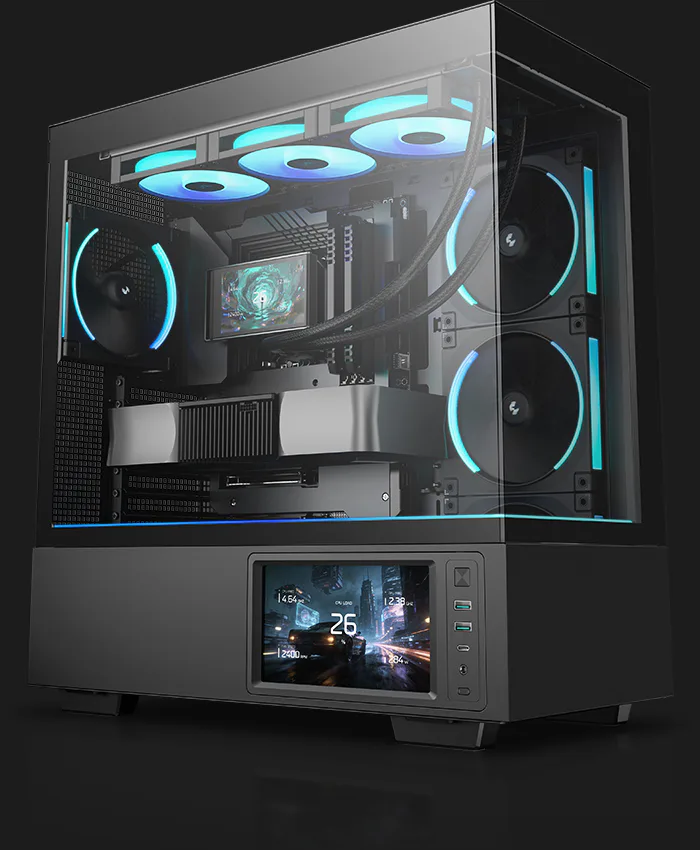

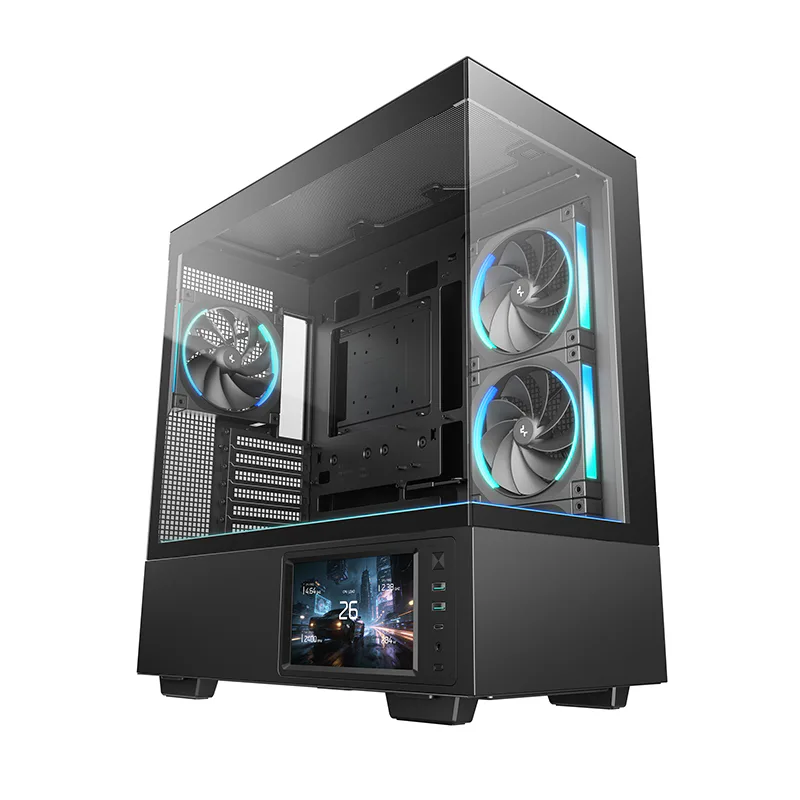

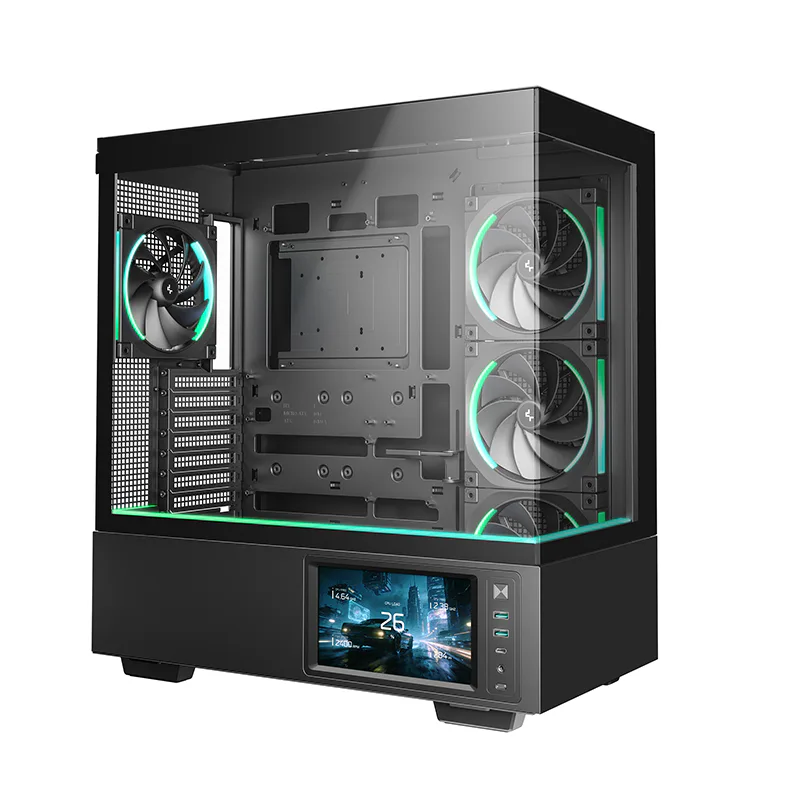

Building on the panoramic design of the CH690 series, the CH690 LCD enhances the build experience with an integrated 7-inch display, four pre-installed ARGB fans, and an added light strip.
COLOR
black
MODEL
CH690 LCD
LARGE DISPLAY MID-TOWER CASE

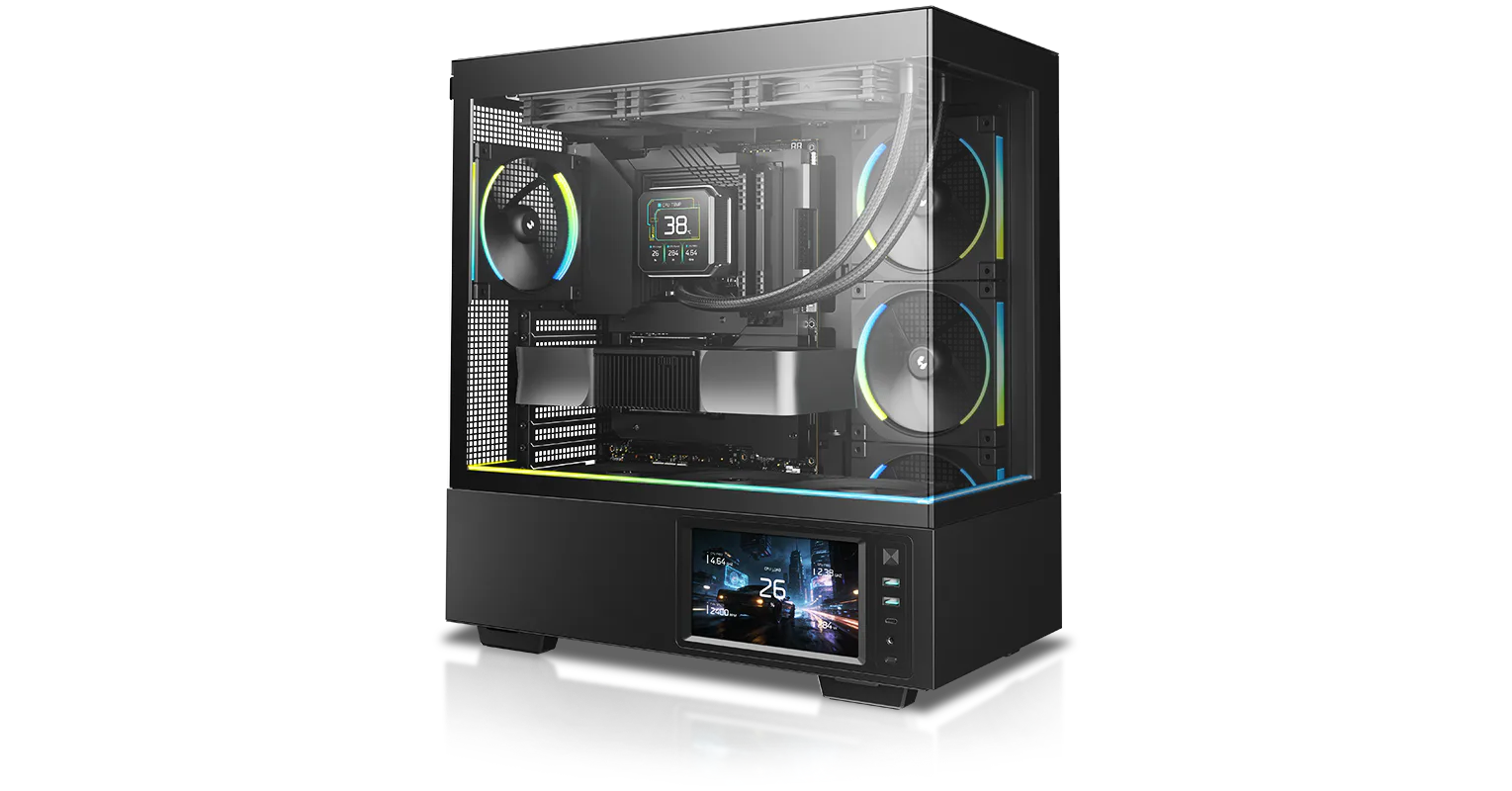

COMPLETE LIGHTING EXPERIENCE

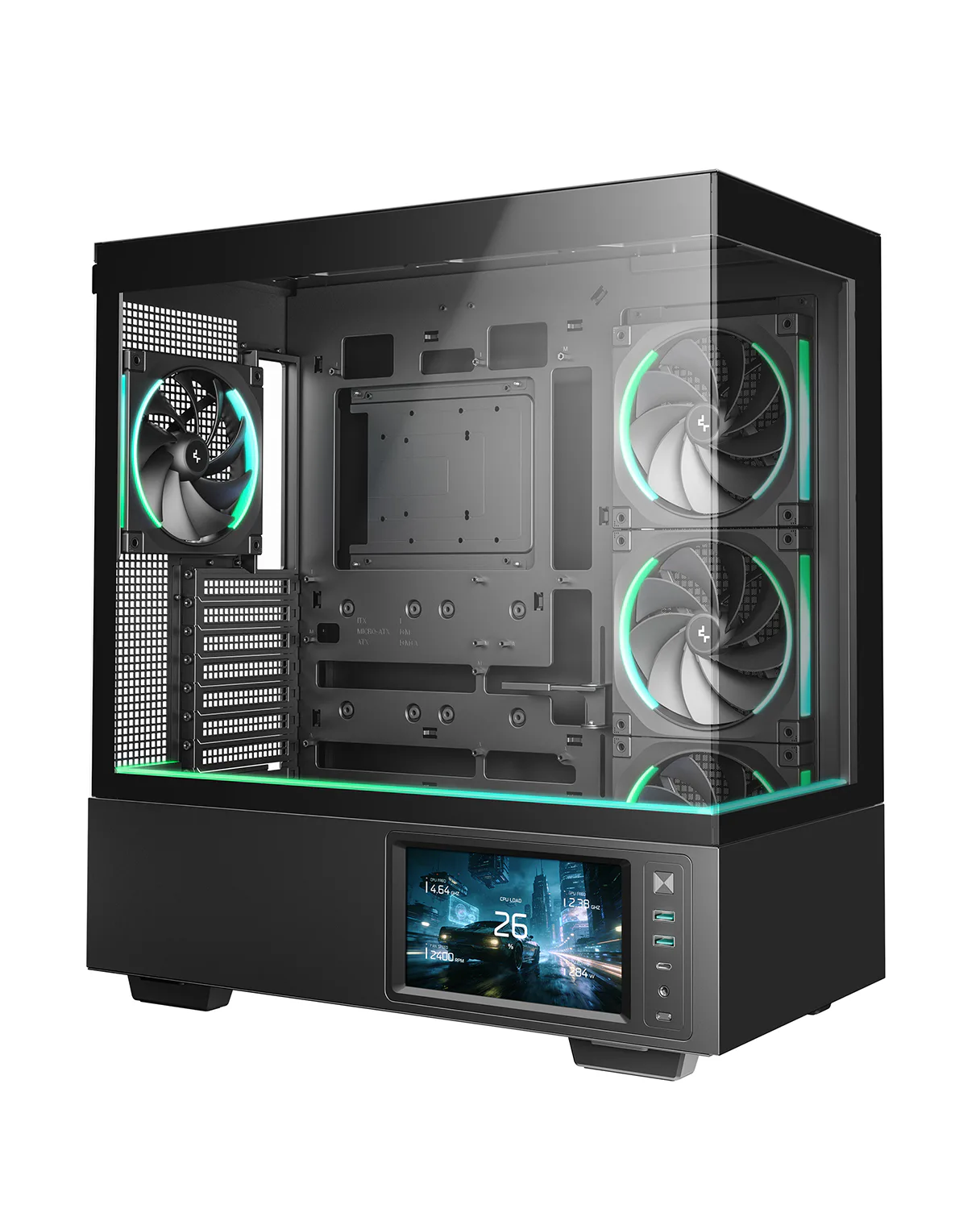

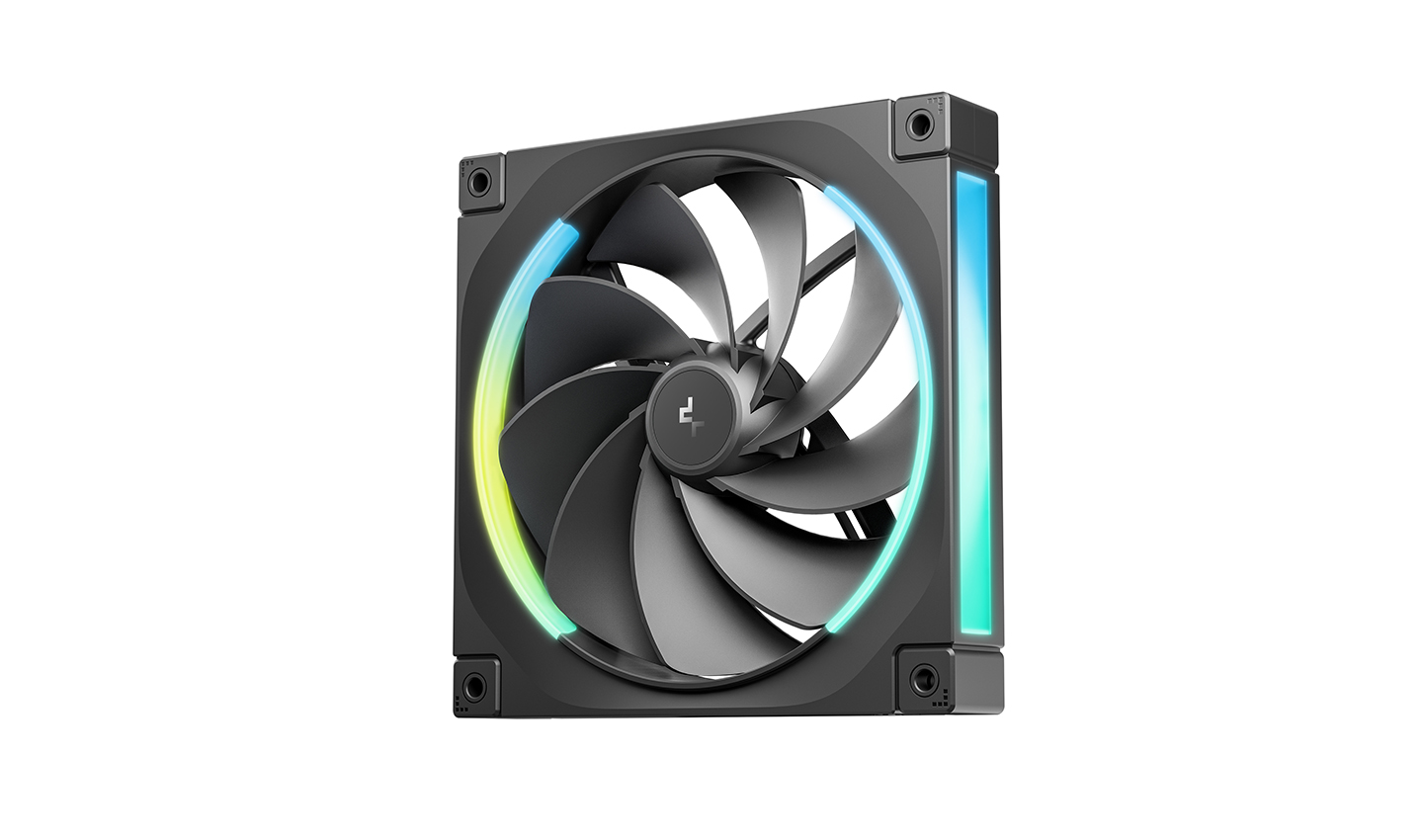

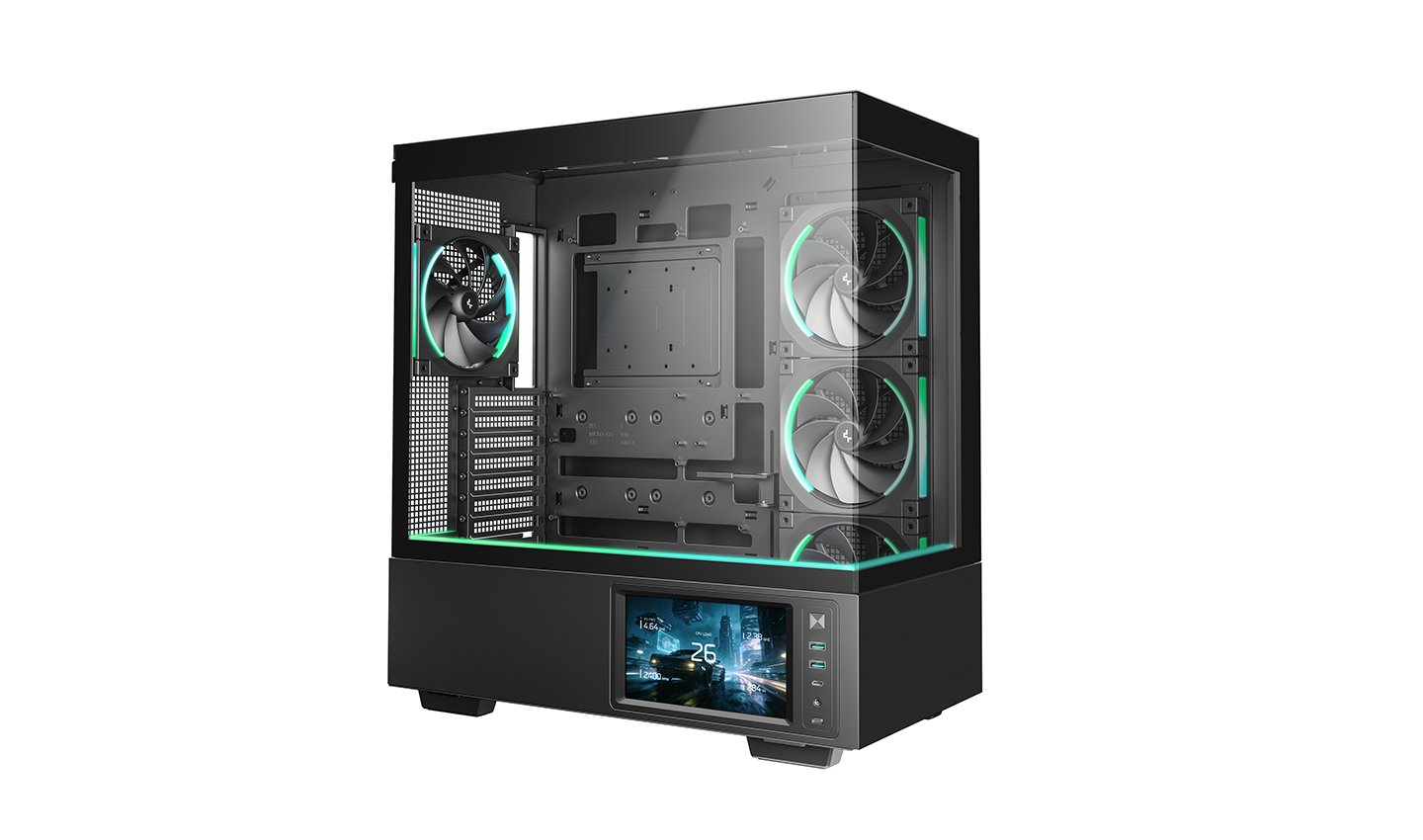

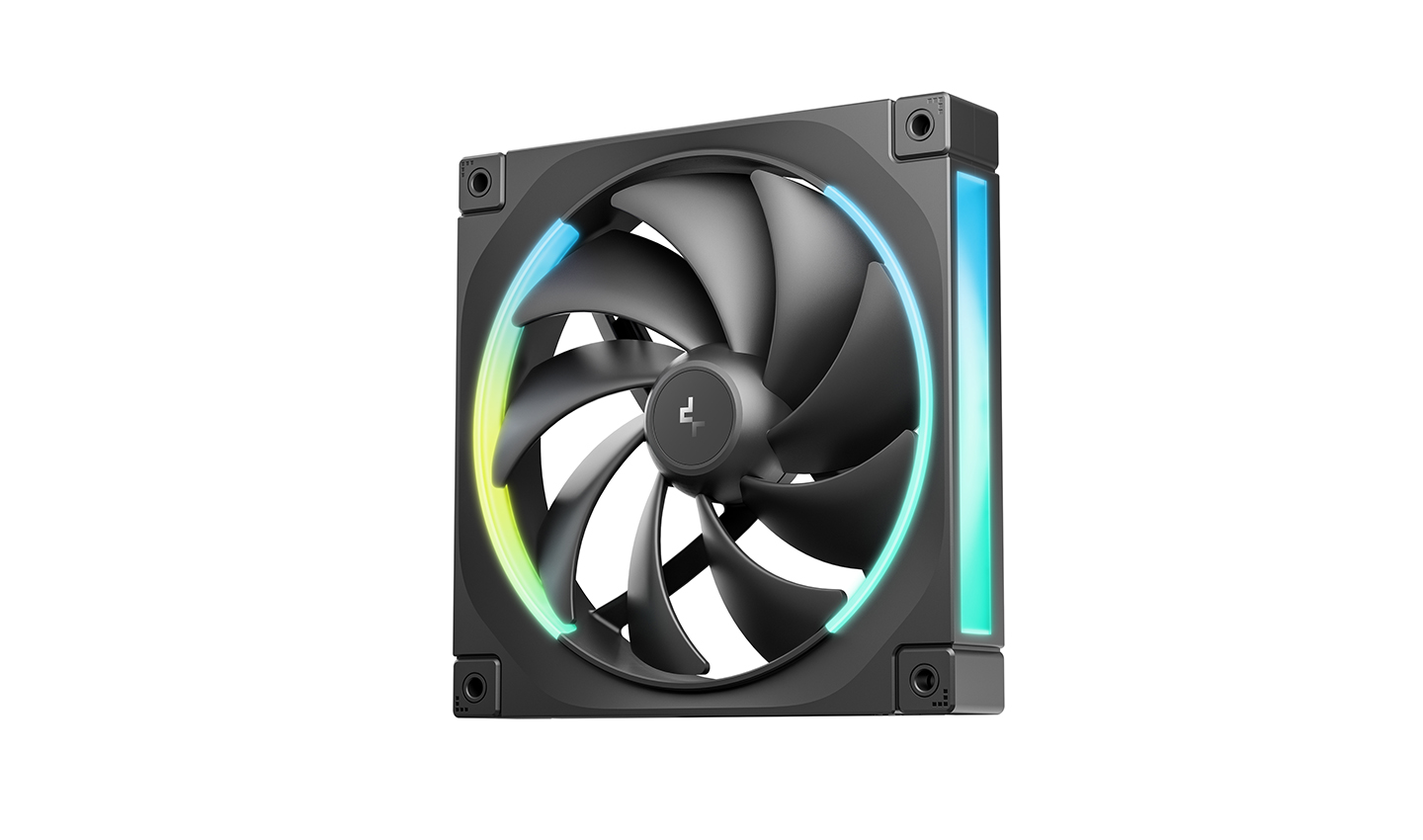

Four pre-installed ARGB fans and an integrated light strip work together to deliver a richer, more cohesive glow throughout the build.

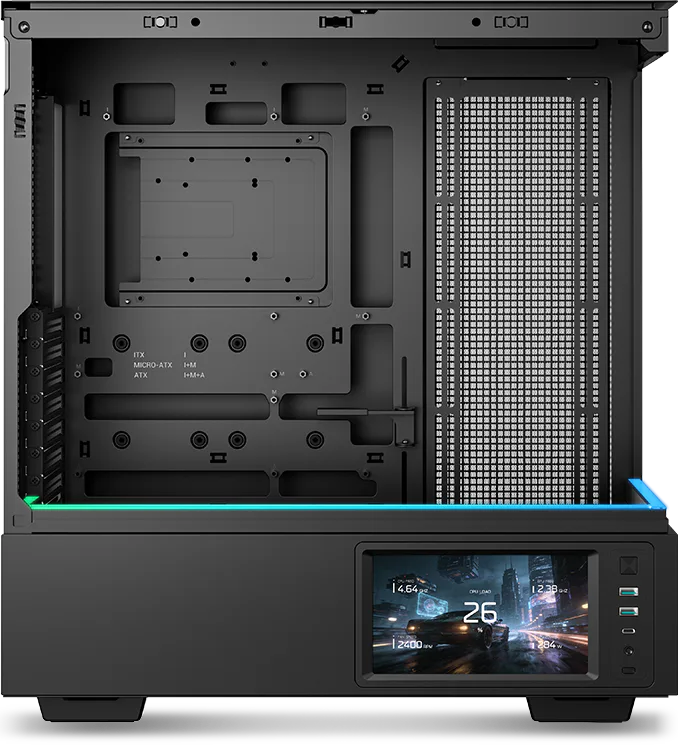

7-INCH CUSTOM DISPLAY

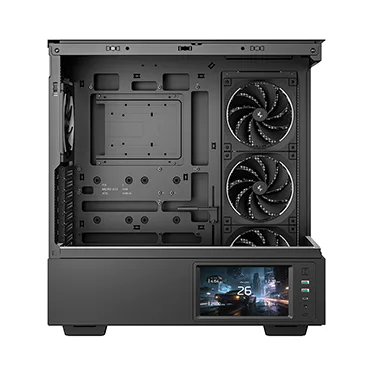

The 7” LCD display with 1024×600 resolution and 500 nits brightness brings system information and personalized visuals to life, all controlled through DeepCreative software.
MONITORING
MEDIA
D-CAST

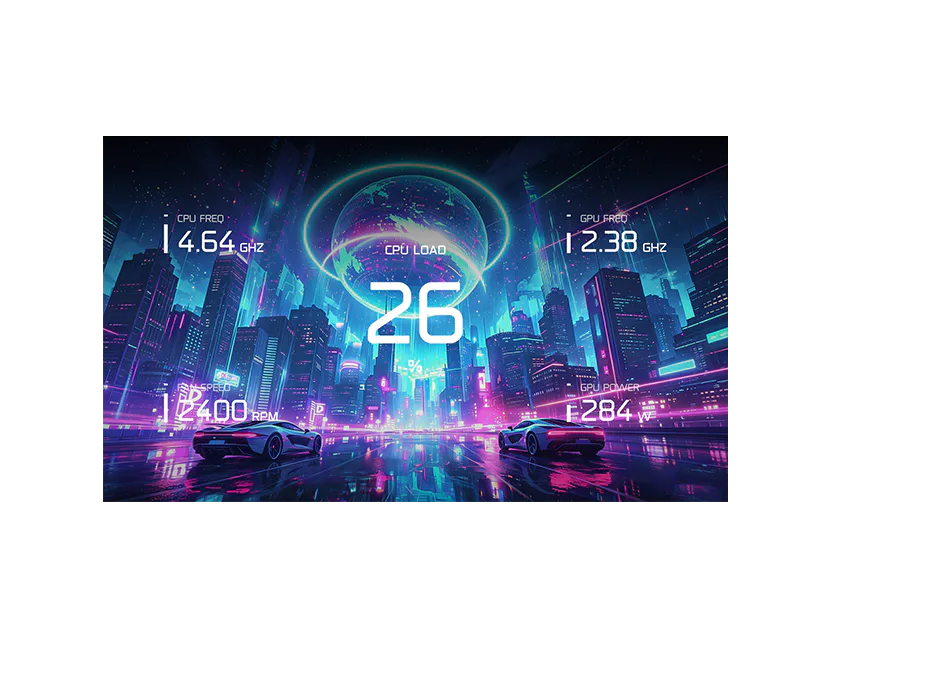

Monitoring Mode keeps essential system stats clear at a glance. A primary display area can be set to highlight key information such as CPU metrics or time, while secondary fields show additional CPU, GPU, and fan details.
Upload JPG or PNG images, play animated GIFs, or showcase video content to bring motion and personality to your build.
D-Cast allows the screen to function as a secondary display for extra visuals, status panels, or creative elements.

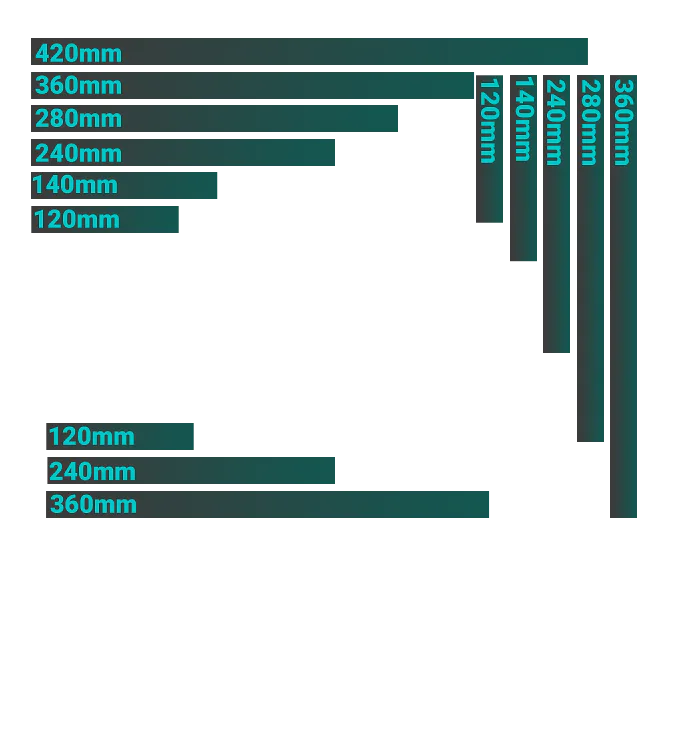

Radiators Support:
Top: 120/140/240/280/360/420mm
Side: 120/140/240/280/360mm
PSU Shrouded: 120/240/360mm

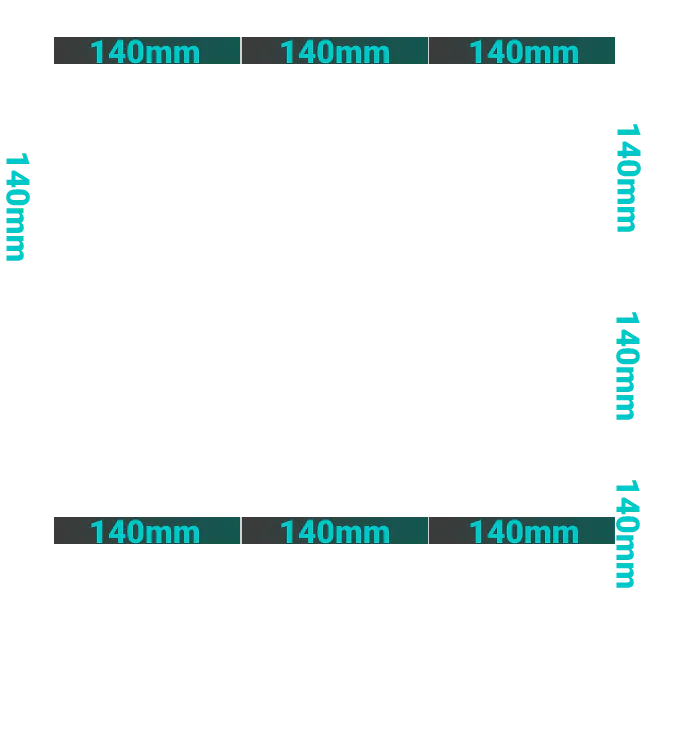

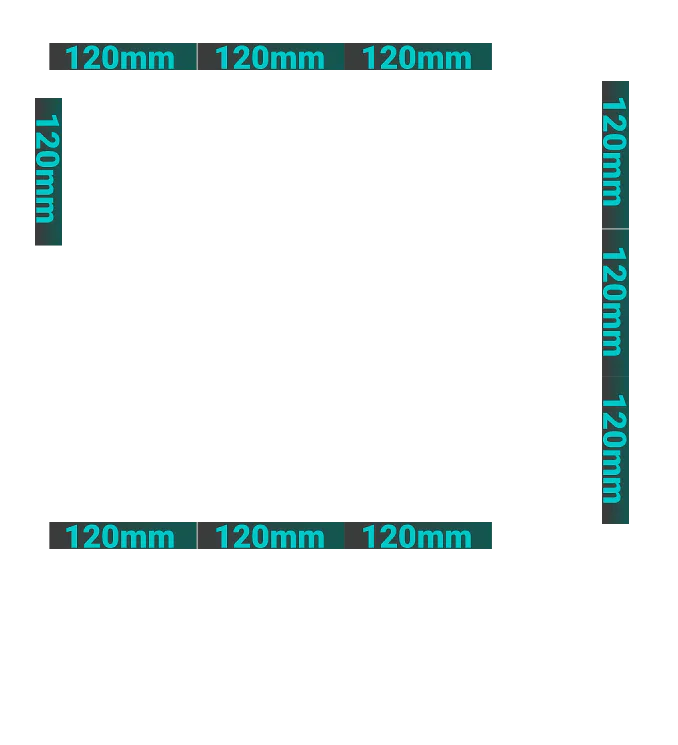

Fan Support:
Top: 3×120mm / 3×140mm
Side: 3×120mm / 3×140mm
PSU Shrouded: 3×120mm / 3×140mm
Rear: 1×120mm / 1×140mm
POWERFUL COOLING SUPPORT

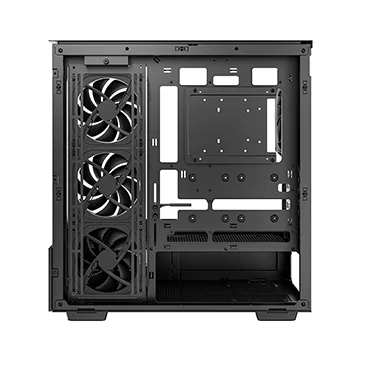

Designed for strong airflow and flexible cooling, the CH690 LCD is ready for demanding builds. It supports radiators up to 420mm on the top and 360mm on the side or PSU shroud, with room for up to ten 120mm or 140mm fans for powerful overall ventilation.
Radiators
120mm Fans
140mm Fans
YES IT FITS

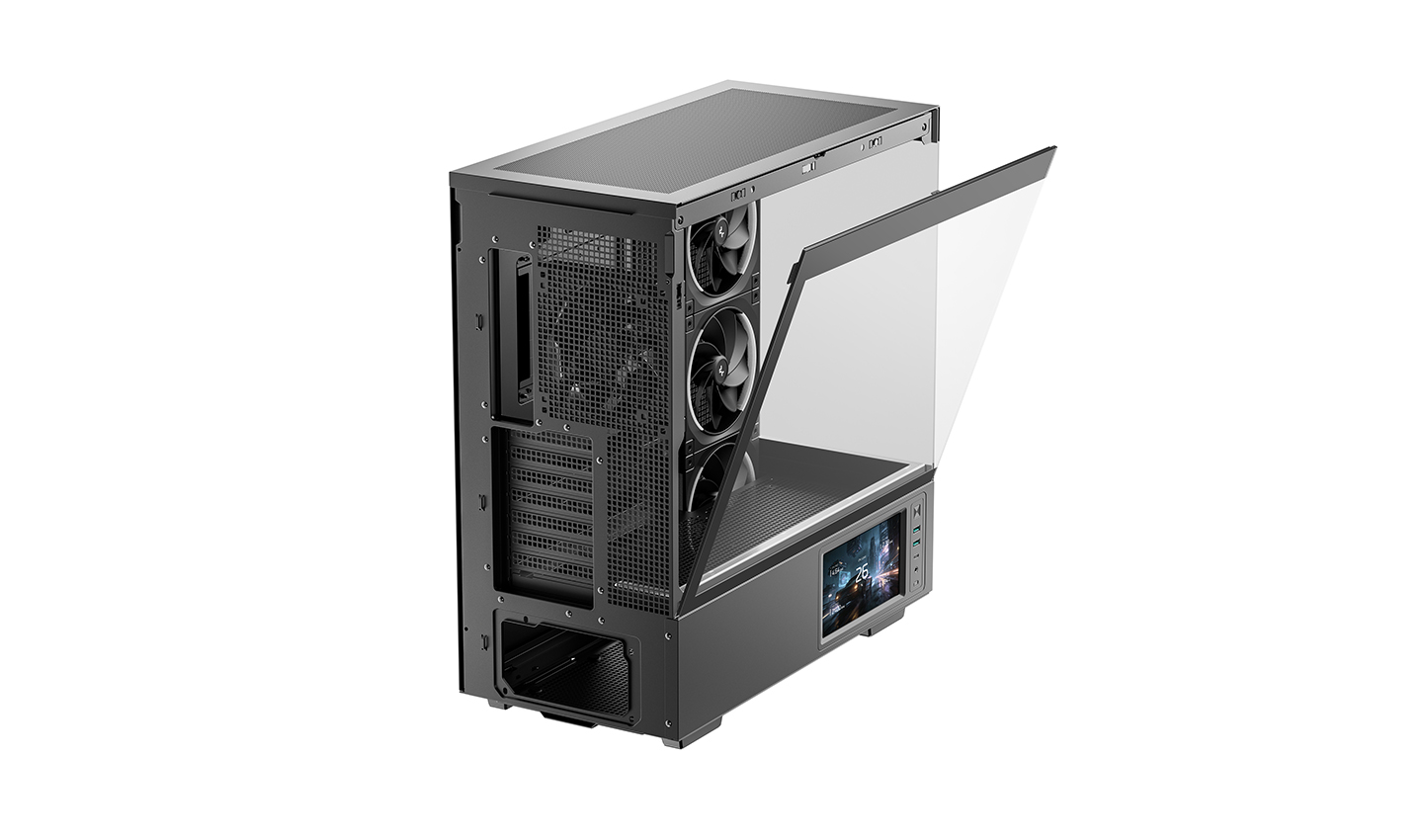

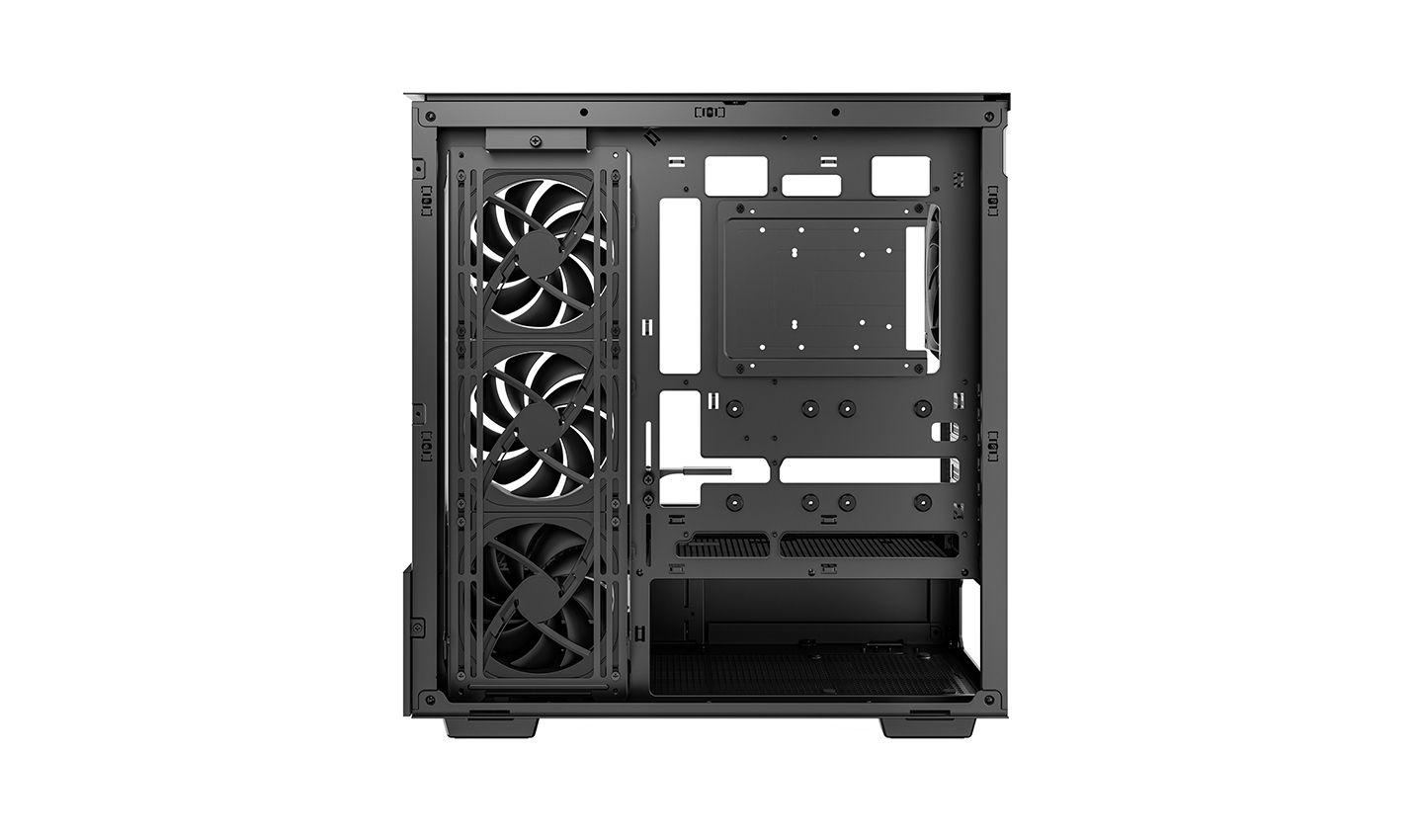

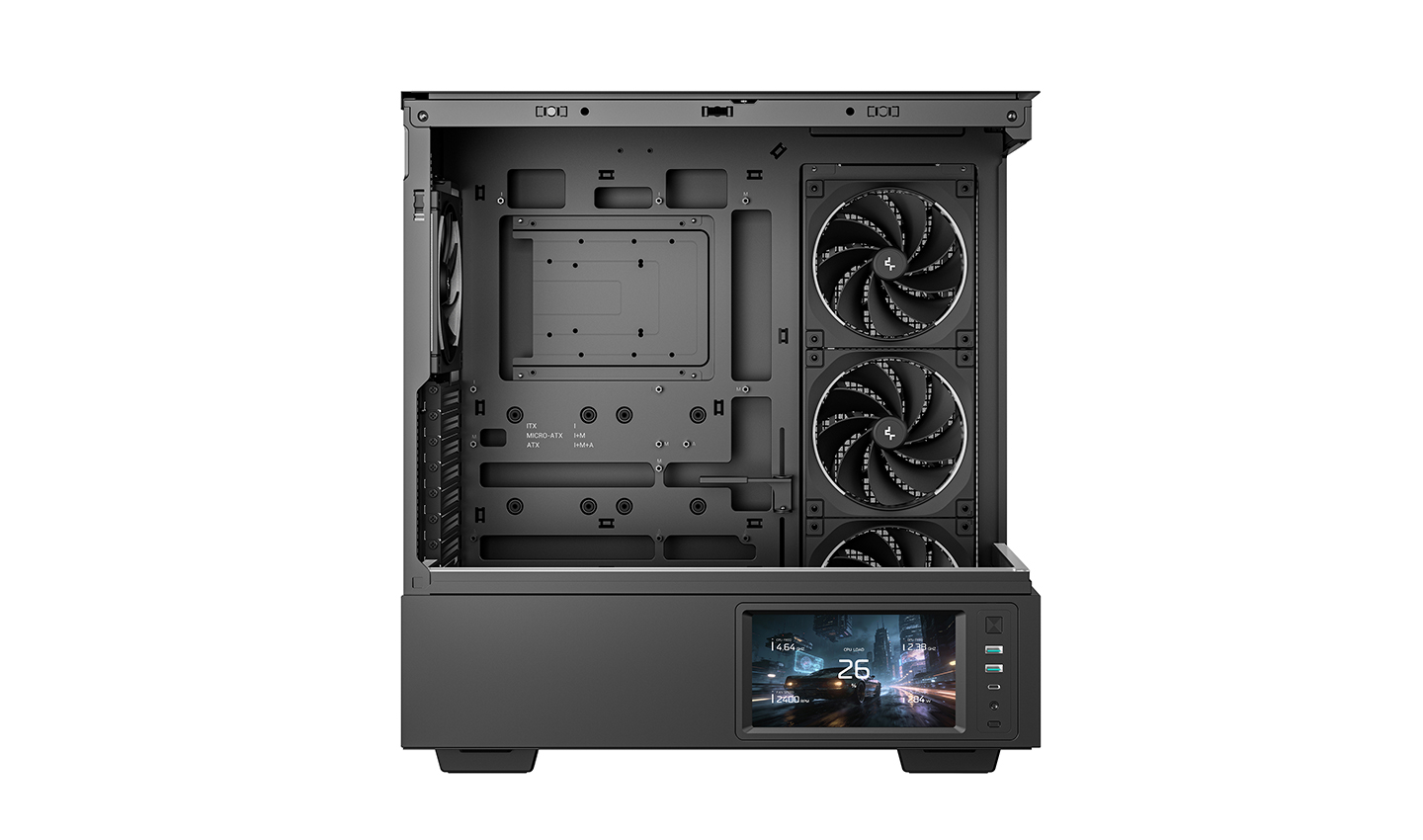

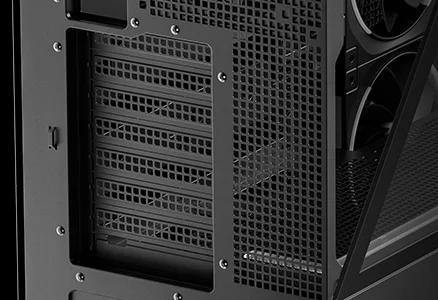

The CH690 LCD offers broad hardware compatibility, supporting GPUs up to 450mm long, PSUs up to 180mm, and air coolers up to 182mm tall for powerful cooling. It also features up to 8 removable expansion slots, along with storage support for 1 × 3.5” drive and 2 × 2.5” drives.

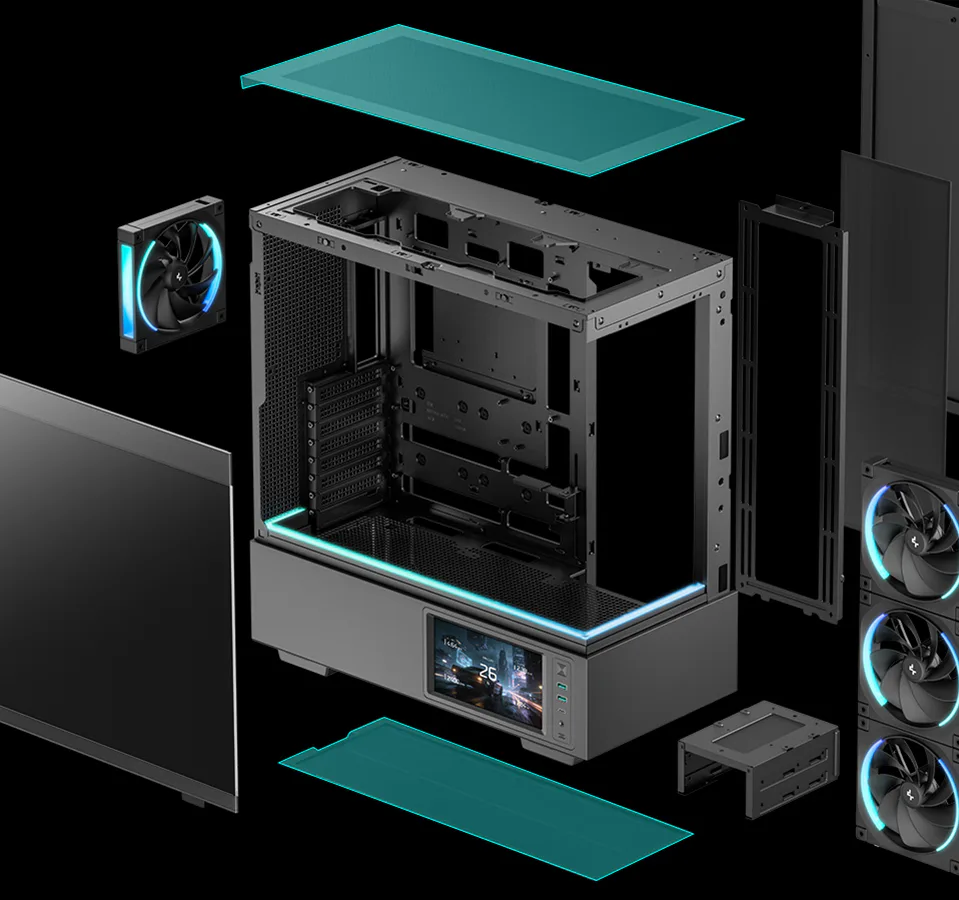

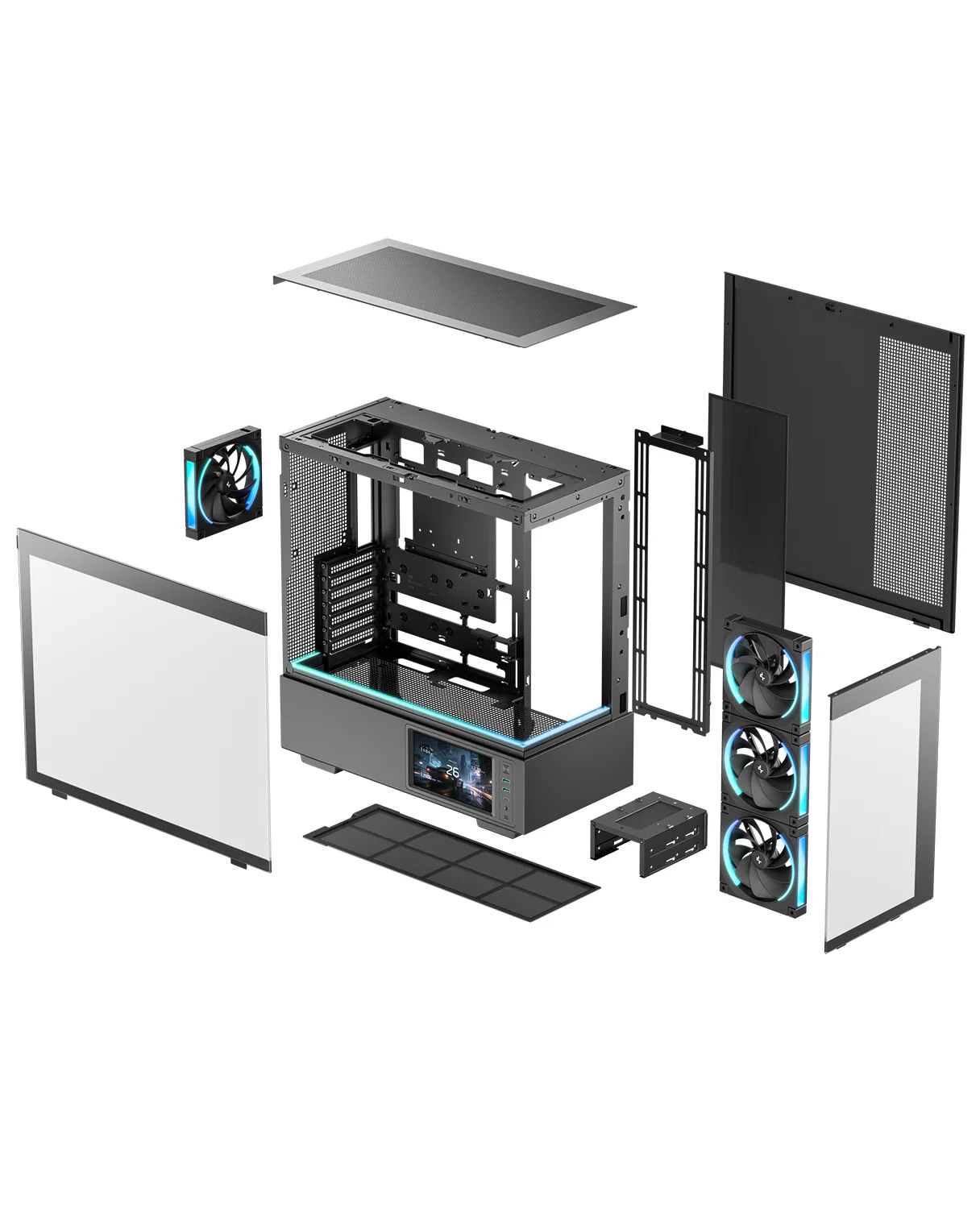

DETAILS THAT MATTER

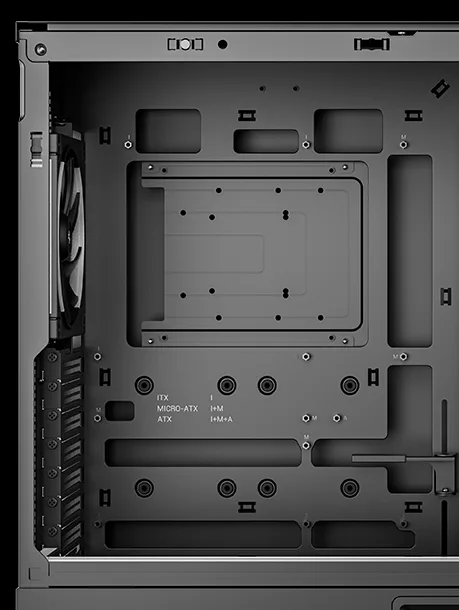

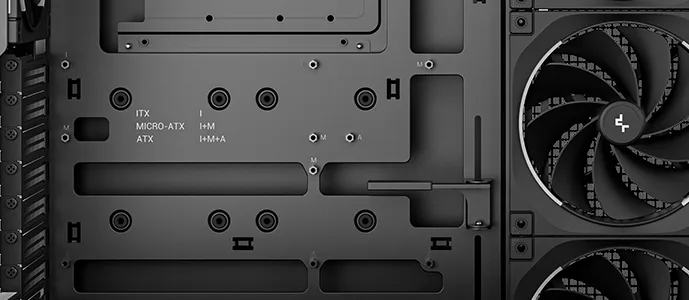

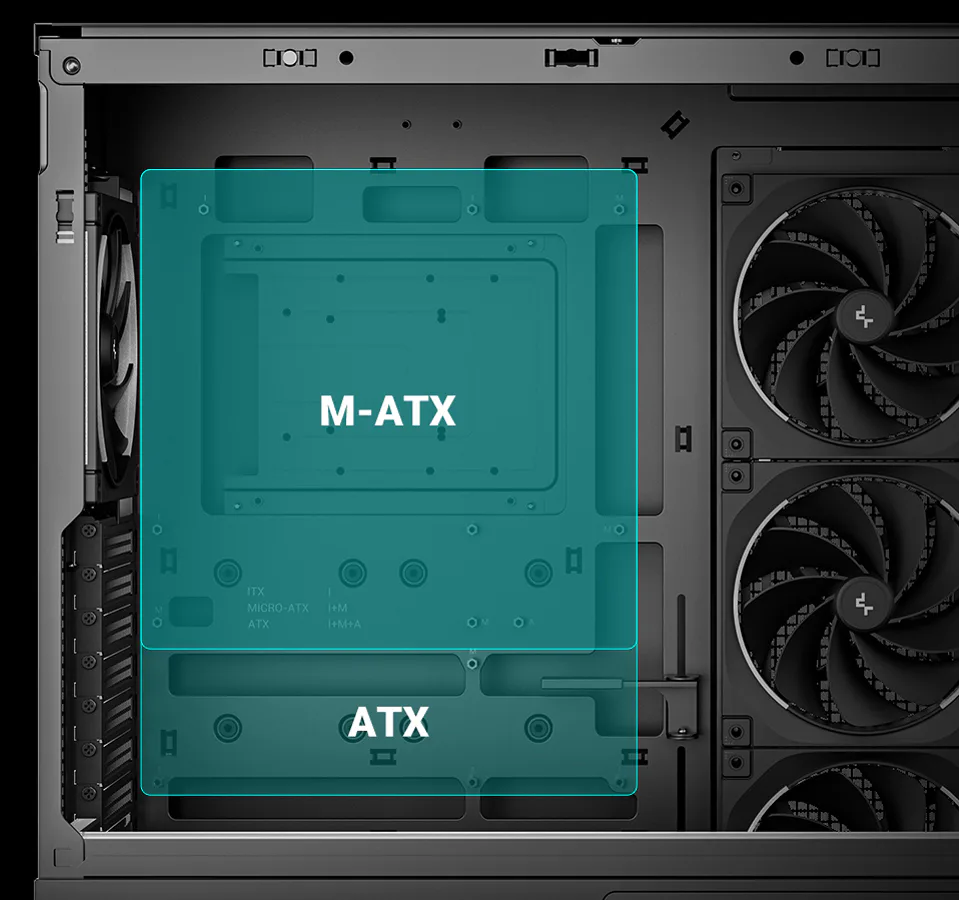

Supports M-ATX and ATX reverse connector motherboards

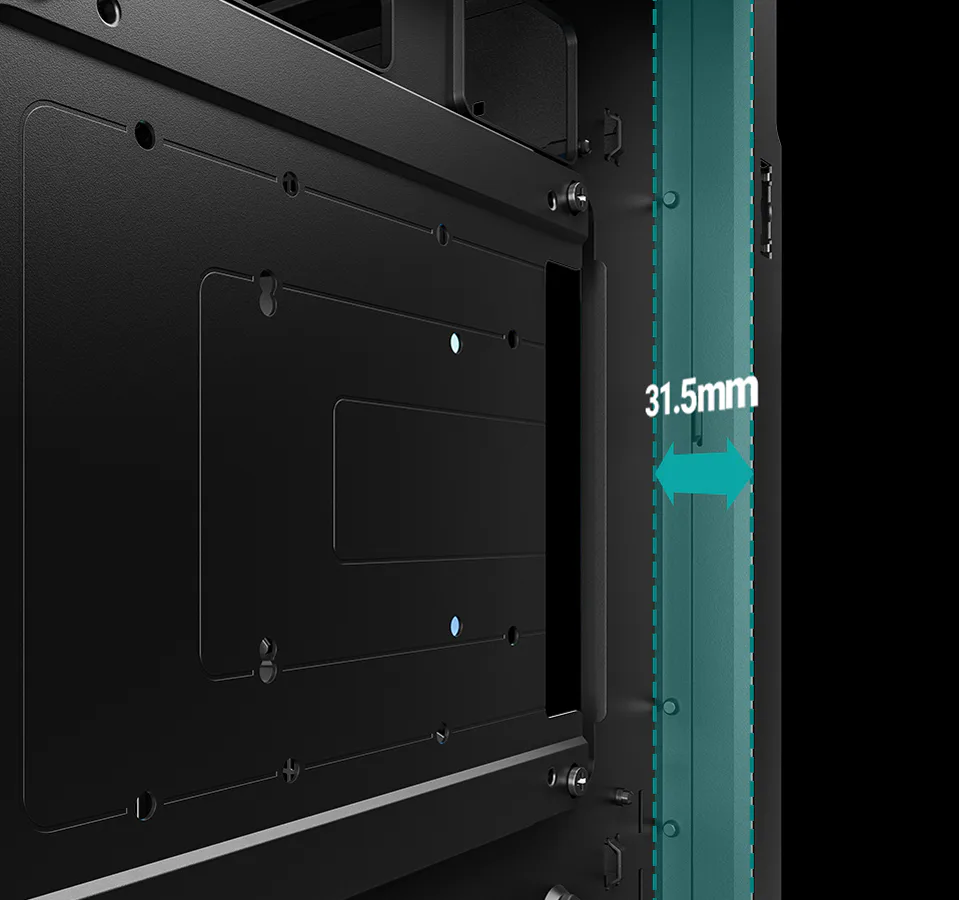

Provides 31.5mm of cable management clearance

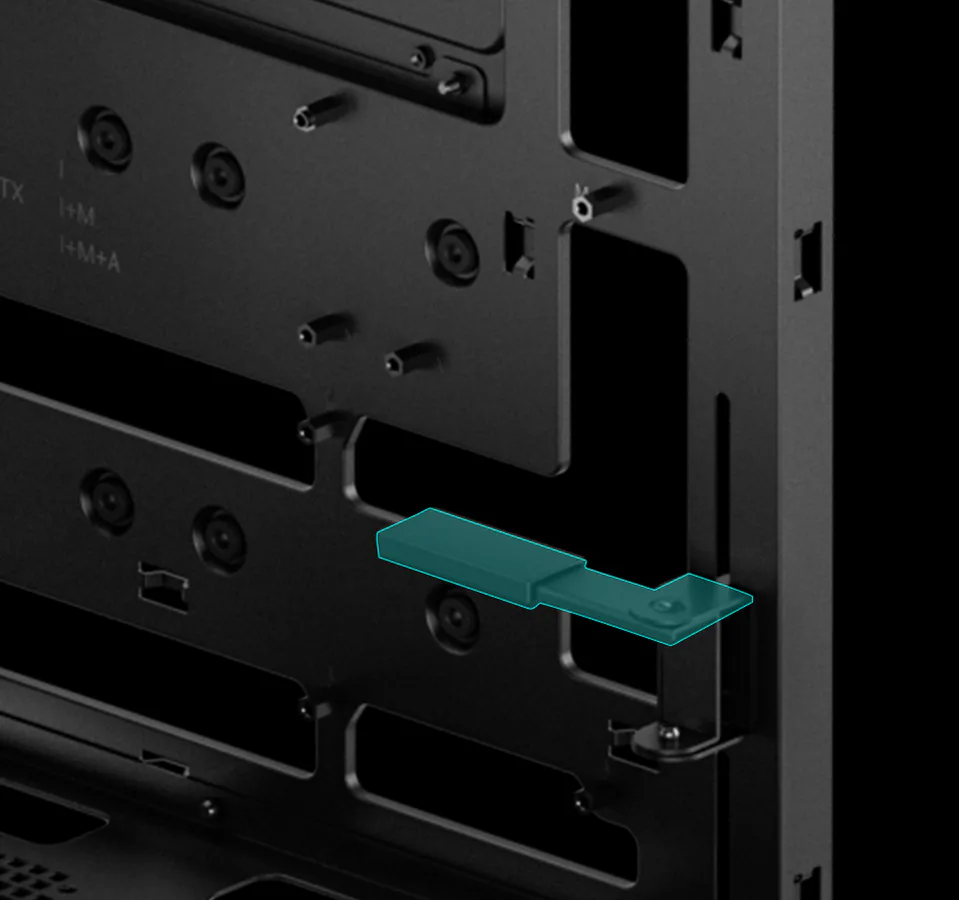

Includes a sturdy graphics card support bracket

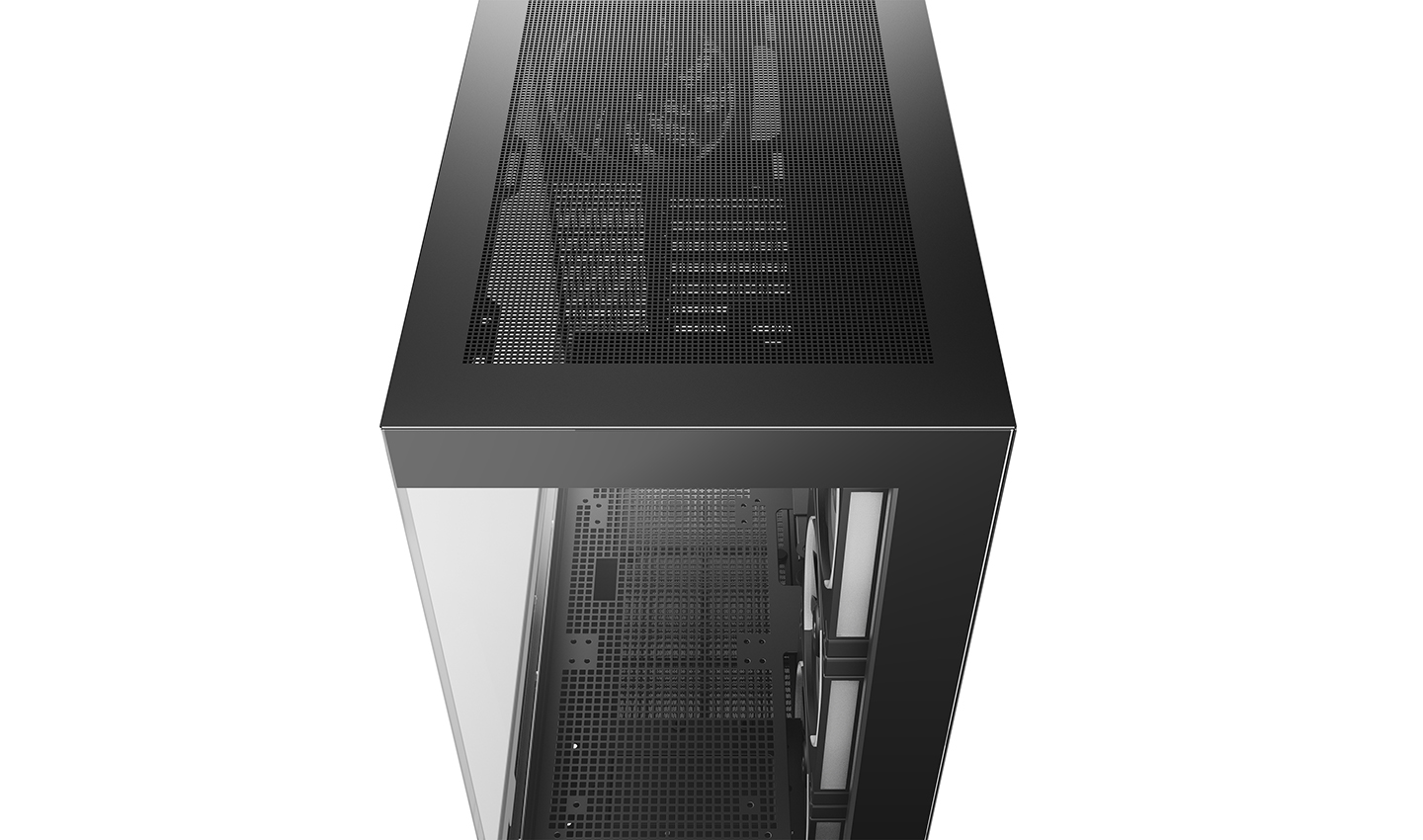

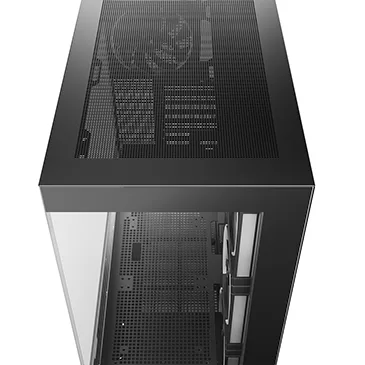

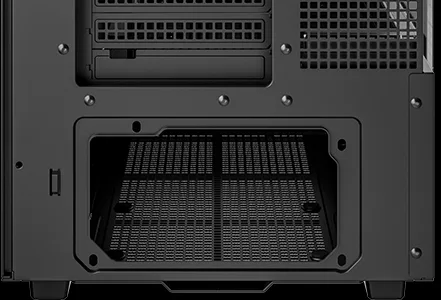

Features top and bottom dust filters
EASY I/O ACCESS

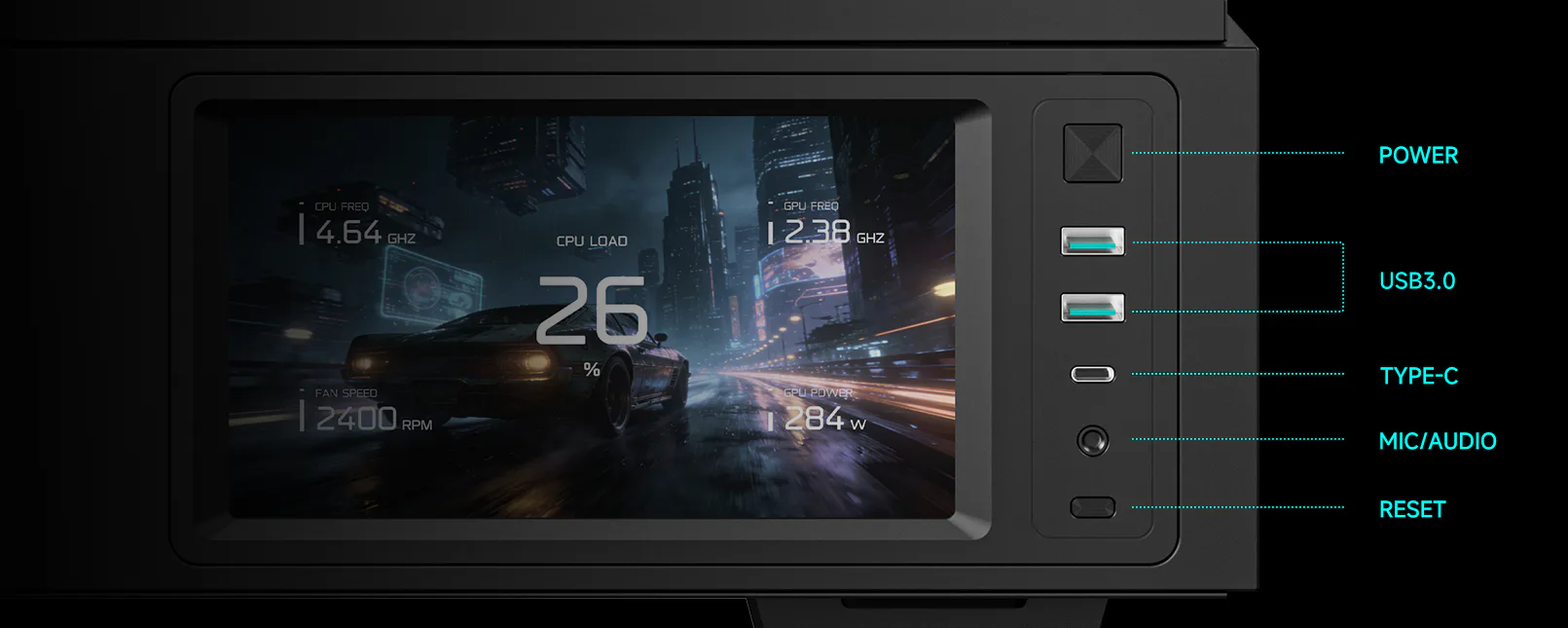

The I/O panel provides convenient access with two USB 3.0 ports, a Gen2 Type-C port, and a combined audio/mic jack.
Technical Spec
Product Dimensions481×240×516mm(L×W×H)
Net Weight10.5Kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportMini-ITX / Micro-ATX / ATX
ATX(Rear Connector)/Micro-ATX(Rear Connector)
Front I/O PortsUSB3.0×2、Gen2 Type-C x1、Audio/Mic×1
3.5" Drive Bays1
2.5" Drive Bays2+1
Expansion Slots8Slots
Pre-Installed FansSide: 3×140mm
Rear: 1×140mm
Fan SupportFront:NA
Top:3×120 / 3×140mm
Side:3×120 / 3×140mm
PSU Shroud :3×120 / 3×140mm
Rear: 1×120 / 1×140mm
Radiator SupportFront: NA
Top: 120/140/240/280/360/420mm
Side: 120/140/240/280mm
Bottom: 120/240/360mm
CPU Cooler Height Limit182mm
GPU Length Limit450mm
Power Supply TypeATX PS2（maximum length: 180mm）
EAN6933412765790
P/NR-CH690LCD-BKNNA0D-G
Download
CH690 LCD Manual.pdf
