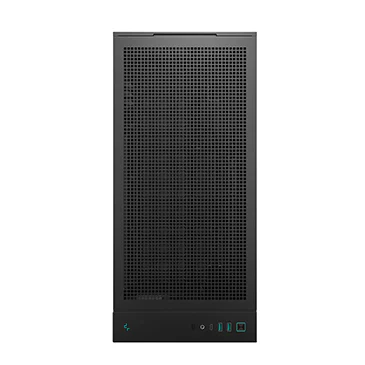

CH270

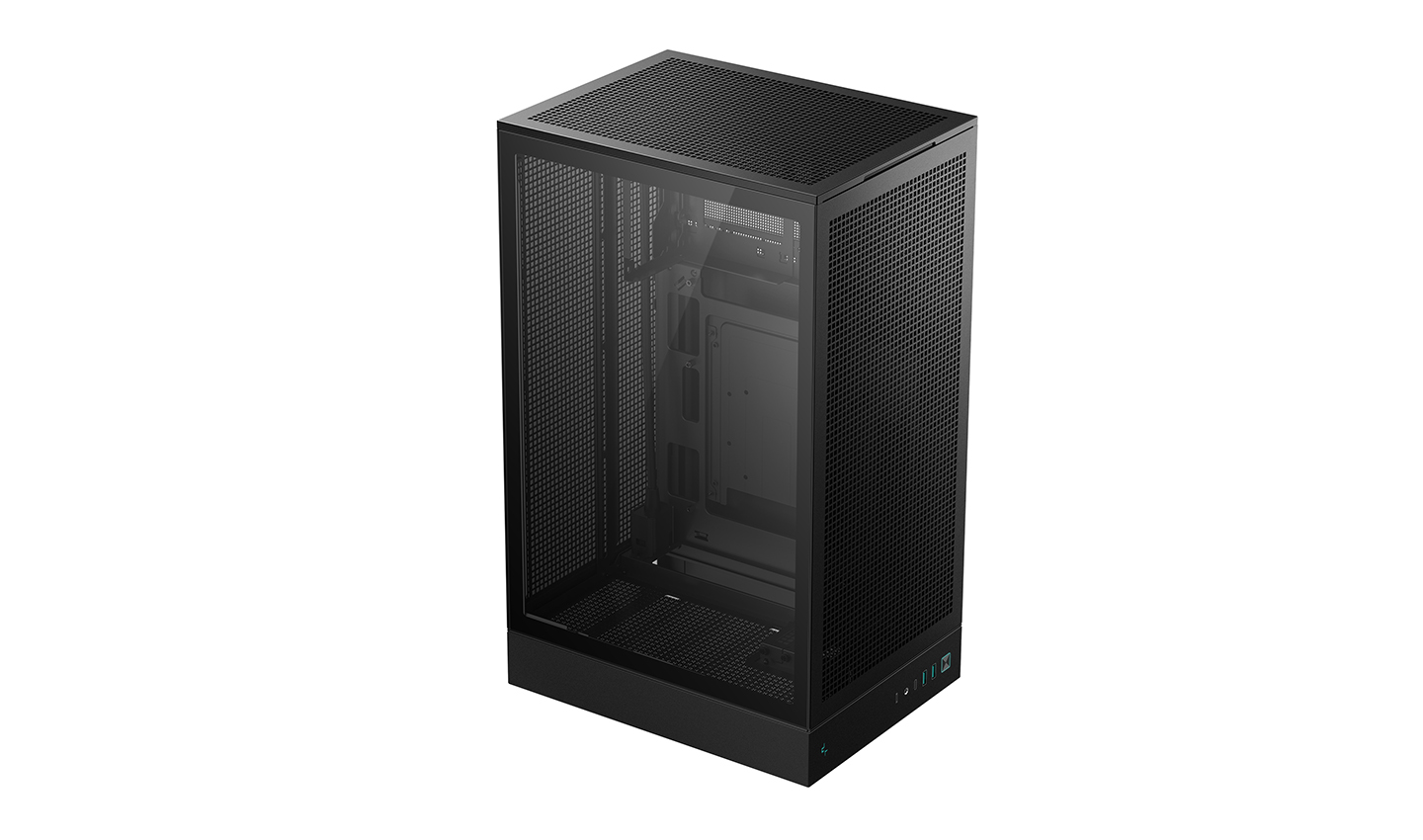

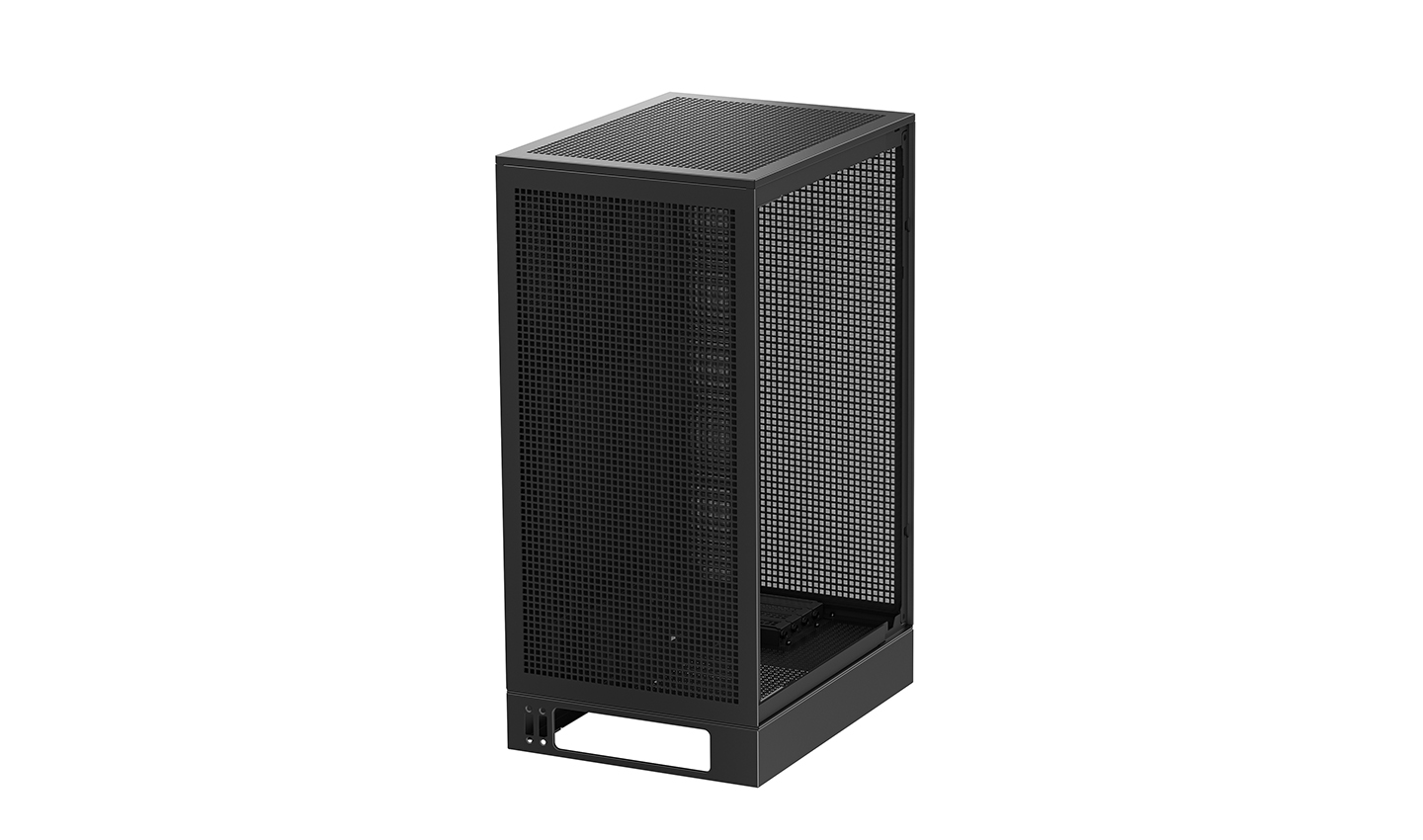

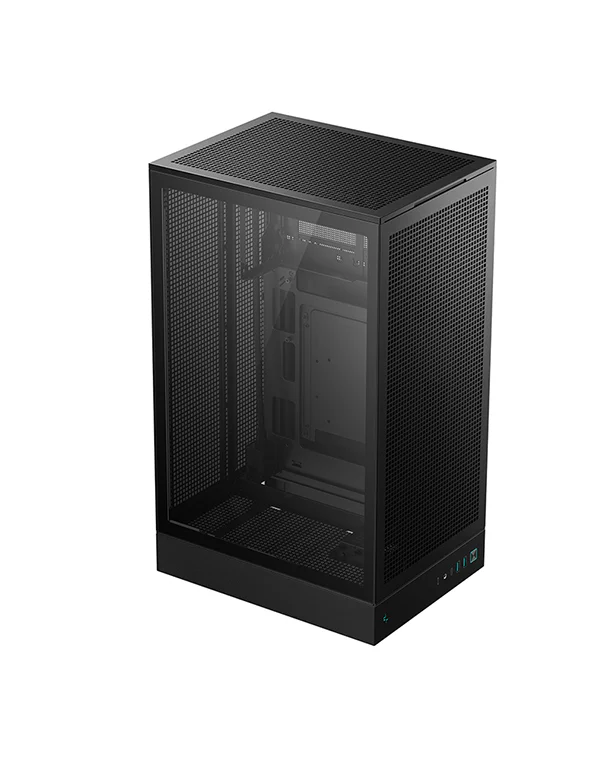

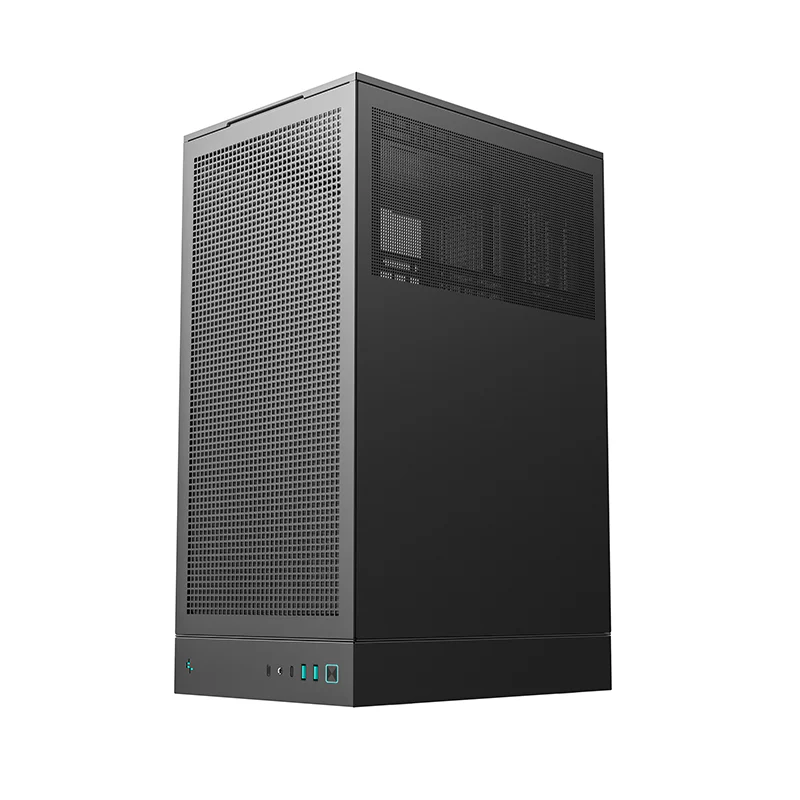

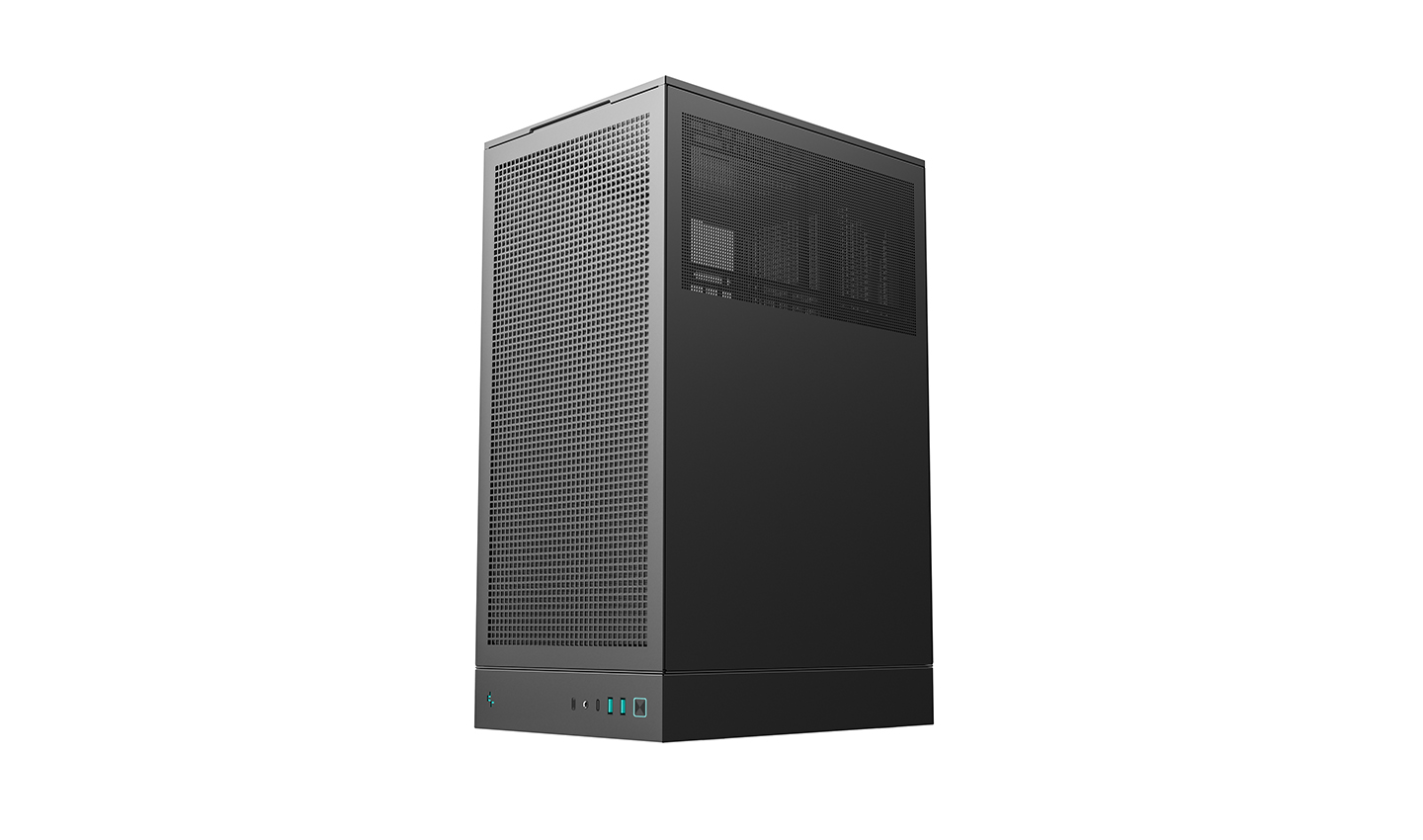

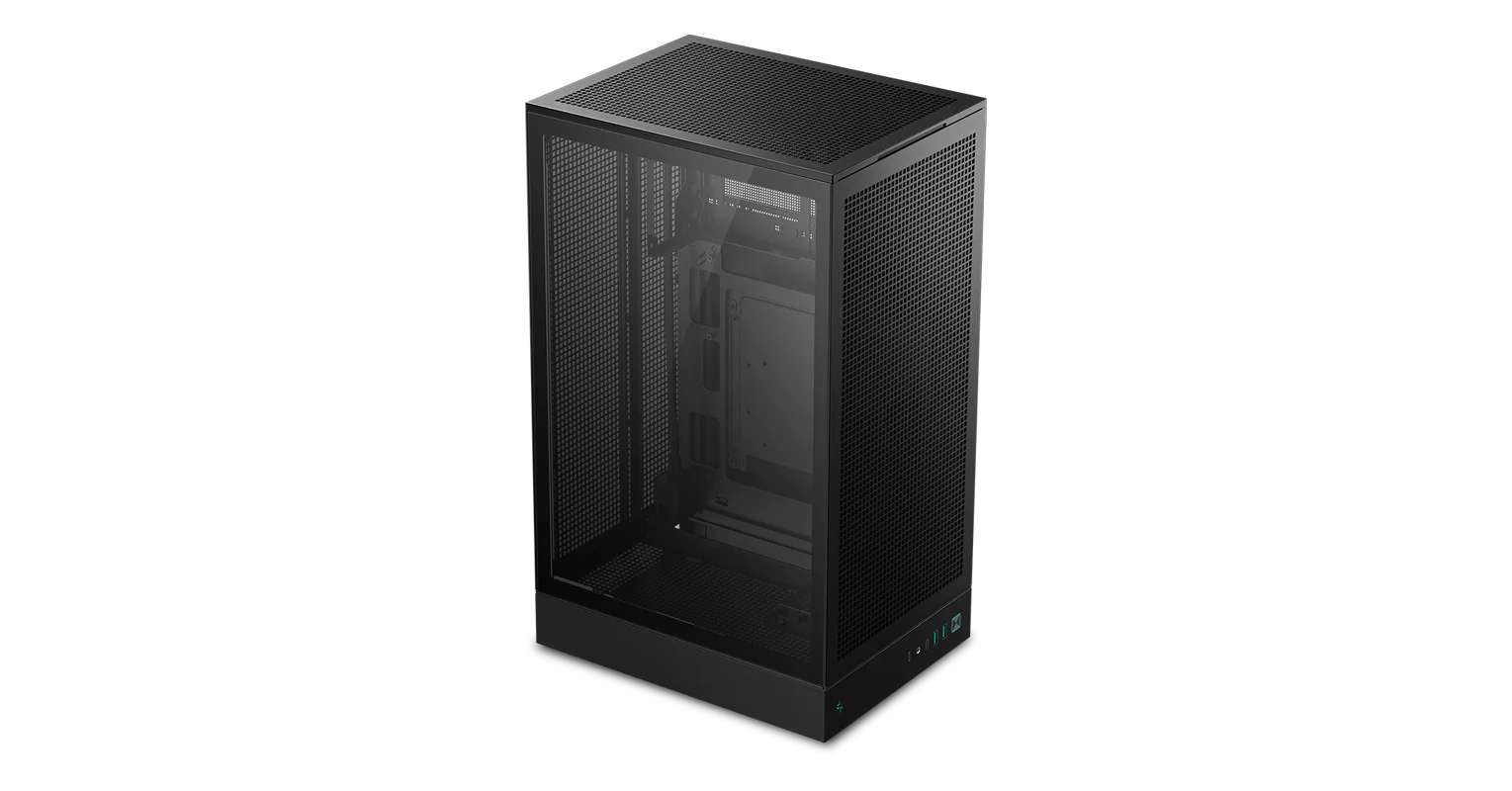

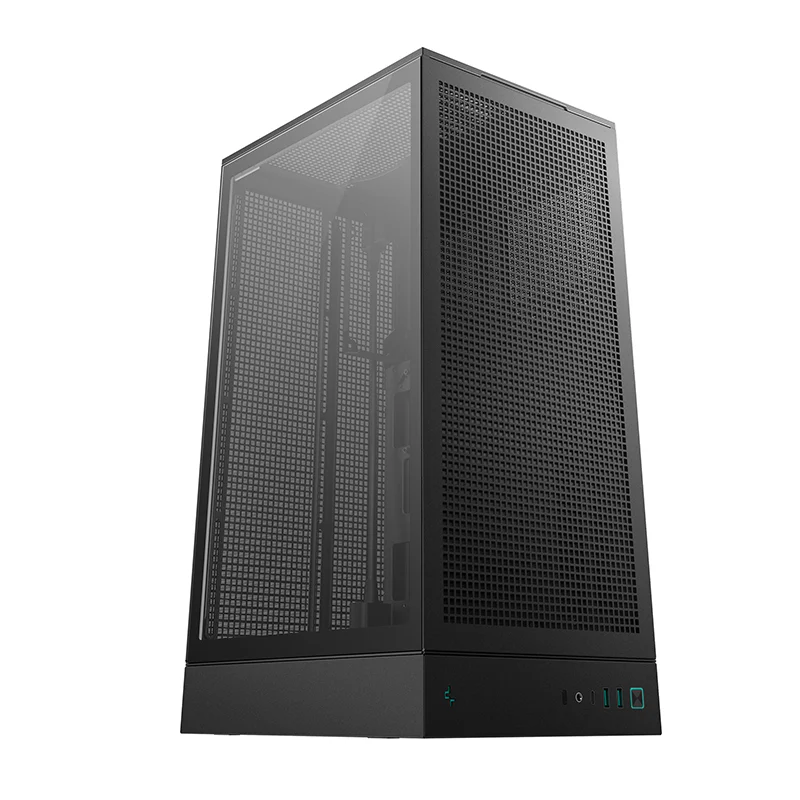

The CH270 is an elevated mid-tower case with a small footprint to save up your desktop space. It is adapted to accommodate up to M-ATX motherboards and mainstream ATX components to smooth your building experience.
COLOR
black
MODEL
CH270
LEVEL UP TO MICRO-ATX
A CLEANER TAKE ON MICRO-ATX

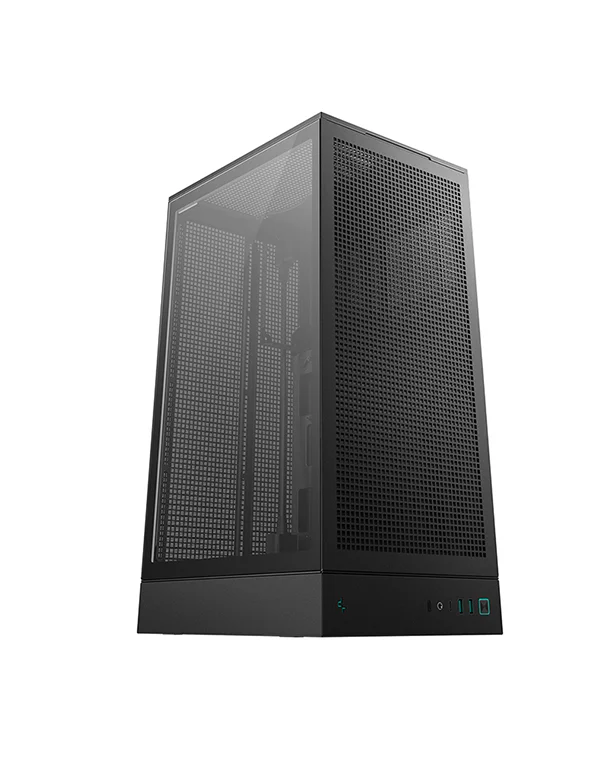

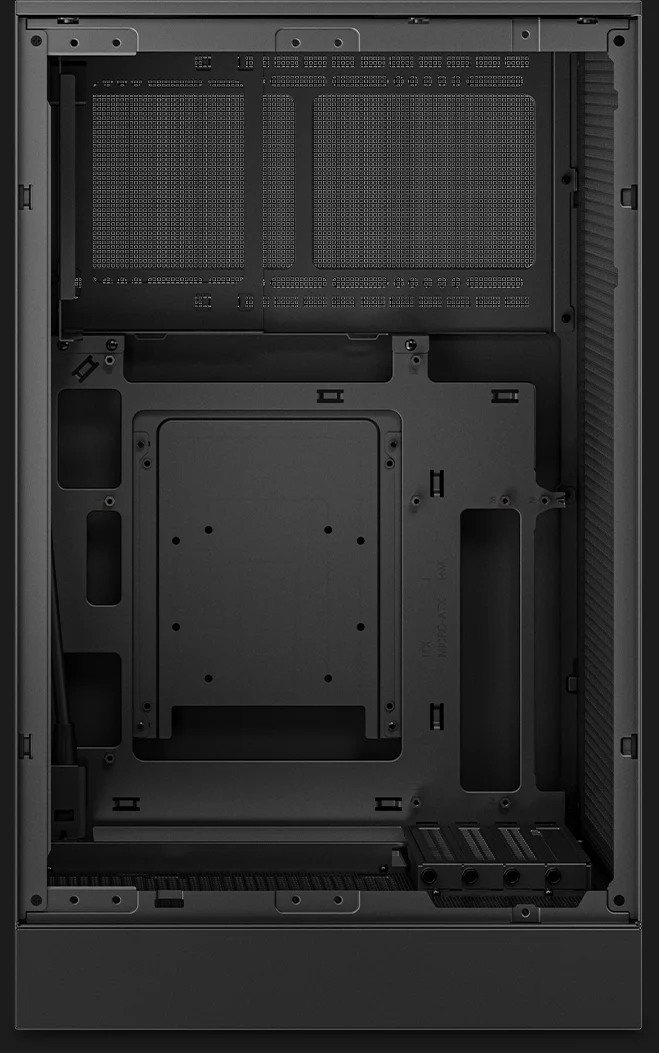

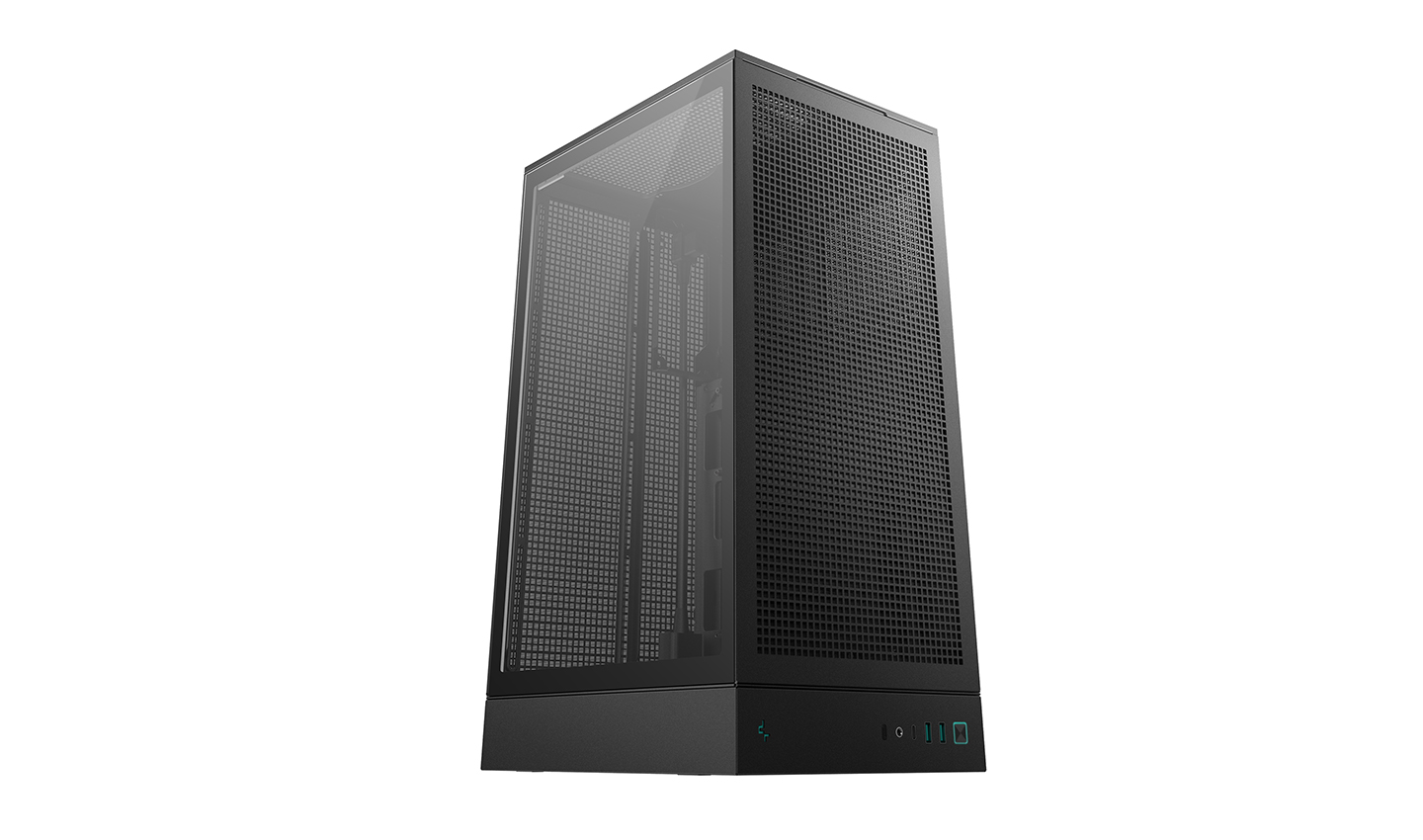

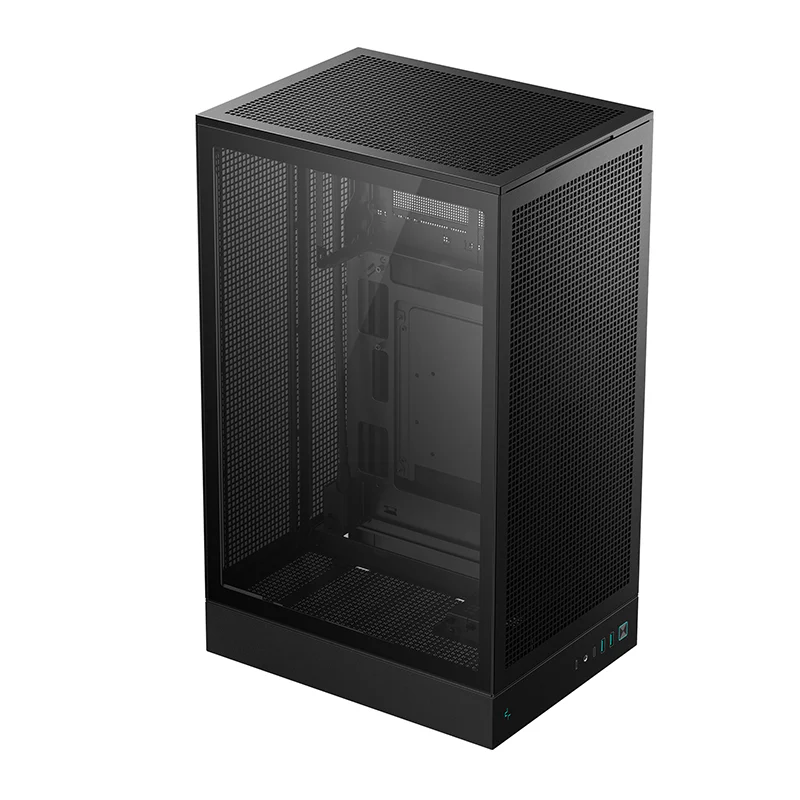

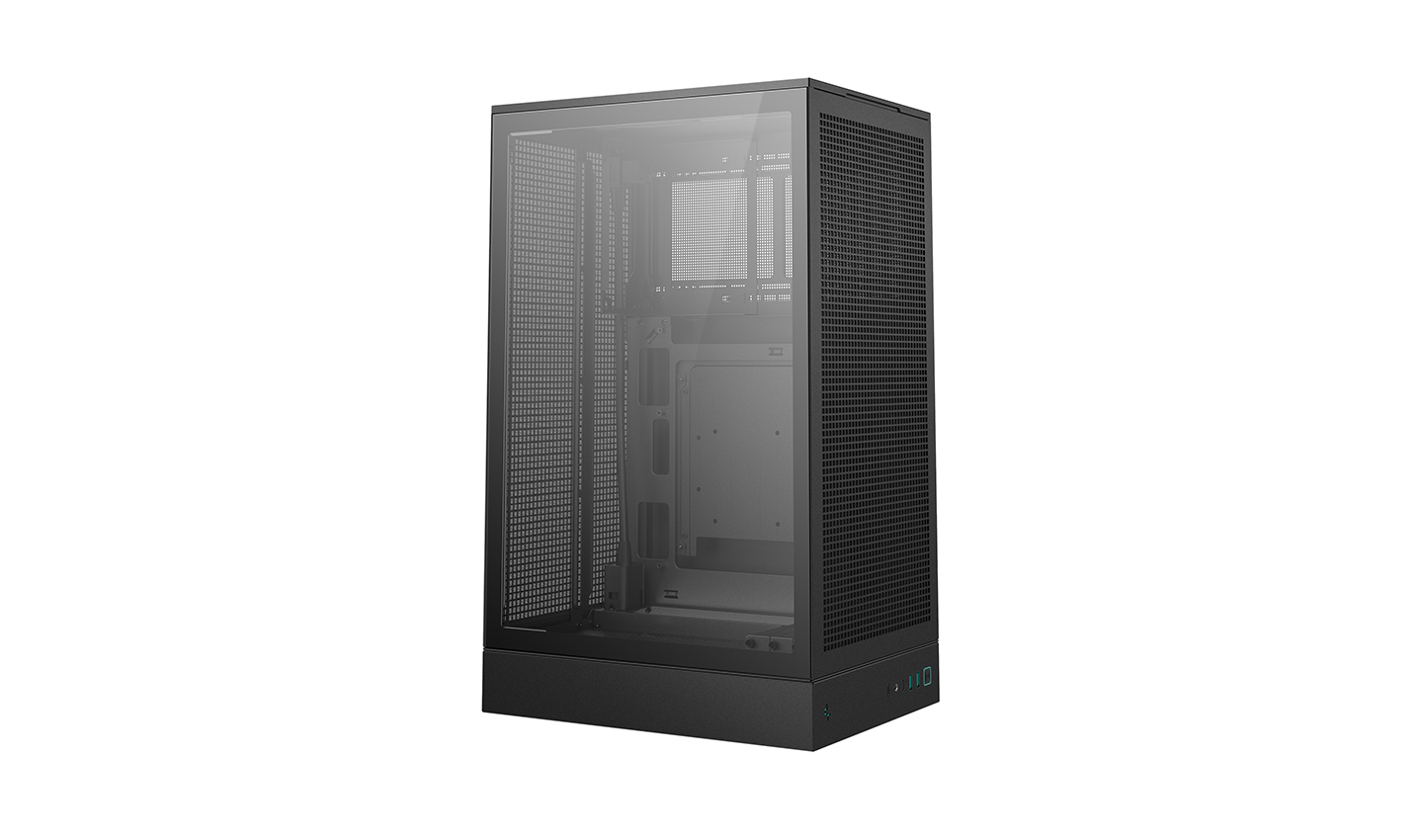

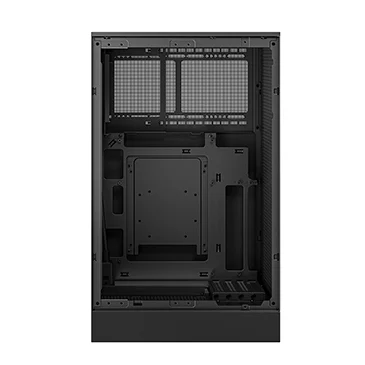

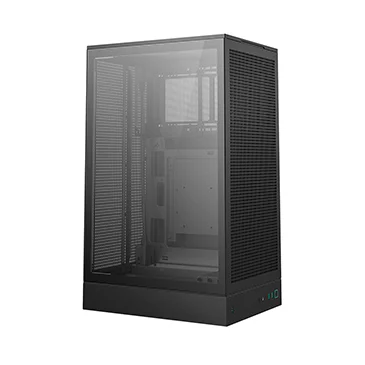

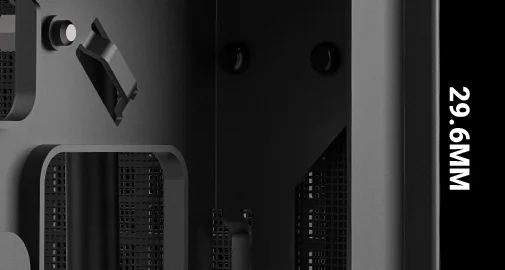

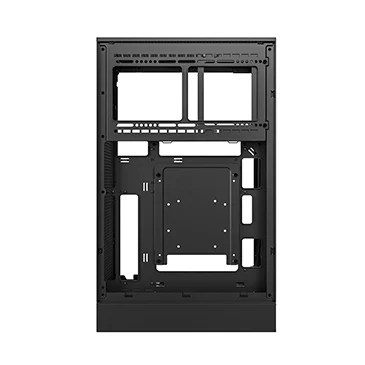

The full tempered glass side panel provides a clear view of your components, while support for reverse connector motherboards and a 29.6mm cable management area help maintaining a tidy layout, making the CH270 a clean, balanced fit for modern setups.
SMALL SIZE OUTSIDE, FULL SIZE INSIDE

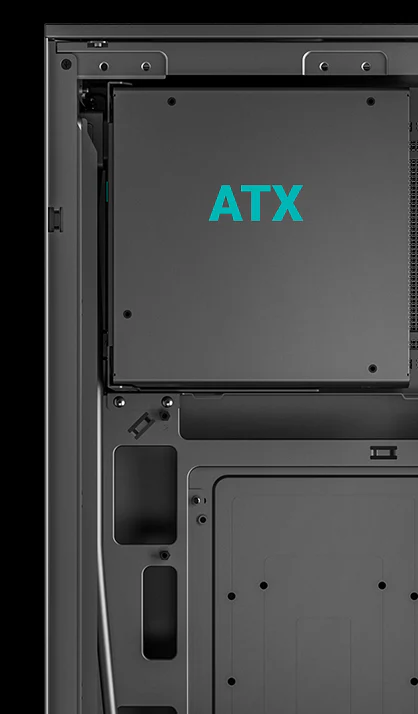

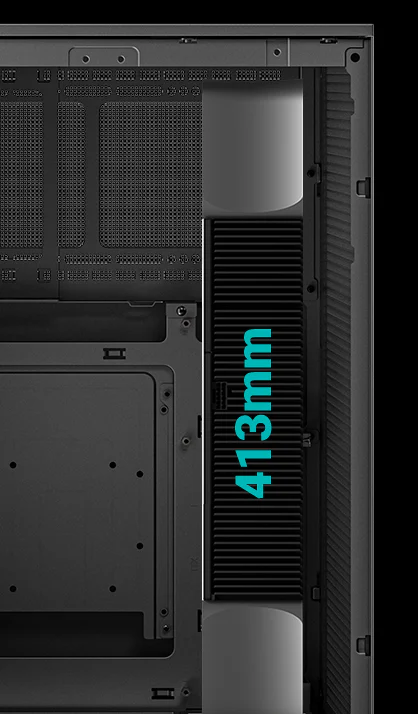

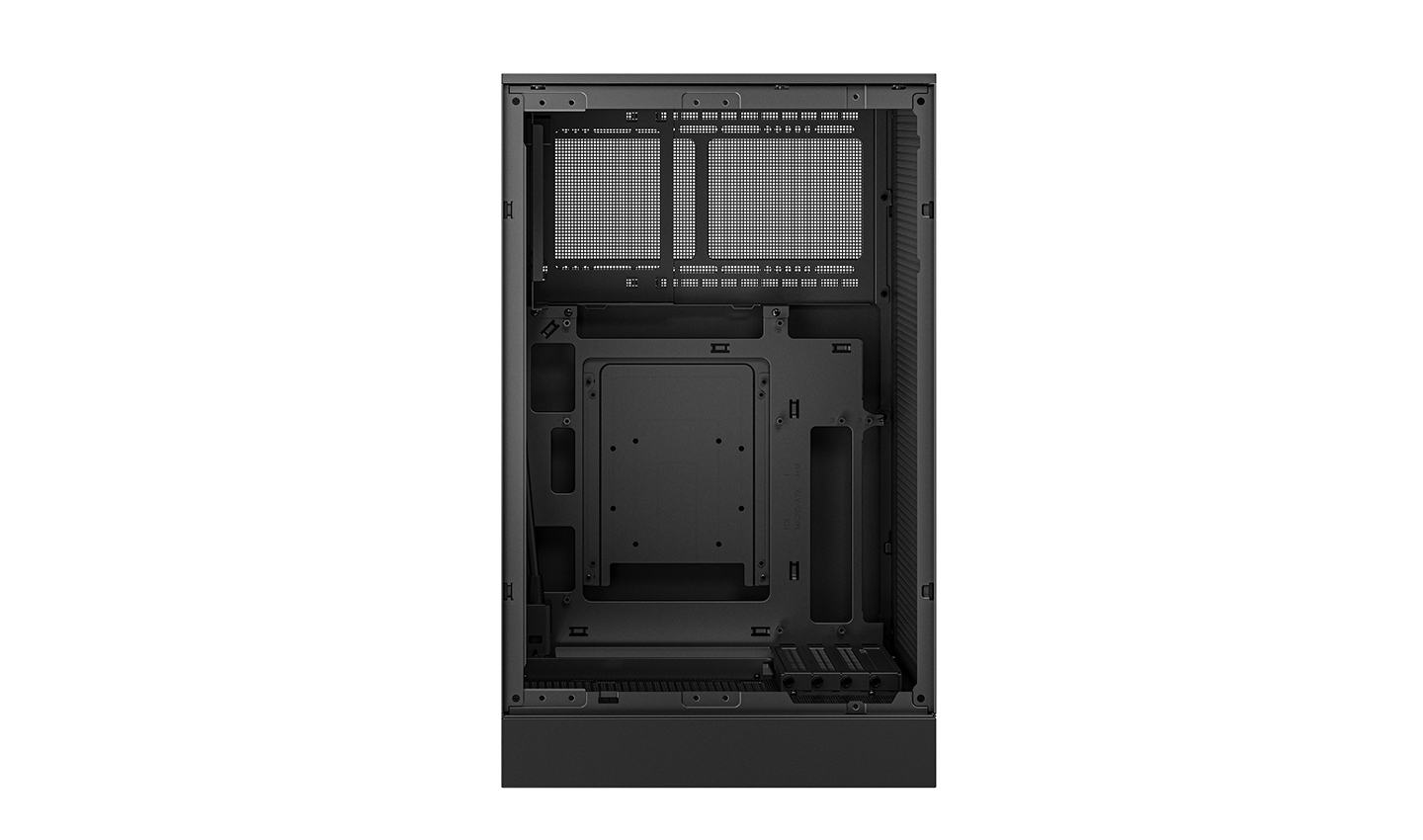

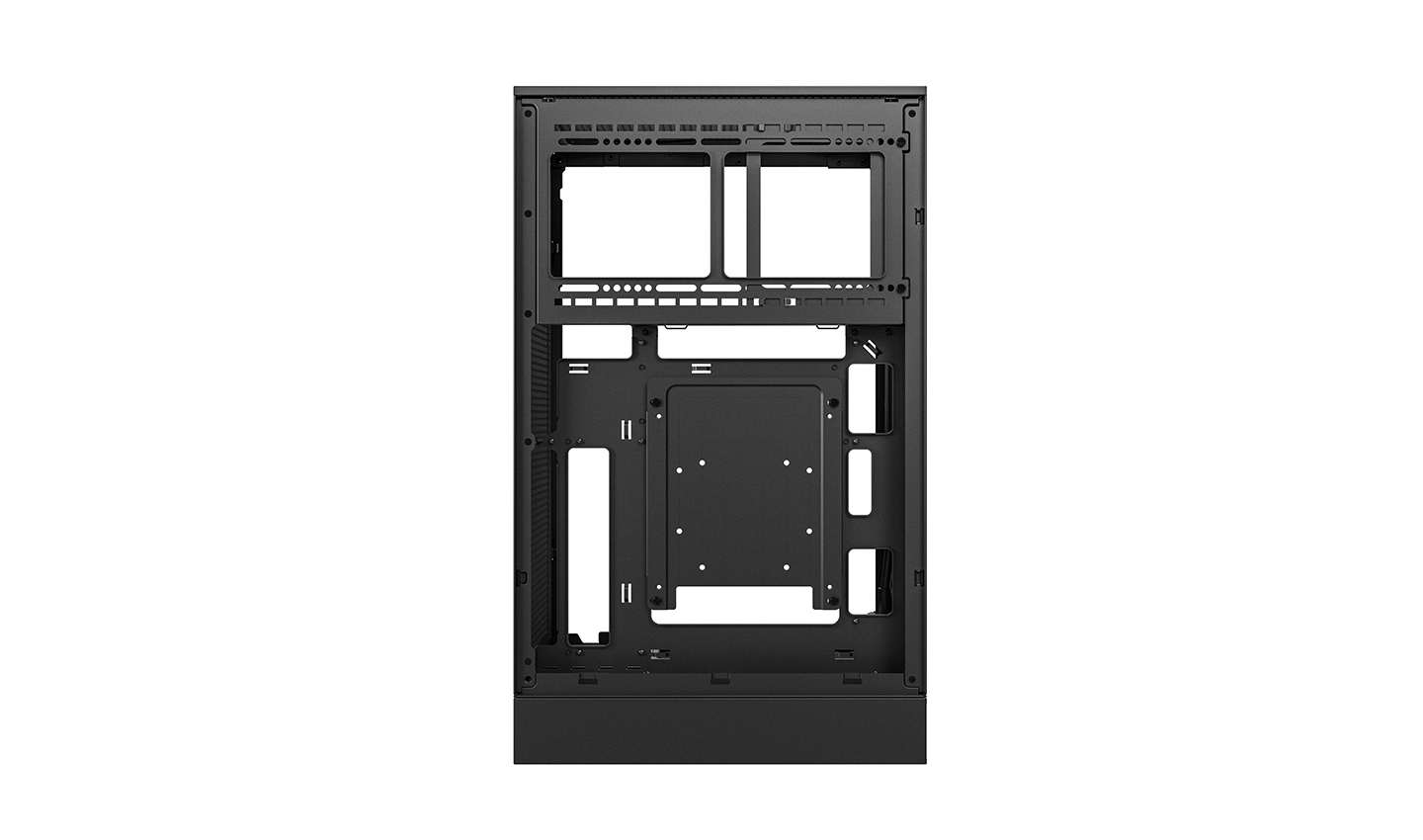

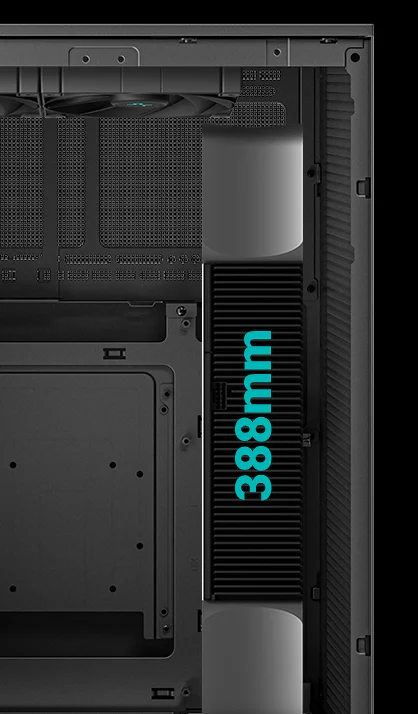

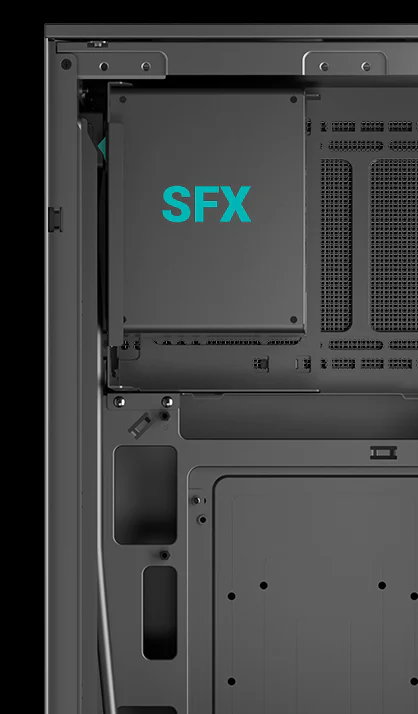

Upgraded on the precedent CH170 series, the CH270 now gives expanded options in key components compatibility that supports full-size GPU up to 388mm in length or goes even longer to 413mm without fan placement on the top. ATX PS2 power supply can also fit into the case with a removable mounting bracket to free up space for easy cable management.
UNCOMPROMISED VENTILATION

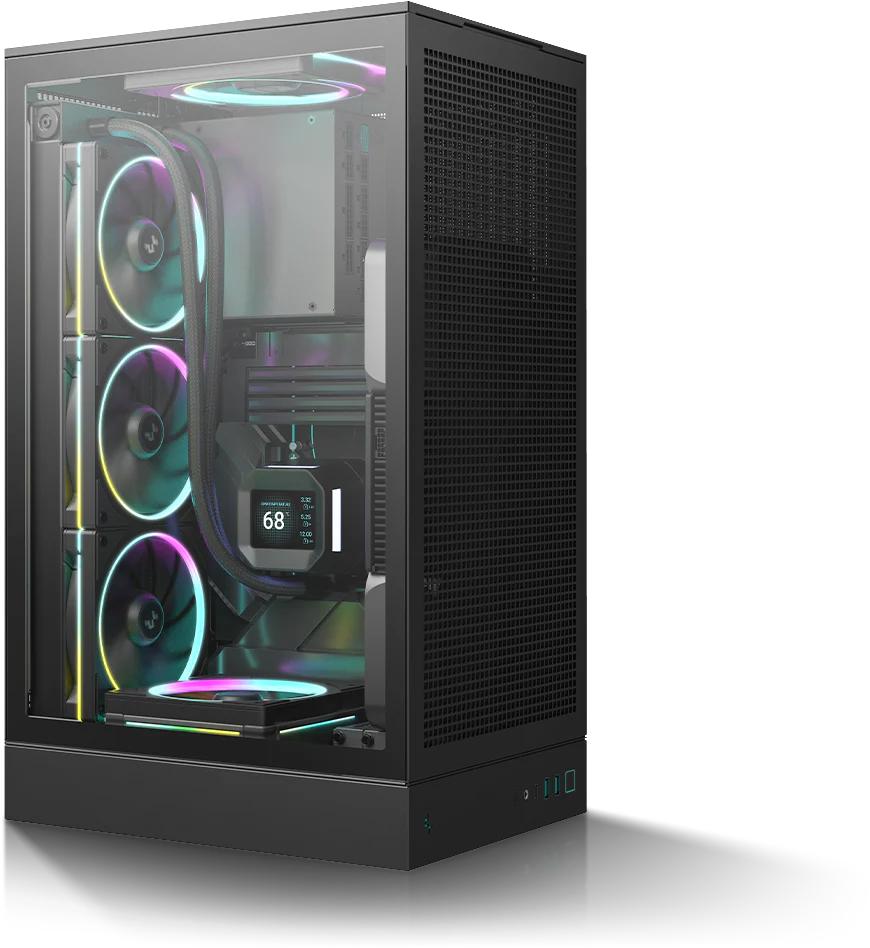

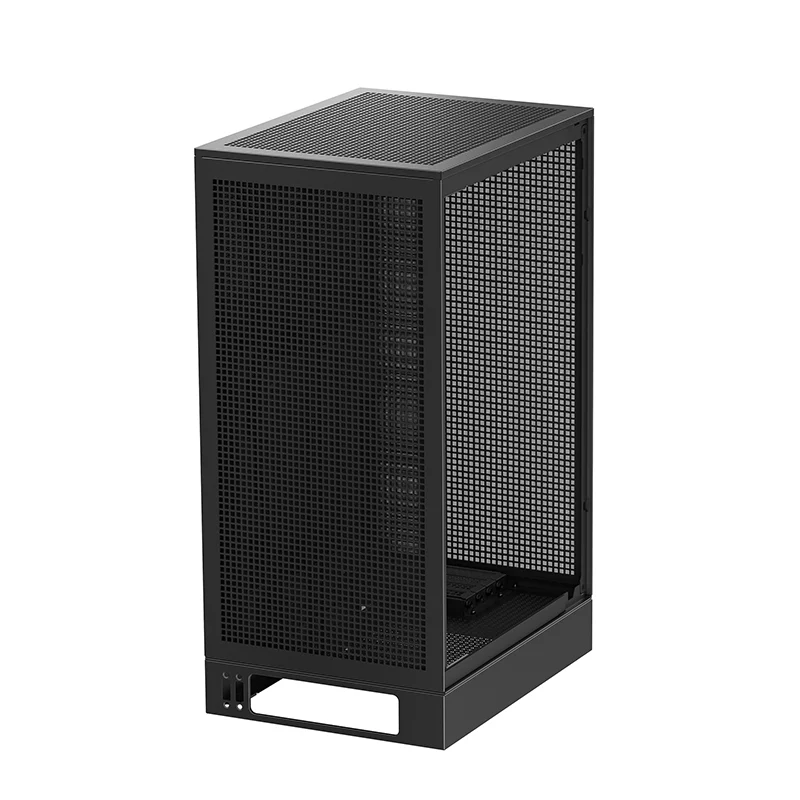

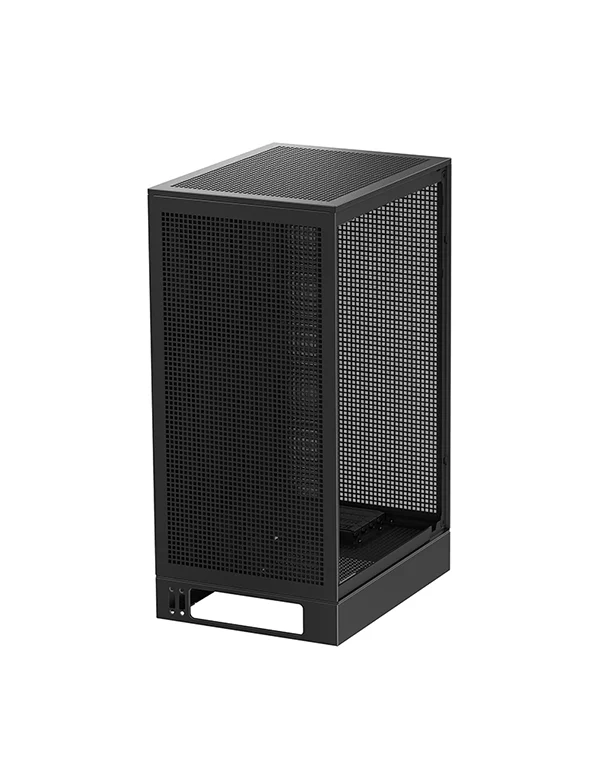

The wraparound mesh panels and up to six 120mm fan placements effectively ensure cool air flows through the compact system and takes heat away. The maximum thermal hardware can go up to a 360mm AIO liquid cooler on the side or a 174mm high tower heat sink on the CPU.
Radiators
120MM
140MM
Cooler

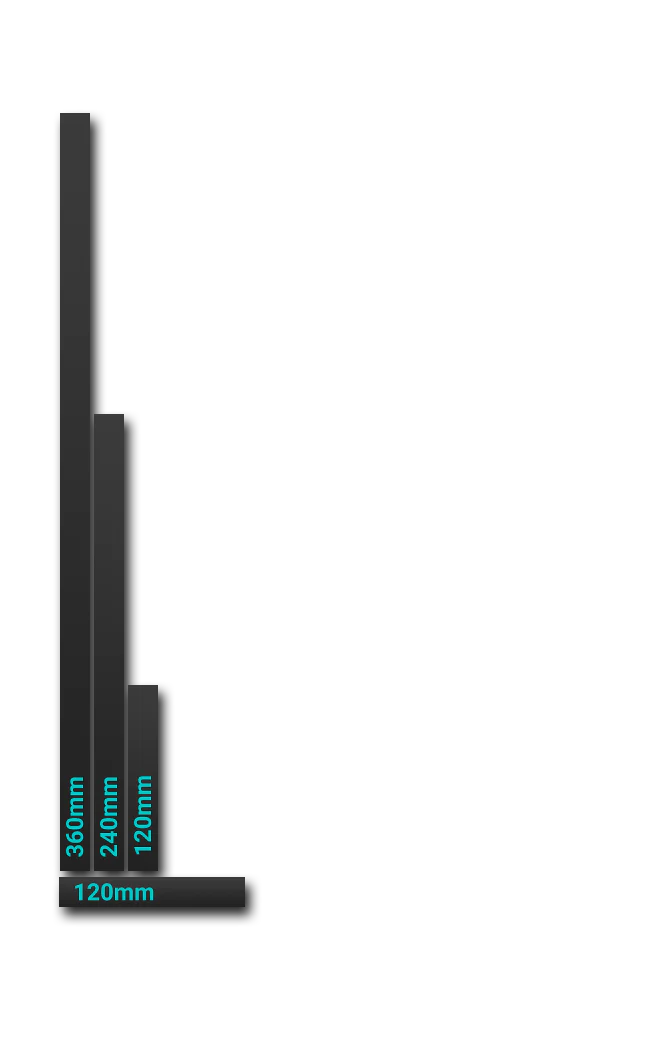

Radiators:
Front: NA
Side: 120/240/360mm
Bottom: 120mm
Rear: NA

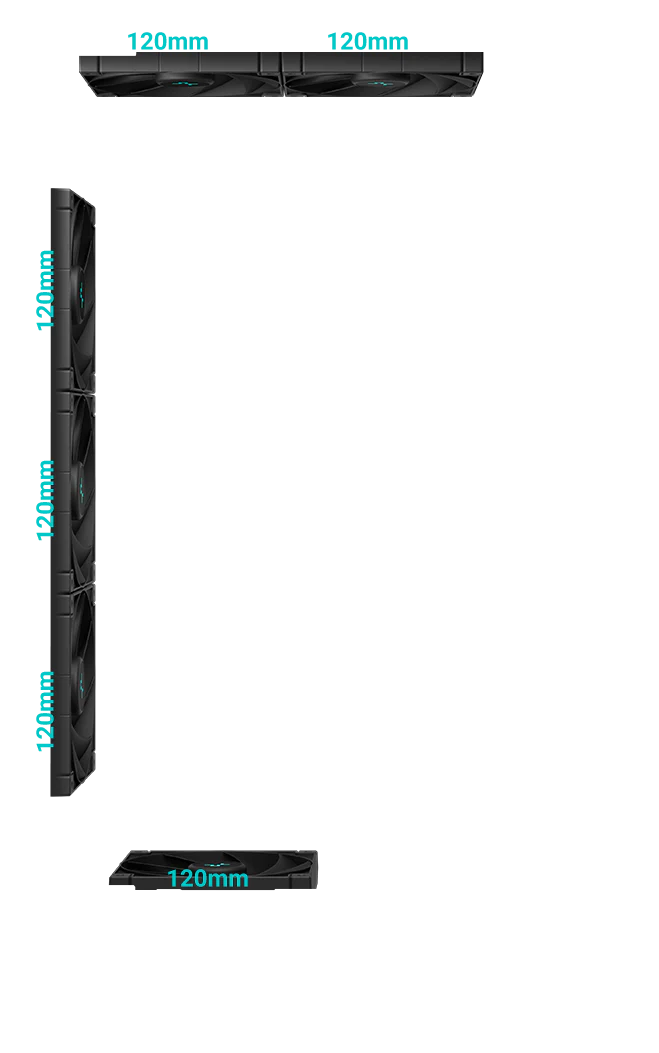

Fans:
Top: 2×120mm
Side: 3×120mm/2x140mm
Bottom: 1×120mm

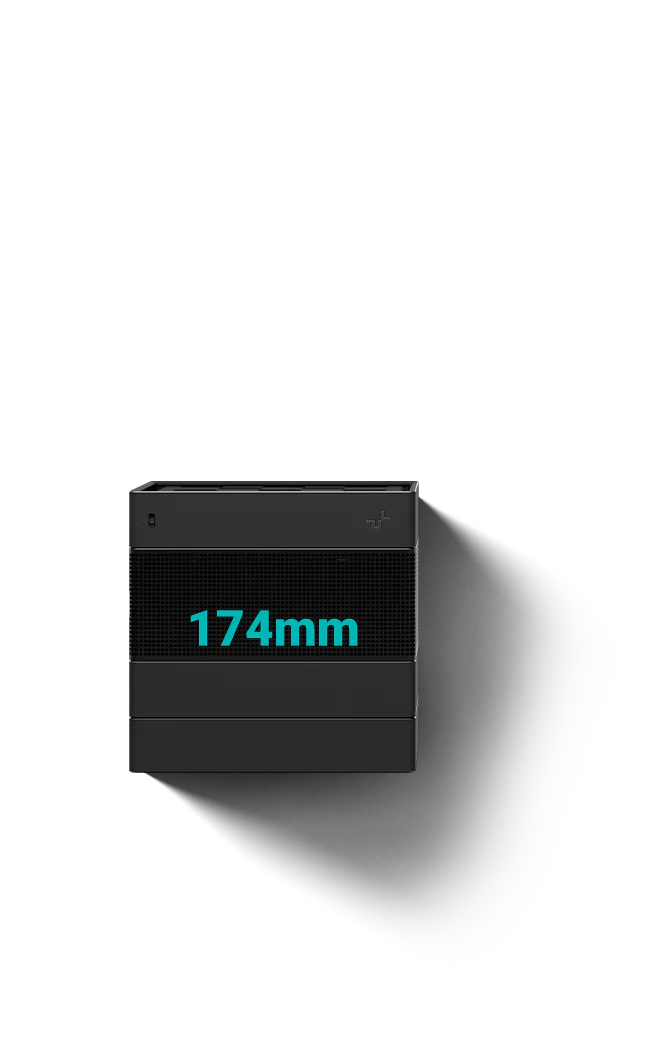

CPU Cooler: 174mm
MAKE IT YOURS

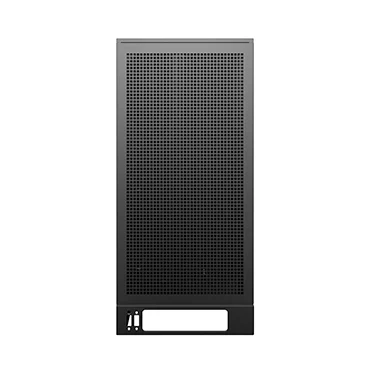

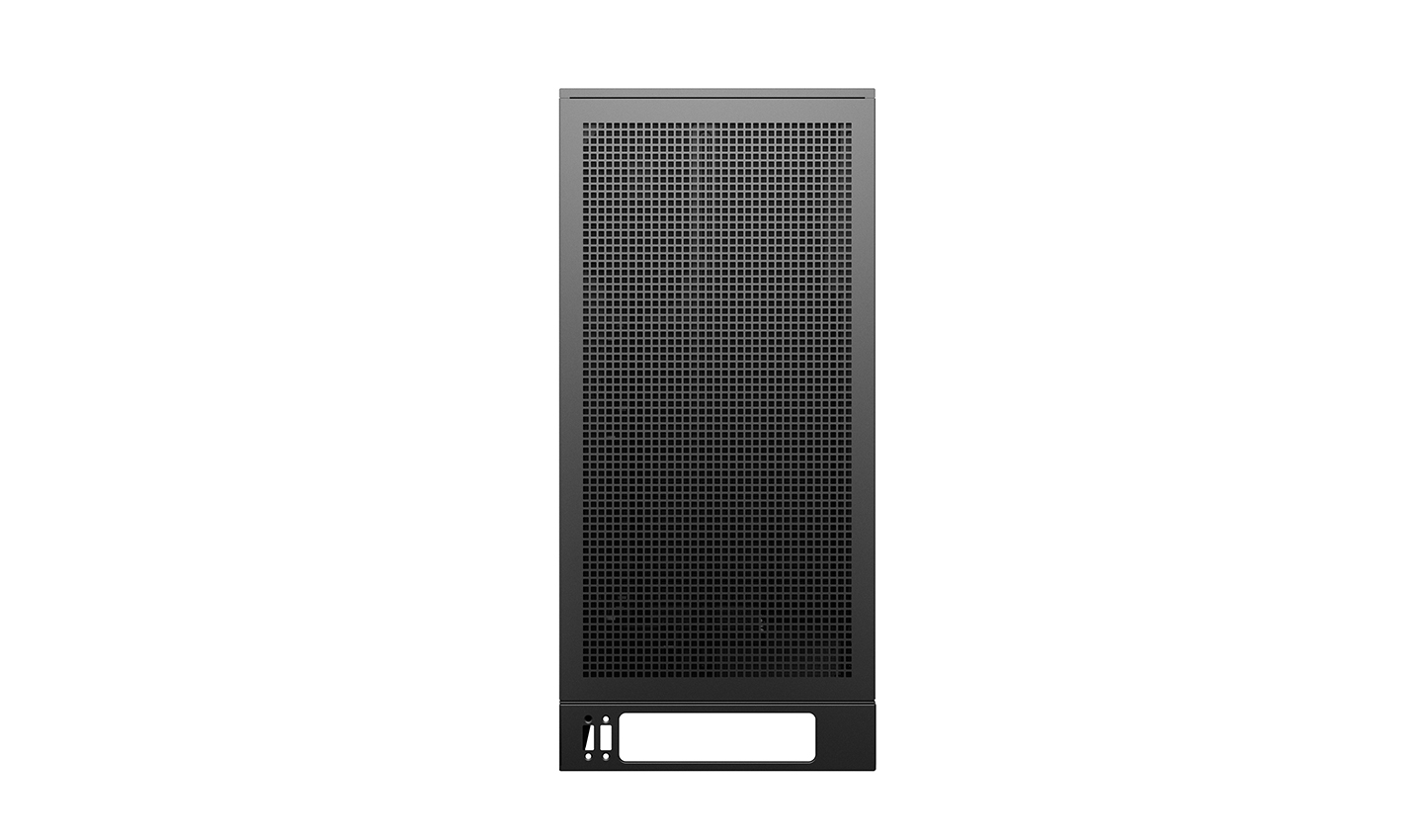

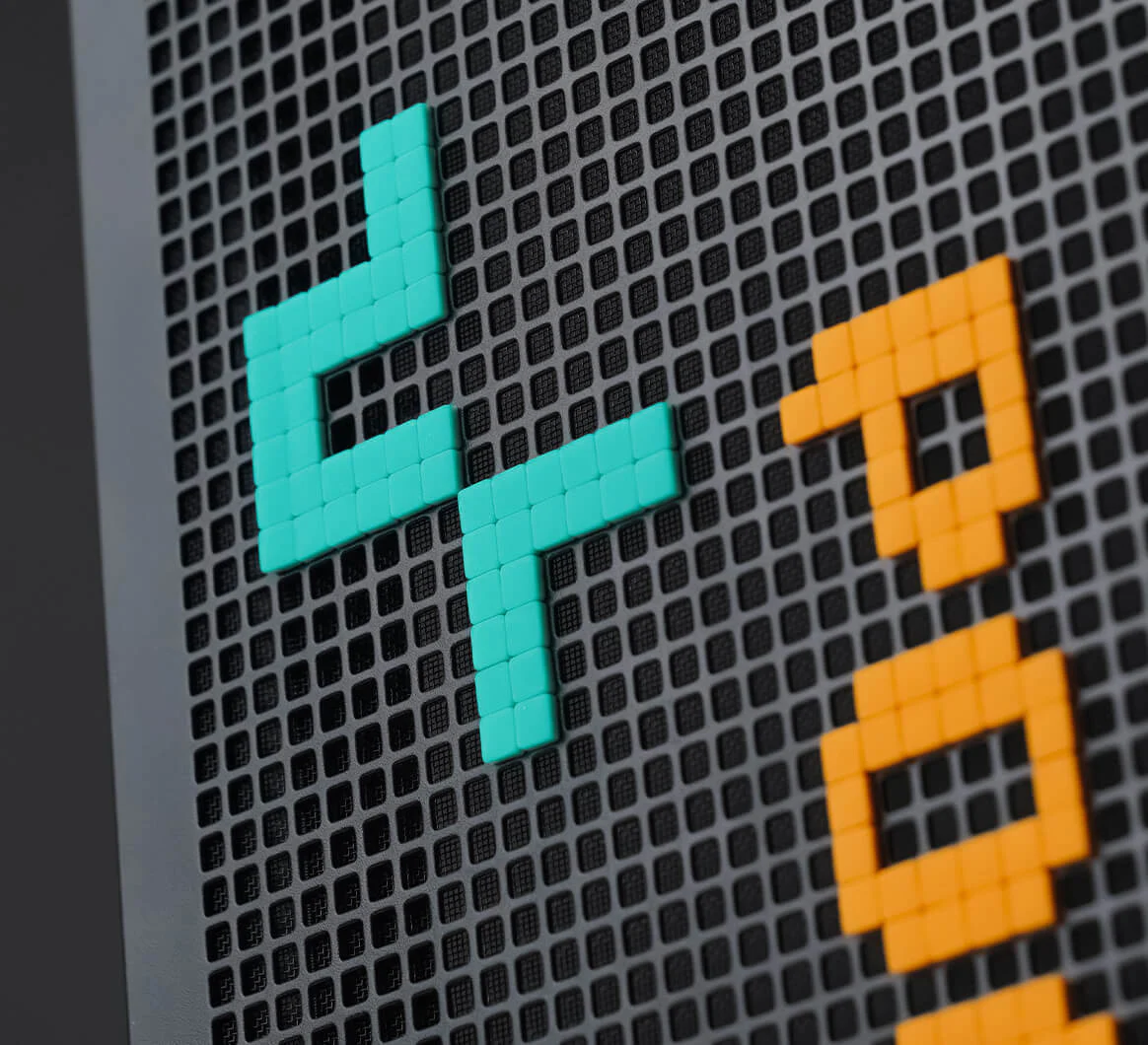

The perforated top and front panels can be customized with PIXEL rubber bits, letting you create patterns that match your style or mood.
Start Your Creation Here
ENHANCED BUILDING EXPERIENCE

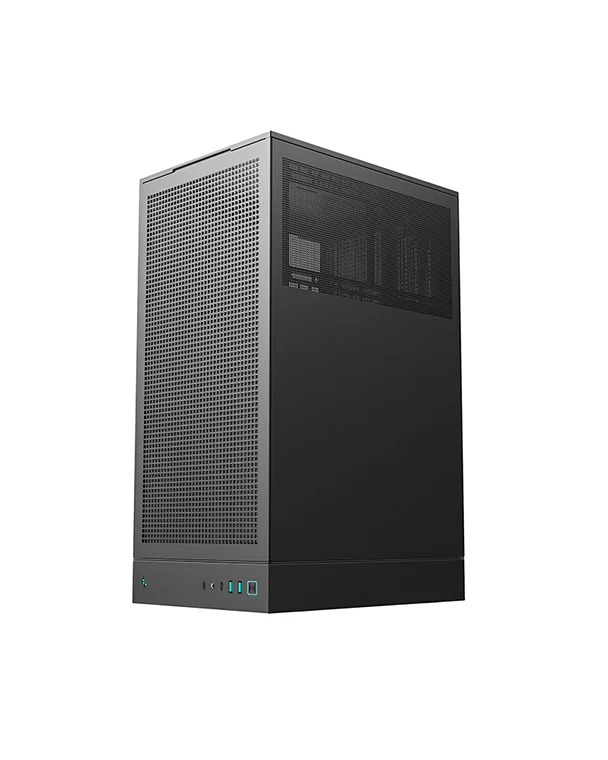

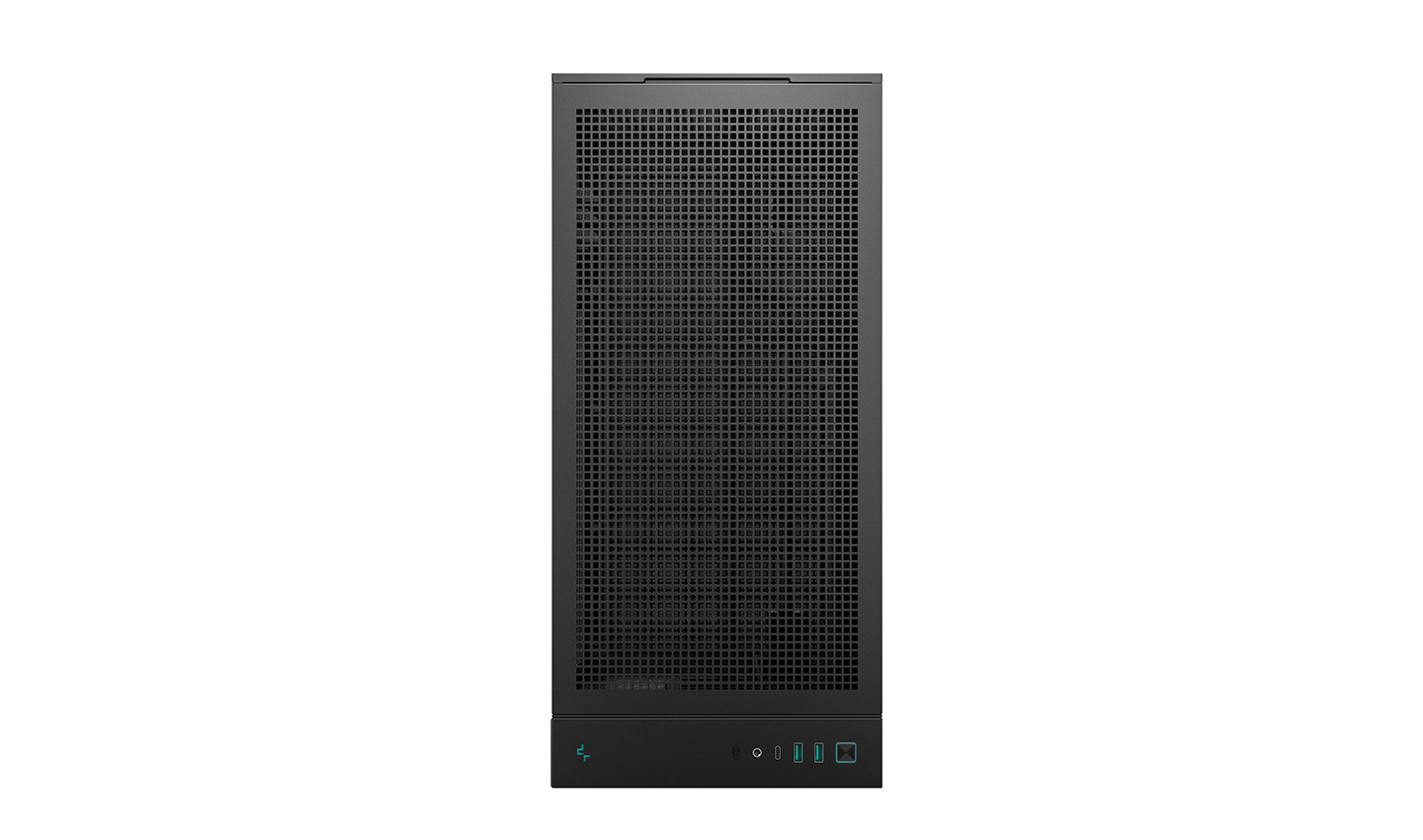

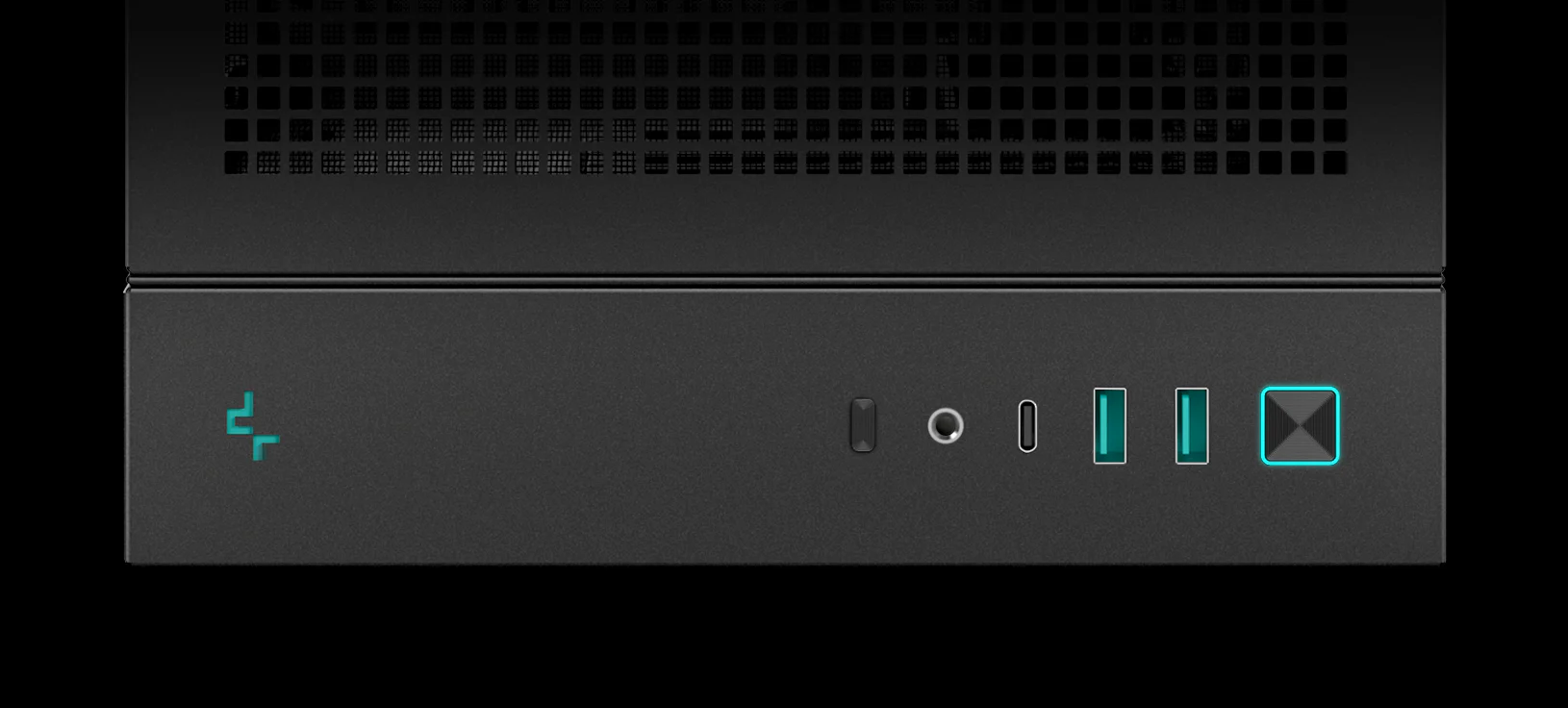

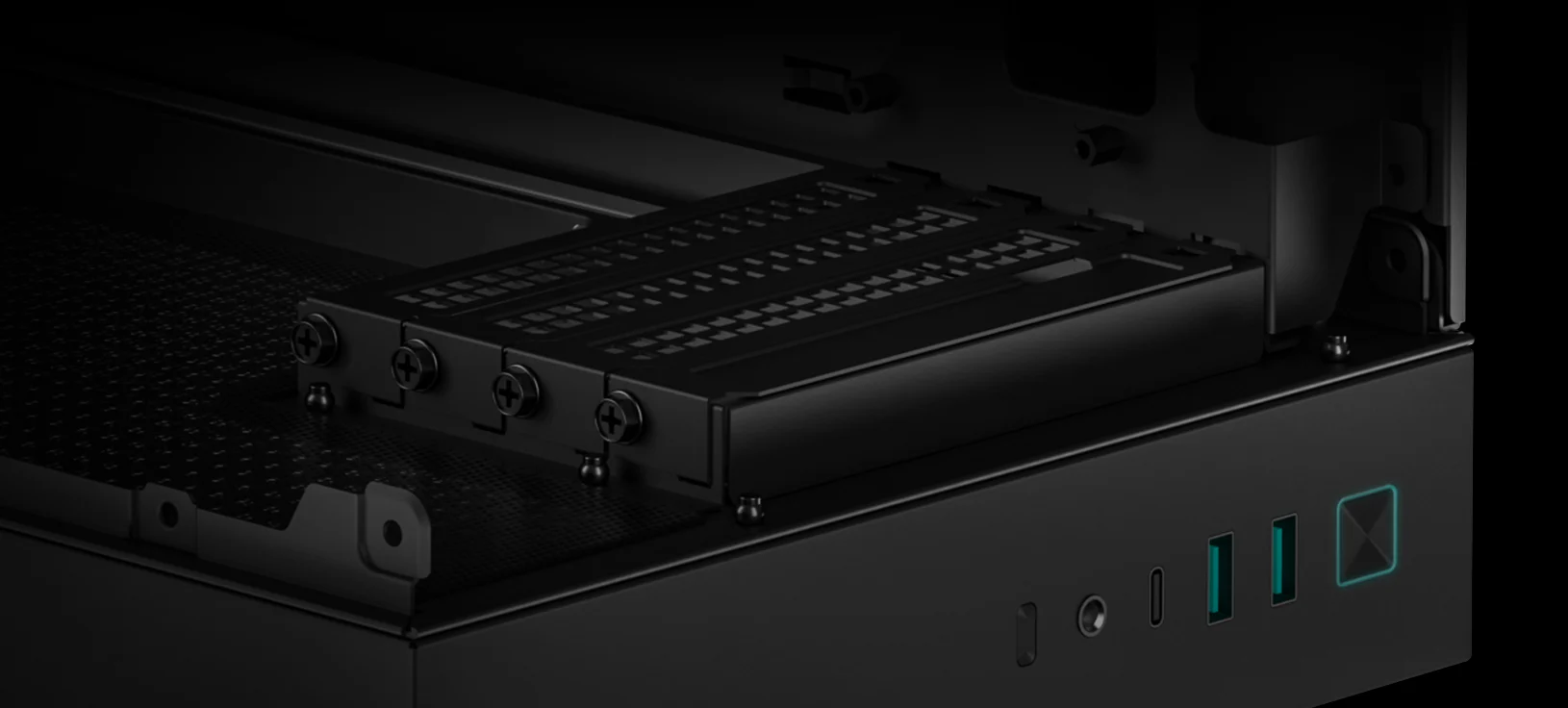

Modern I/O features two USB 3.0 plus one Gen2 Type-C port, and an Audio/Mic combo jack.

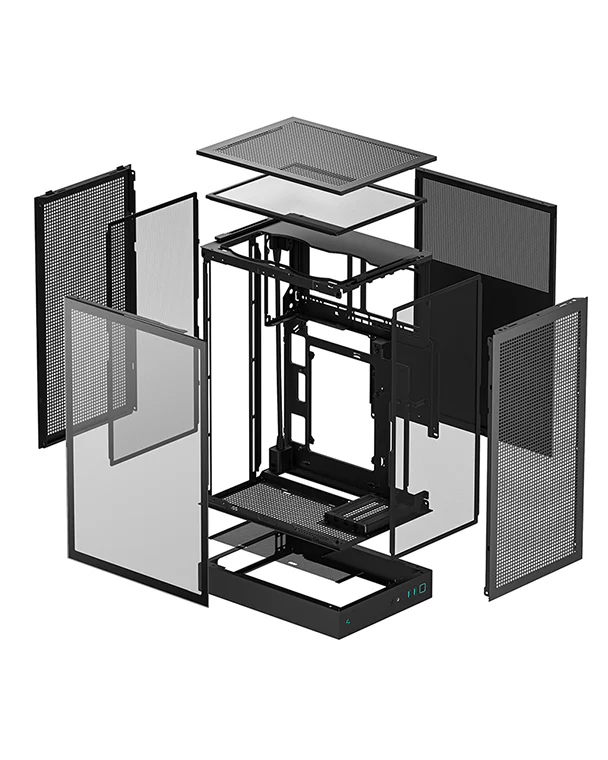

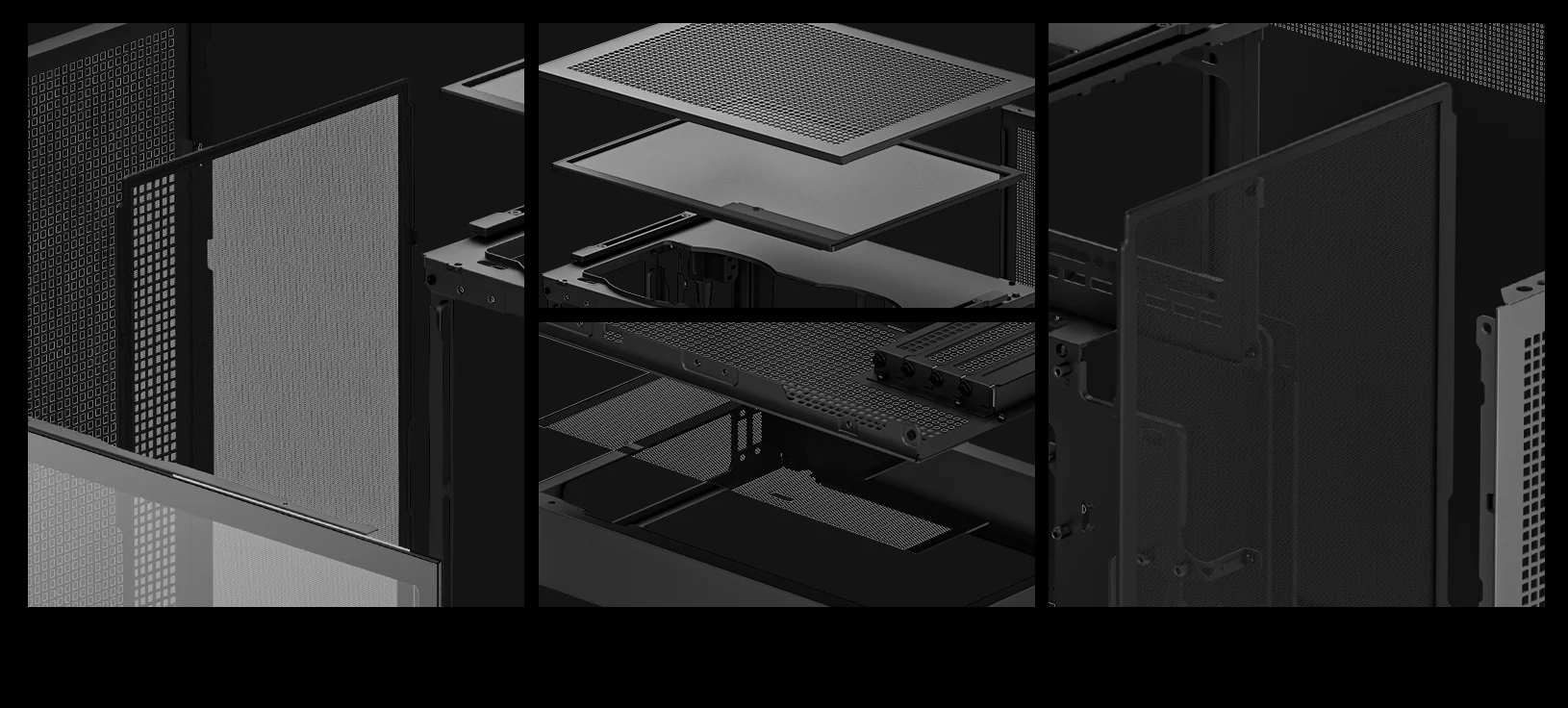

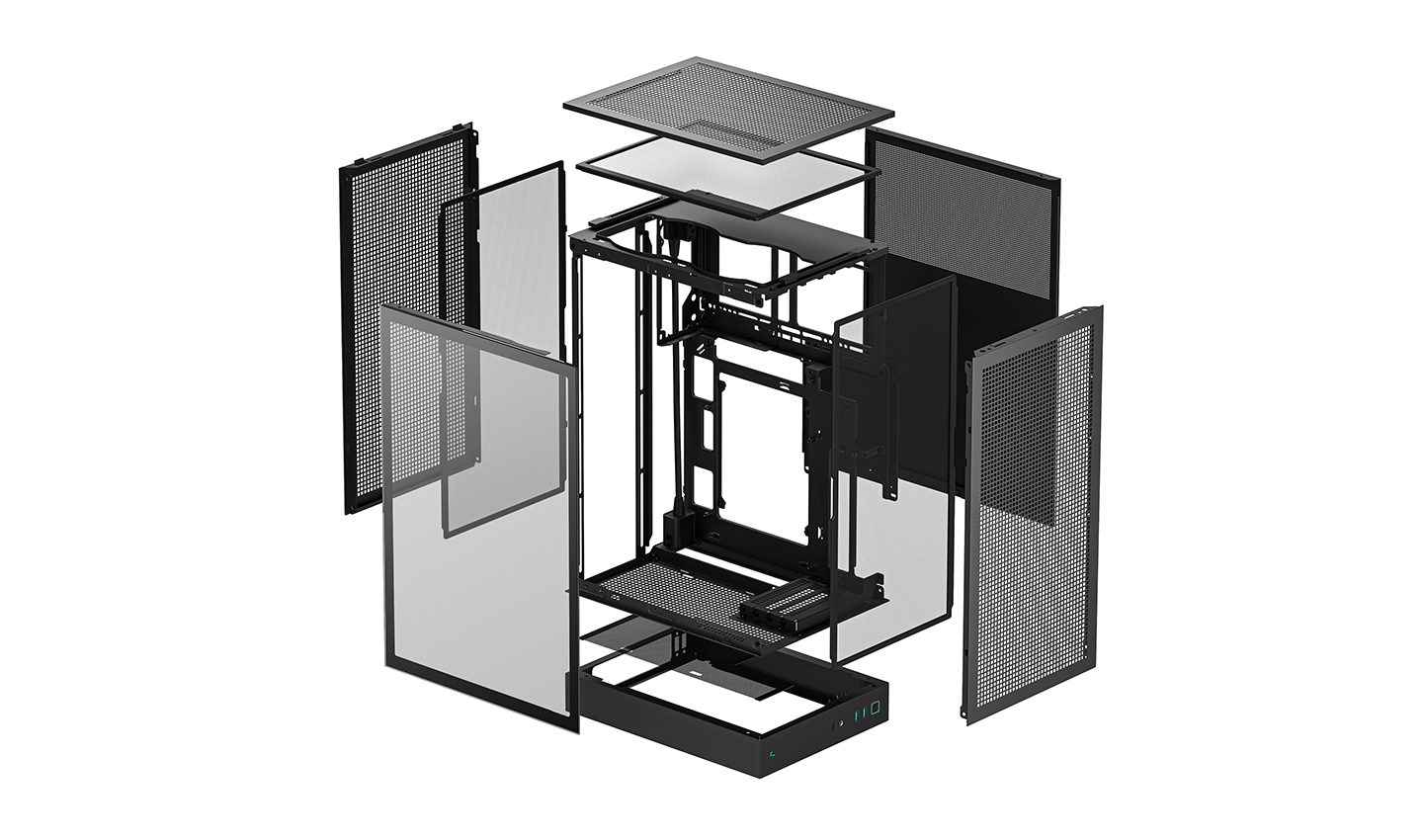

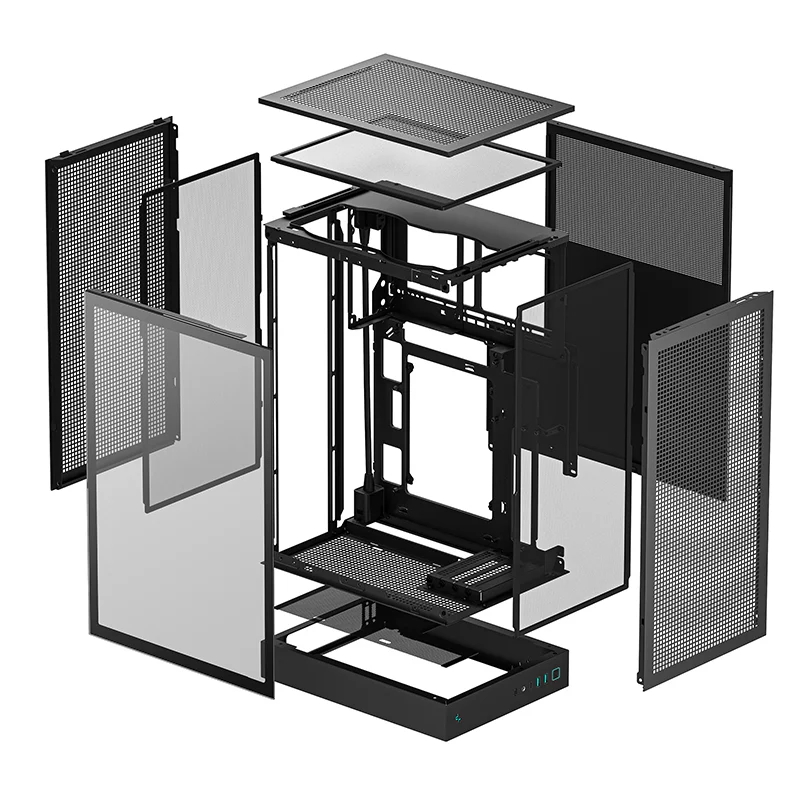

Four removable dust filters for easy cleaning.
Four independent and reusable PCI-e baffles.

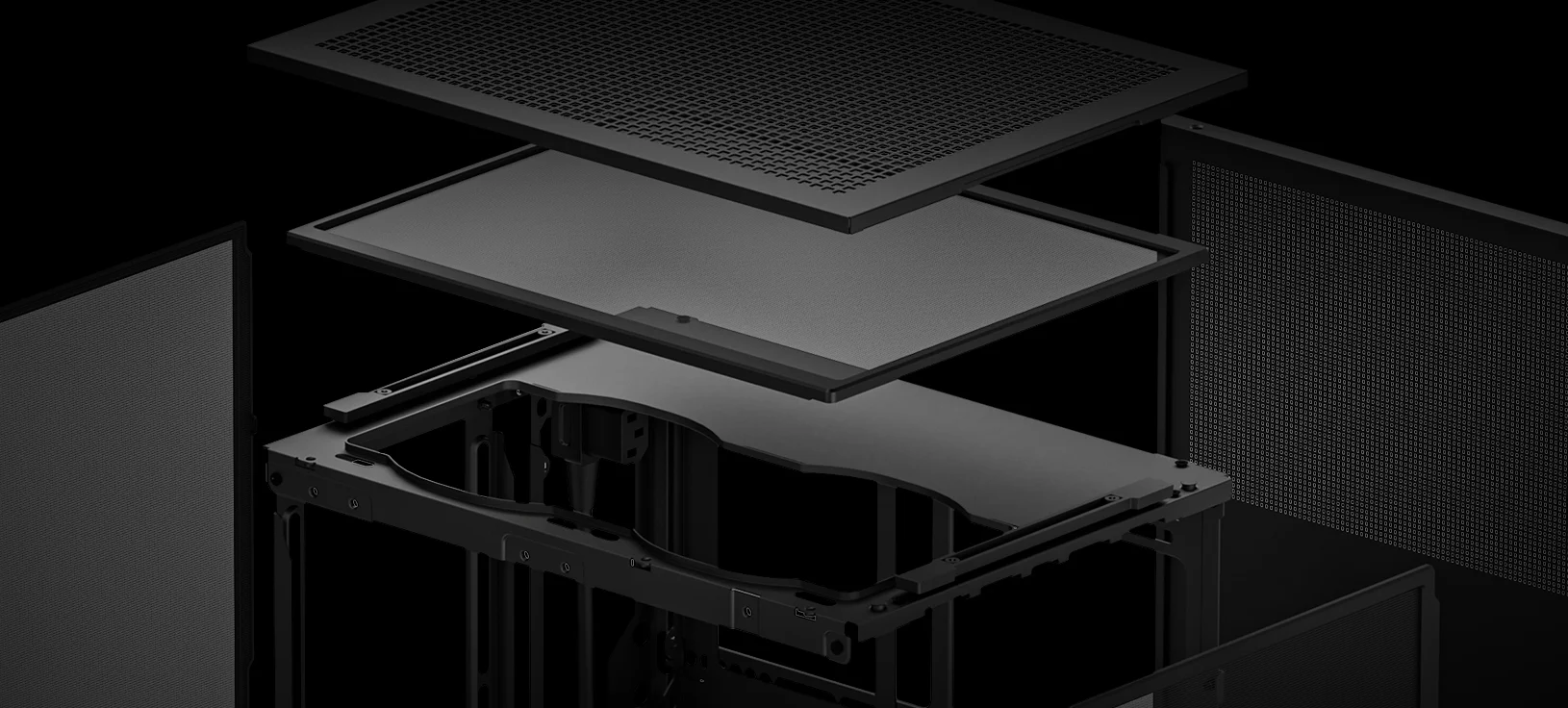

Tool-free access to the top panel.
Technical Spec
Product Dimensions296mm*225mm*486mm(L×W×H)
Net Weight5.8Kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportMini-ITX / Micro-ATX
Micro-ATX(Rear Connector)
Front I/O PortsUSB3.0×2、Gen2 Type-C x1、Audio/Mic×1
3.5" Drive Bays1
2.5" Drive Bays1
Expansion Slots4Slots
Pre-Installed FansNone
Fan SupportTop:2×120mm
Side:3×120mm/2x140mm
Bottom:1×120mm
Radiator SupportFront: NA
Side:120/240/360mm
Bottom: 120mm
Rear:NA
CPU Cooler Height Limit174mm
GPU Size Limit388/413mm（No Top fans）
Power Supply TypeATX PS2（maximum length: 150mm）
EAN6933412765530
P/NR-CH270-BKNGM0-G-1
Download
CH270 Manual.pdf
