CG380 3F

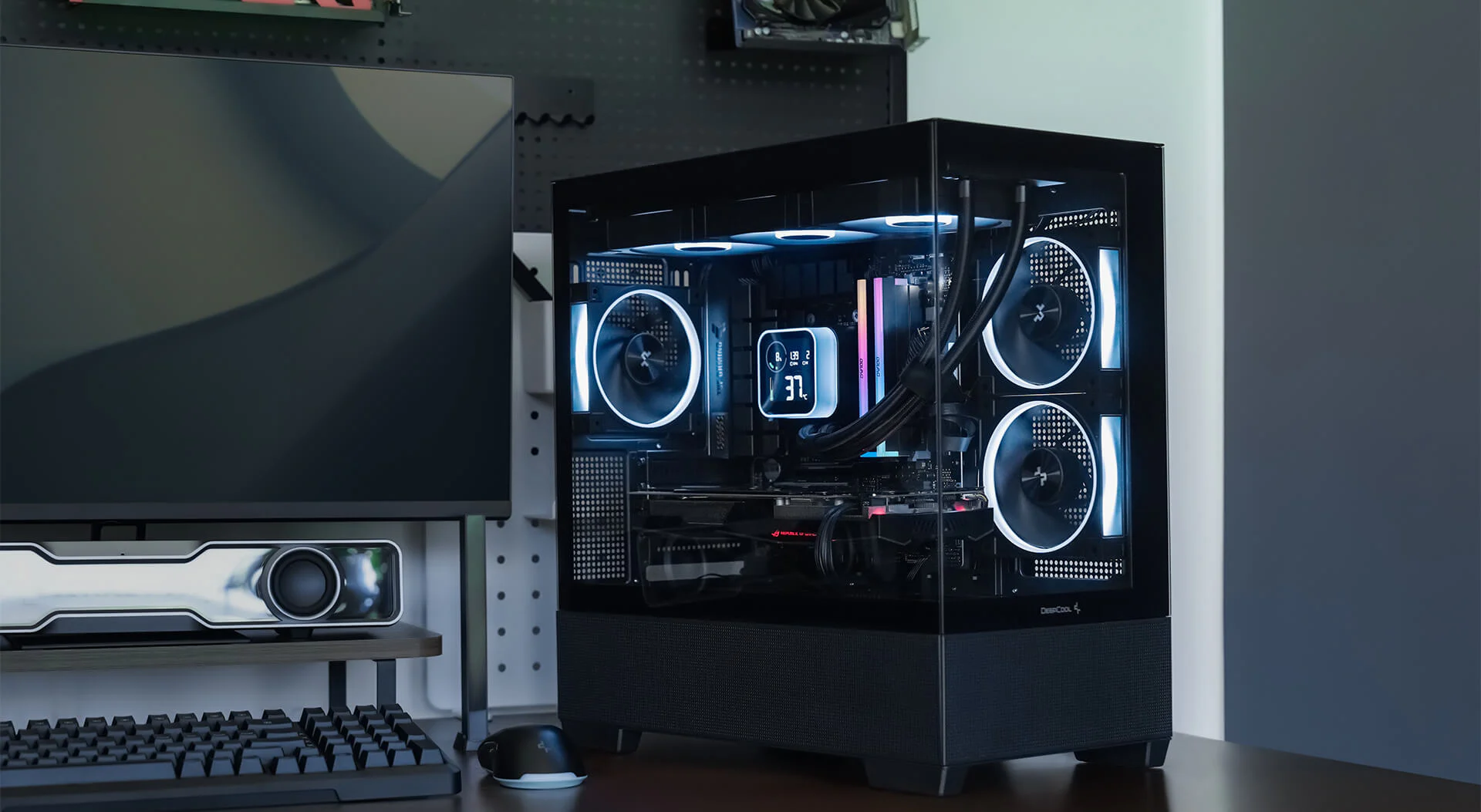

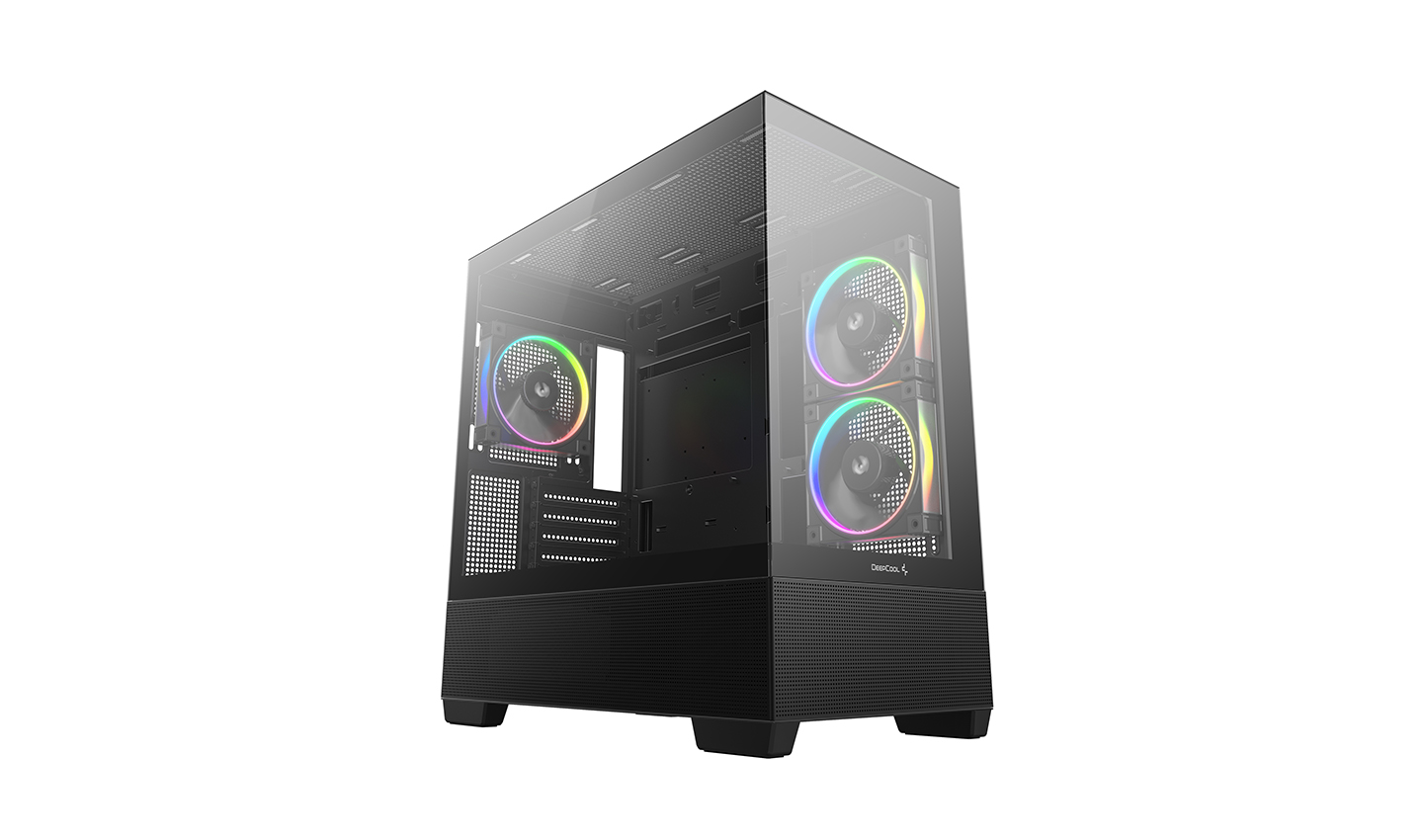

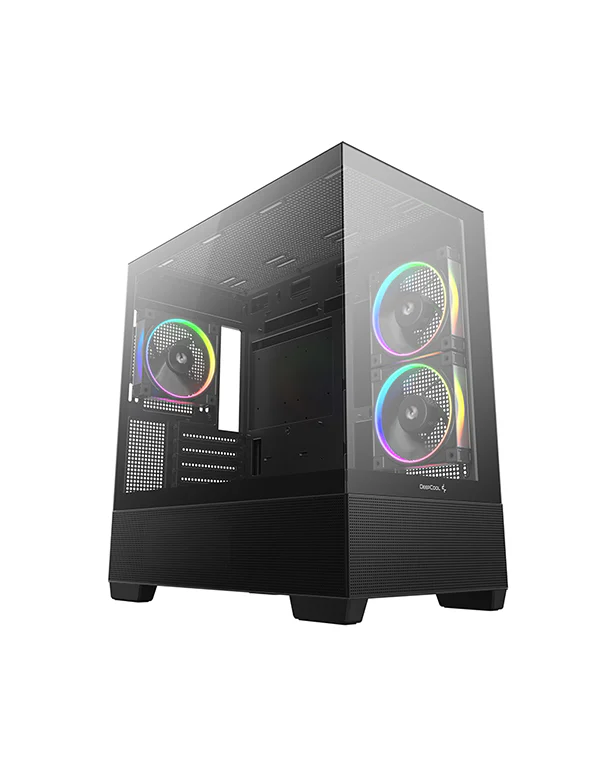

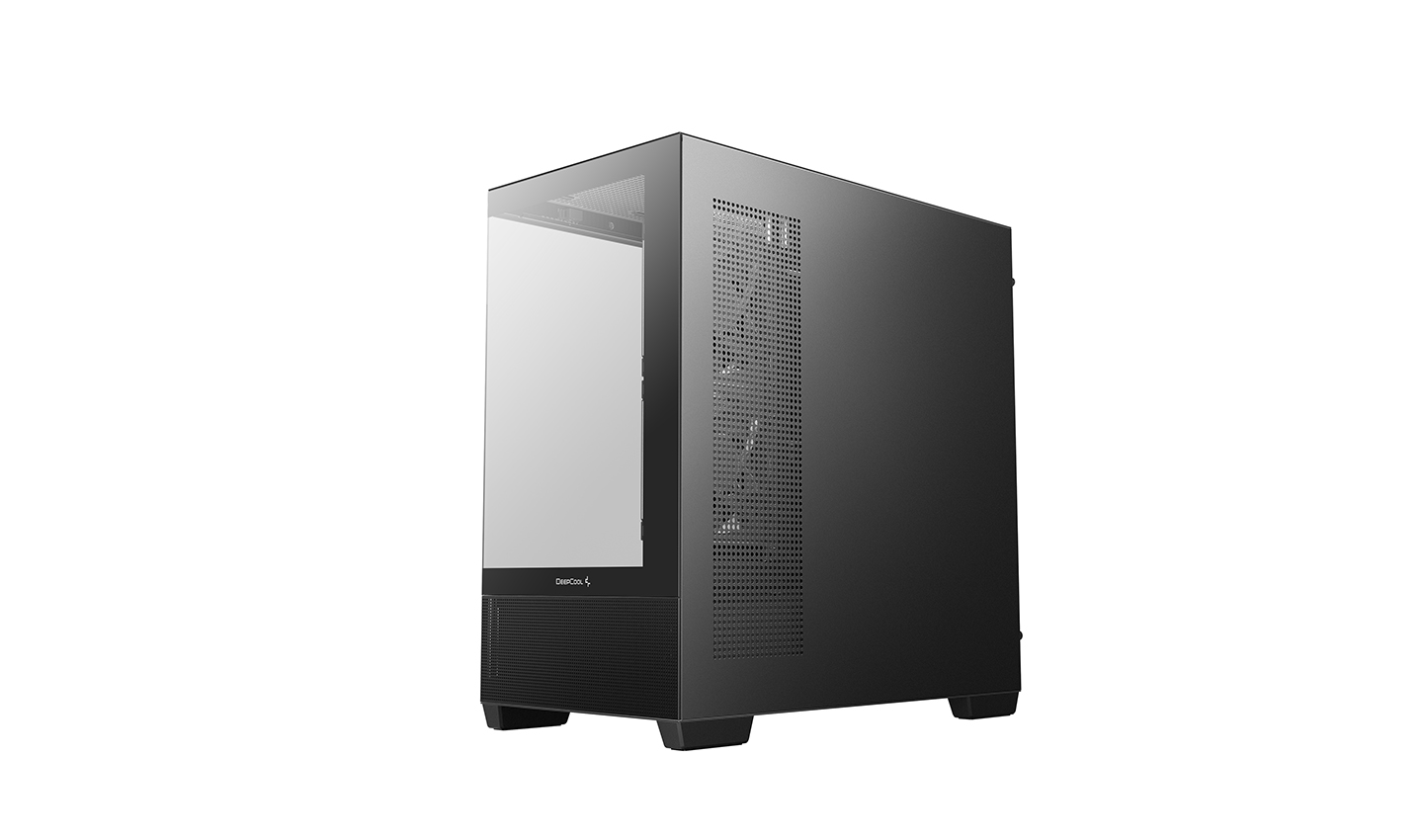

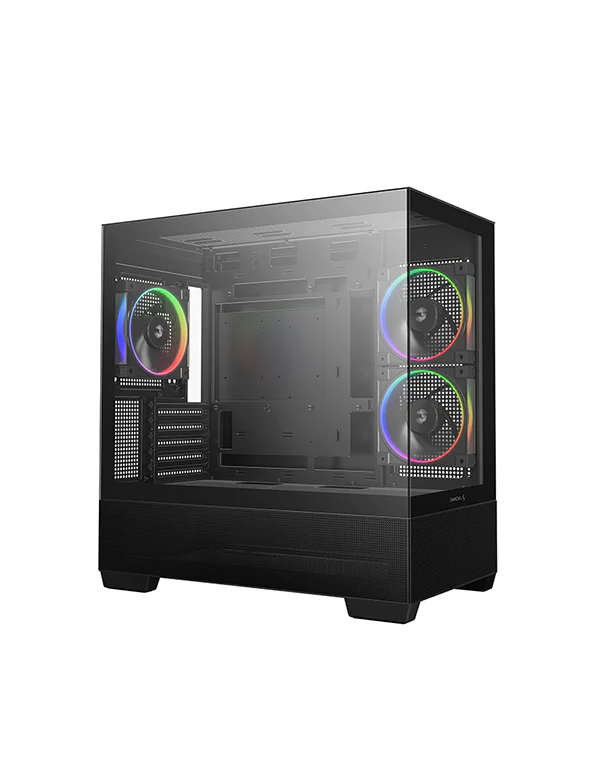

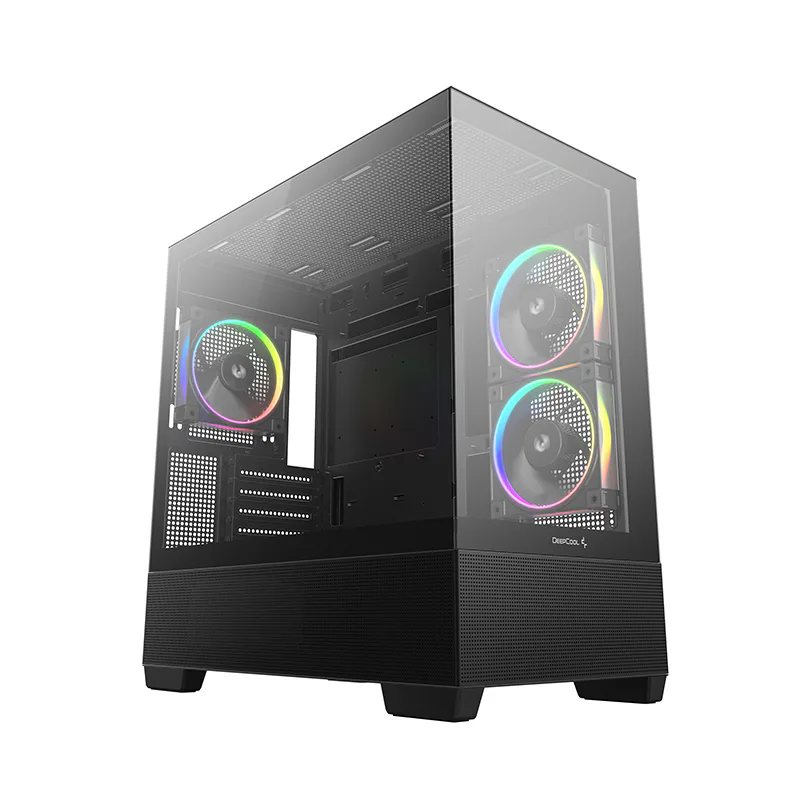

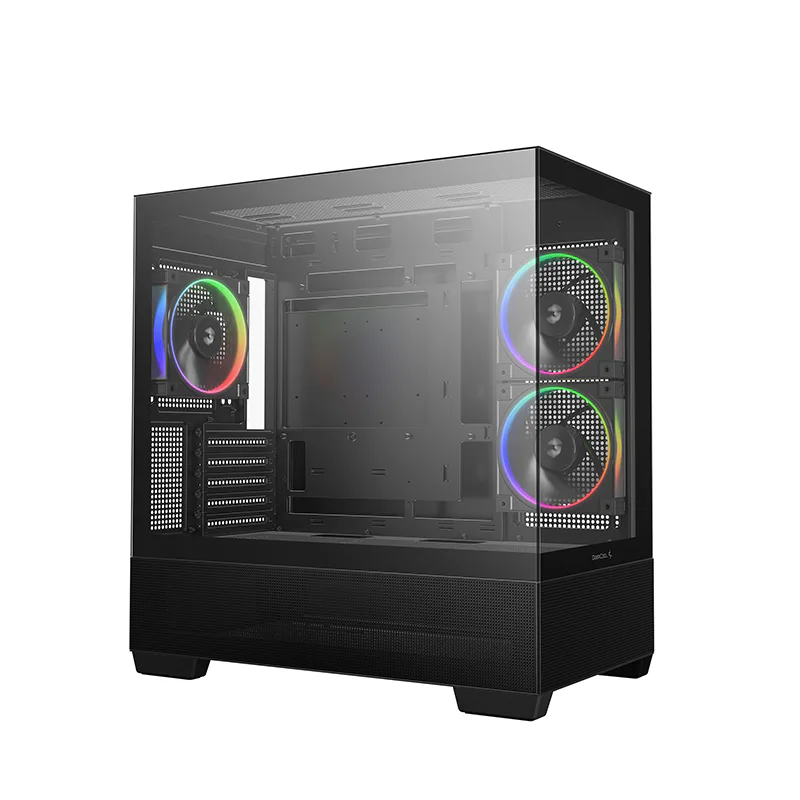

The CG380 3F is a panoramic Micro-ATX case that combines form and function in a space-efficient footprint. With three pre-installed PWM ARGB fans, it’s a great choice for building a vibrant showcase with reliable airflow.
COLOR
black
MODEL
CG380 3F

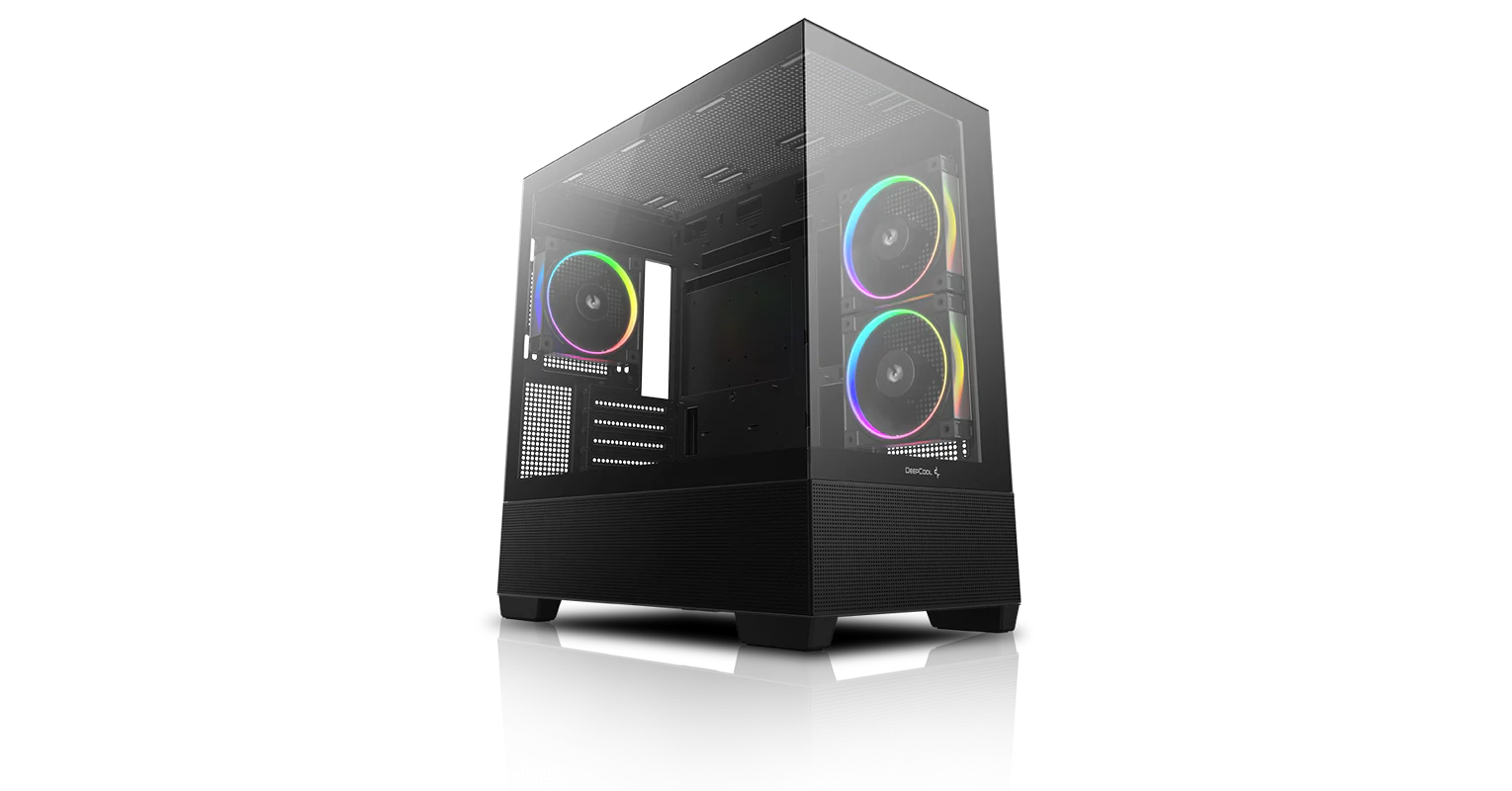

THE PANORAMIC MICRO-ATX SHOWCASE
SHOWCASE WITH PURPOSE

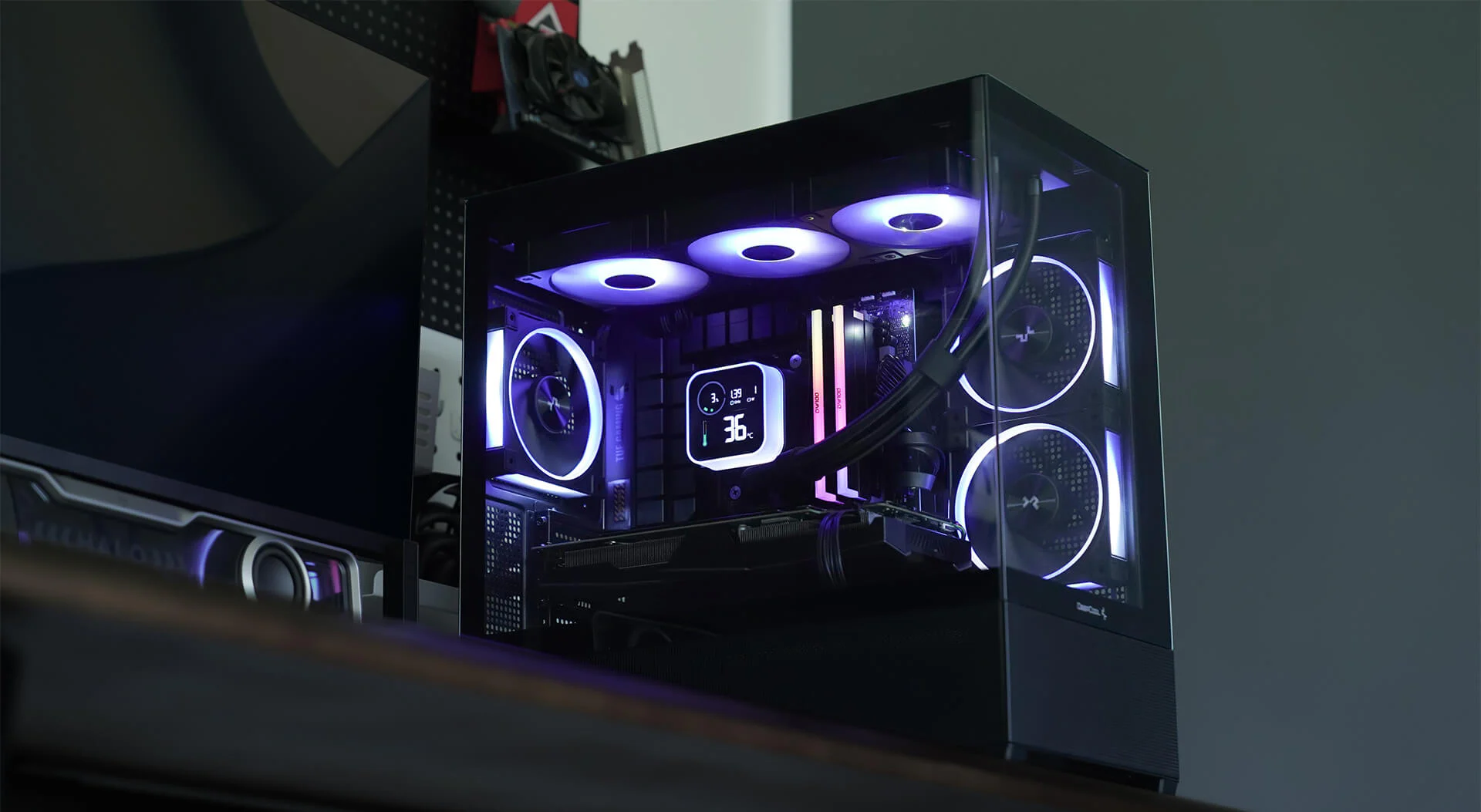

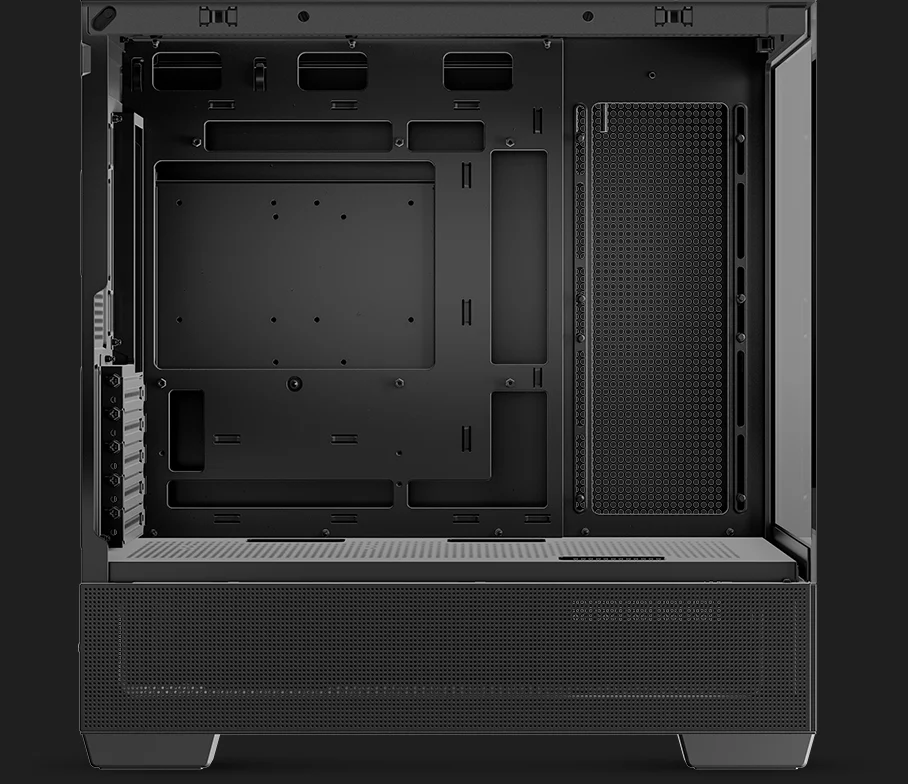

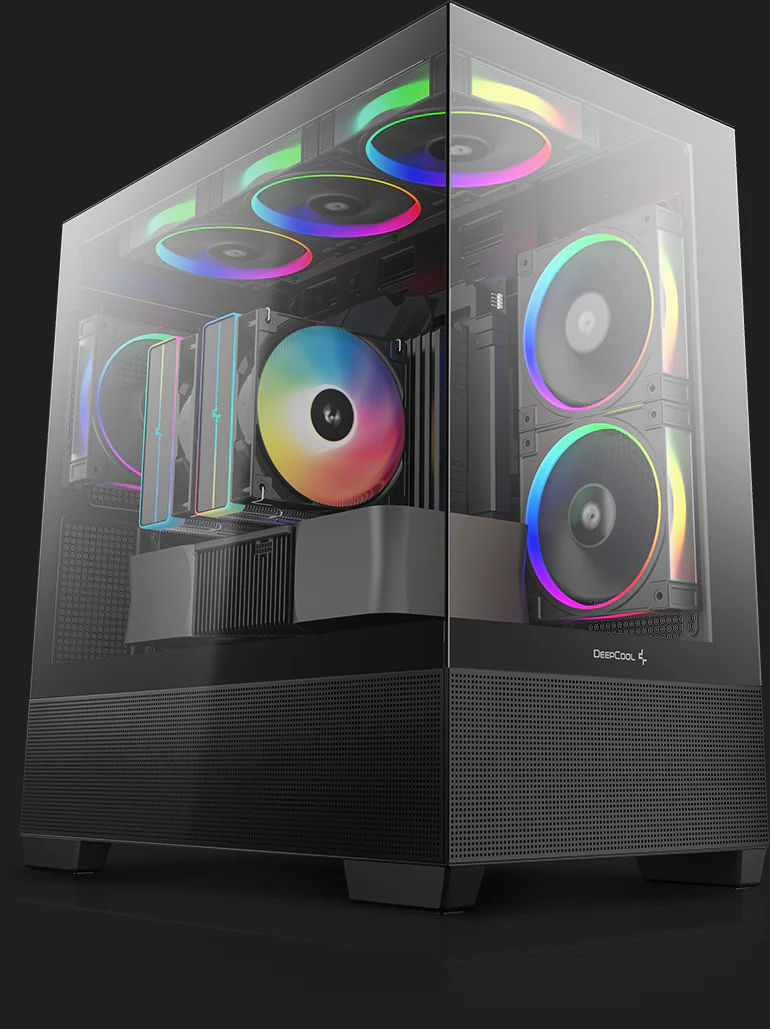

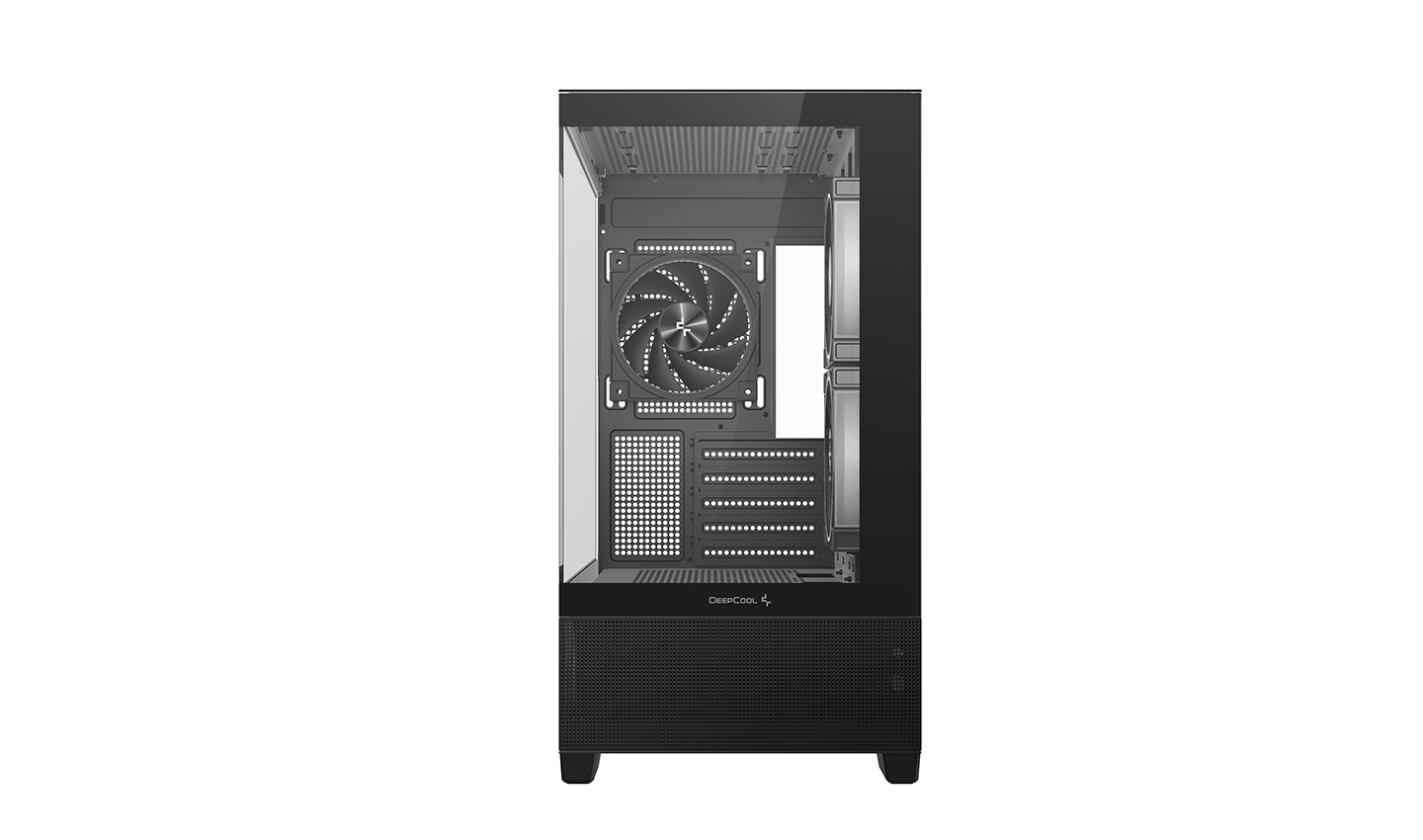

The CG380 3F blends showcase aesthetics with practical thermal design. The full-view glass panel puts your hardware on display, while the mesh-wrapped lower chamber improves airflow to the GPU and PSU without compromising the look. It also supports reverse connector Micro-ATX motherboards, helping you keep cables hidden and your setup clean.
READY TO GLOW

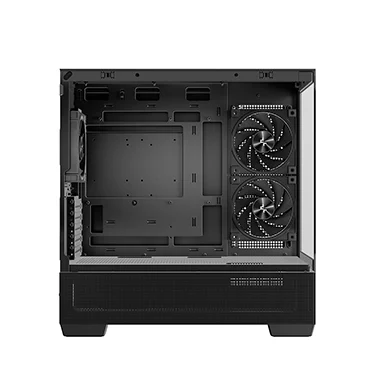

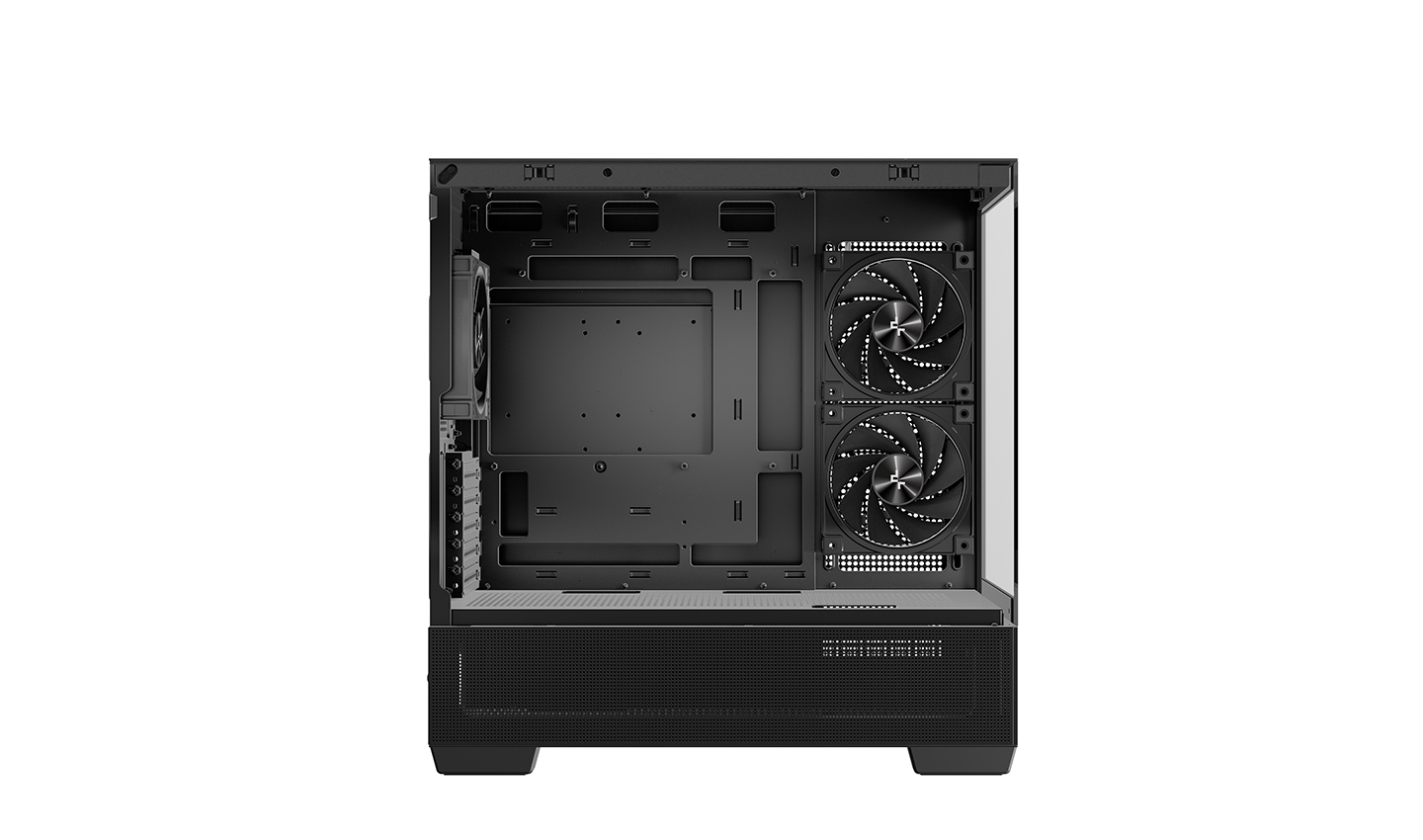

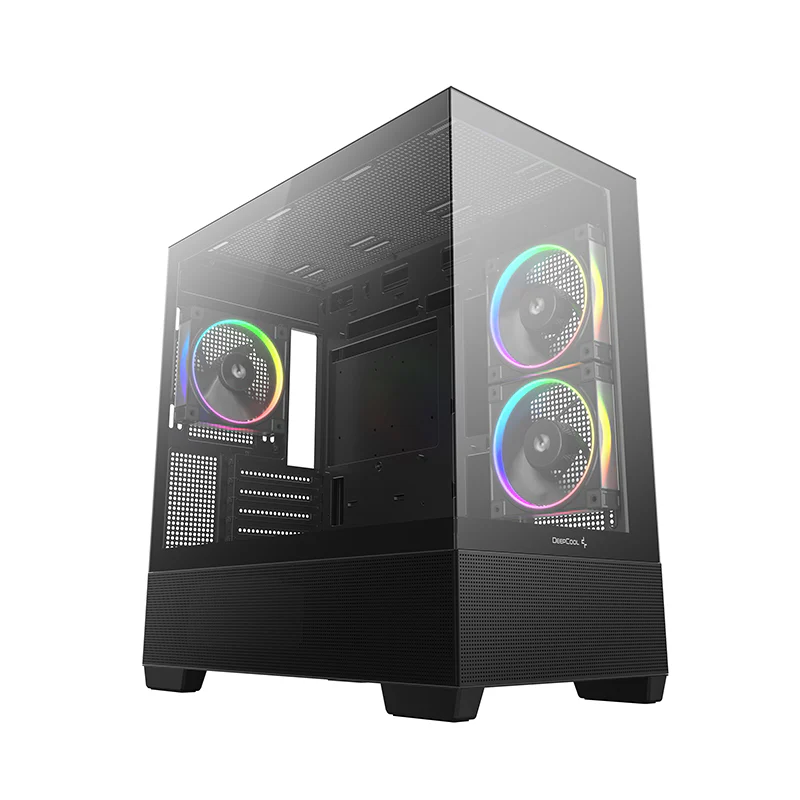

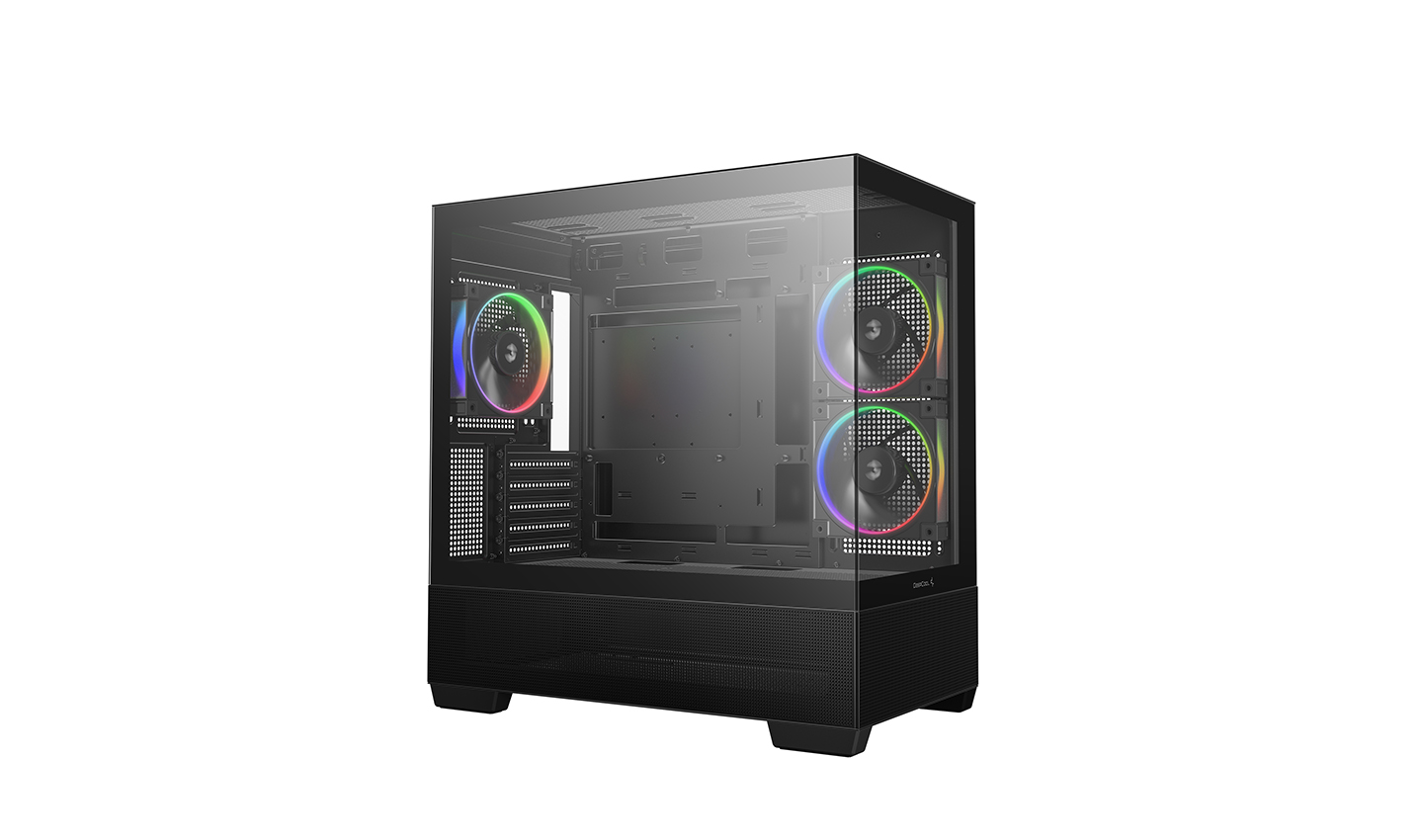

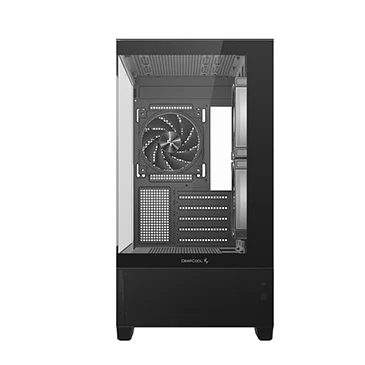

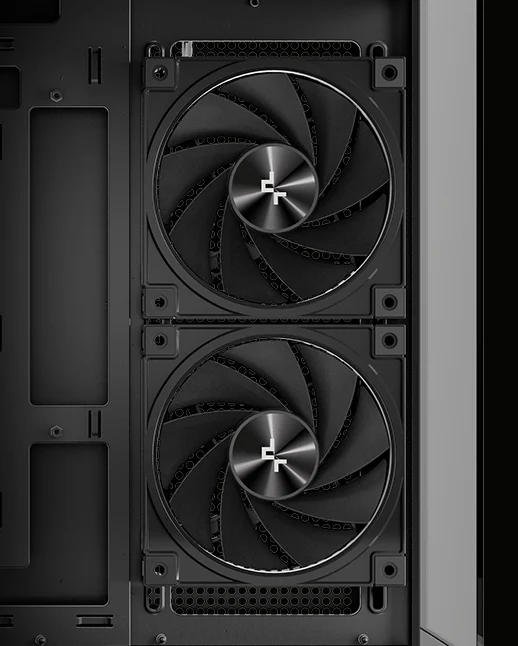

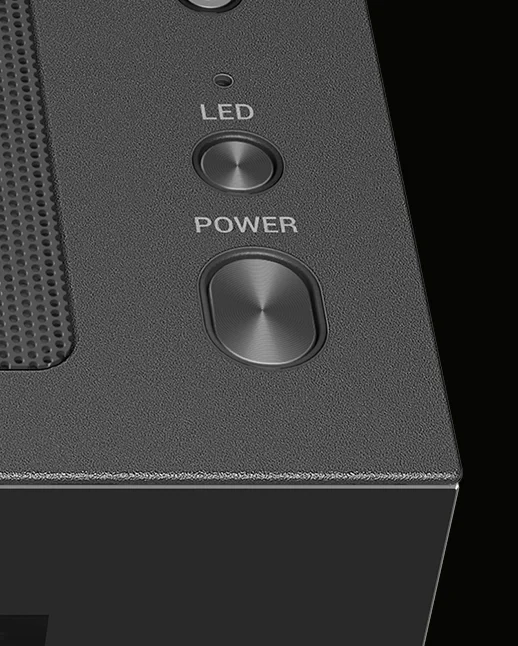

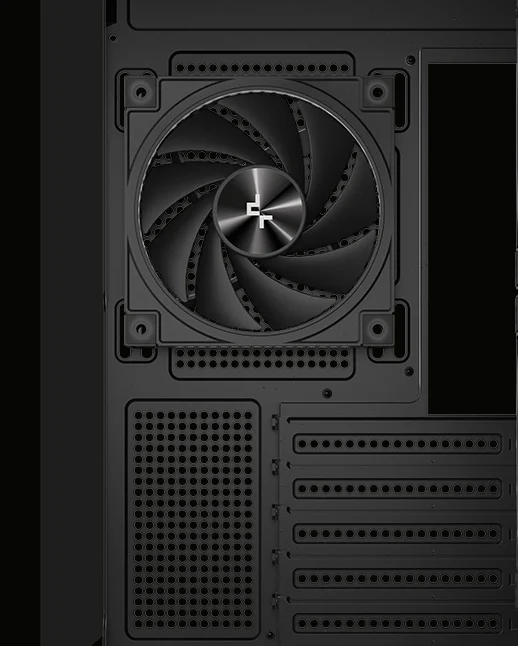

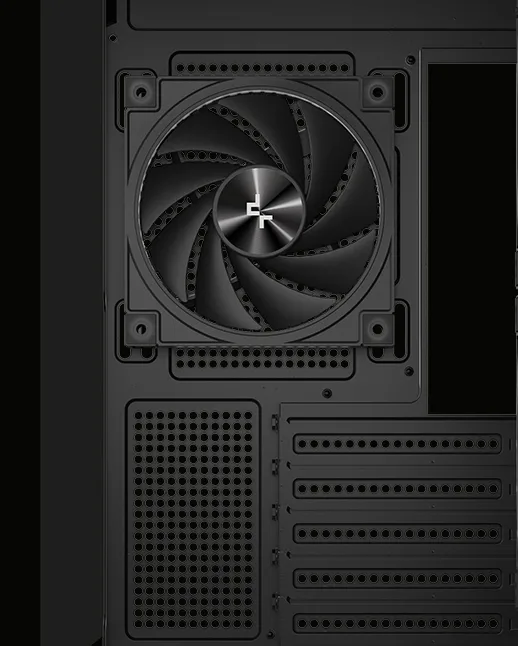

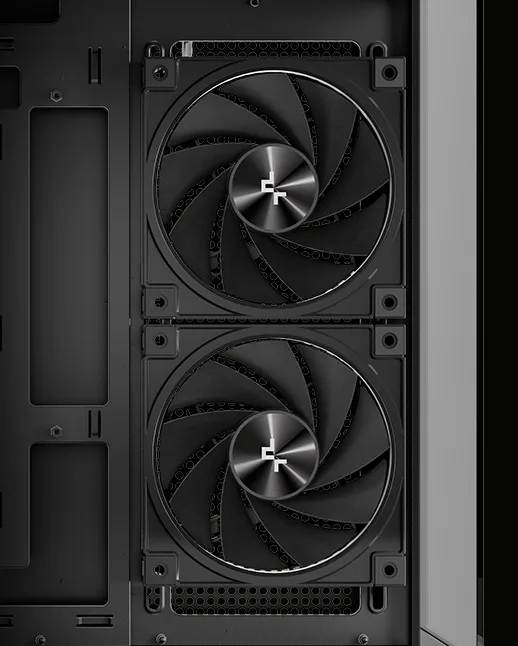

The CG380 3F comes pre-installed with two reverse-blade PWM ARGB fans on the side and one standard fan at the rear, featuring a speed range of 300-1500 RPM. With a signature lighting style, they deliver vivid effects right out of the box and can be easily controlled via your motherboard or the built-in LED switch.
VERSATILE COOLING OPTIONS
Thoughtfully arranged airflow channels keep heat buildup in check, even with panoramic builds. The CG380 3F supports up to 9×120mm fans and offers radiator support up to 360mm on the top or 240mm on the side, giving you the flexibility to build for both performance and style.
Radiator Support
Top: 120/140/240/280/360mm
Side: 120/240mm
Rear: 120/140mm

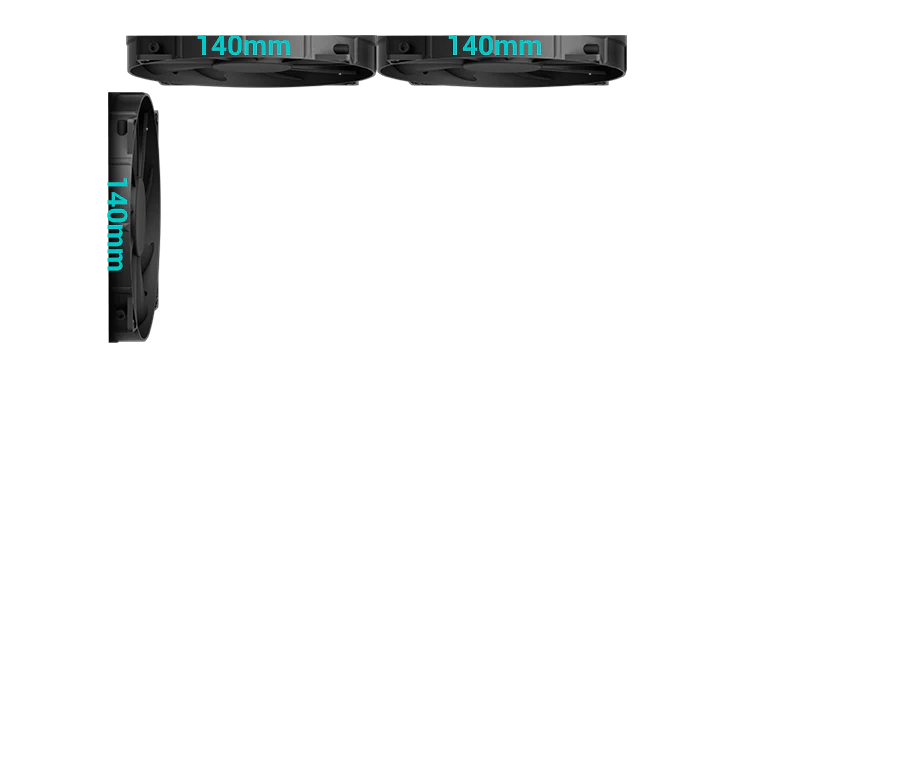

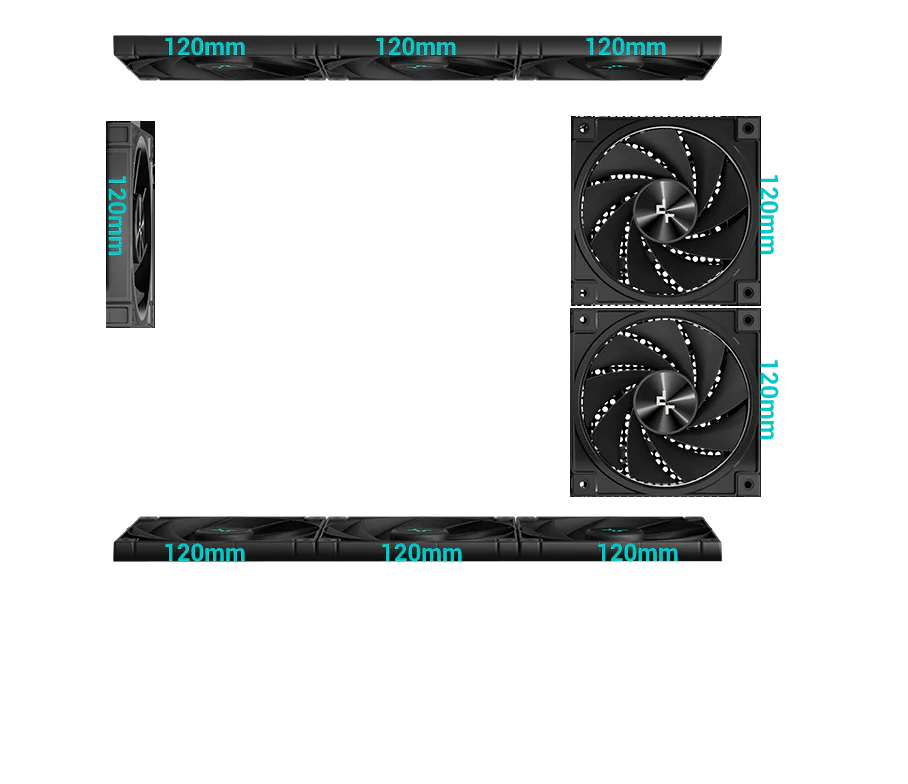

Fan Support
Top: 3×120mm/2×140mm
Side: 2×120mm(pre-installed 2×120mm)

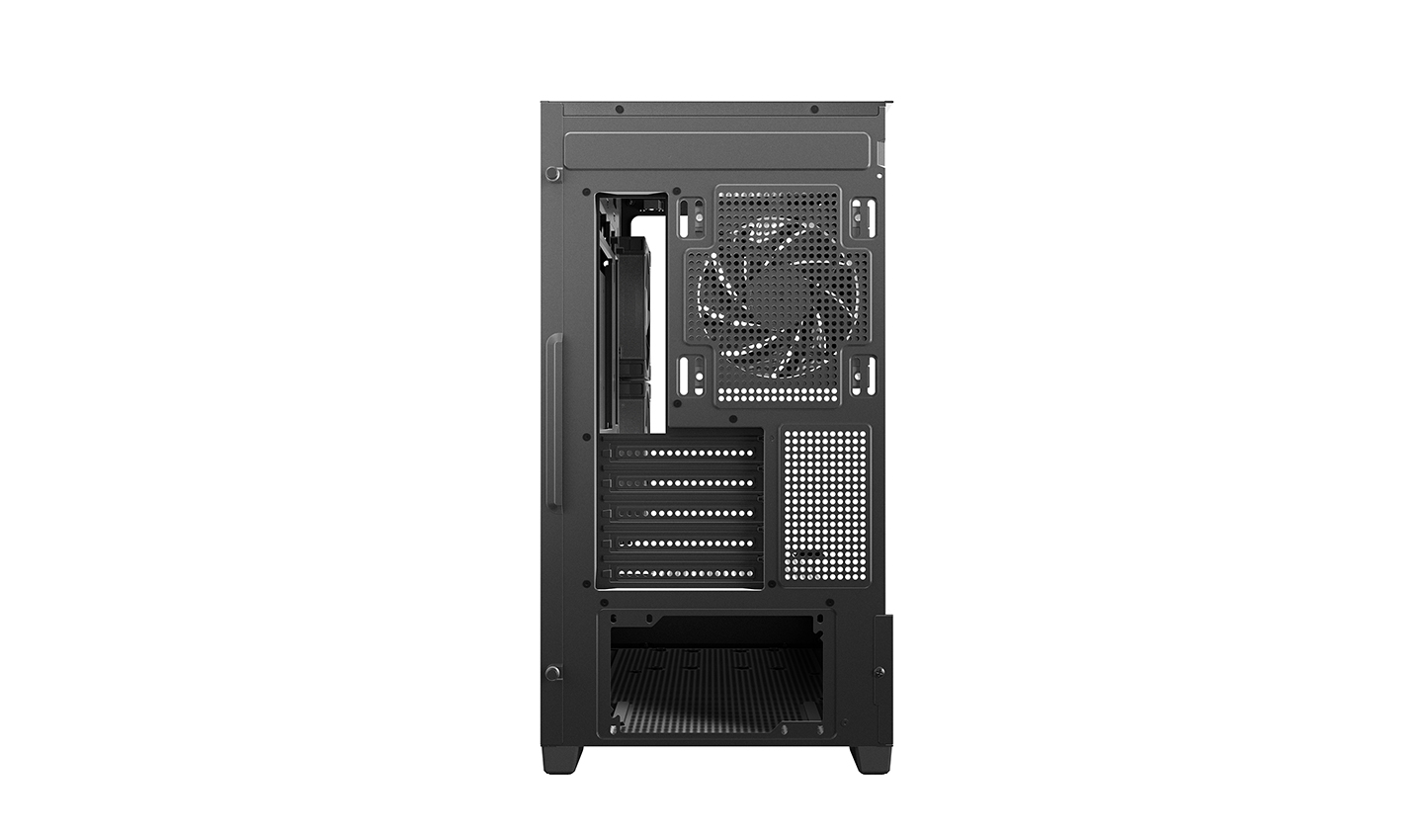

Rear: 1×120mm/1×140mm(pre-installed 1×120mm)
PSU Shroud: 3×120mm
WIDE HARDWARE SUPPORT

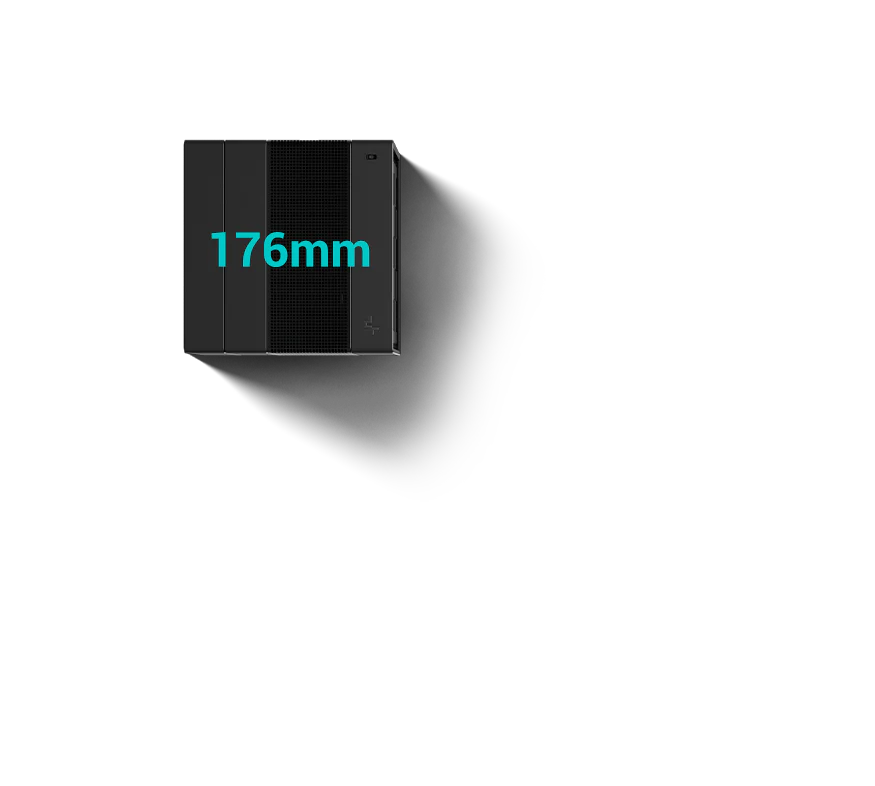

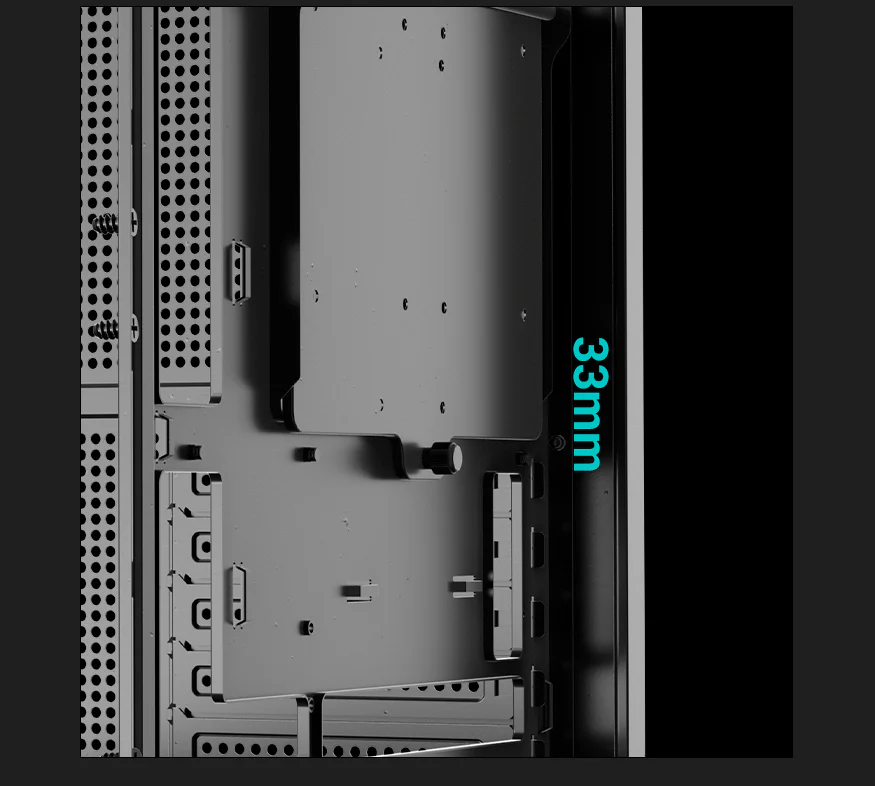

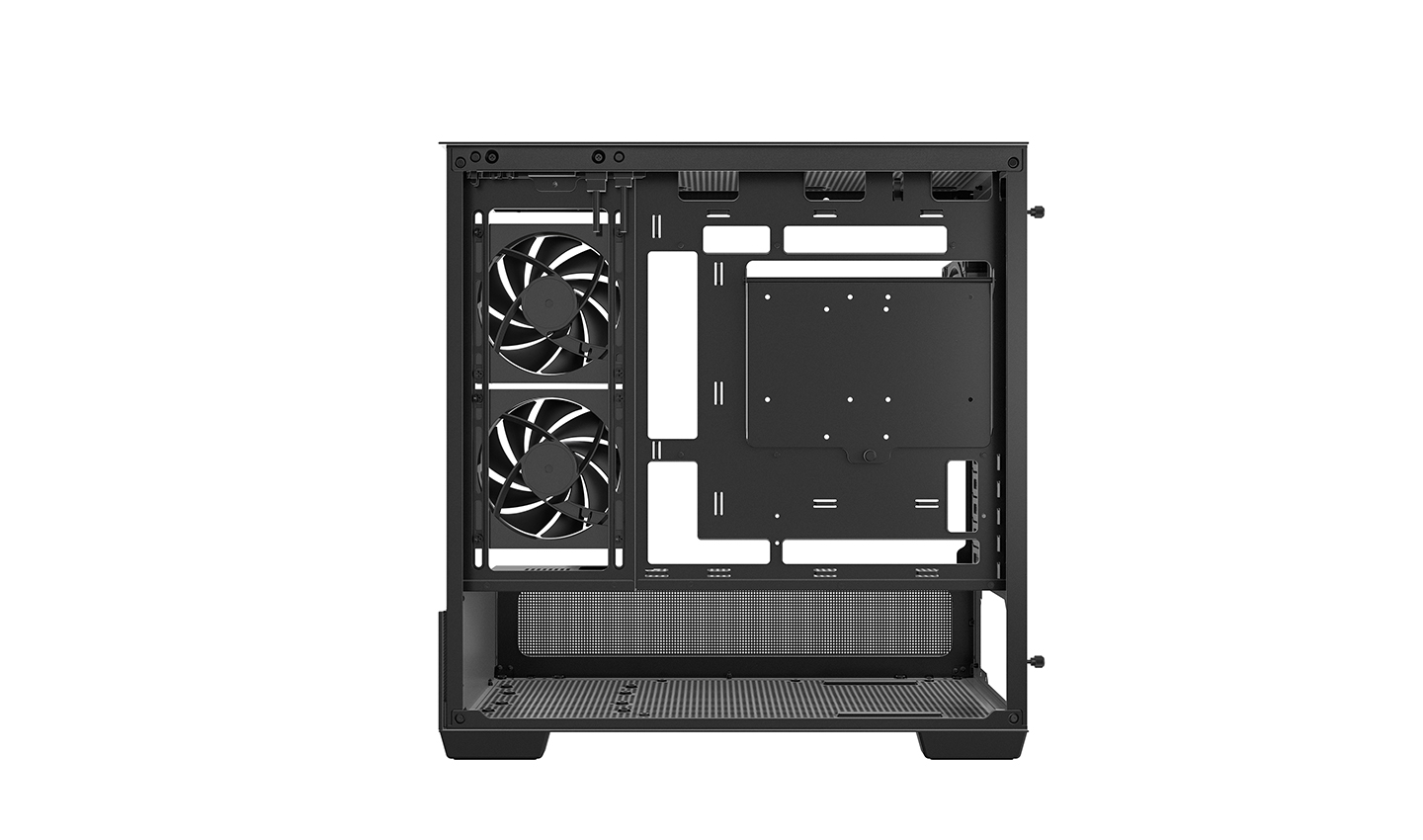

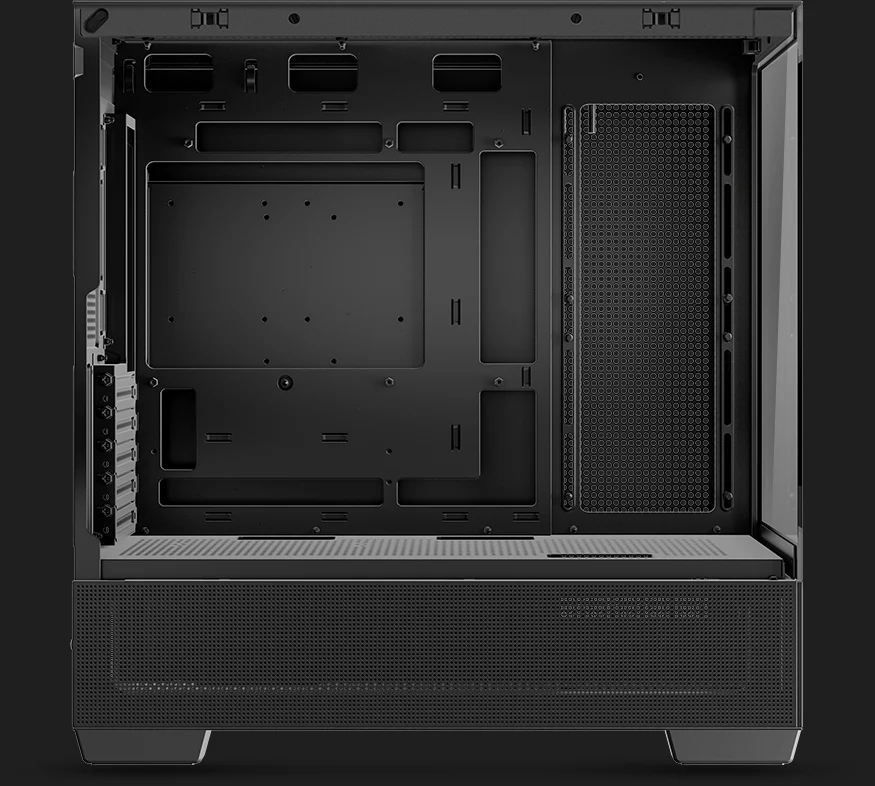

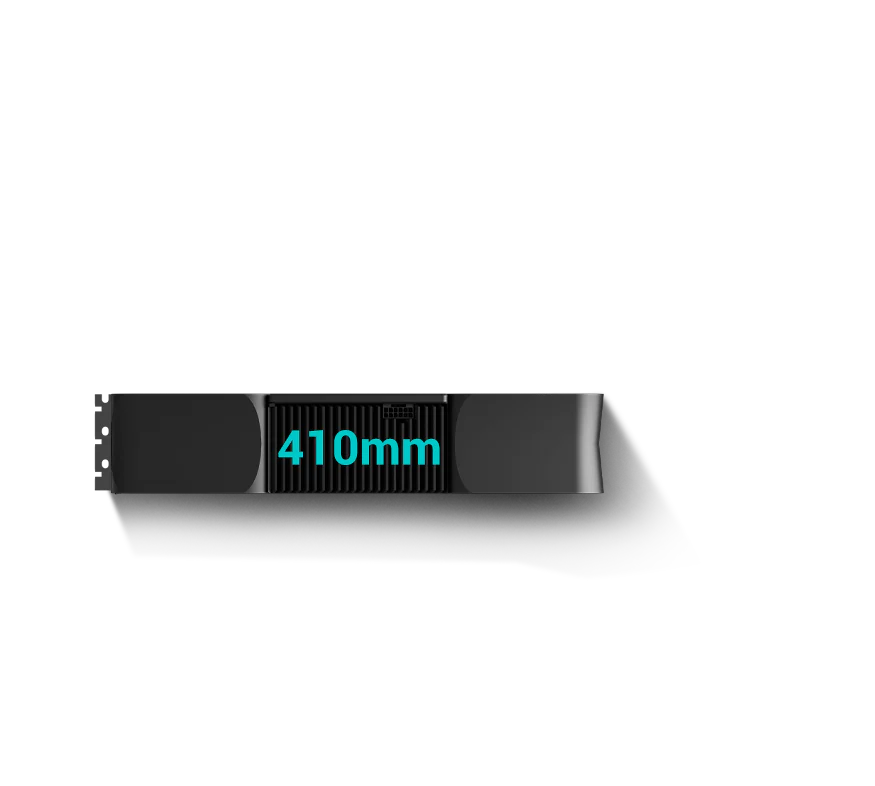

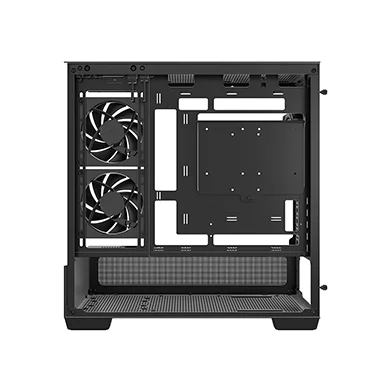

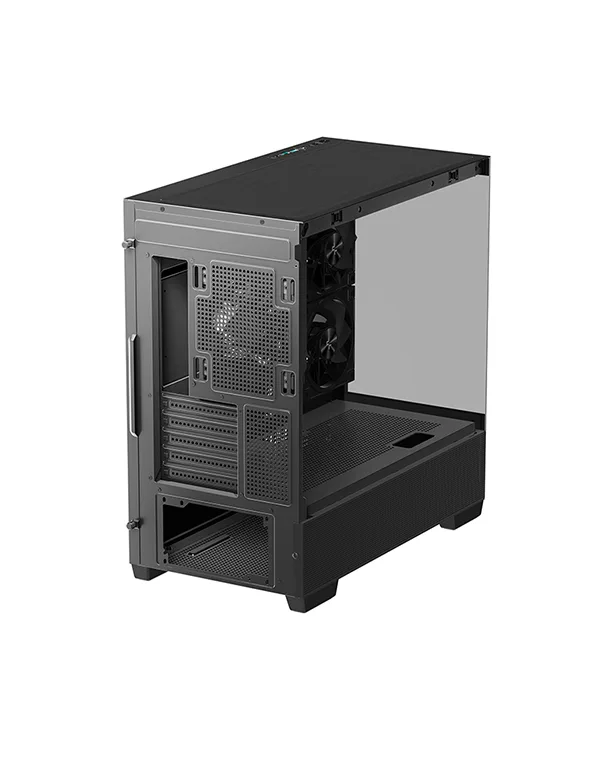

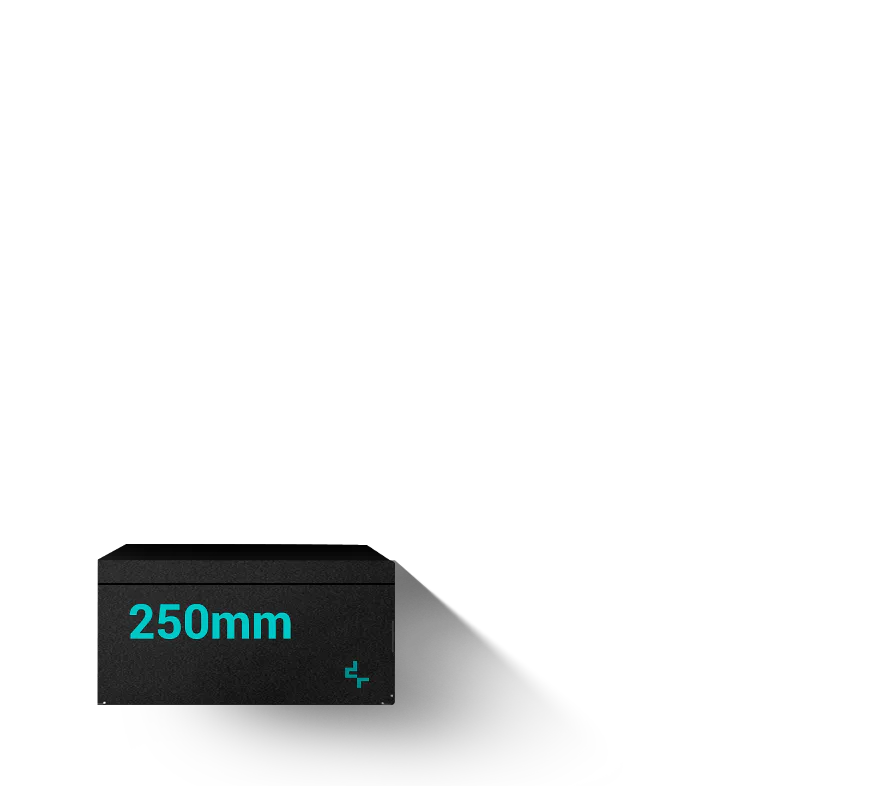

Built to handle serious hardware, it supports GPUs up to 410mm, ATX PSUs up to 250mm, and CPU coolers up to 176mm tall, offering broad compatibility for high-performance components. A 33mm routing space behind the motherboard tray keeps everything neatly organized.
  • GPU
  • PSU
  • COOLER
DETAILS THAT MATTER

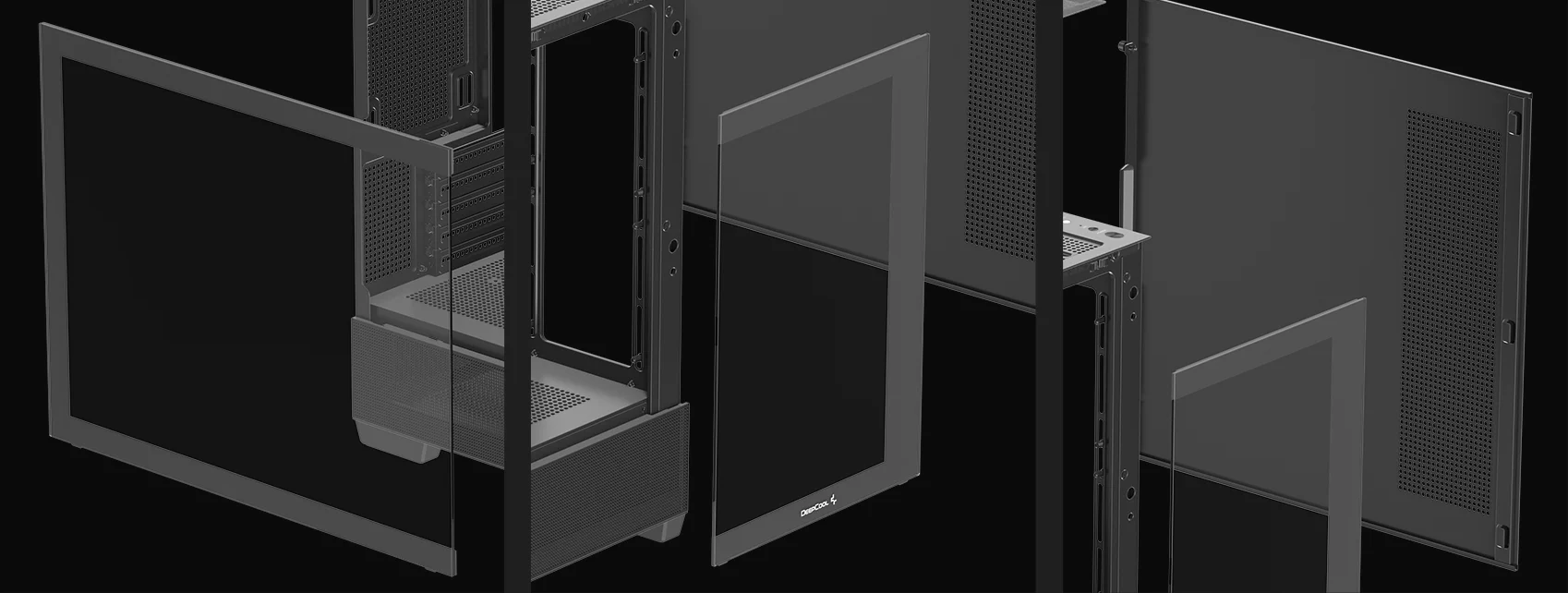

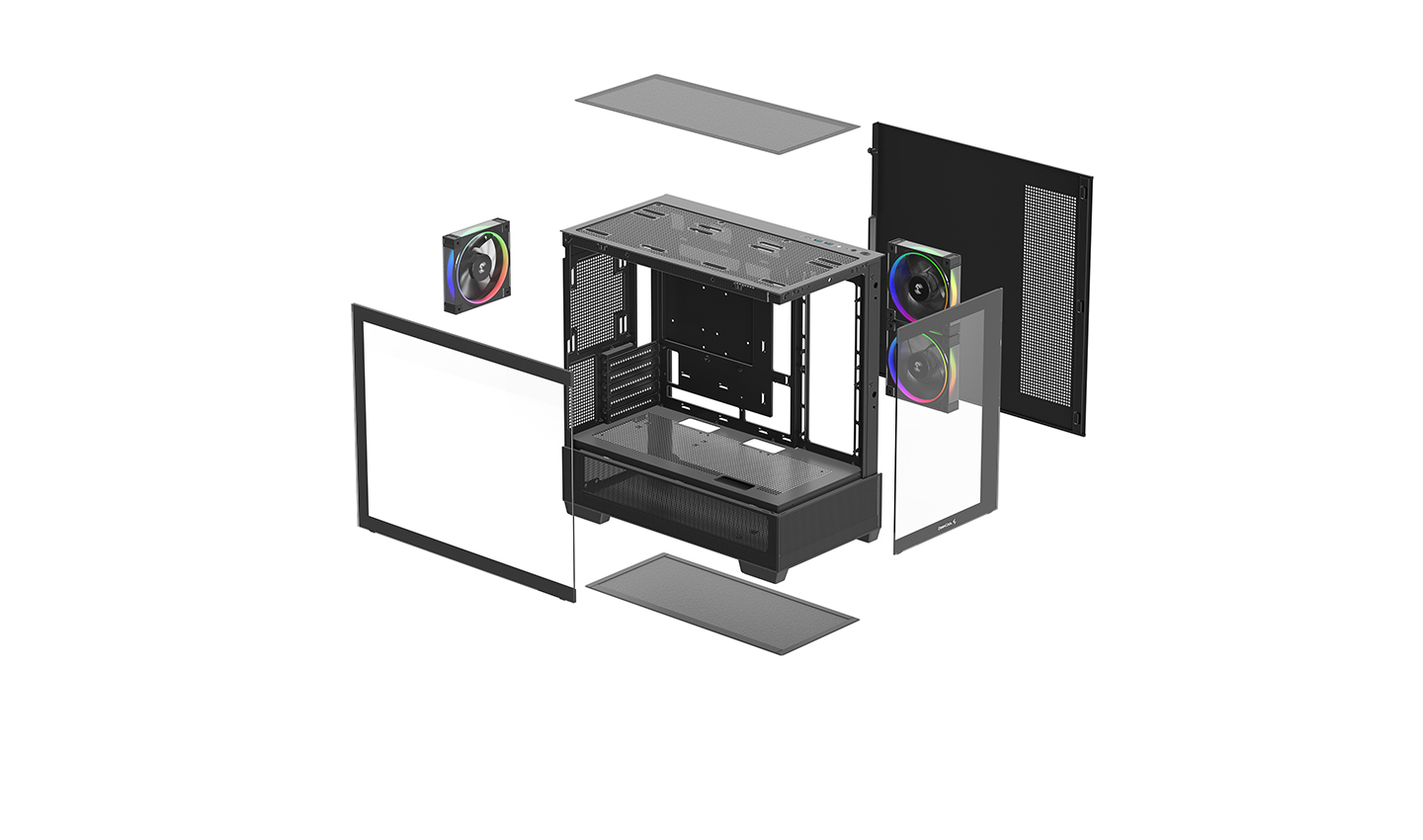

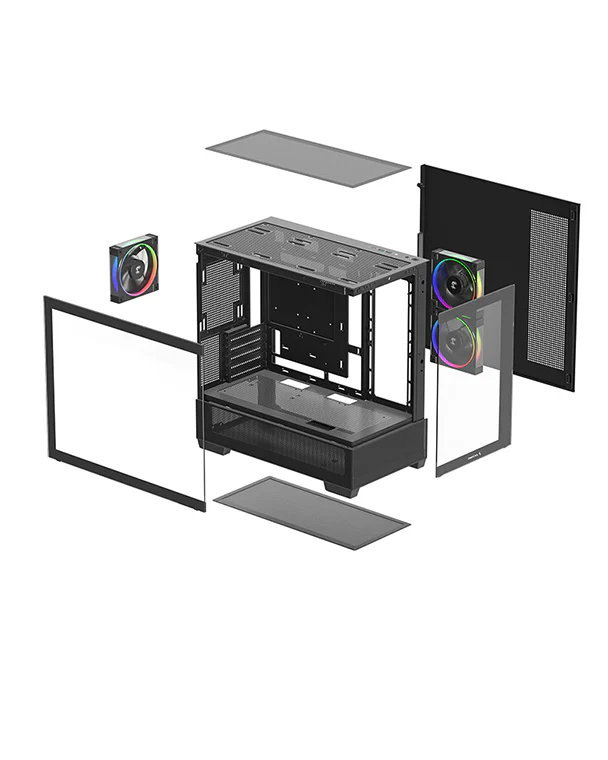

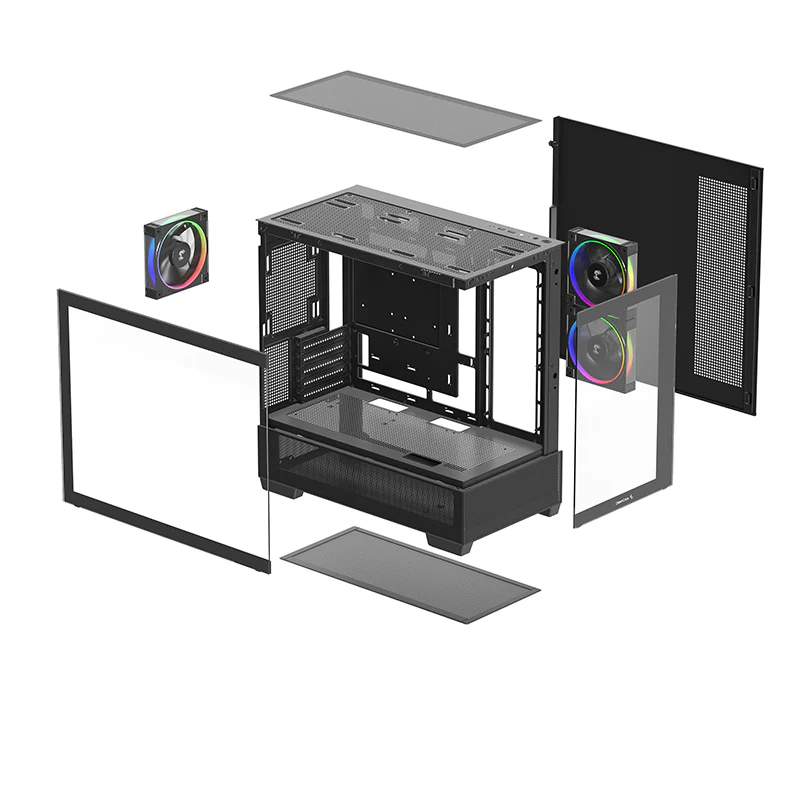

Snap-fit panels on all sides allow quick, tool-free access for easy upgrades and ongoing maintenance.

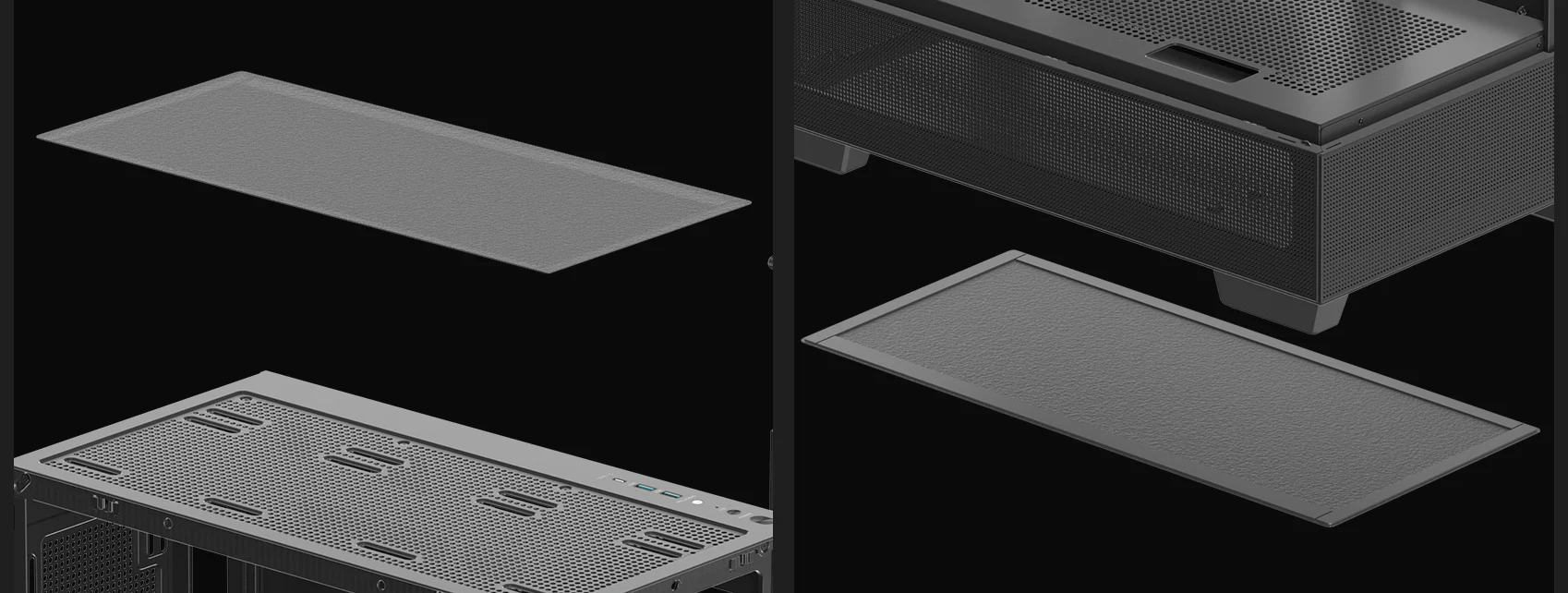

Magnetic dust filters on the top and bottom help reduce buildup and make cleaning easier.

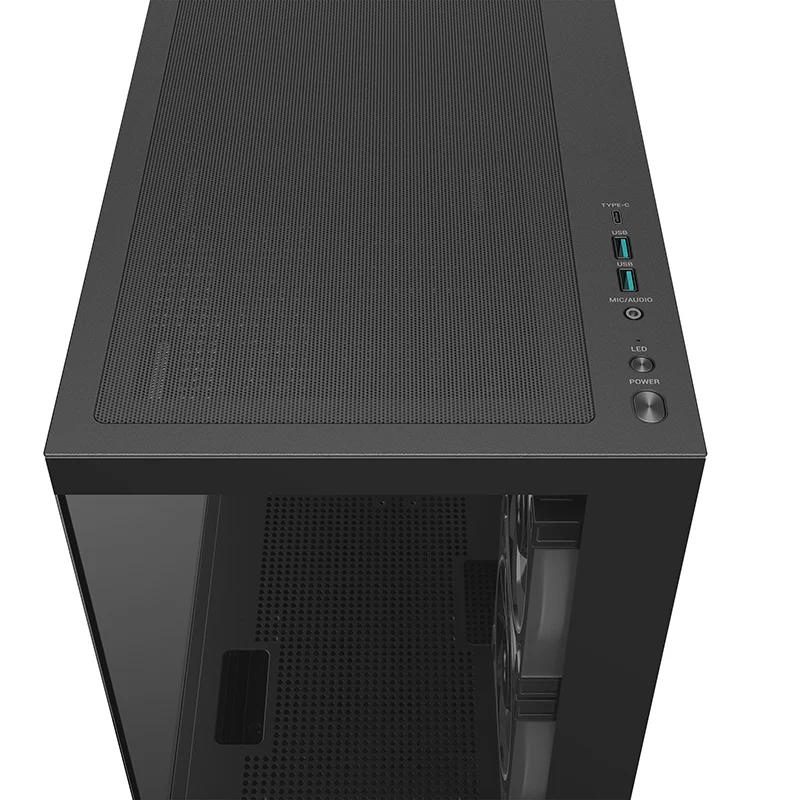

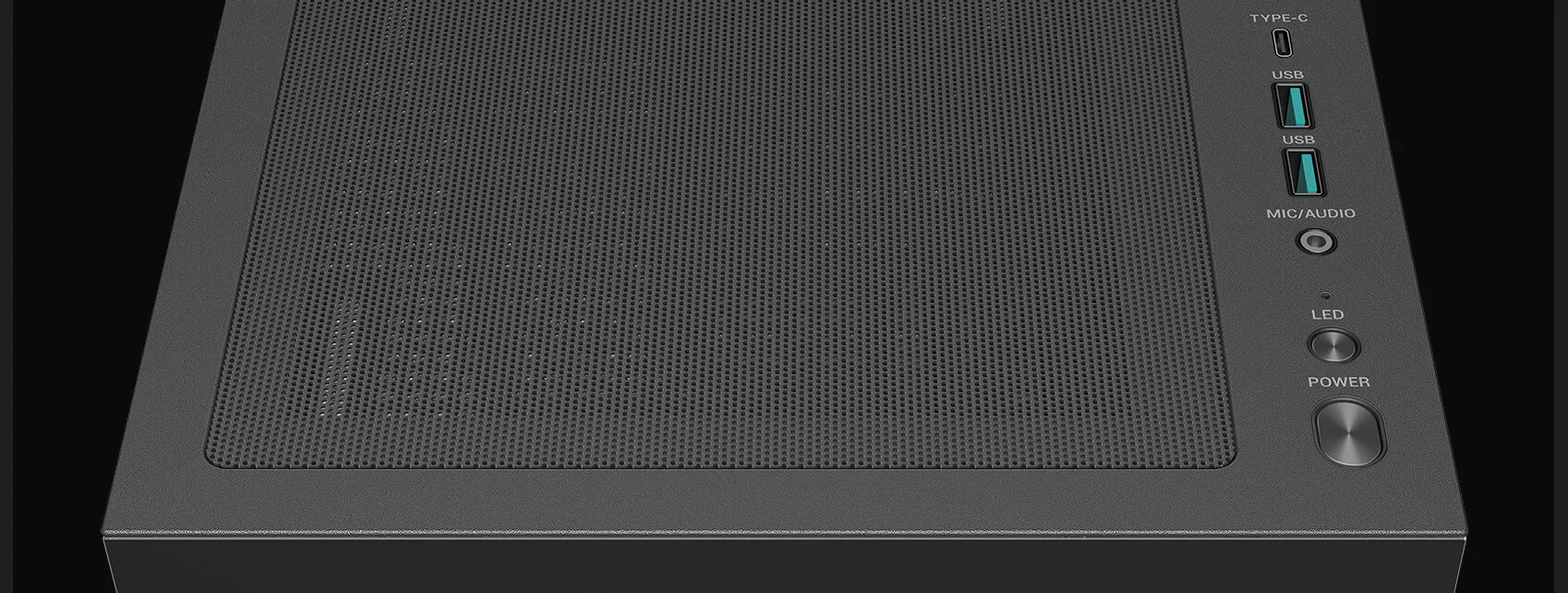

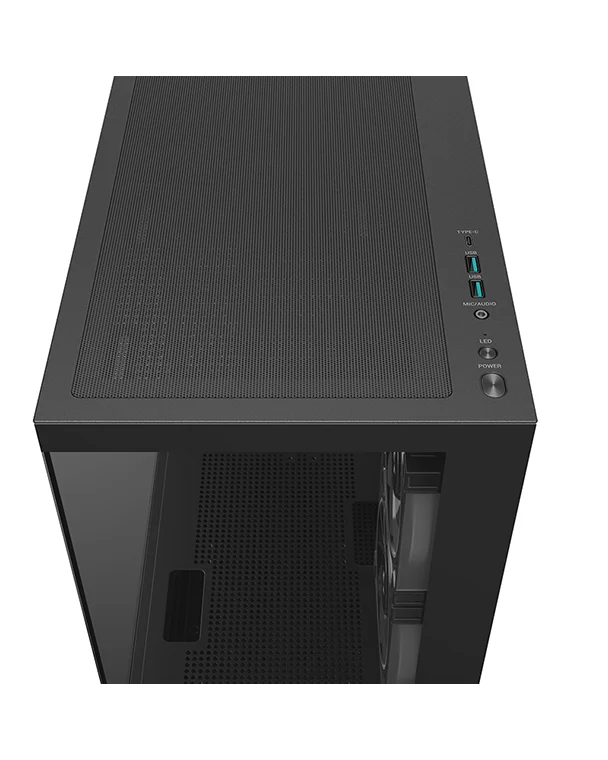

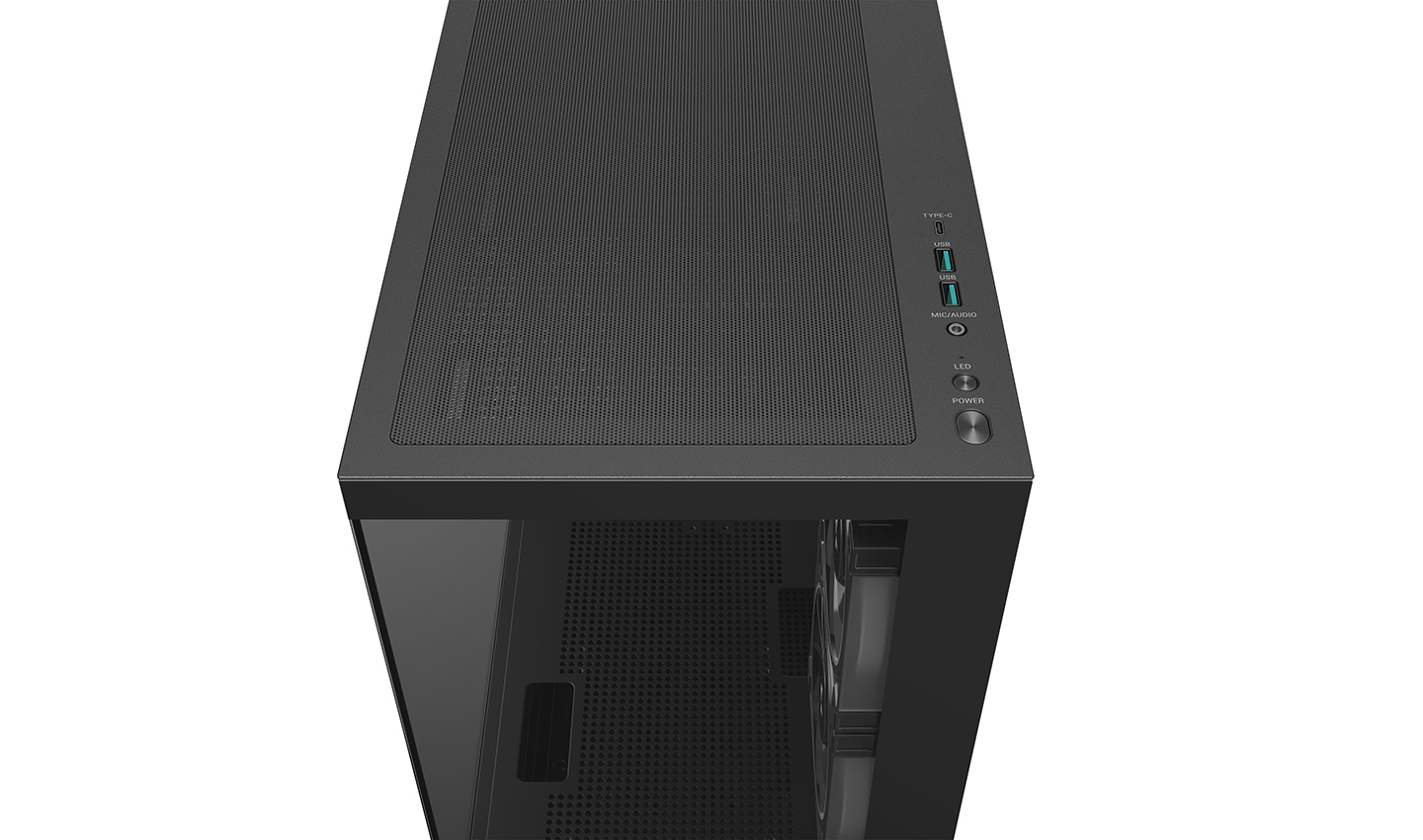

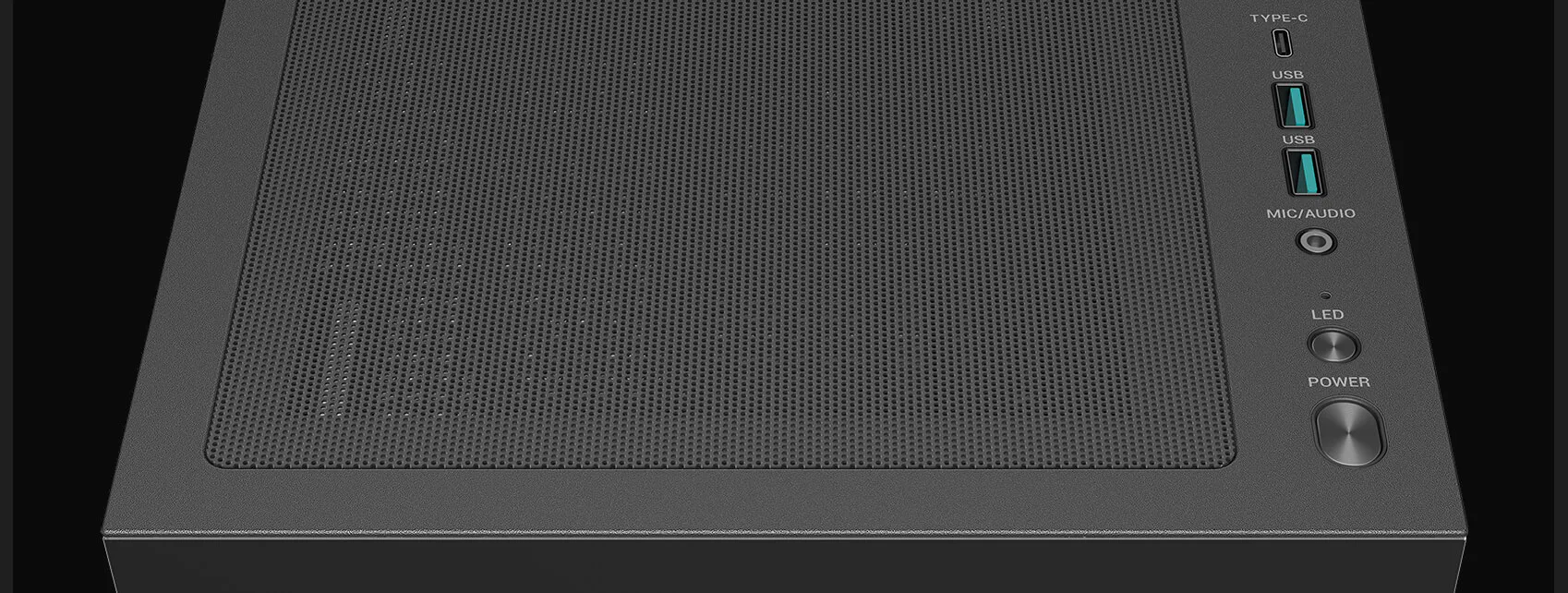

The top I/O panel includes 2×USB 3.0 ports, a Gen2 Type-C port for everyday convenience.
Technical Spec
Product Dimensions437×235×451mm(L×W×H)
Net Weight6.83kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportITX/Micro-ATX
Micro-ATX(Rear Connector)
Front I/O PortsUSB3.0 x2/Gen2 Type-C x1/Audio/Mic x1
3.5" Drive Bays2
2.5" Drive Bays3
Expansion Slots5 Slots
Pre-Installed FansSide: 2×120mm
Rear: 1×120mm
Fan SupportFront: NA
Top: 3×120mm/2x140mm
Side: 2x120mm
Rear: 1×120mm/1x140mm
PSU Shrouded: 3×120mm
Radiator SupportFront: NA
Top: 120/140/240/280/360mm
Side: 120/240mm
Rear: 120/140mm
CPU Cooler Height Limit176mm
GPU Length Limit410mm
Power Supply Type250mm
EAN6933412765455
P/NR-CG380-BKAGM3-G
Download
CG380 3F Manual.pdf
