CG330U 3F

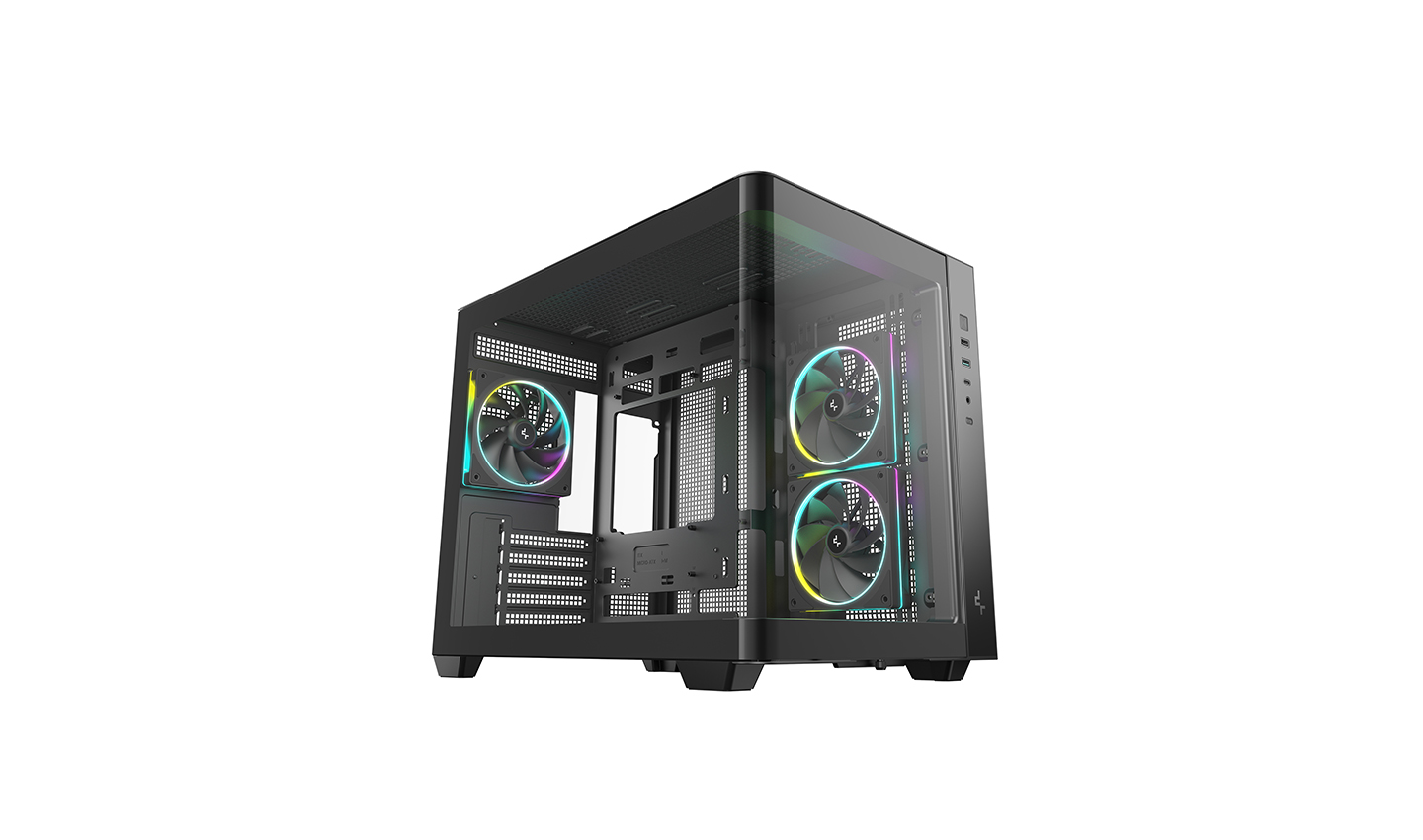

A curved-glass panoramic case built around a dual-chamber layout, the CG330U 3F comes pre-installed with three ARGB fans for effective airflow and vivid lighting right out of the box.
COLOR
black
MODEL
CG330U 3F
CURVED GLASS SHOWCASE
SEAMLESS PANORAMIC VIEW

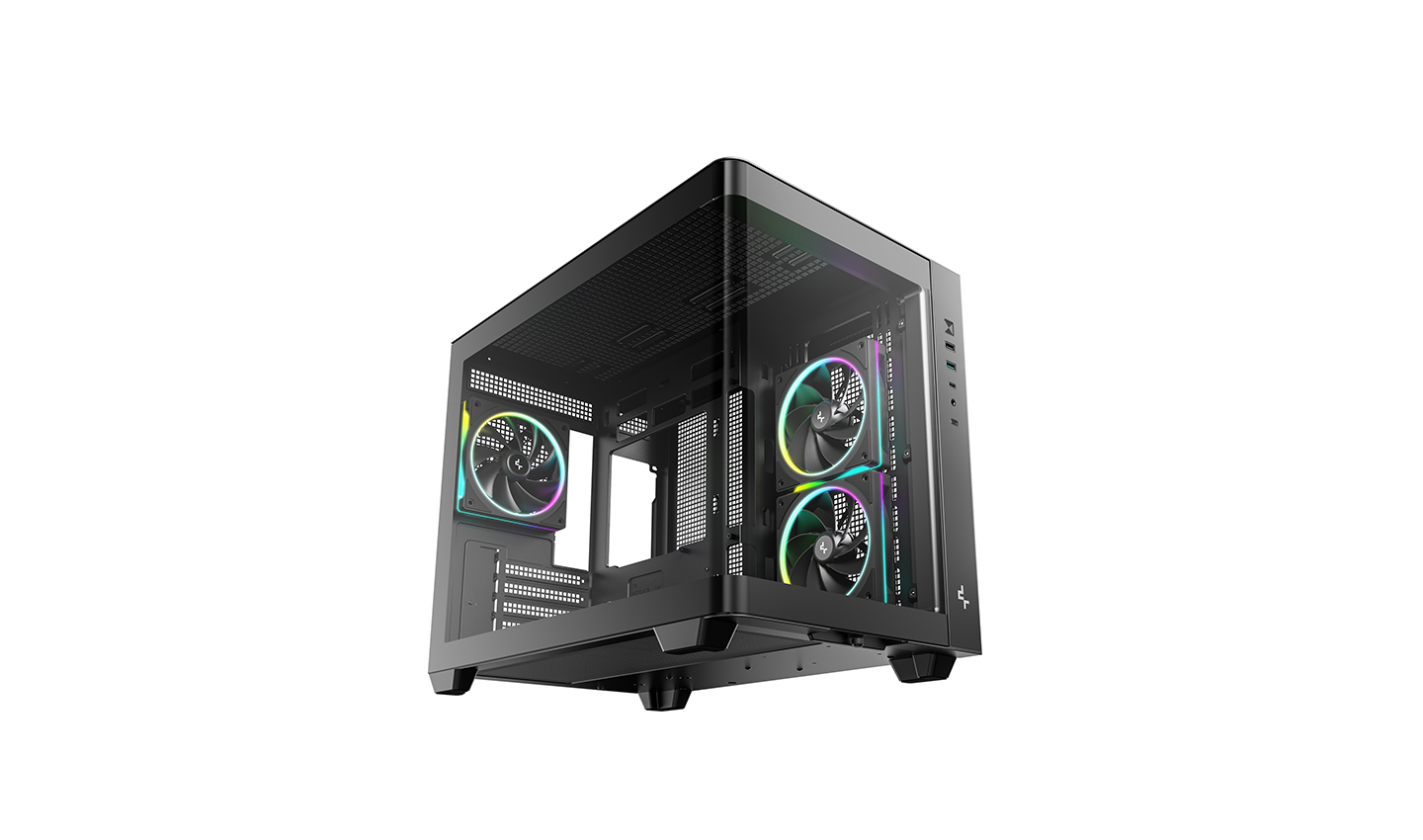

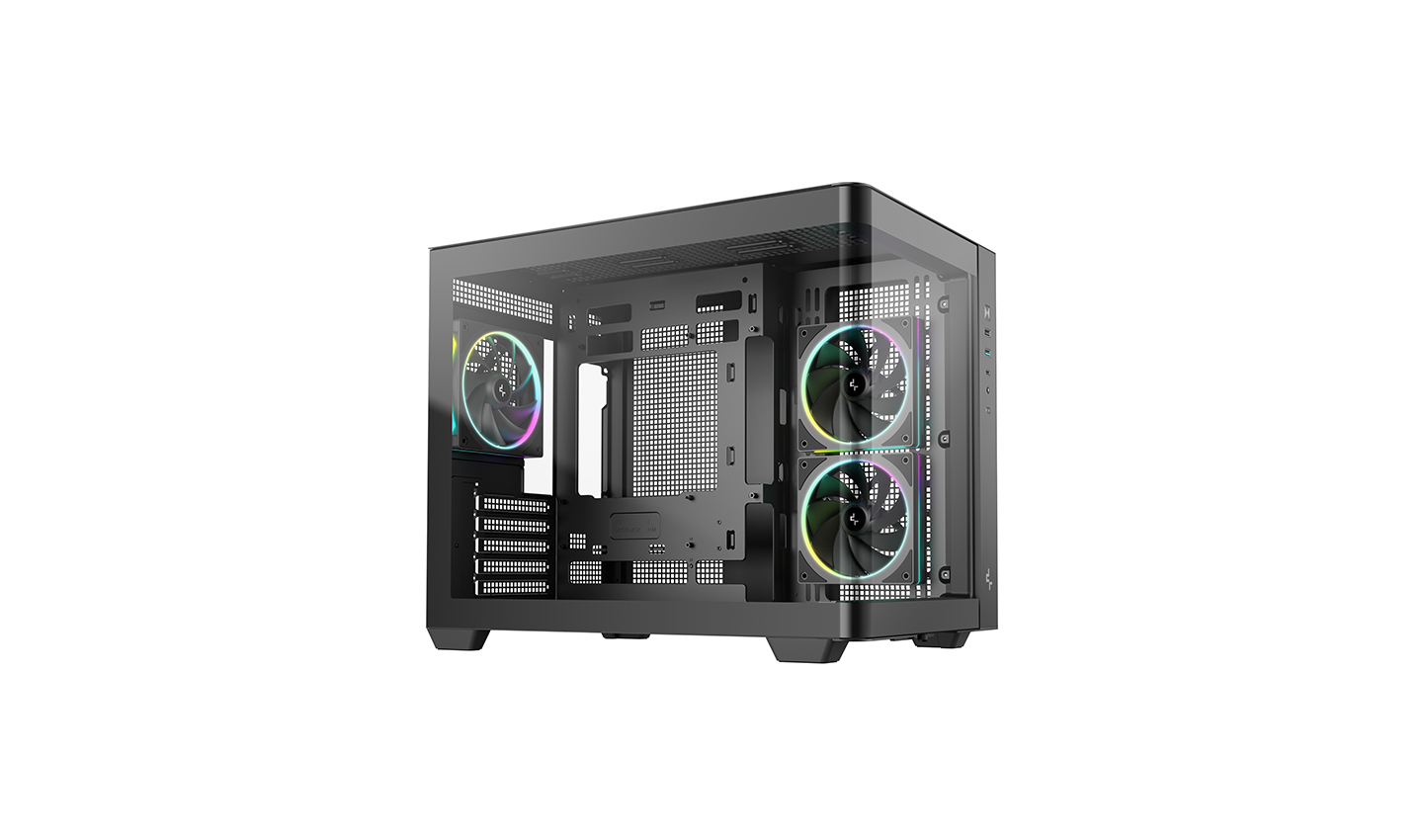

The CG330U 3F features a one-piece curved tempered glass panel that transitions smoothly around the corner. With no seams interrupting the line of sight, it offers an open, continuous view into the build within.
READY TO GLOW

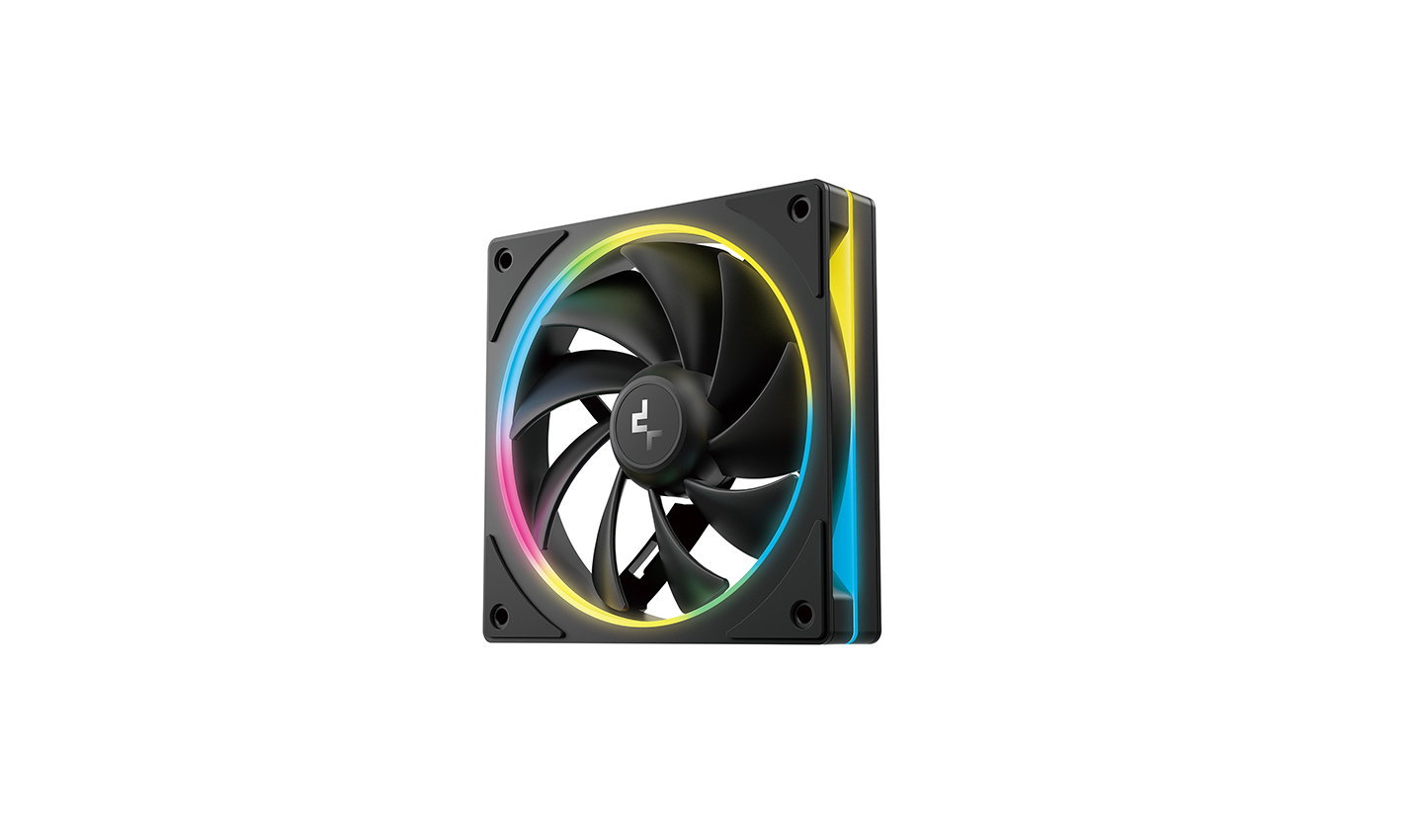

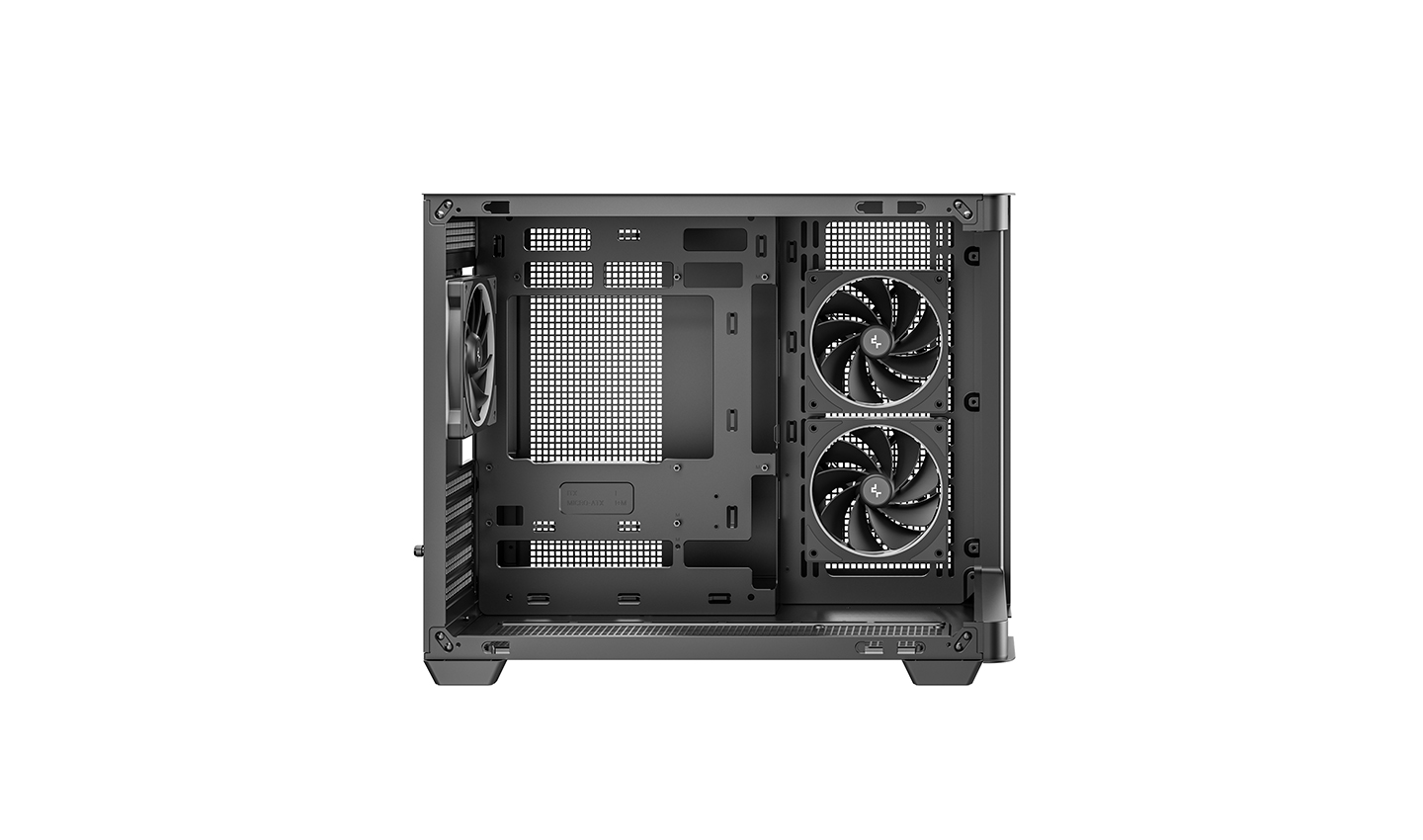

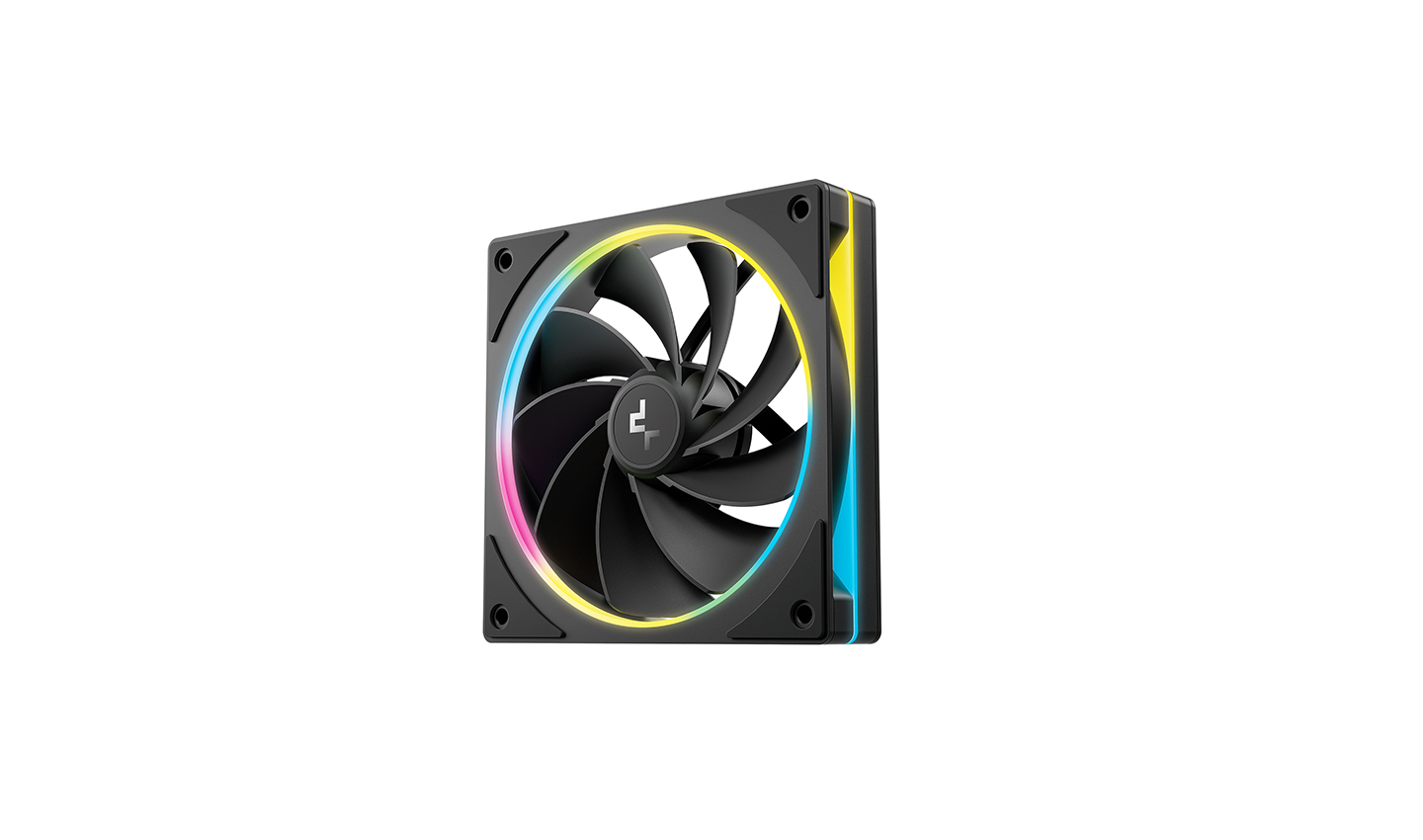

Three FL12 SE PWM ARGB fans are pre-installed, including two reverse-blade fans on the side and one standard fan at the rear, for balanced cooling and a clean lighting look.
COOLING FROM ALL SIDES
Never fear the heat with CG330U 3F’s exceptional cooling flexibility. Install up to nine 120mm fans throughout the case to maximize airflow, while radiator support includes up to 360mm on the top or bottom, and up to 280mm on the side.
9 120mm
4 140mm
CASE FANS
2 360mm
2 280mm
3 240mm
2 140mm
4 120mm
RADIATOR
WIDE HARDWARE SUPPORT
Compact in size yet generous in compatibility, the CG330U 3F supports GPUs up to 410mm, ATX PSUs up to 200mm, and CPU coolers up to 164mm. With 5 PCIe slots and storage support for 1× 3.5” HDDs and 2× 2.5” SSDs, it offers a practical foundation for mainstream builds.
  • 01
  • 02
  • 03
  • 04
  • 05
DETAILS THAT MATTER
Supports M-ATX reverse connector motherboards
Provides 46mm of cable management clearance

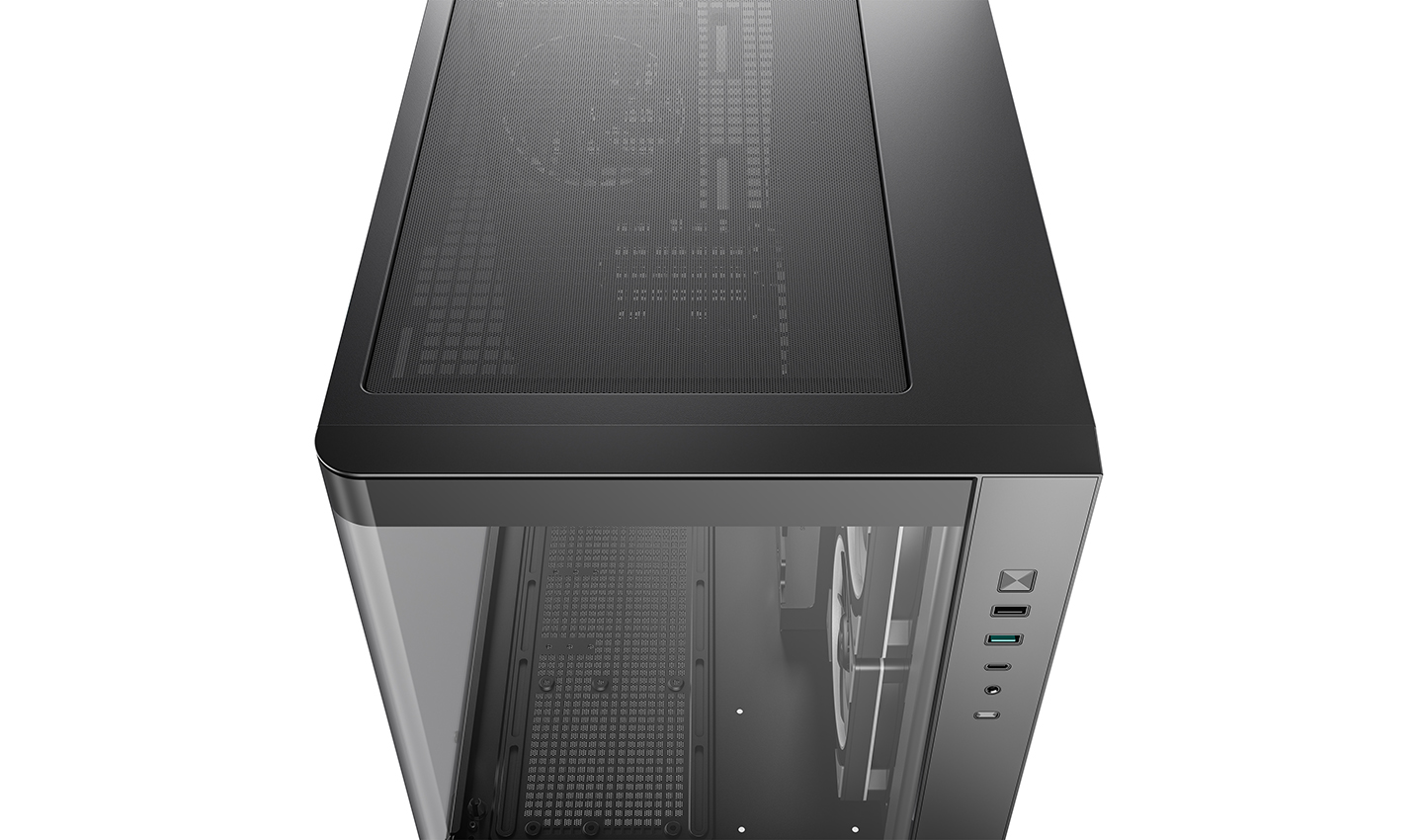

Features top and bottom dust filters
EASY I/O ACCESS
The side I/O panel provides convenient access to a USB 3.0 port, a USB 2.0 port, a Type-C port, and a combined audio/mic jack.
Technical Spec
Product Dimensions450x285x370mm(L×W×H)
Net Weight6.5kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportITX/Micro-ATX Micro-ATX(Rear Connector)
Front I/O PortsUSB3.0 x1,USB2.0 x1,Type-C x1,Audio x1
3.5" Drive Bays1
2.5" Drive Bays2
Expansion Slots5 Slots
Pre-Installed FansSide: 2×120mm
Rear: 1×120mm
Fan SupportTop:3×120 / 2×140mm
Side:2×120 / 2×140mm
Bottom:3×120mm
Rear: 1×120mm
Radiator SupportTop: 120/140/240/280/360mm
Side:120/140/240/280mm
Bottom:120/240/360mm
Rear: 120 mm
CPU Cooler Height Limit164mm
GPU Length Limit410mm
Power Supply TypeATX PS2(maximum length:200mm)/SFX/SFX-L
EAN6933412765868
P/NR-CG330U3F-BKAGM3-G
Download
CG330U 3F Manual.pdf
