CC560 ARGB V3

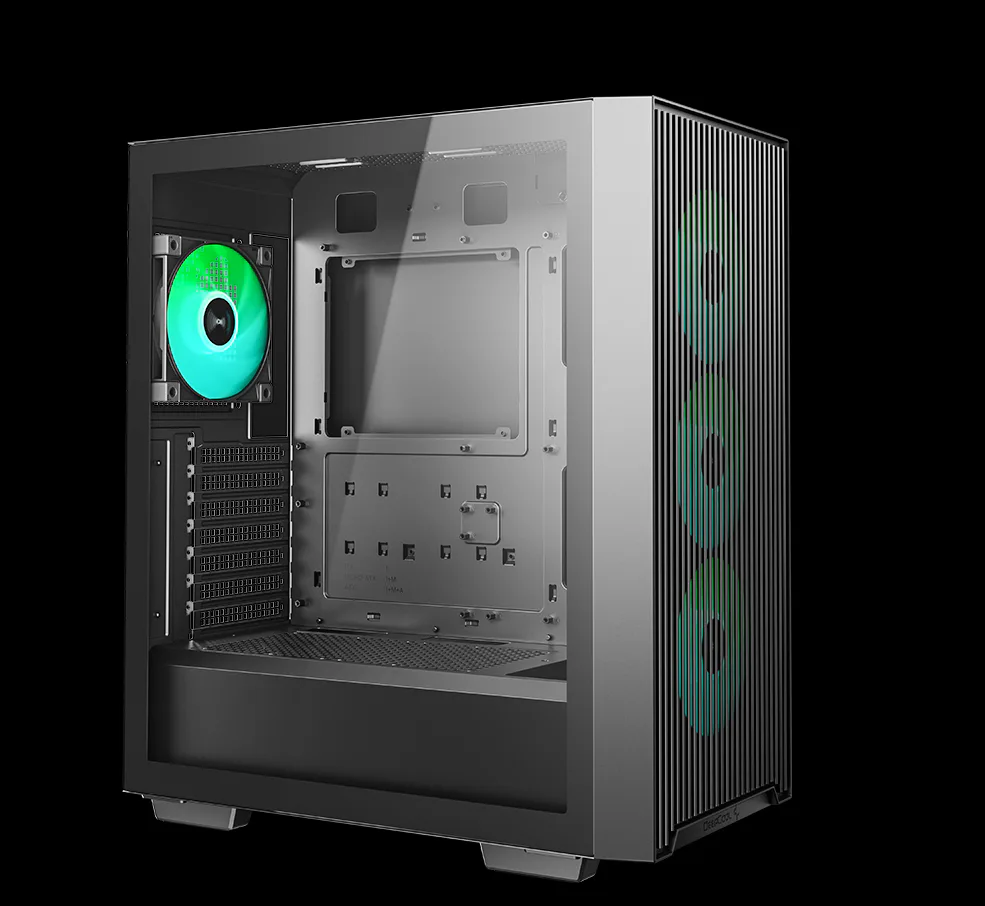

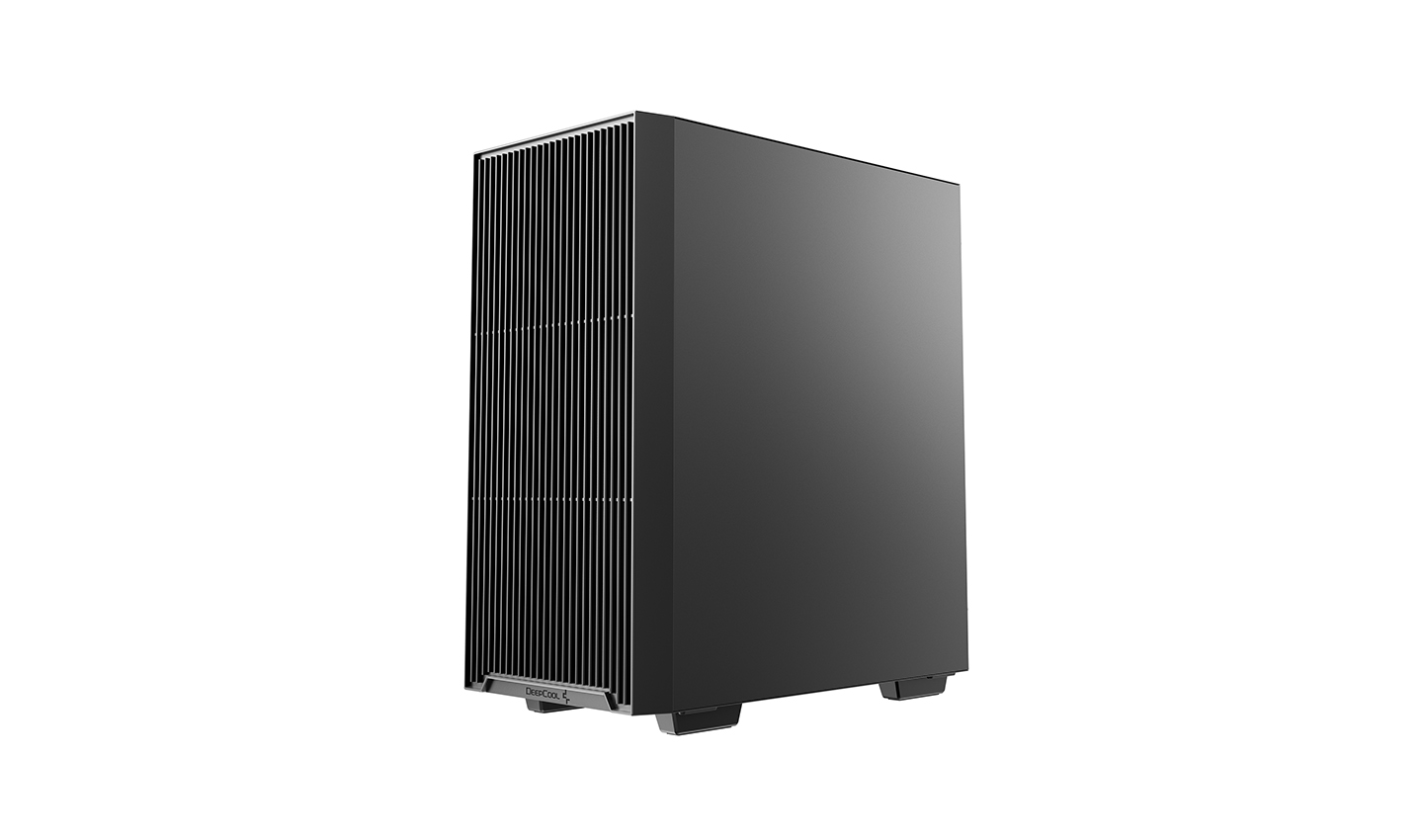

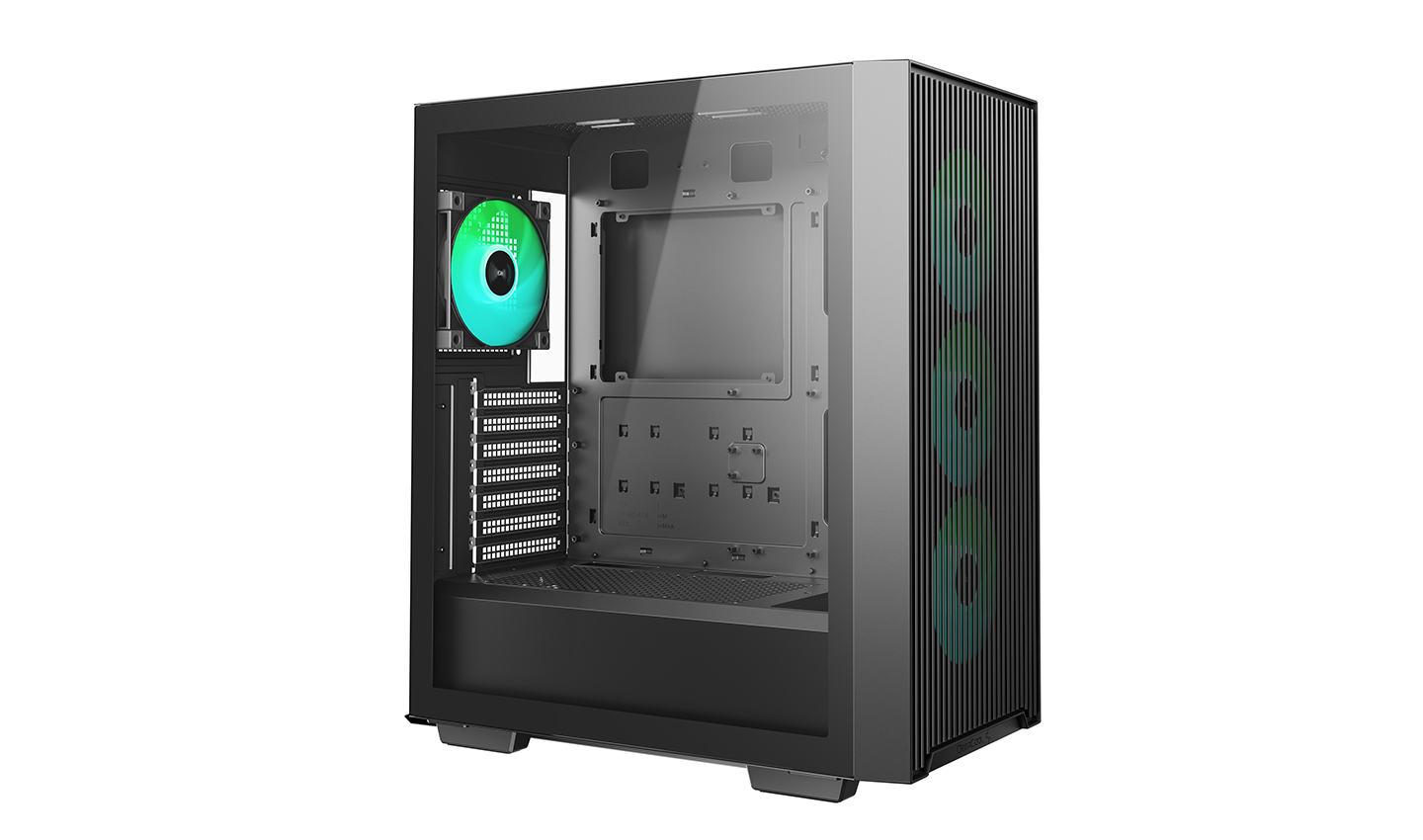

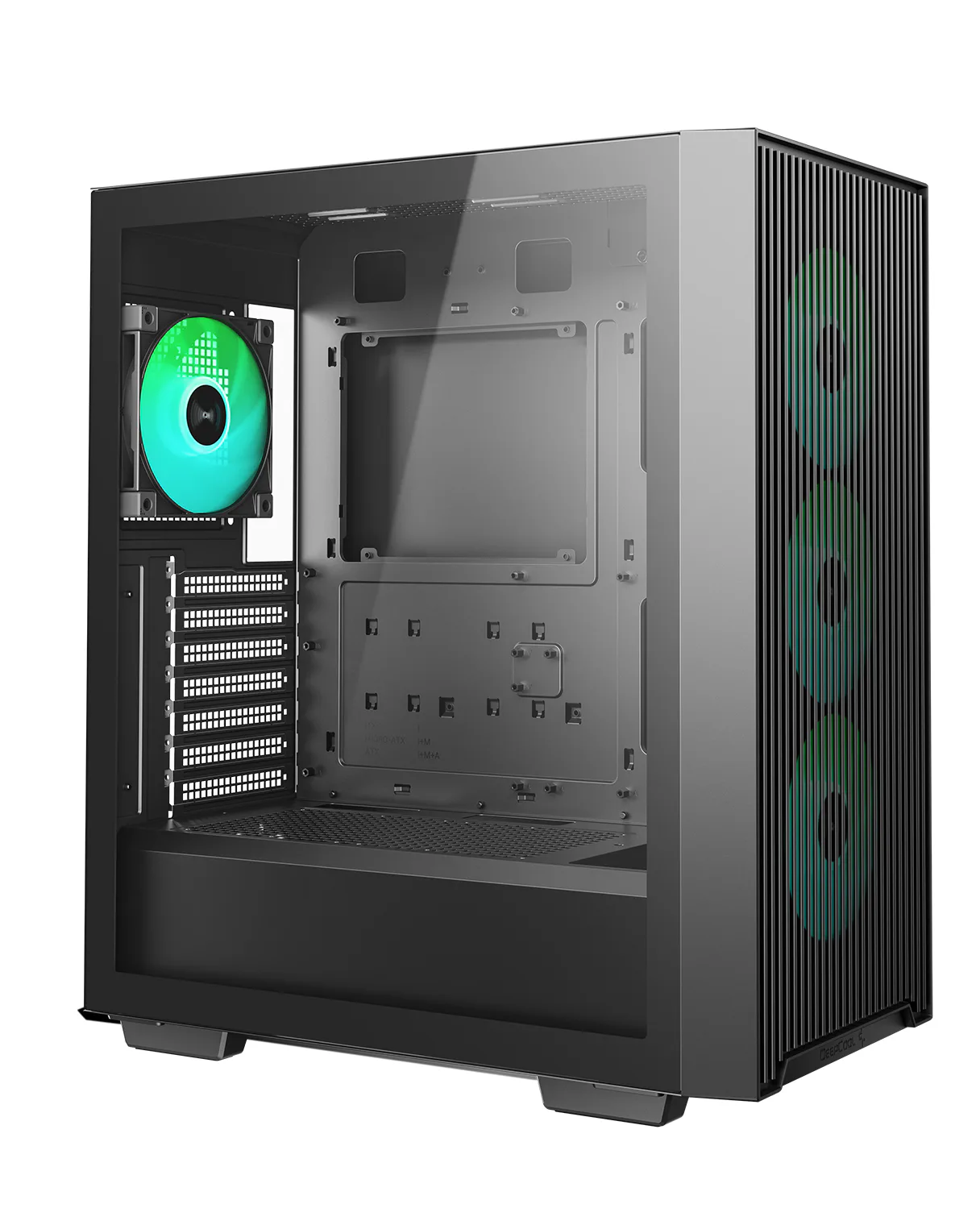

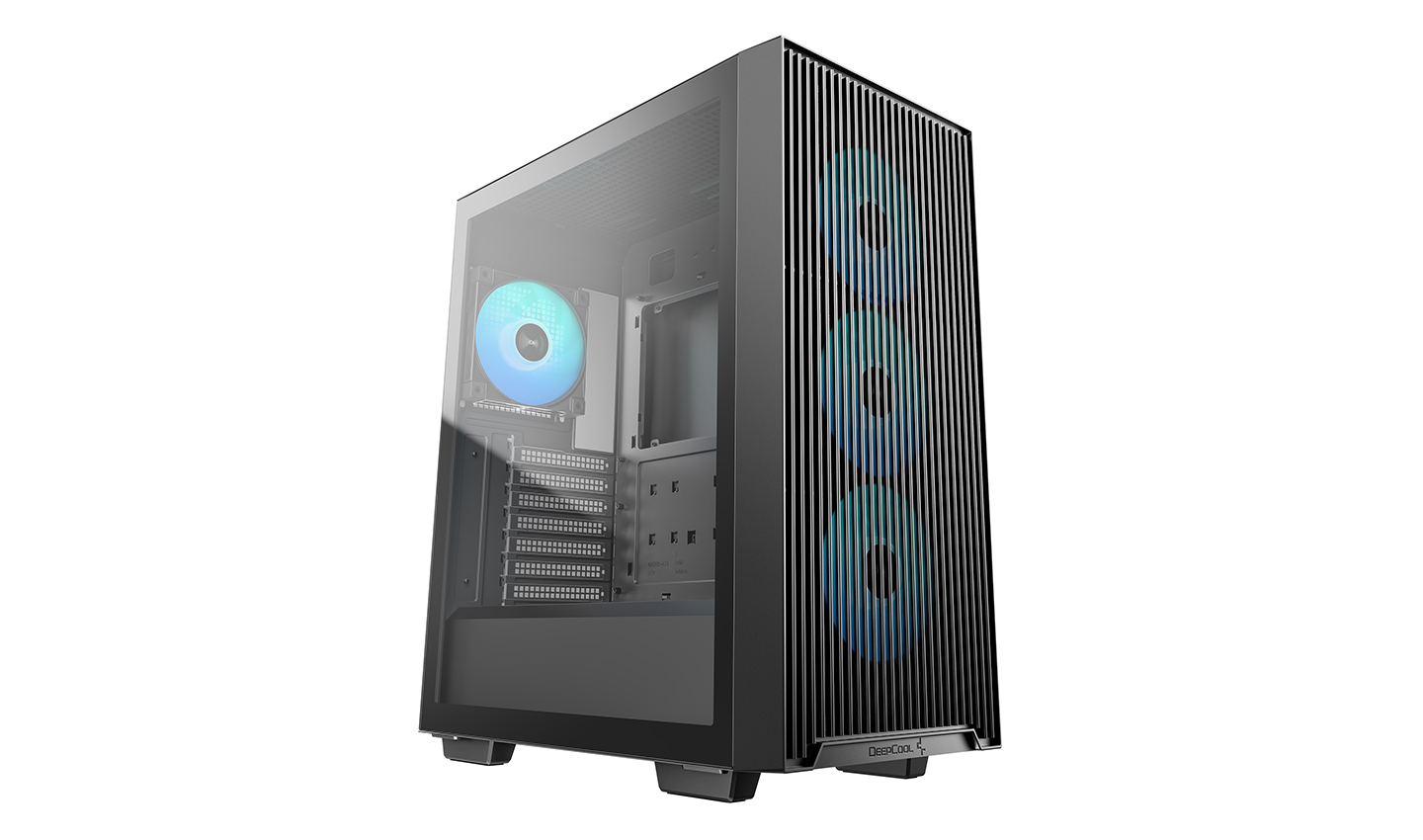

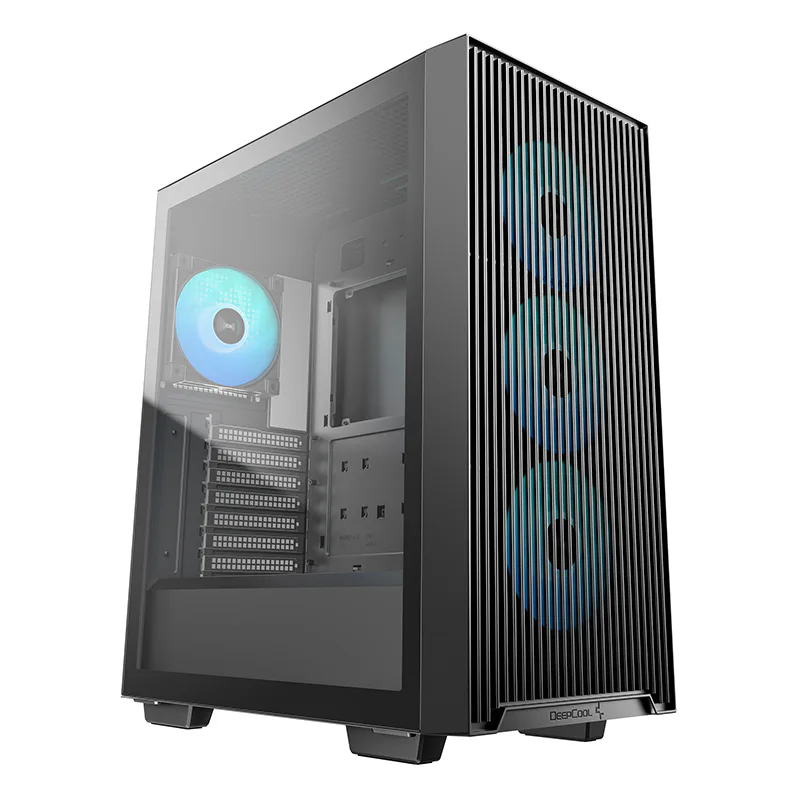

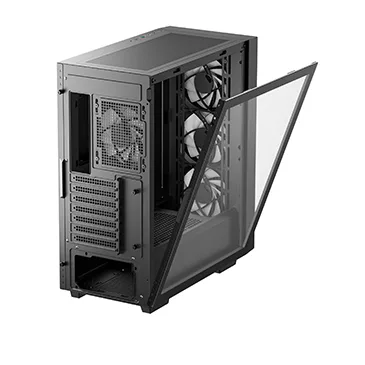

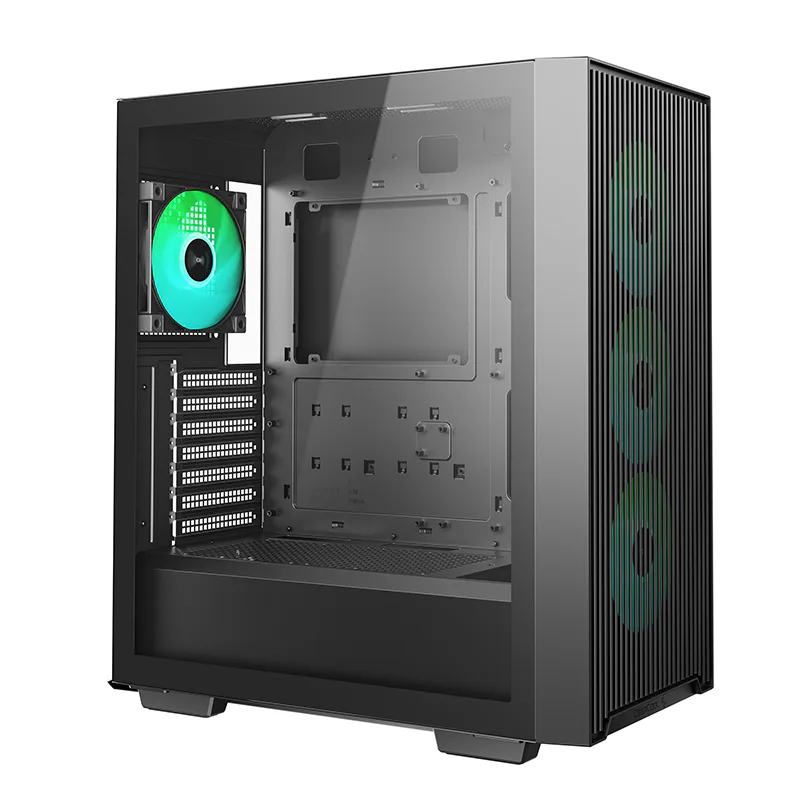

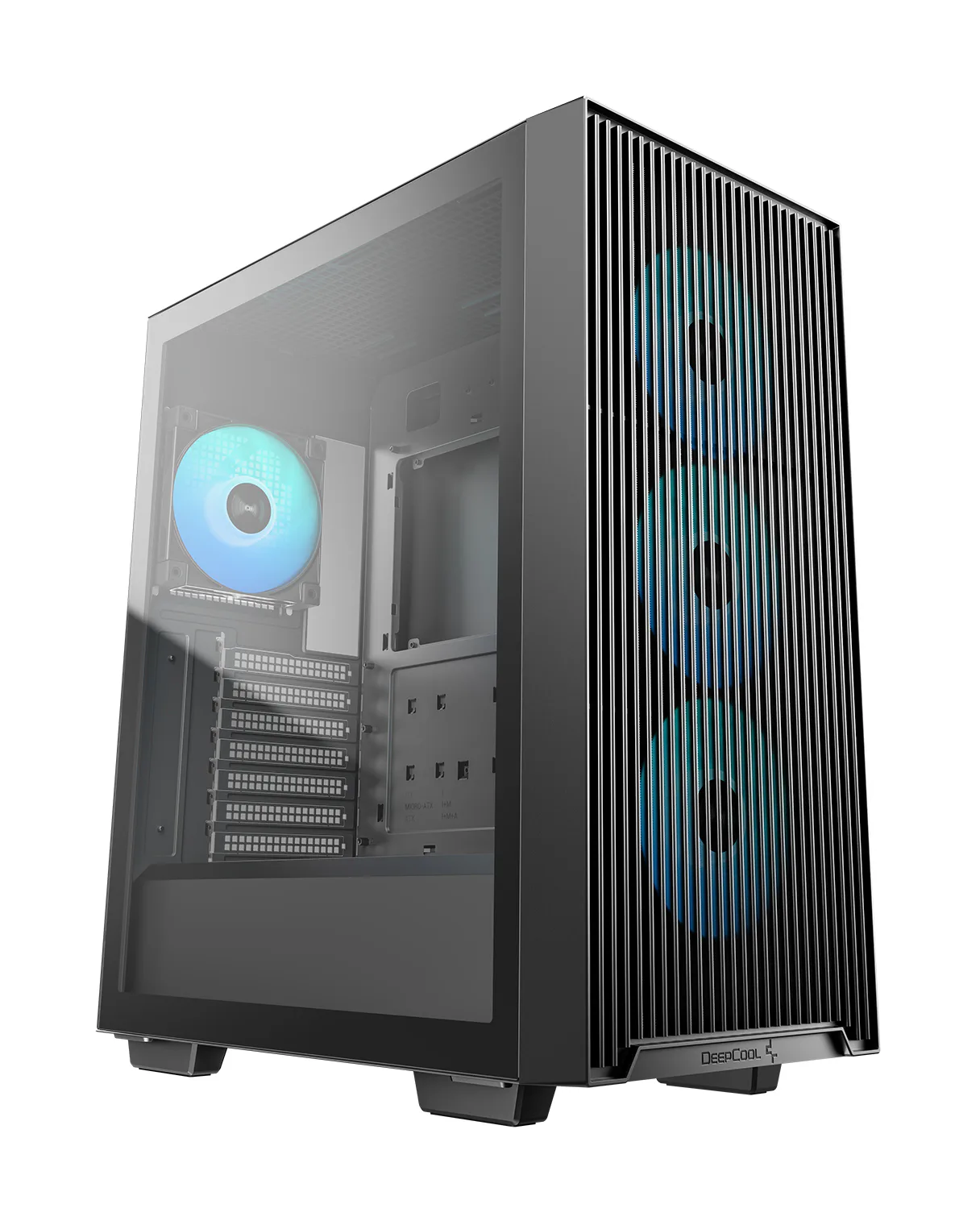

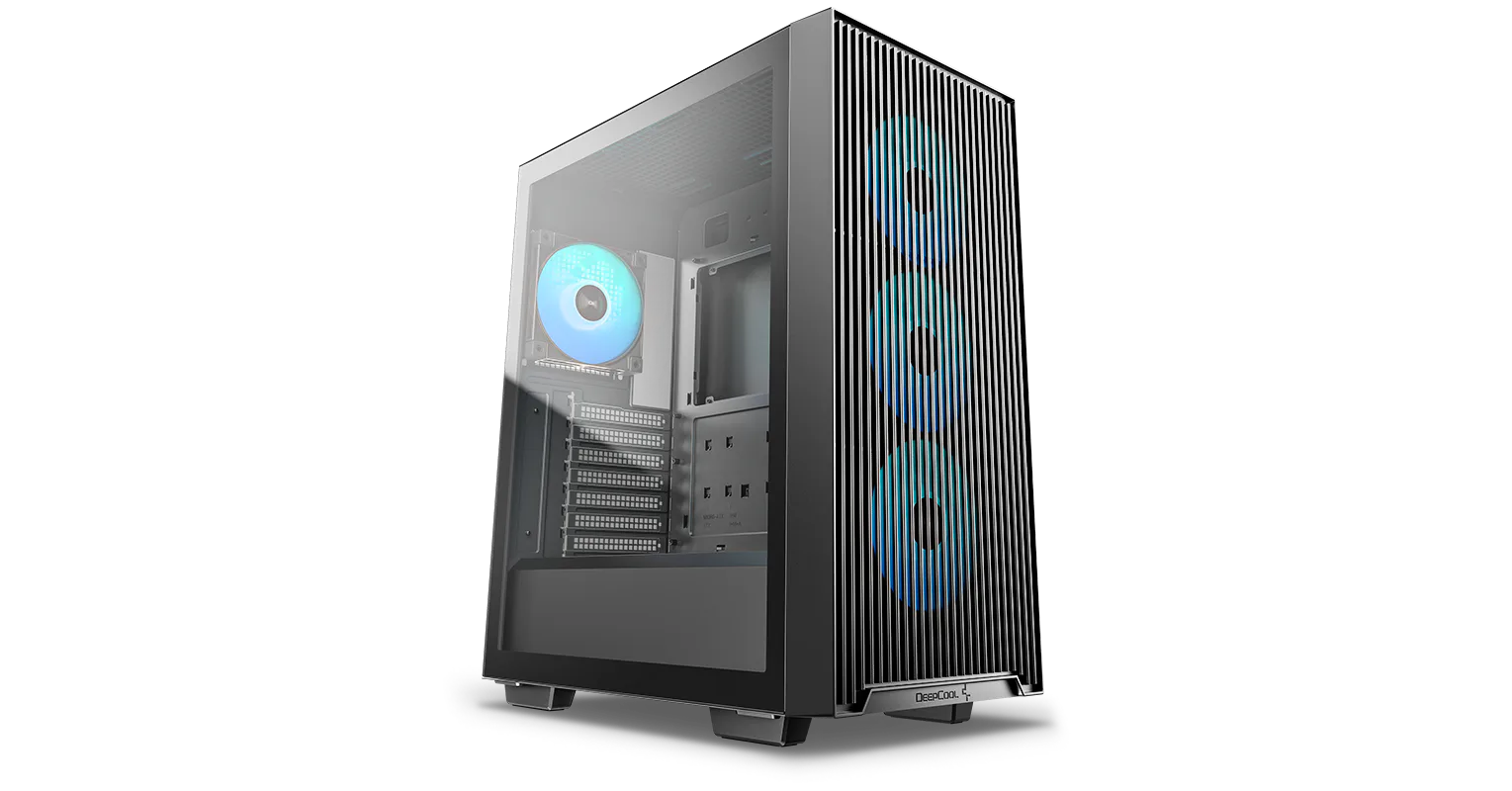

The CC560 ARGB V3 Mid-Tower case refreshes a proven case with a new front grille panel, improved airflow intake, and four pre-installed PWM ARGB fans for strong cooling and vivid lighting. With spacious hardware support, flexible cooling options, and a full-sized tempered glass side panel, it is ready for modern performance builds.
COLOR
black
MODEL
CC560 ARGB V3
REFRESHED AIRFLOW CASE
DIRECT FLOW-THROUGH COOLING

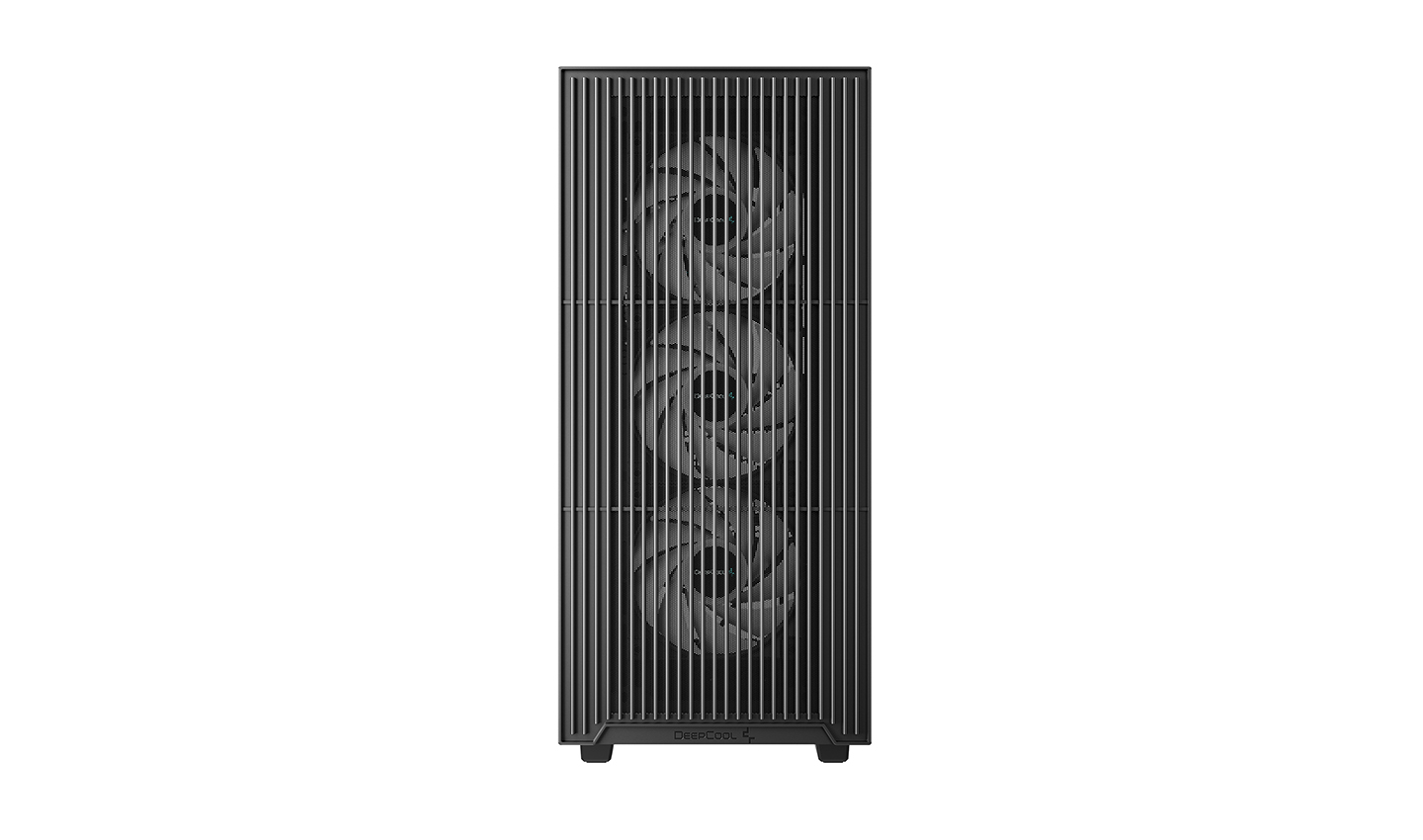

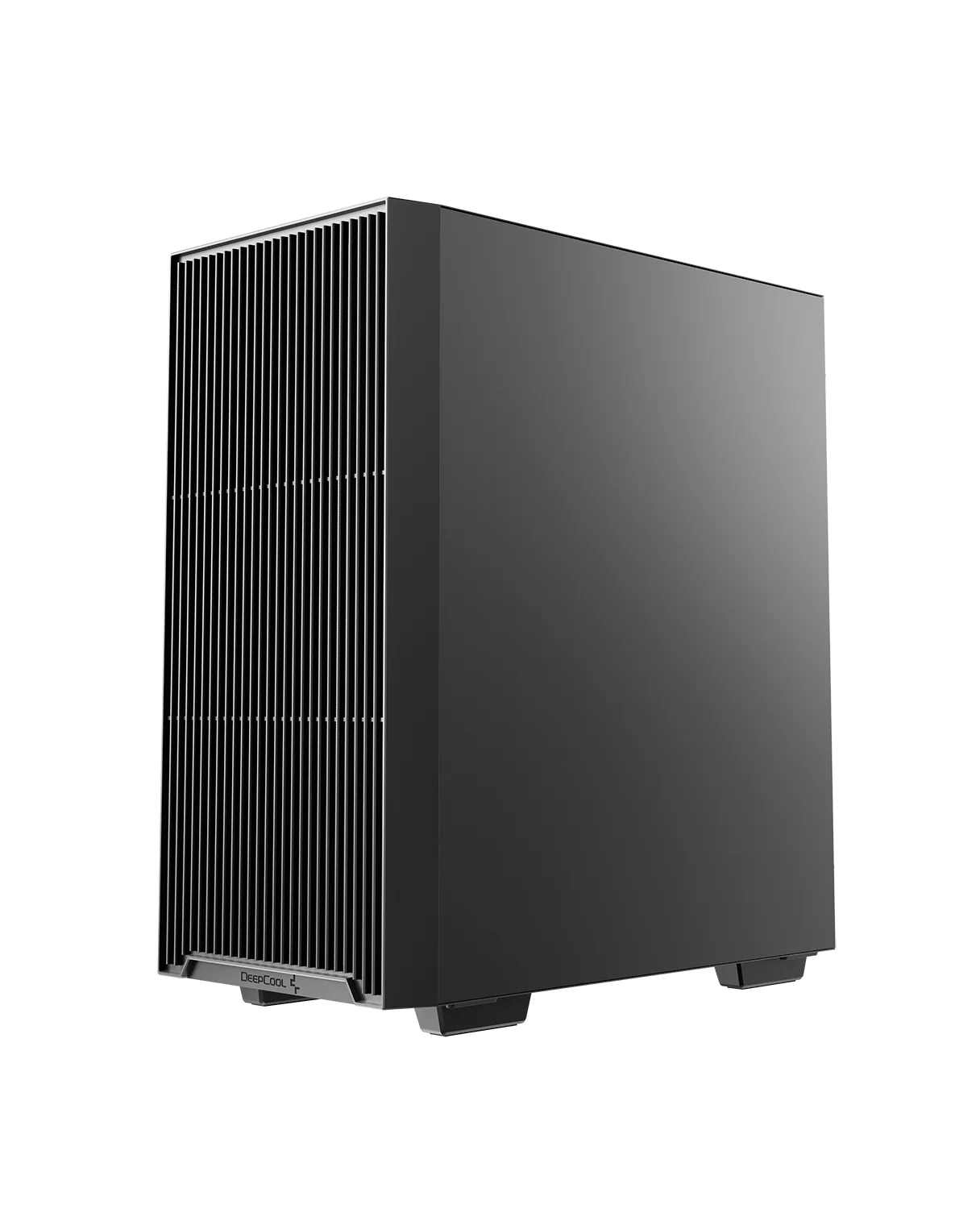

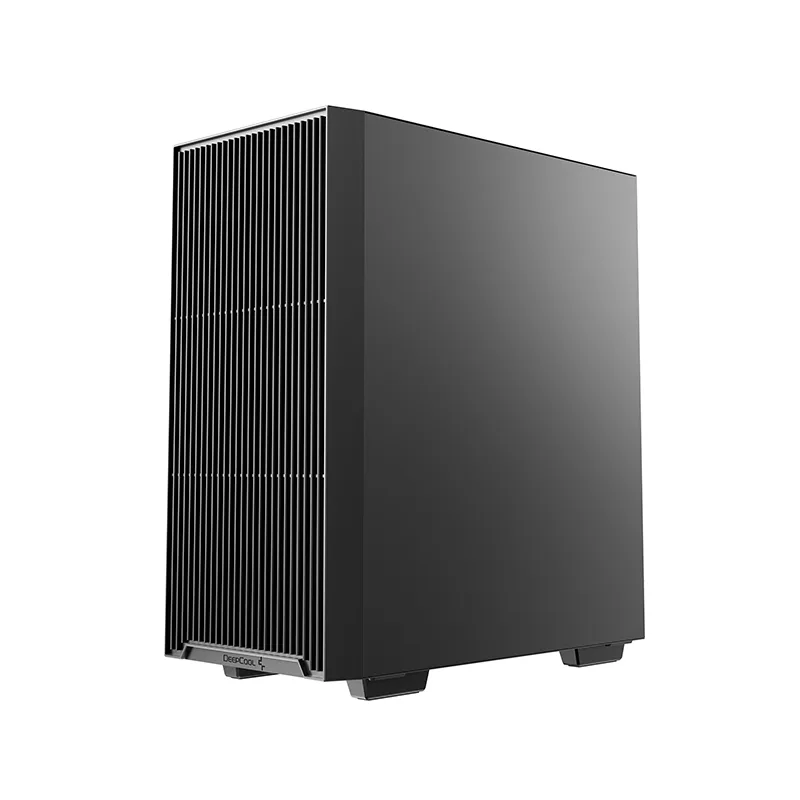

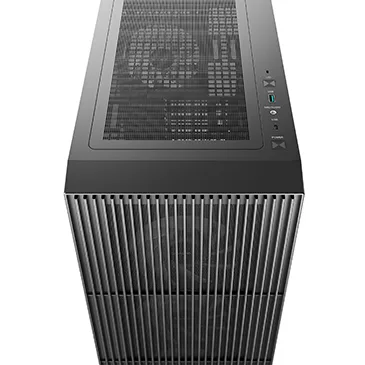

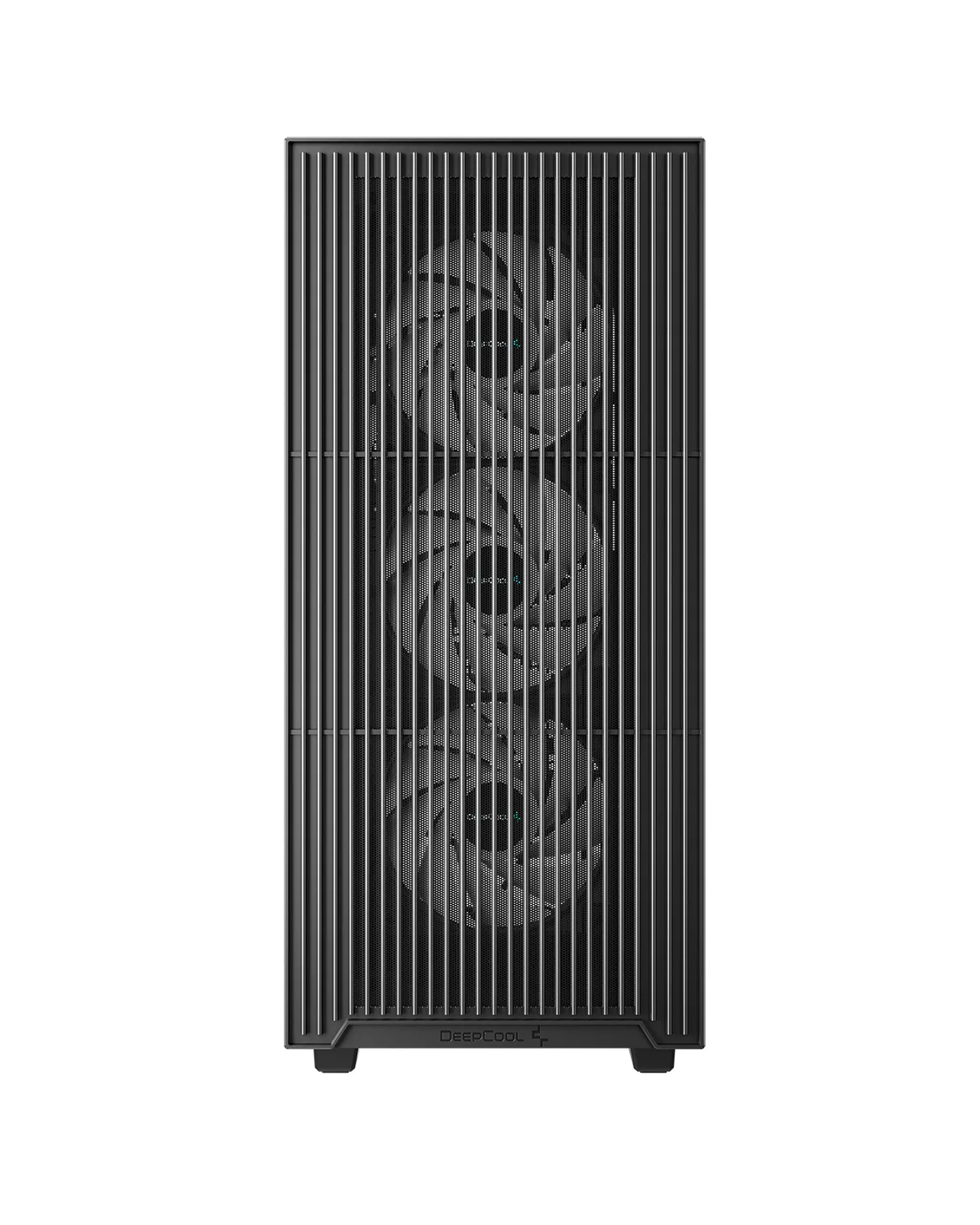

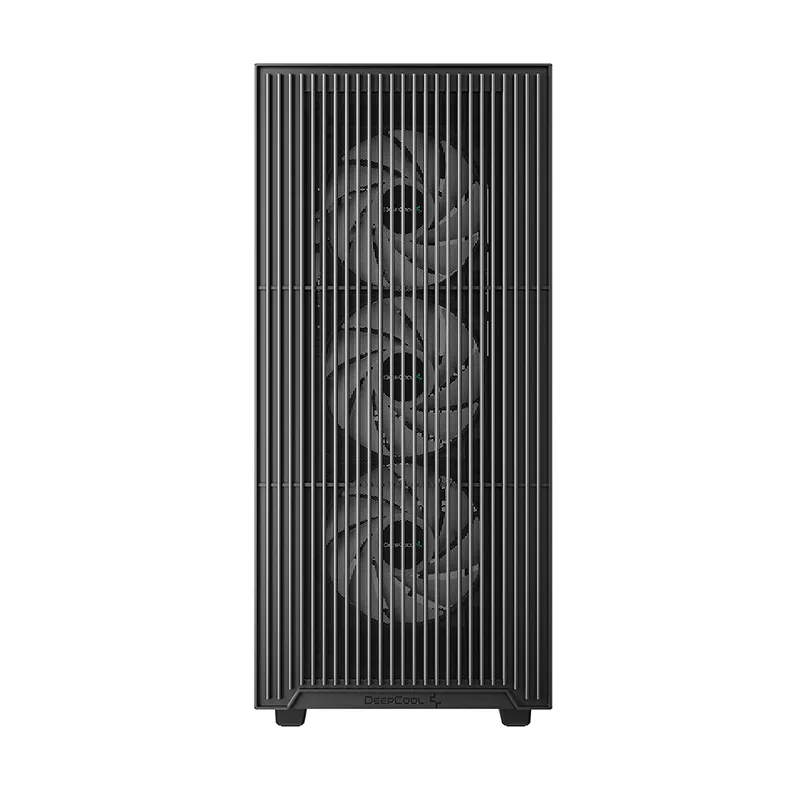

The CC560 ARGB V3 brings a refreshed fine-striped front grille that improves air intake and guides fresh air straight through the case, helping deliver efficient cooling to the components inside.
PRIMED AND READY

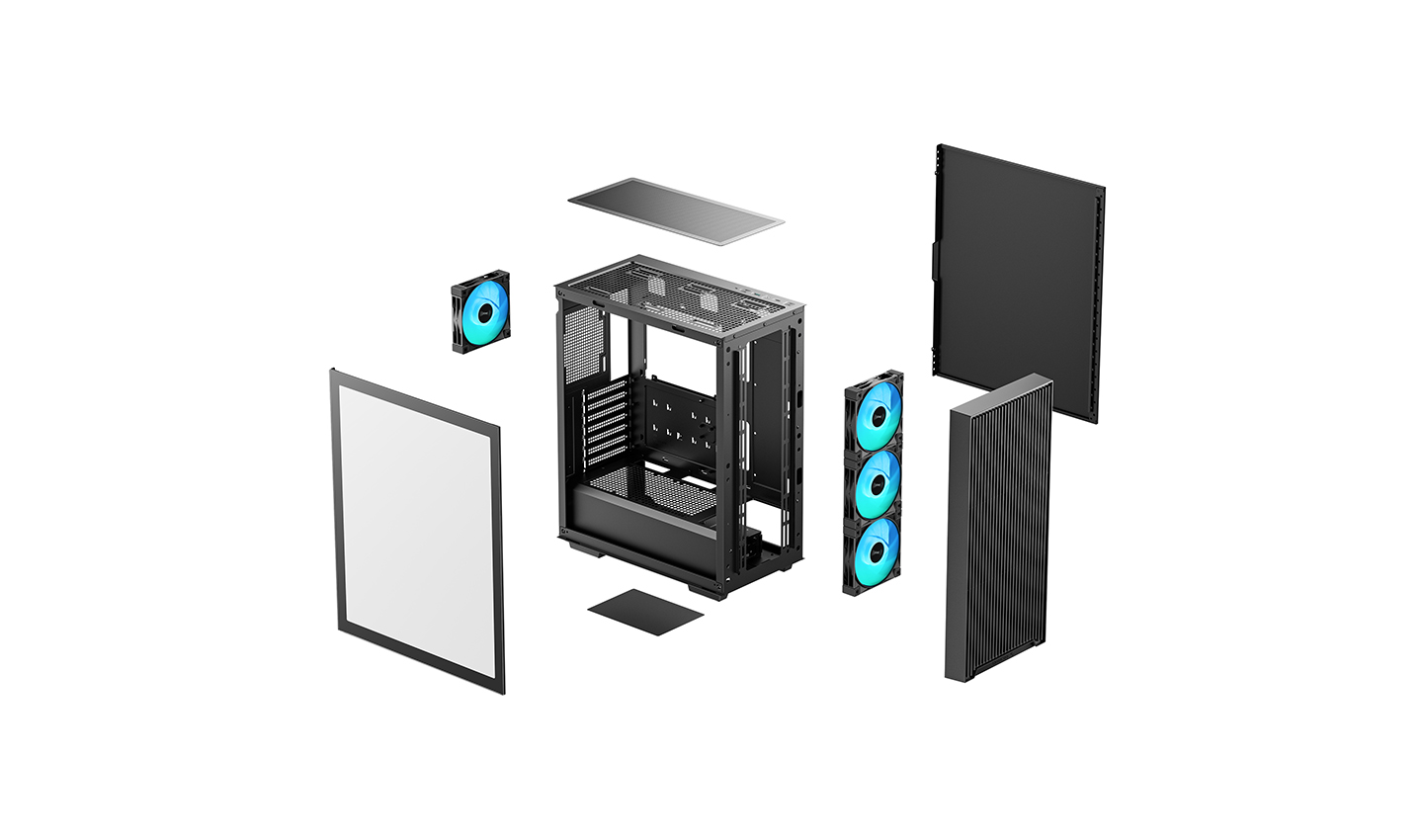

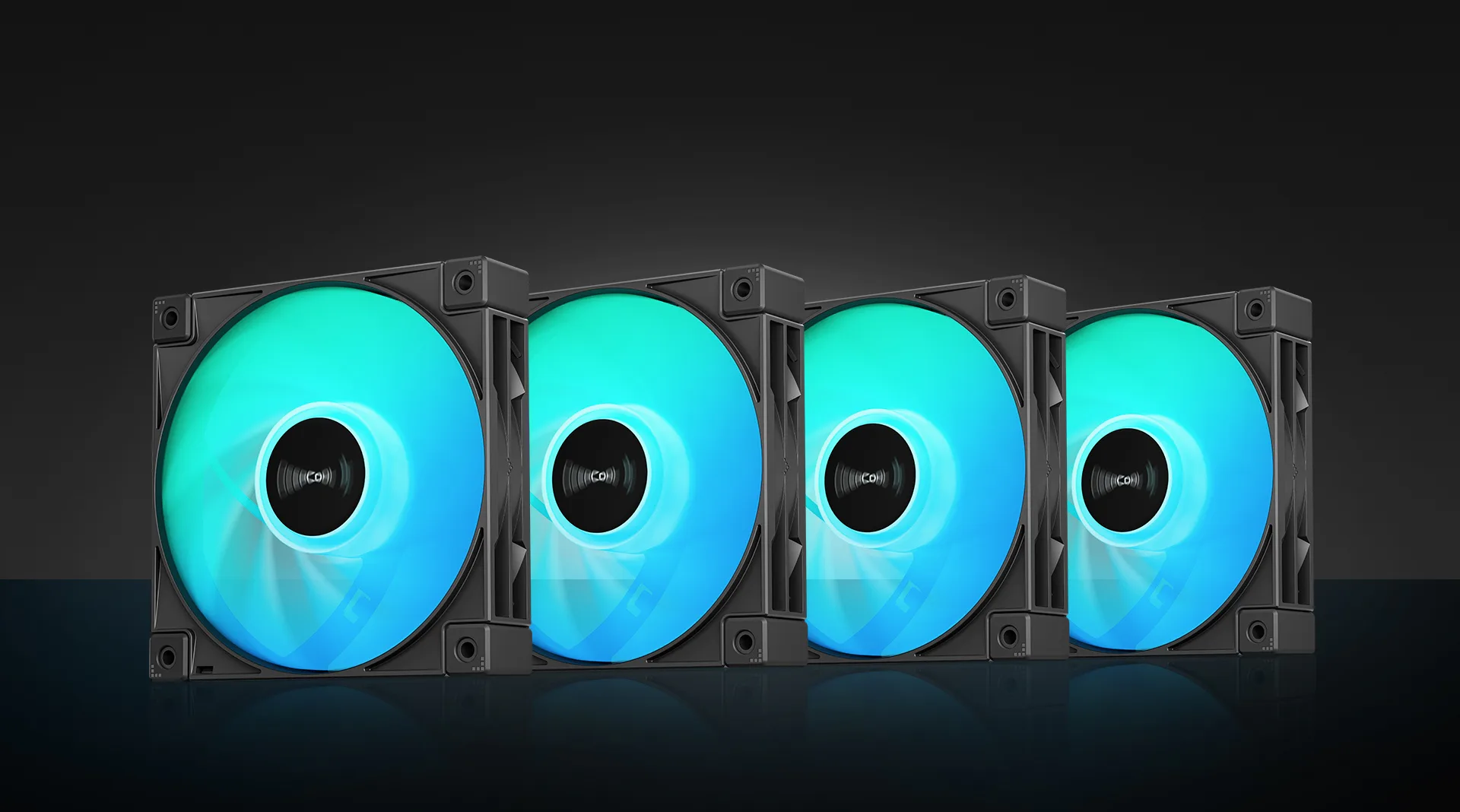

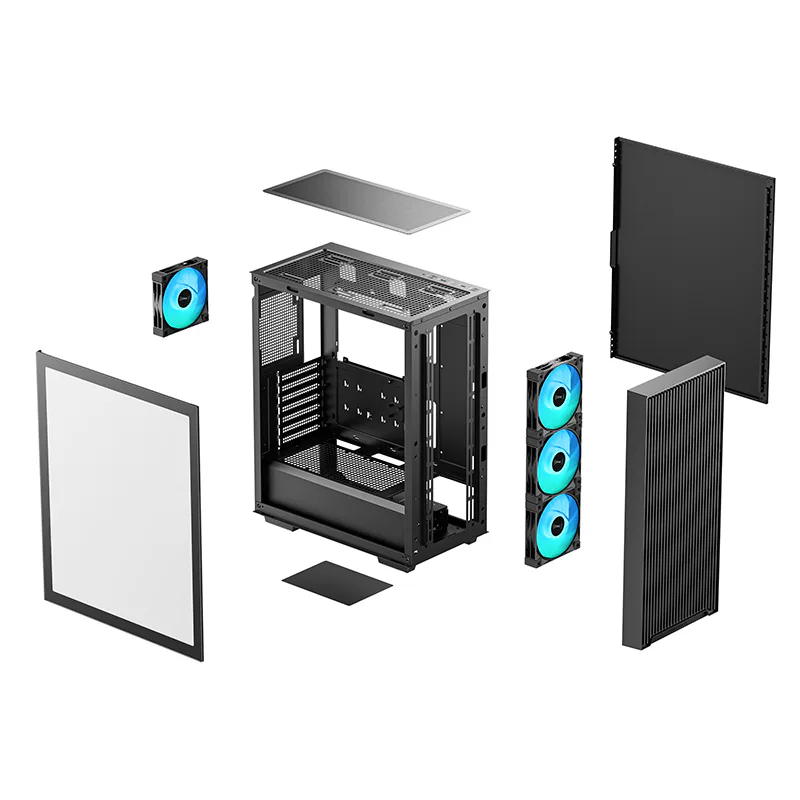

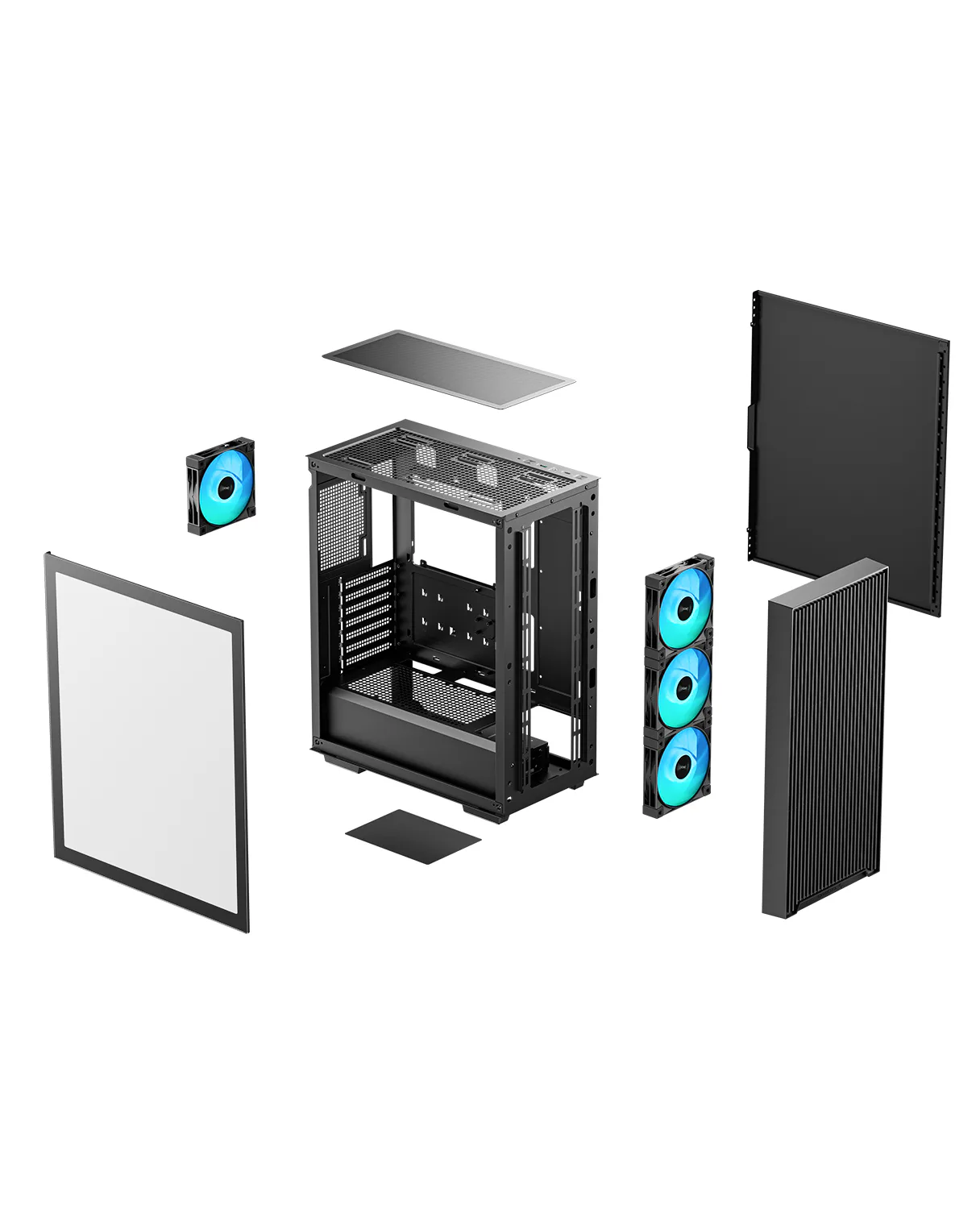

Four pre-installed ARGB fans deliver strong airflow and vibrant lighting right out of the box. PWM support allows fan speeds to adjust as needed.
ROOM FOR MORE COOLING
The case supports up to a 360mm front radiator and a 280mm top radiator, giving you flexible options for liquid cooling. It also fits up to eight 120mm fans or five 140mm fans, with two PSU shroud fan mounts ready to push fresh air directly toward the GPU.
8 120mm
5 140mm
CASE FANS
1 360mm
2 280mm
2 240mm
2 140mm
3 120mm
RADIATOR
READY TO HANDLE MORE

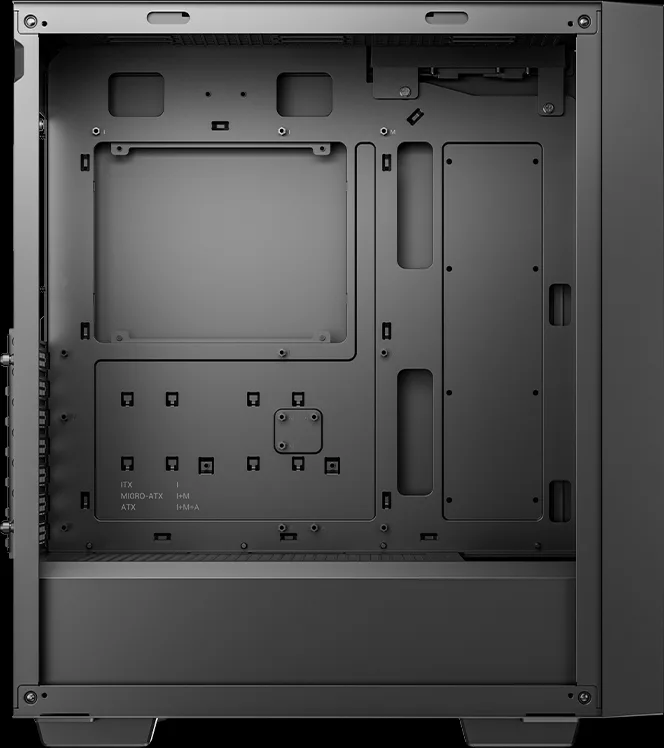

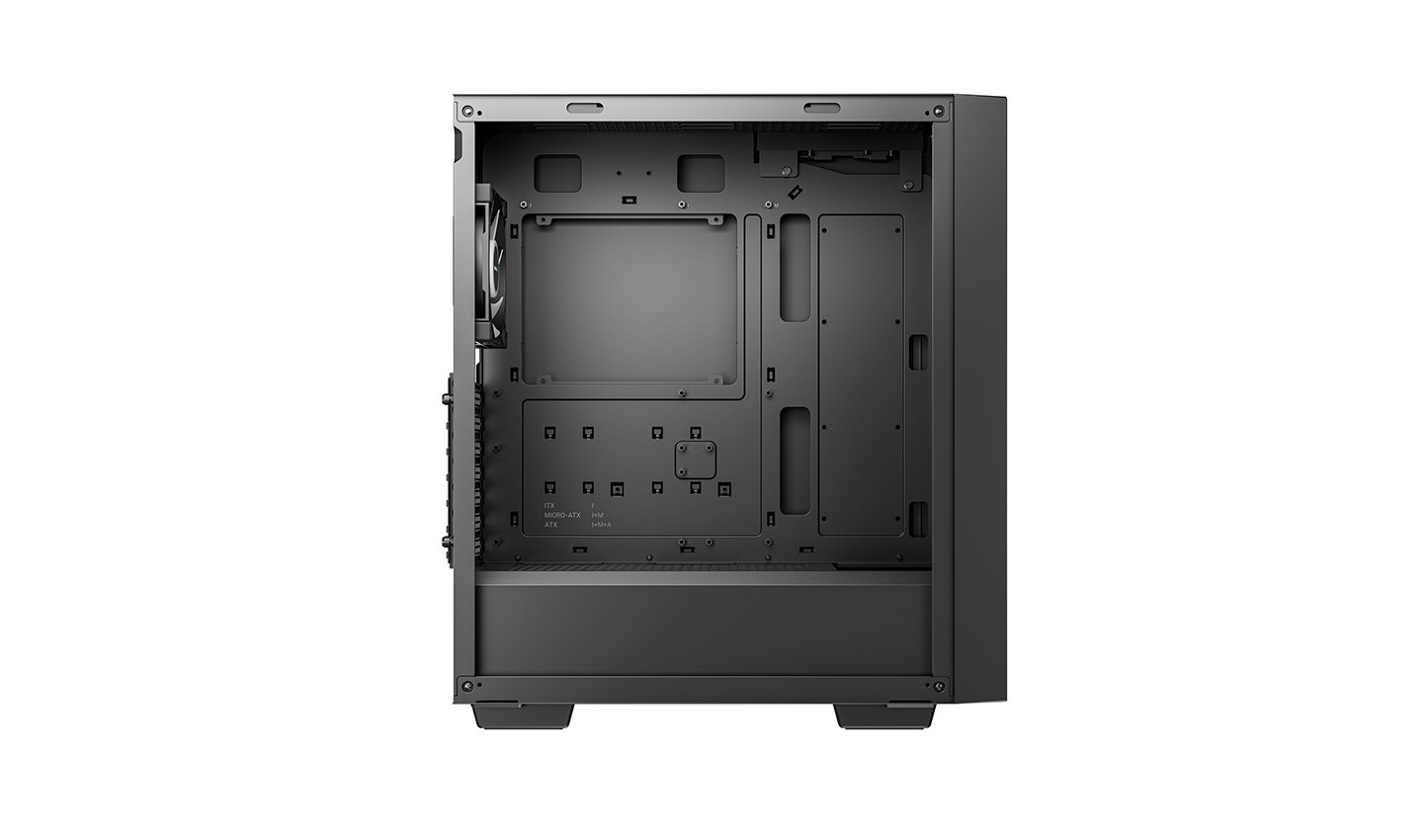

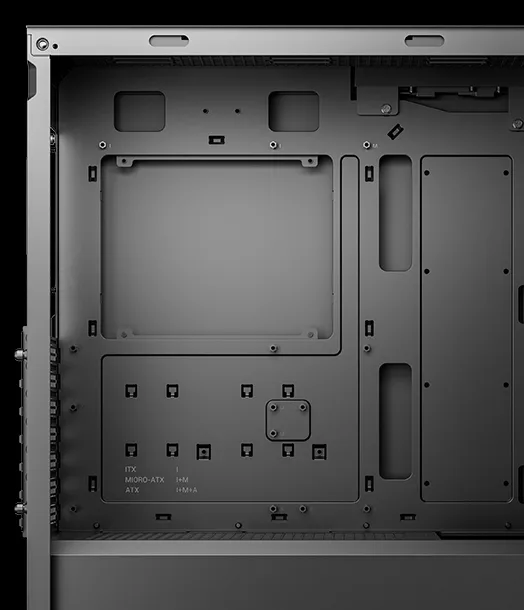

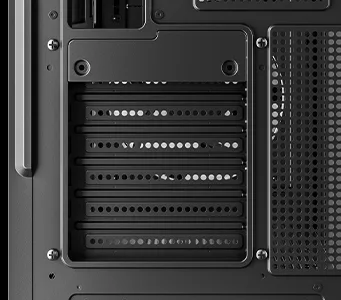

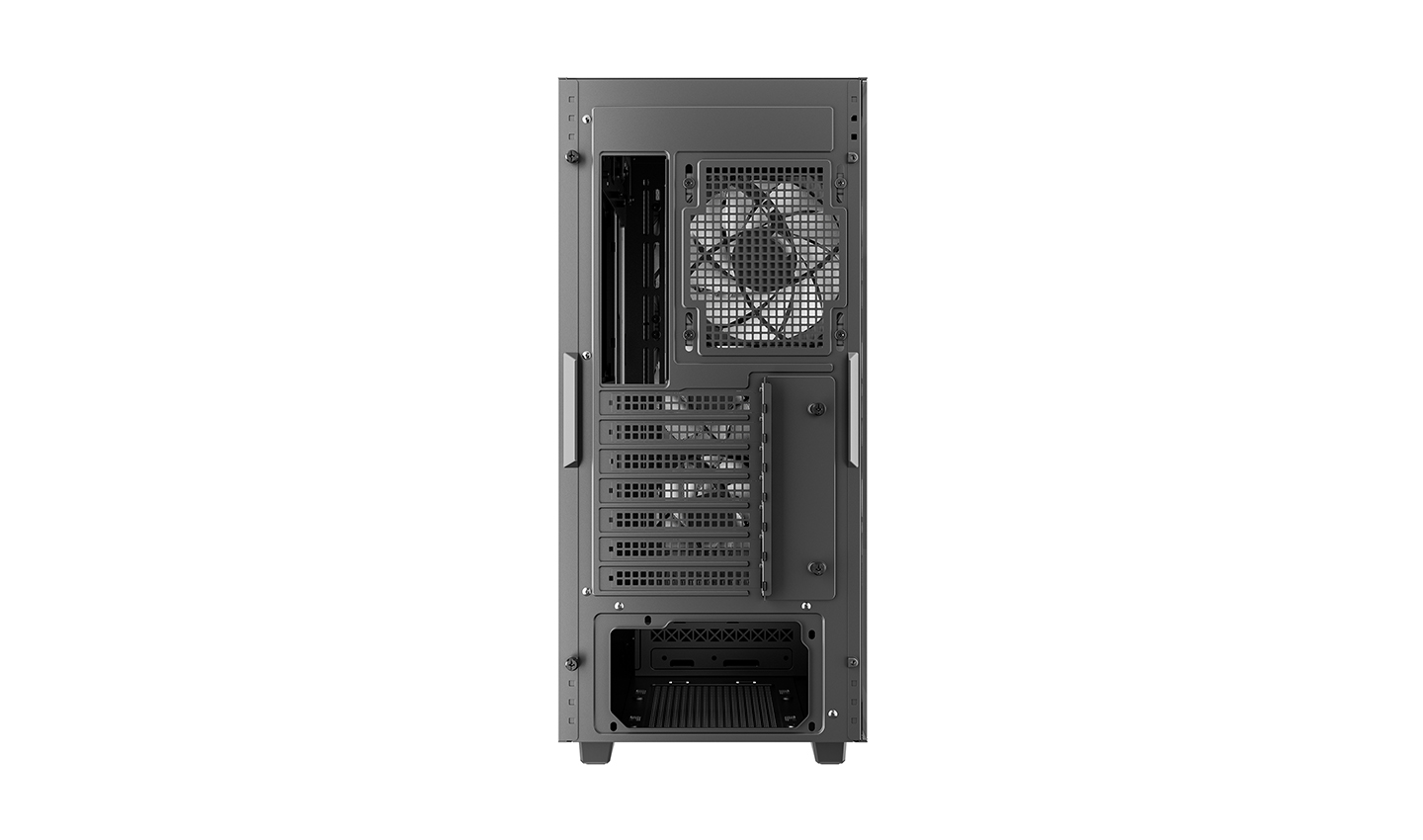

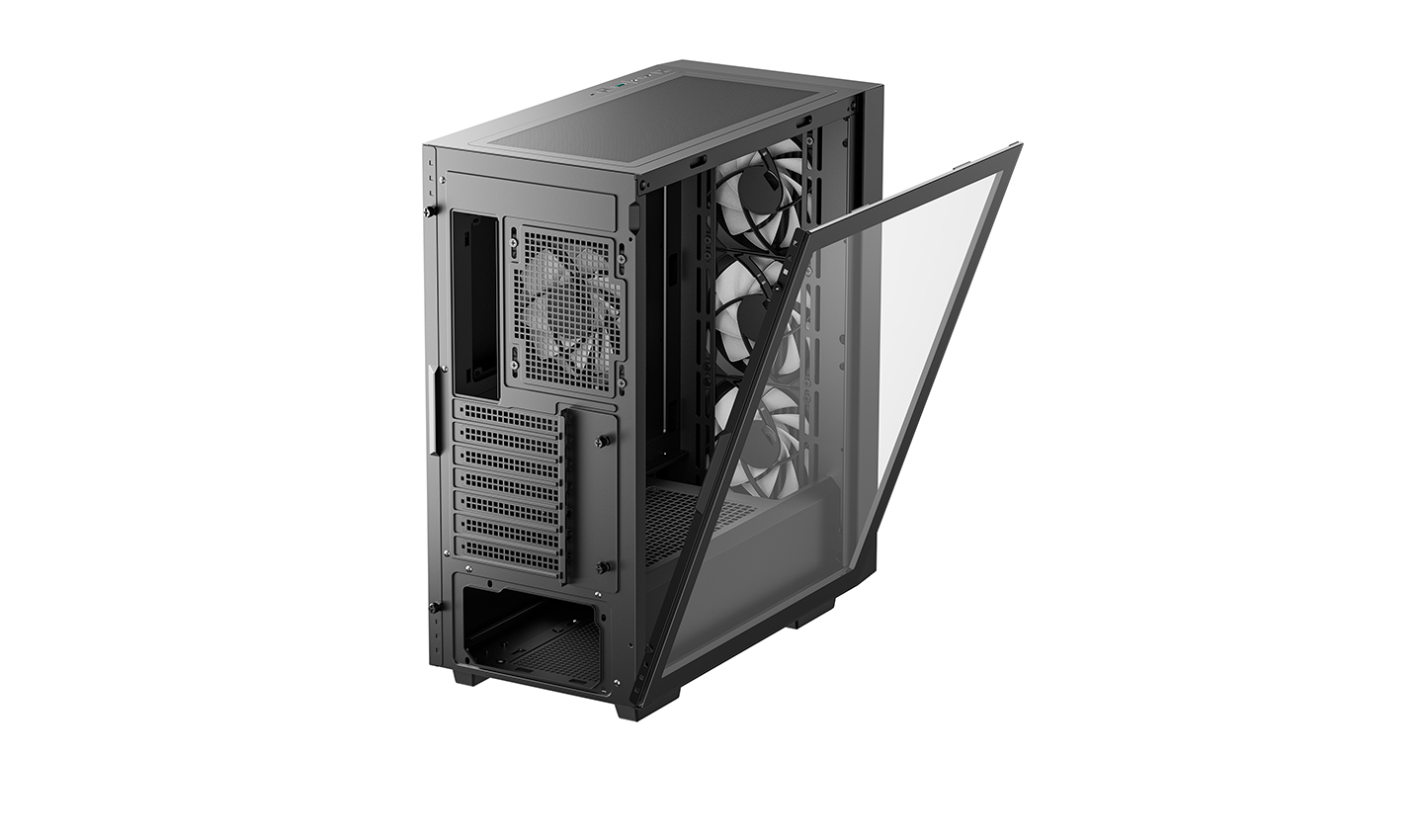

With support for ATX motherboards, 165mm CPU air coolers, 370mm GPUs, and 170mm ATX PSUs, the CC560 ARGB V3 is ready for a wide range of modern hardware. A 7-slot expansion layout gives ample room for thicker GPUs used in high-performance builds.
FLEXIBLE STORAGE OPTIONS

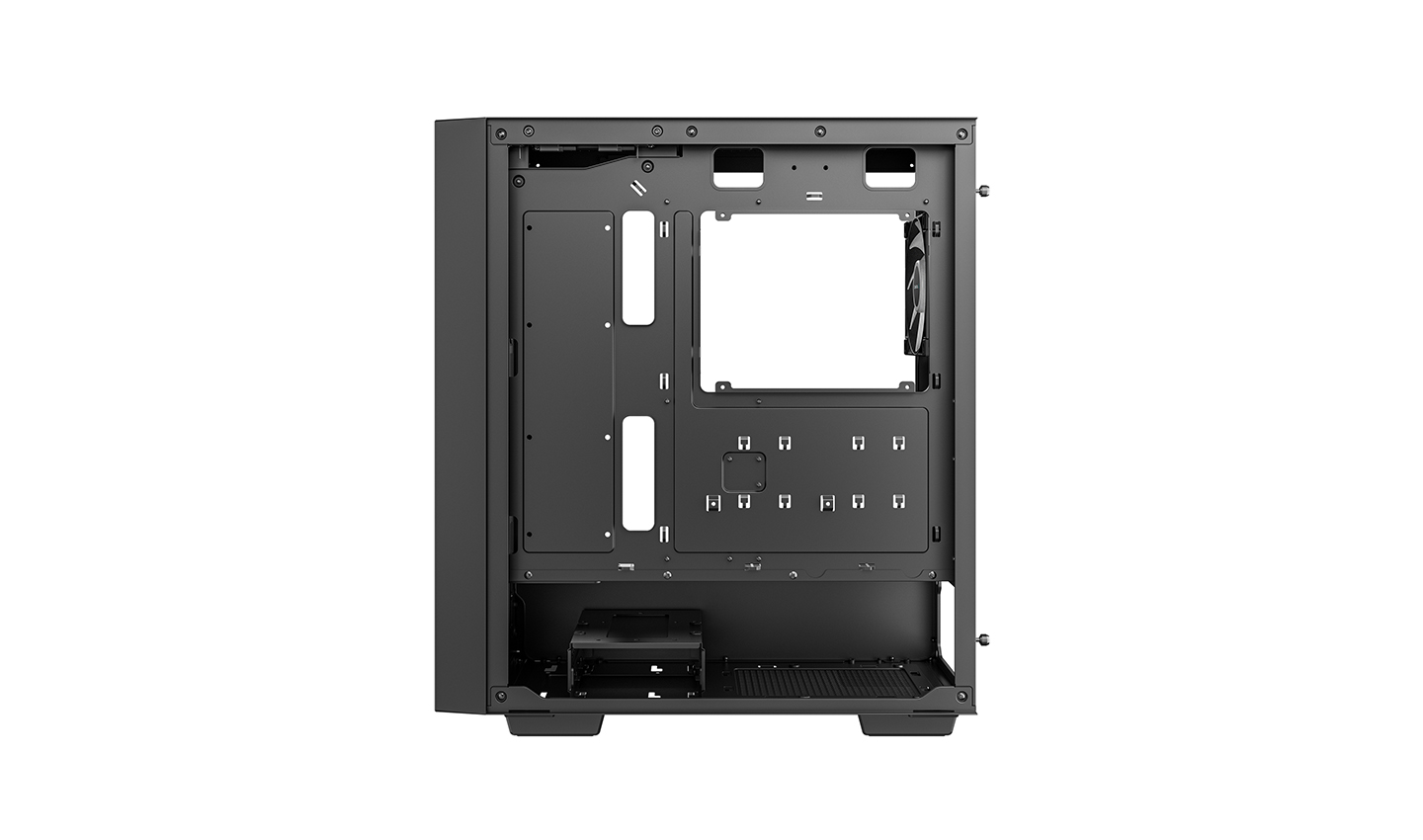

Supports up to 2× 2.5” SSDs and 2× 3.5” HDDs at the same time, with one HDD bay also available for a third 2.5” drive when needed. The drive cage can be repositioned or removed, giving more flexibility for PSU space.
READY TO CONNECT

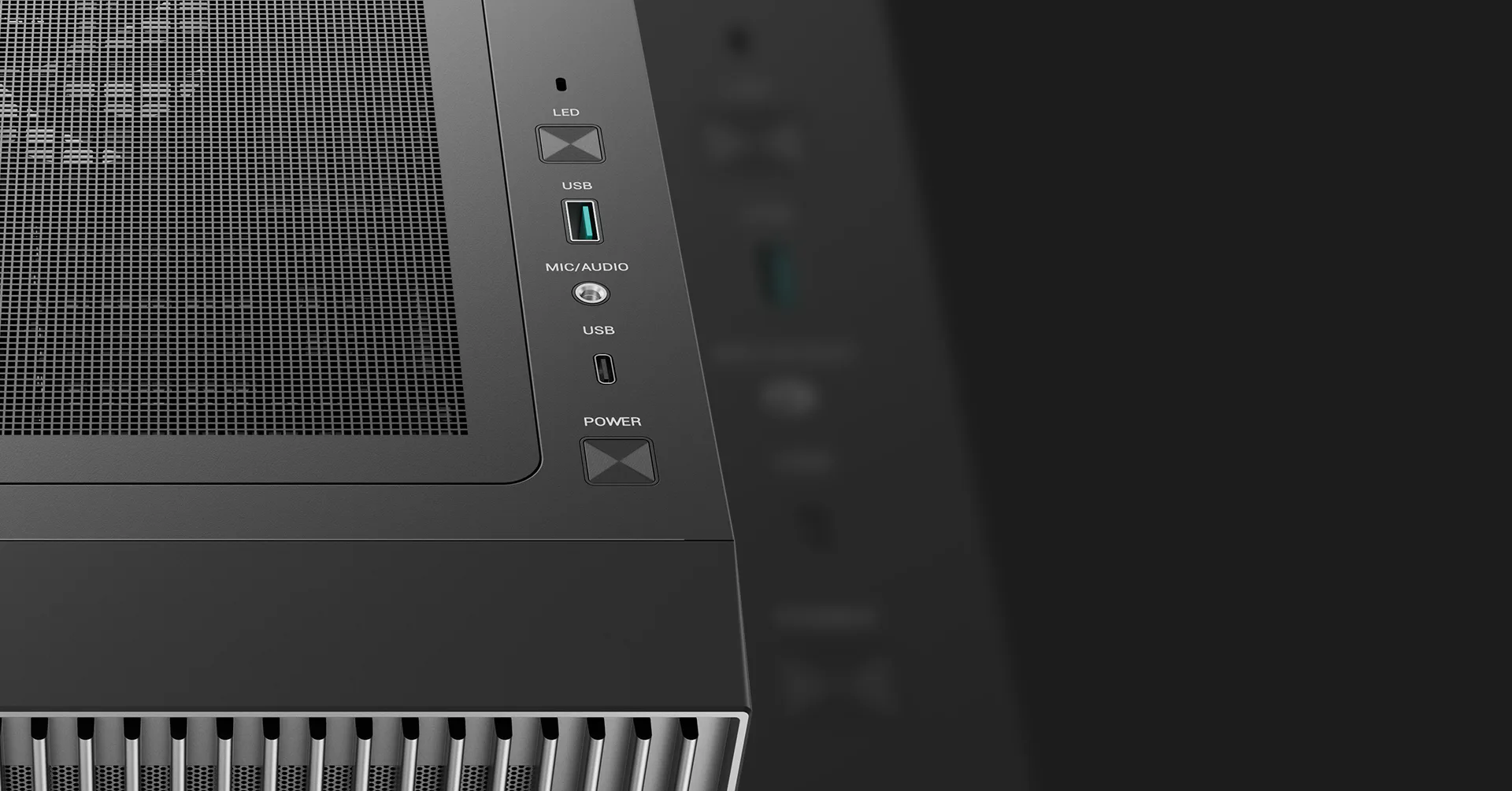

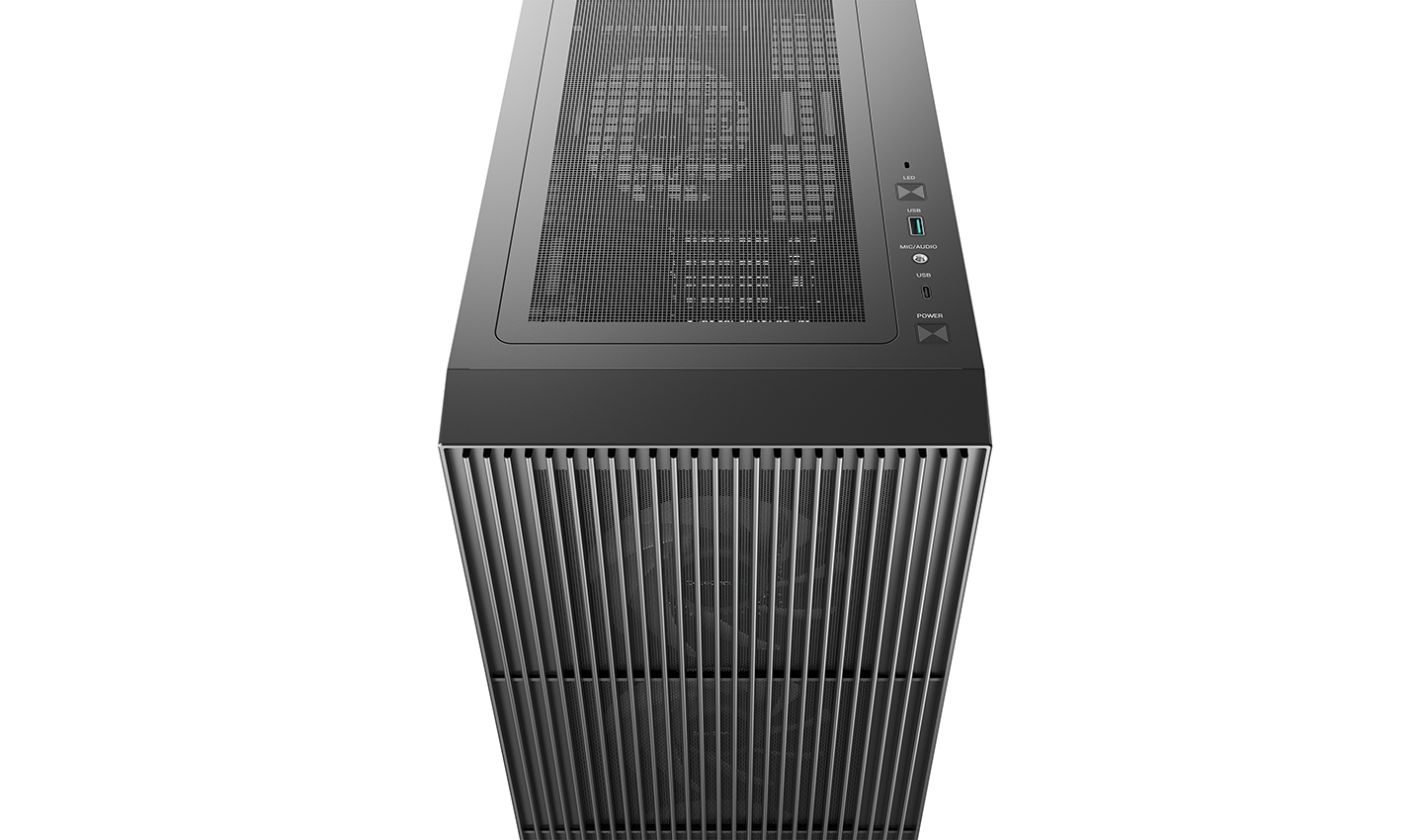

Practical top I/O panel gives quick access to one USB 3.0 port, one Type-C port, and an audio jack, making it easy to connect your daily peripherals.
Technical Spec
Product Dimensions432×215×483mm(L×W×H)
Net Weight7.2Kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportMini-ITX / Micro-ATX / ATX
Front I/O PortsUSB3.0×1 / TYPE-C×1 / Audio×1
3.5" Drive Bays2
2.5" Drive Bays2+1
Expansion Slots7 Slots
Pre-Installed FansFront: 3×120mm ARGB
Rear: 1×120mm ARGB
Fan SupportFront: 3×120 / 3×140mm
Top: 2×120 / 2×140mm
Rear: 1×120mm
PSU Shroud: 2×120mm
Radiator SupportFront: 120/140/240/280/360mm
Top: 120/140/240/280mm
Rear: 120mm
CPU Cooler Height Limit165mm
GPU Length Limit370mm
Power Supply TypeATX PS2 (maximum length: 170mm）
EAN6933412765820
P/NR-CC560-BKAGA4-G-3
Download
CC560 ARGB V3 Manual.pdf
