CC310

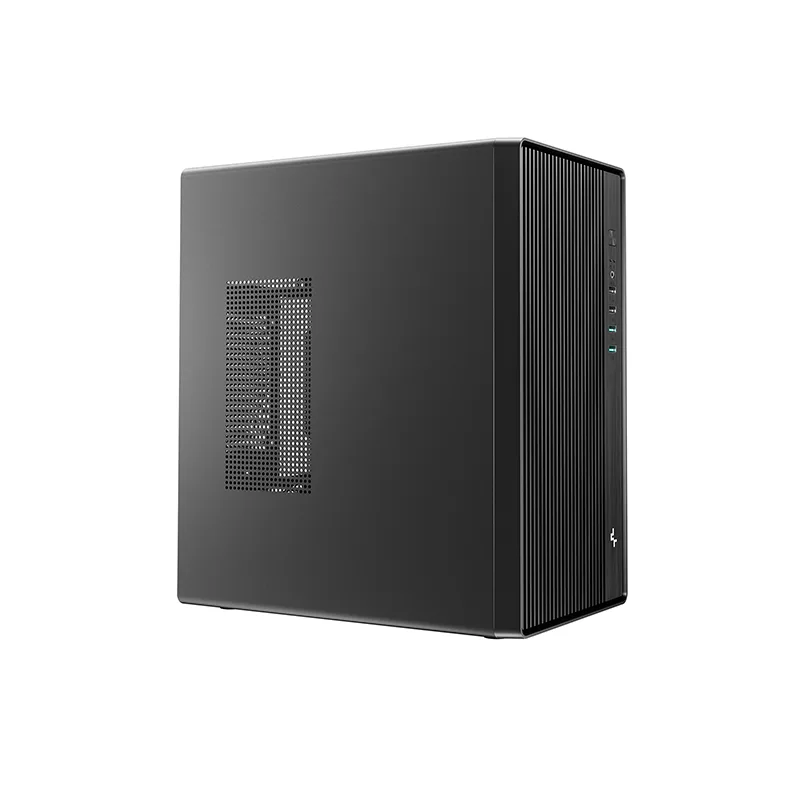

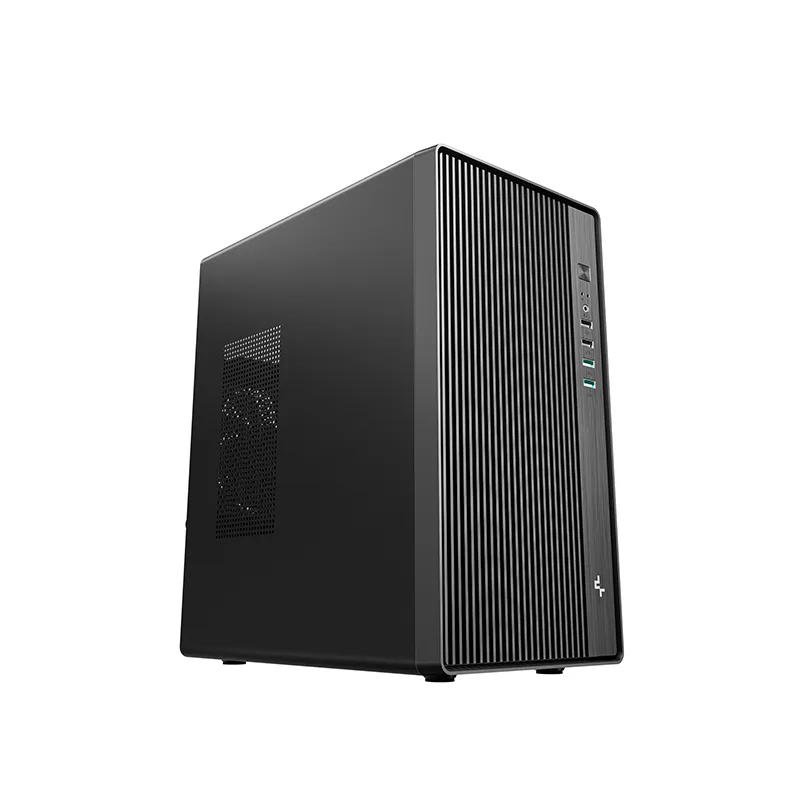

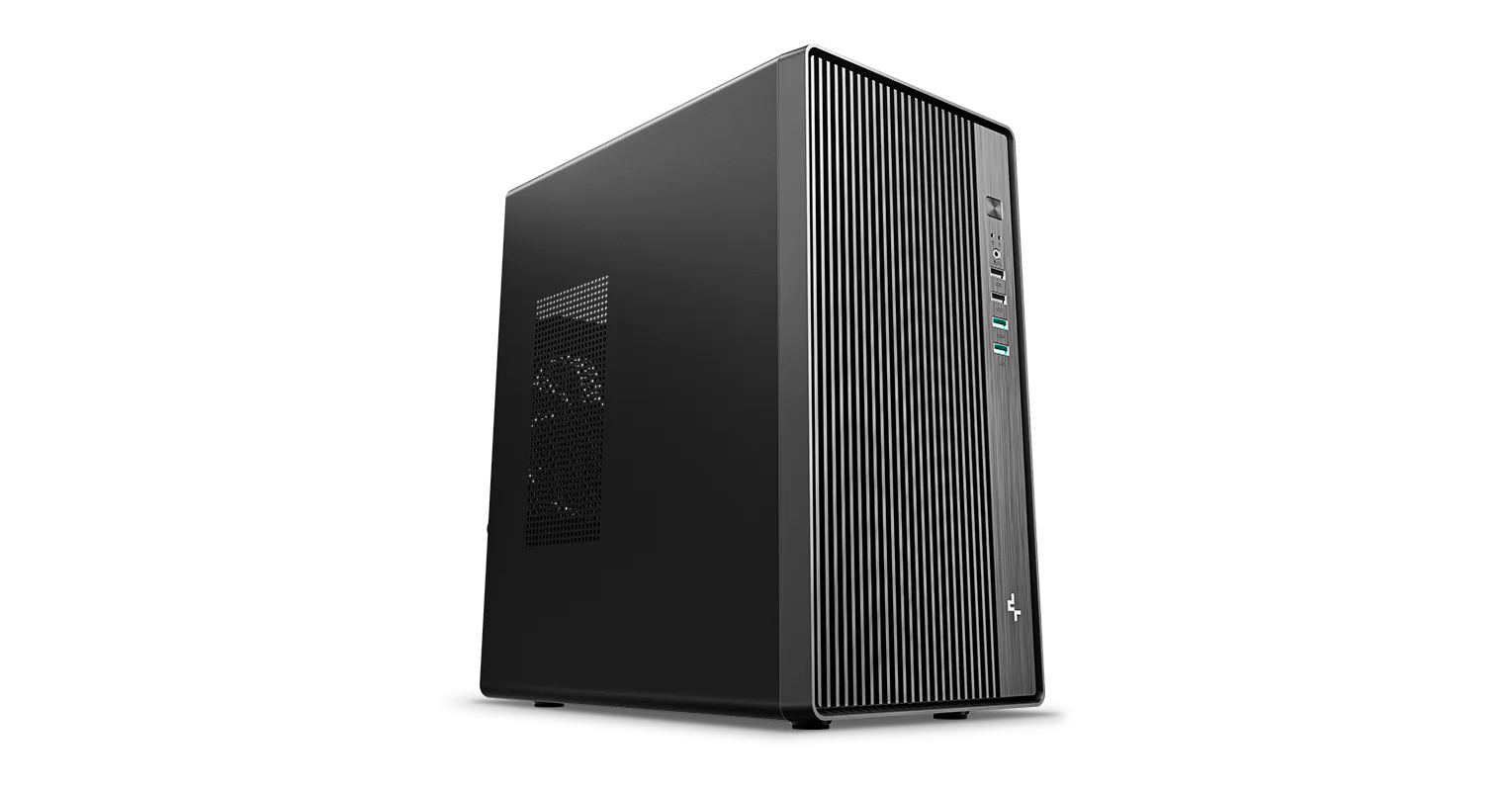

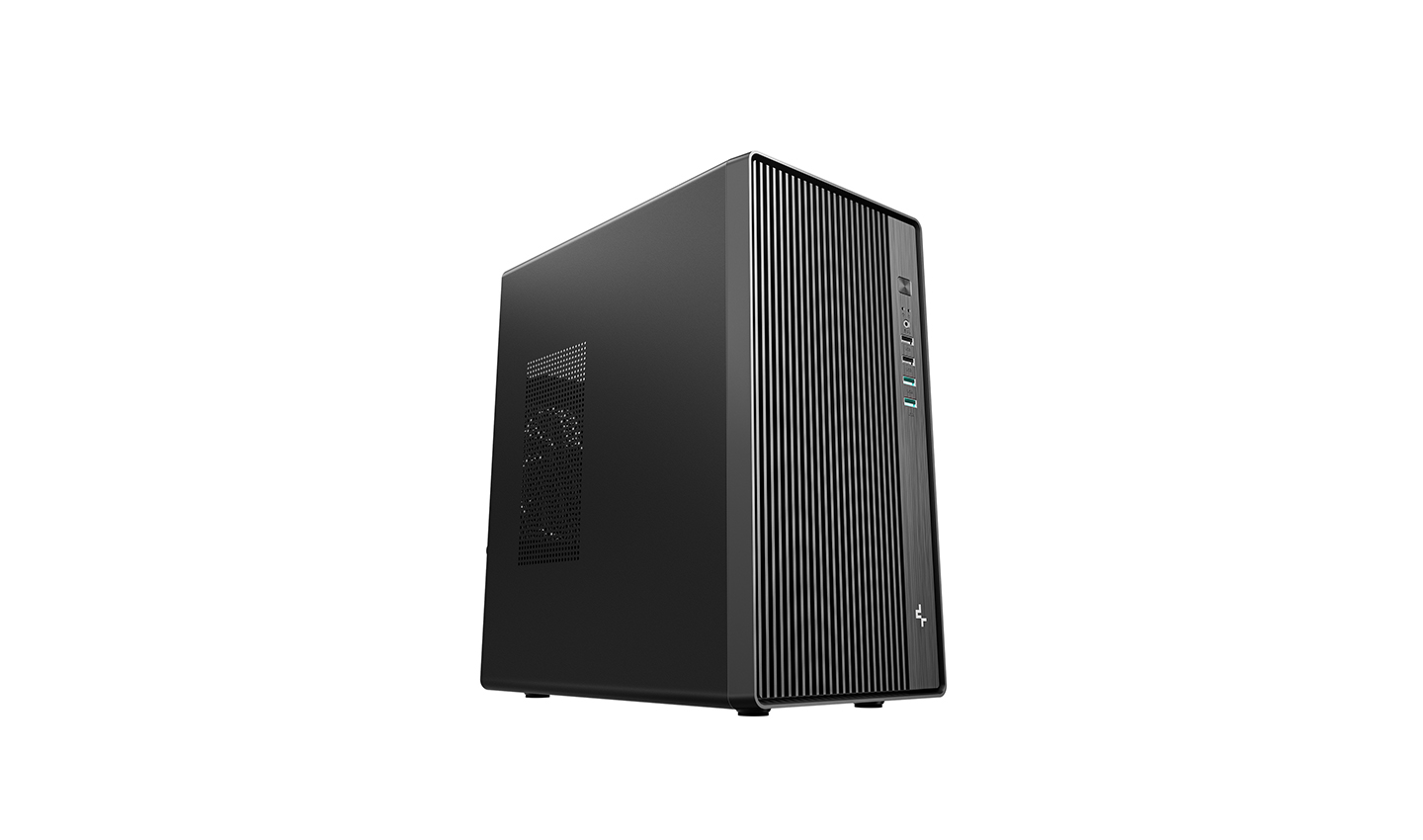

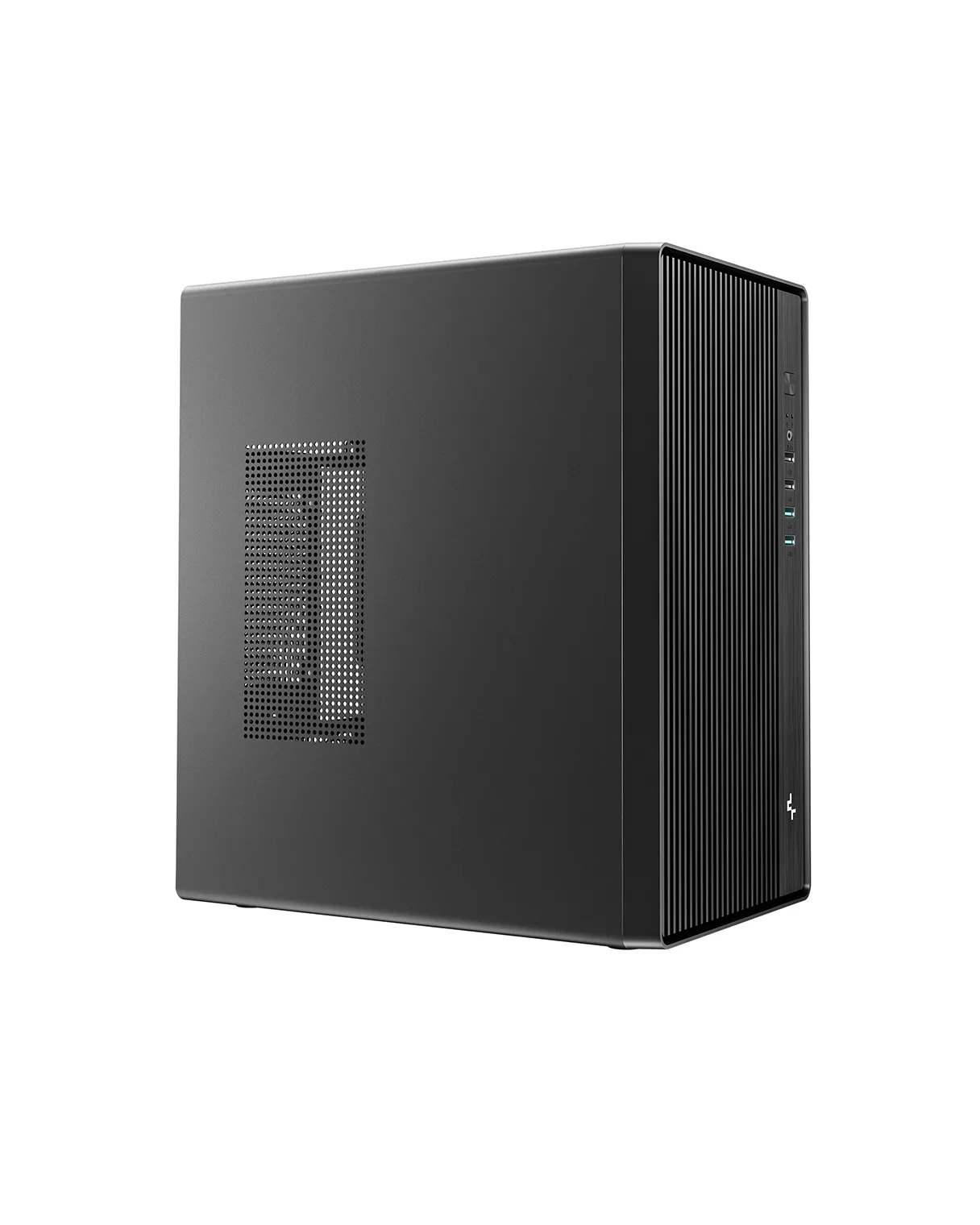

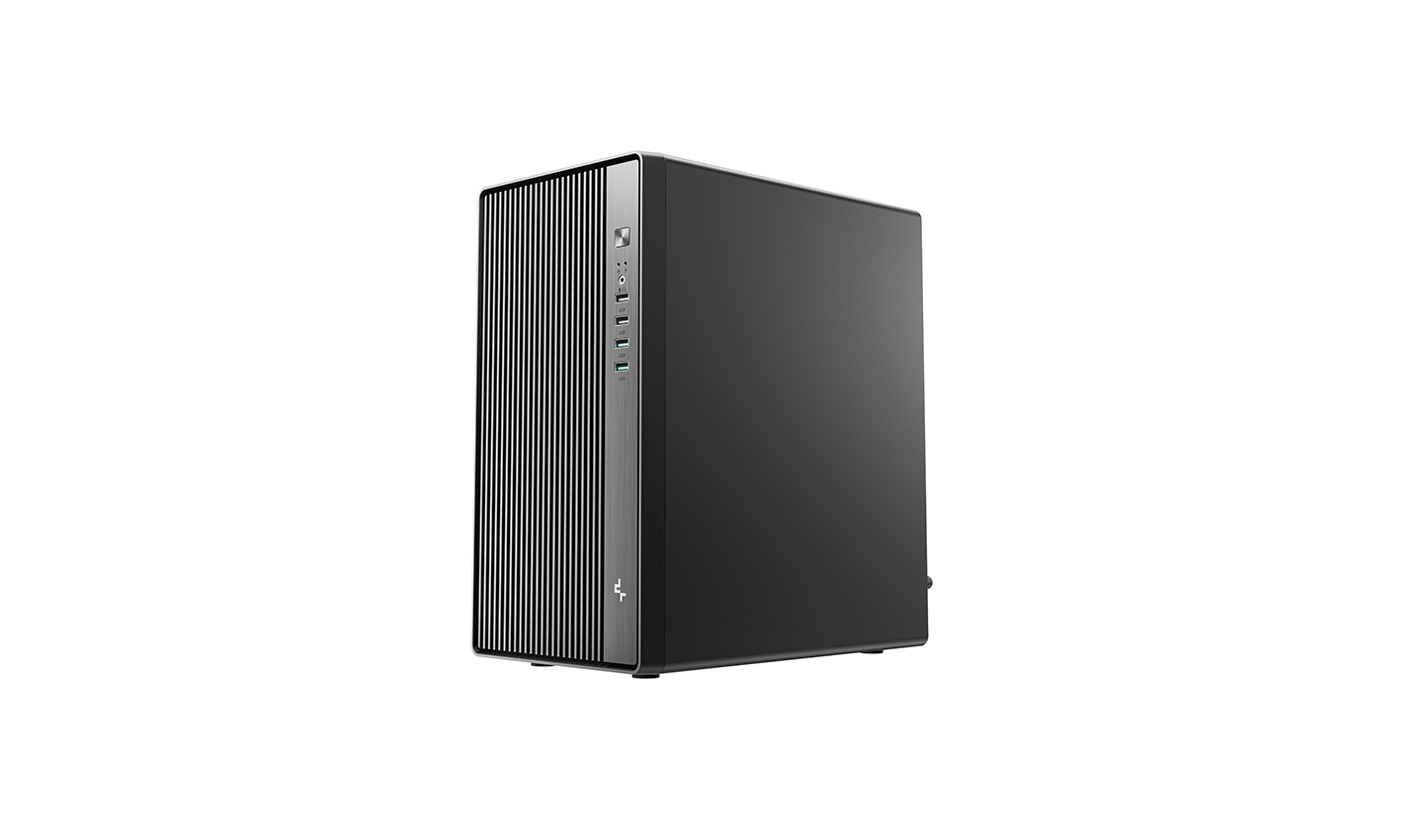

CC310 gives the traditional office PC case a fresh update with a space-saving Mid-Tower design and distinctive styling elements. It also offers solid cooling support, standard hardware compatibility, and easy access for assembly.
COLOR
black
MODEL
CC310
THE OFFICE PC CASE, REFRESHED
Mid-Tower Micro-ATX Case

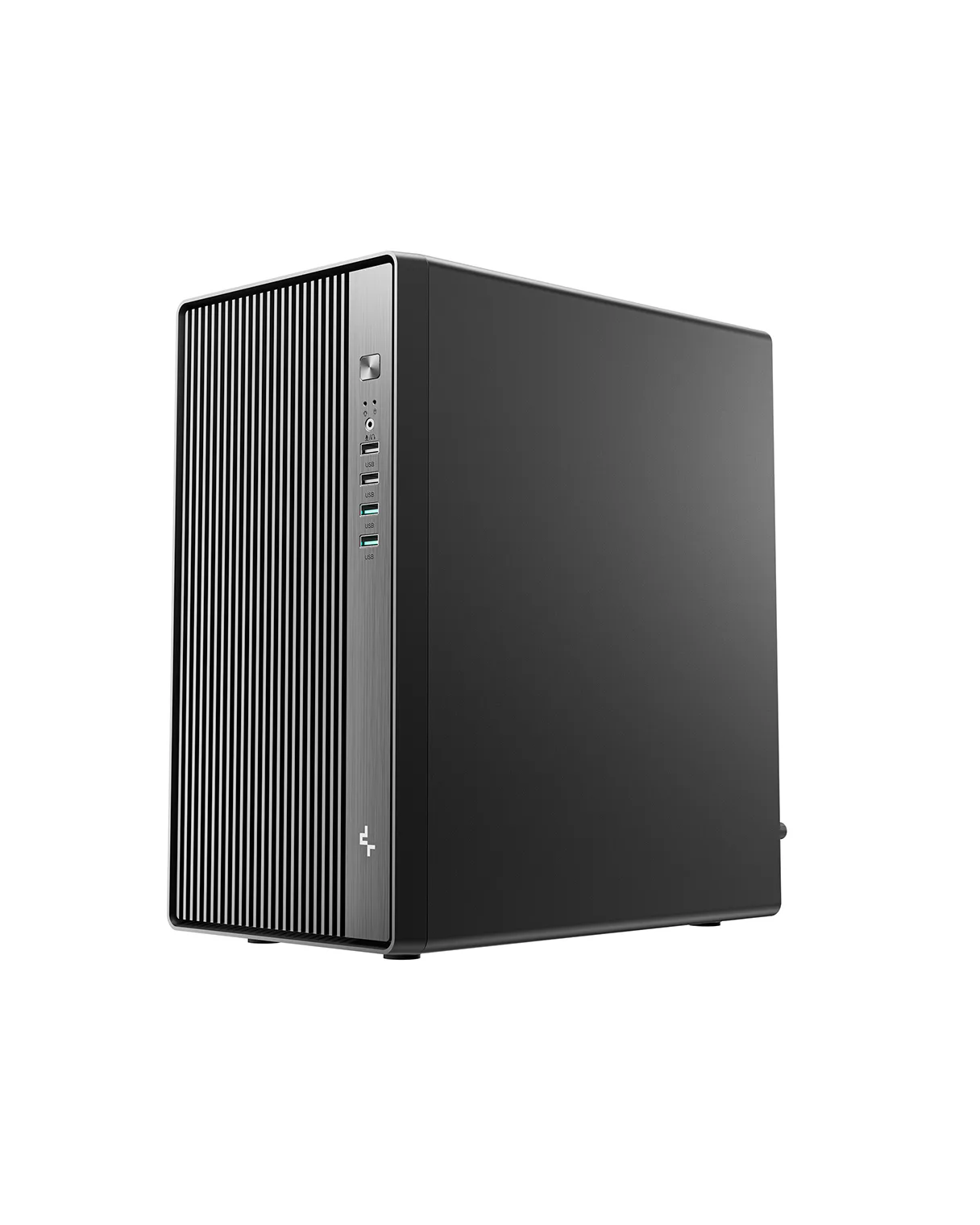

SMALL MATTERS TOO

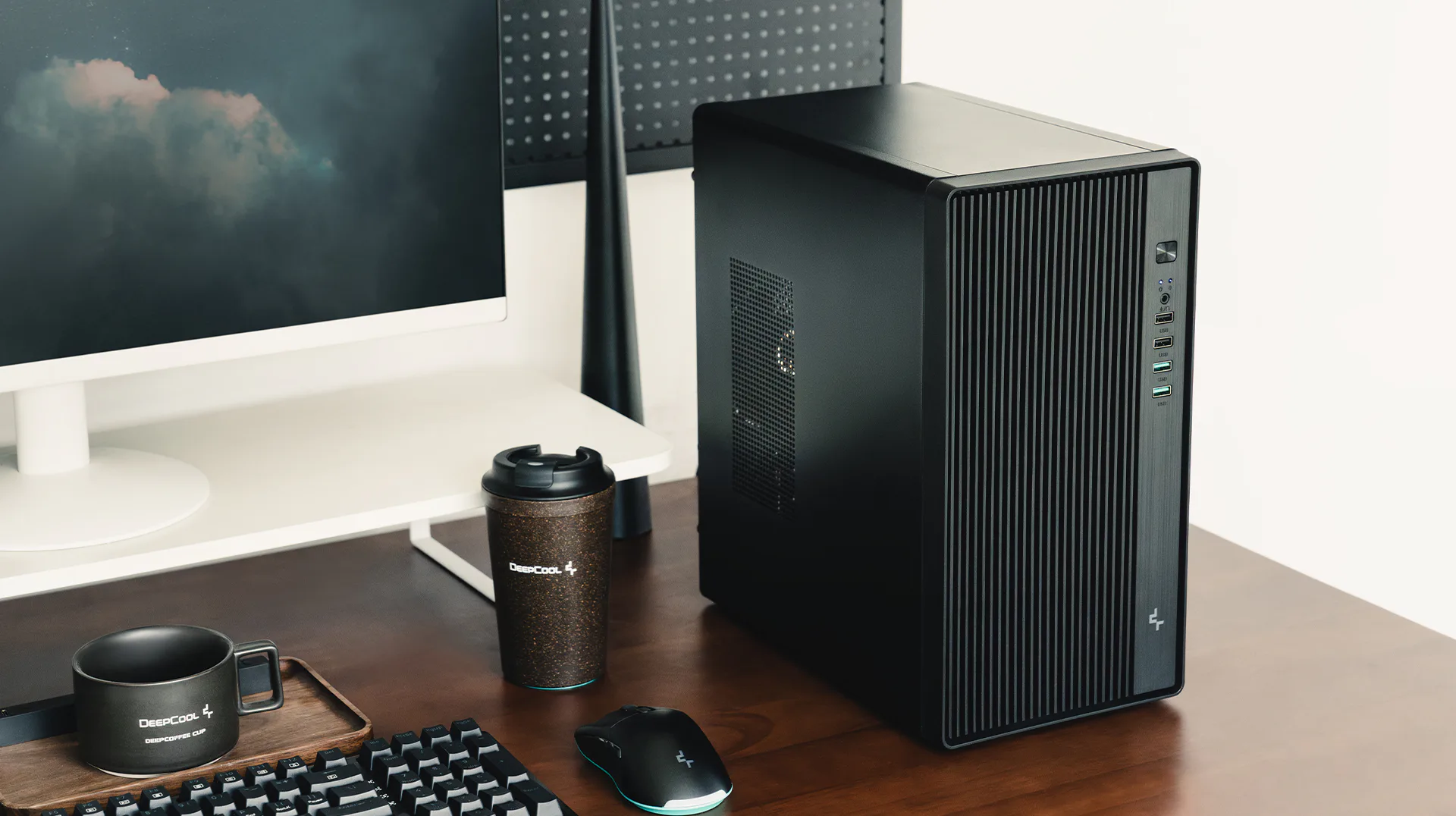

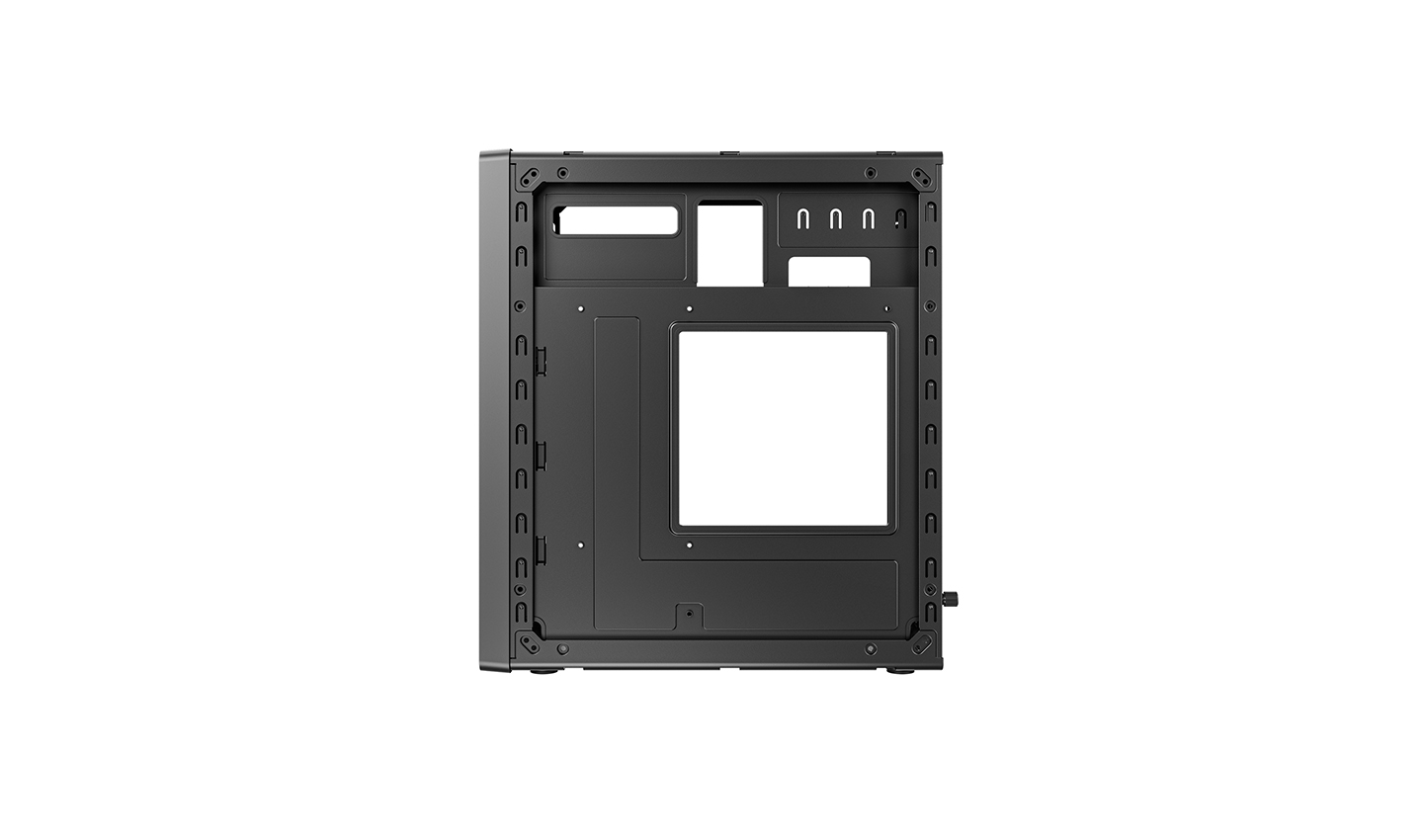

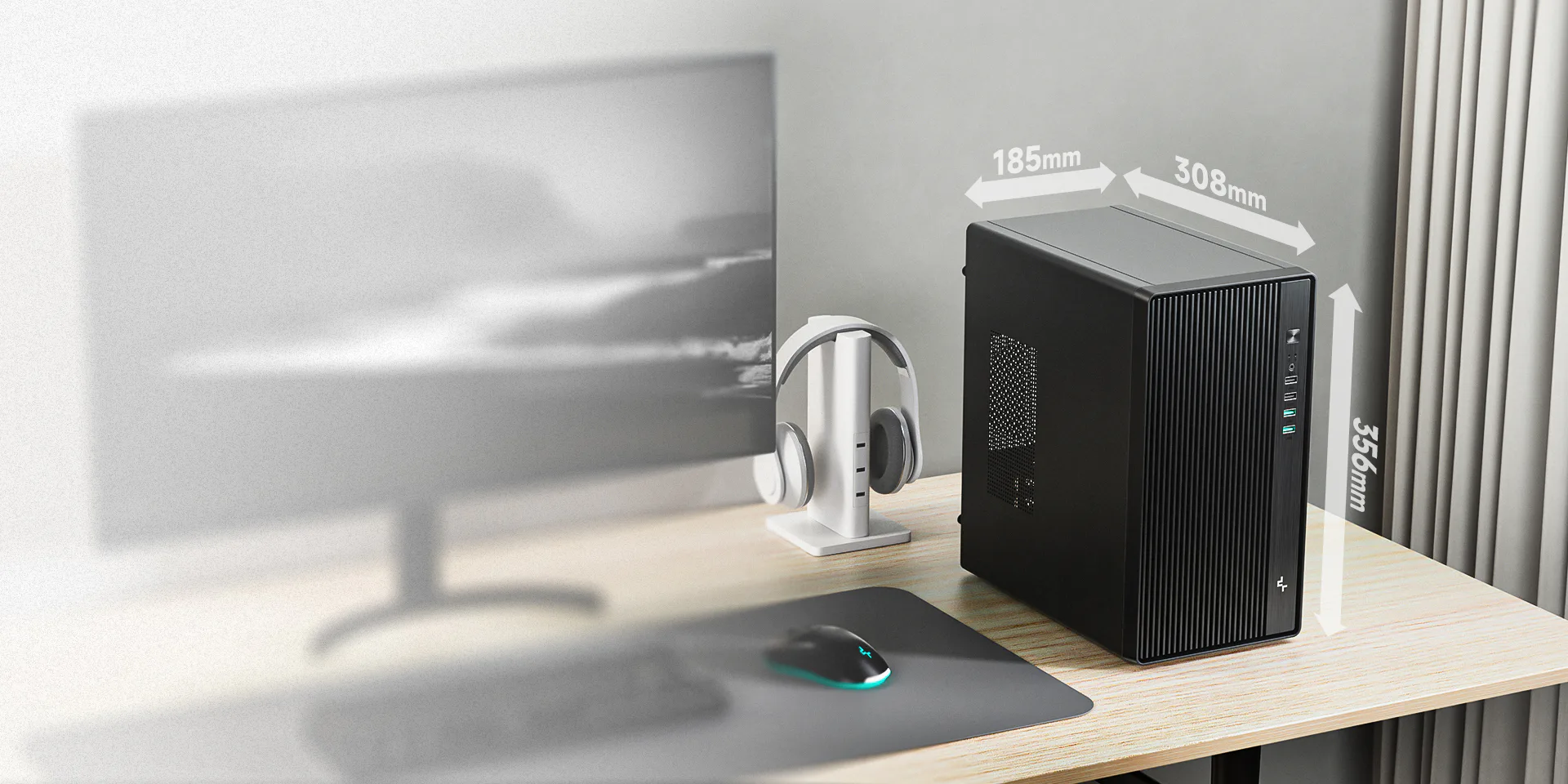

Made to fit where space is limited, the CC310 keeps its size compact at 308×185×356mm while supporting Micro-ATX and Mini-ITX motherboards.

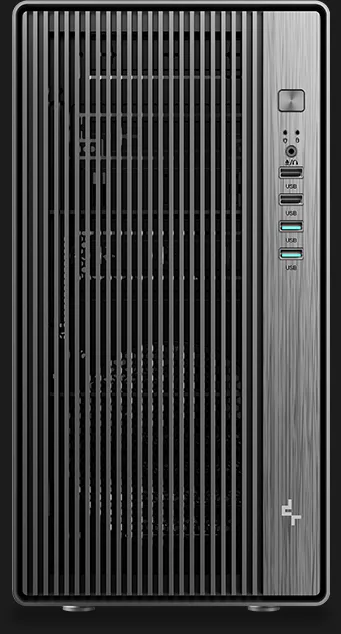

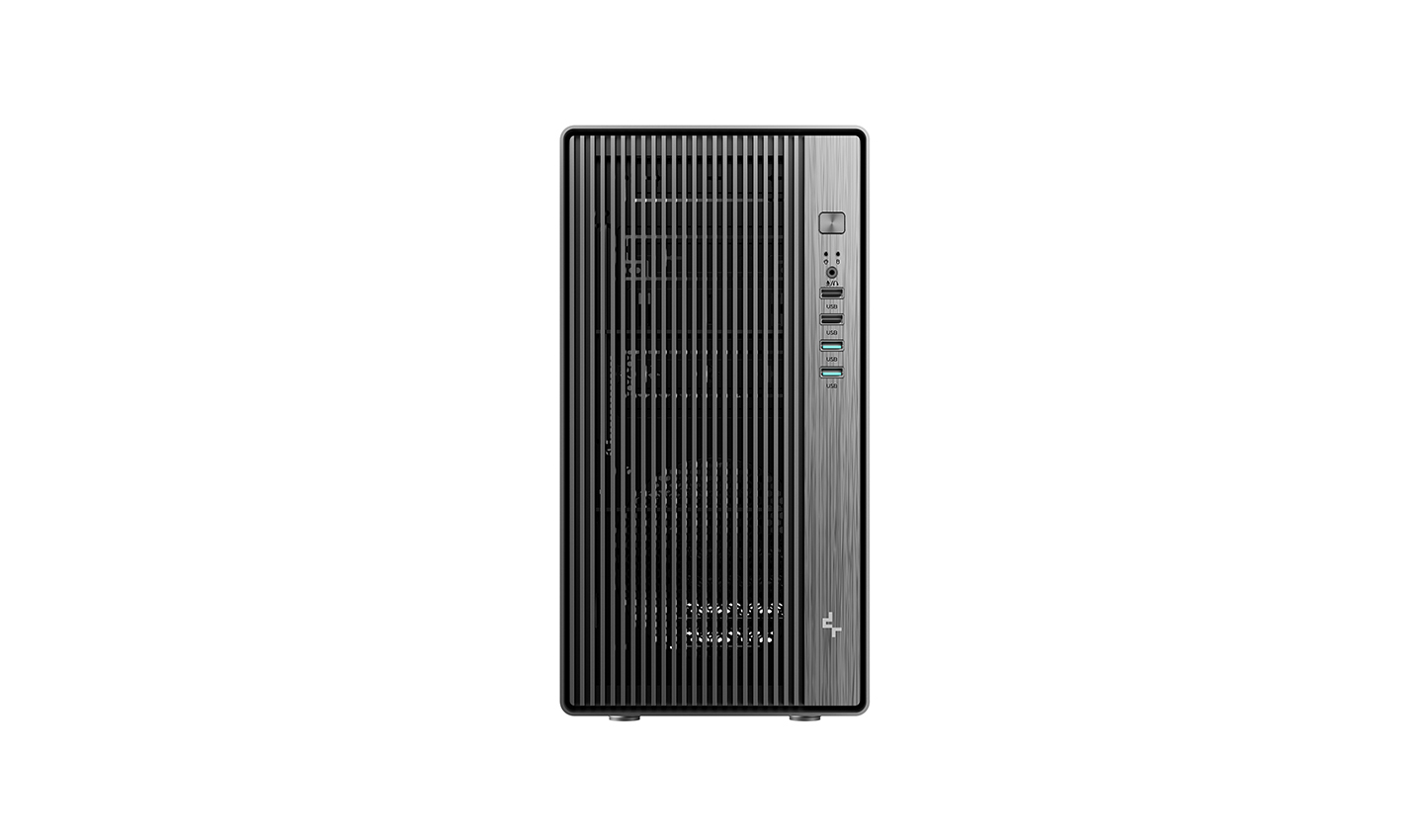

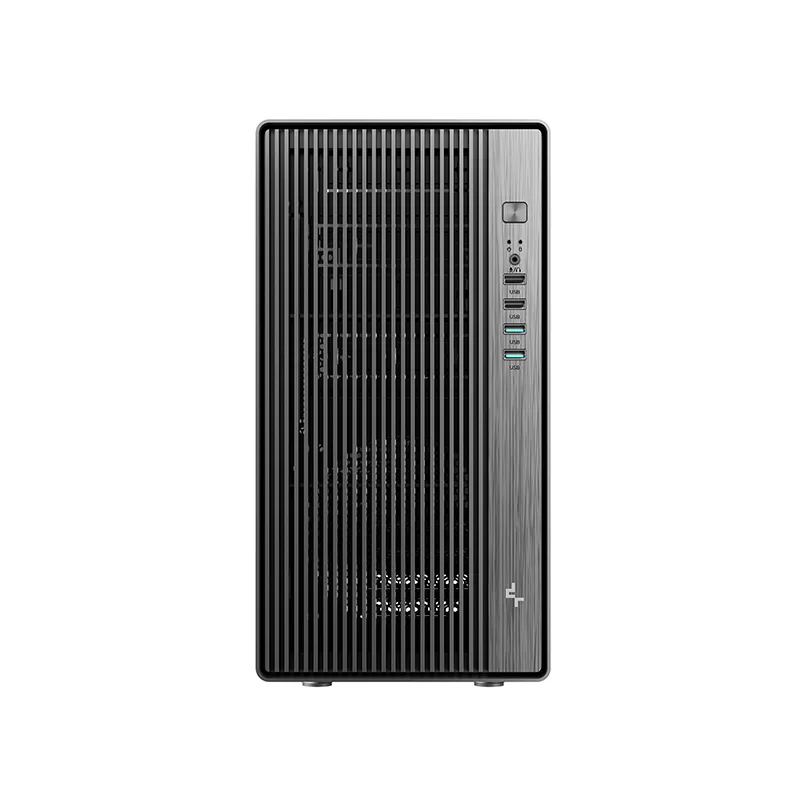

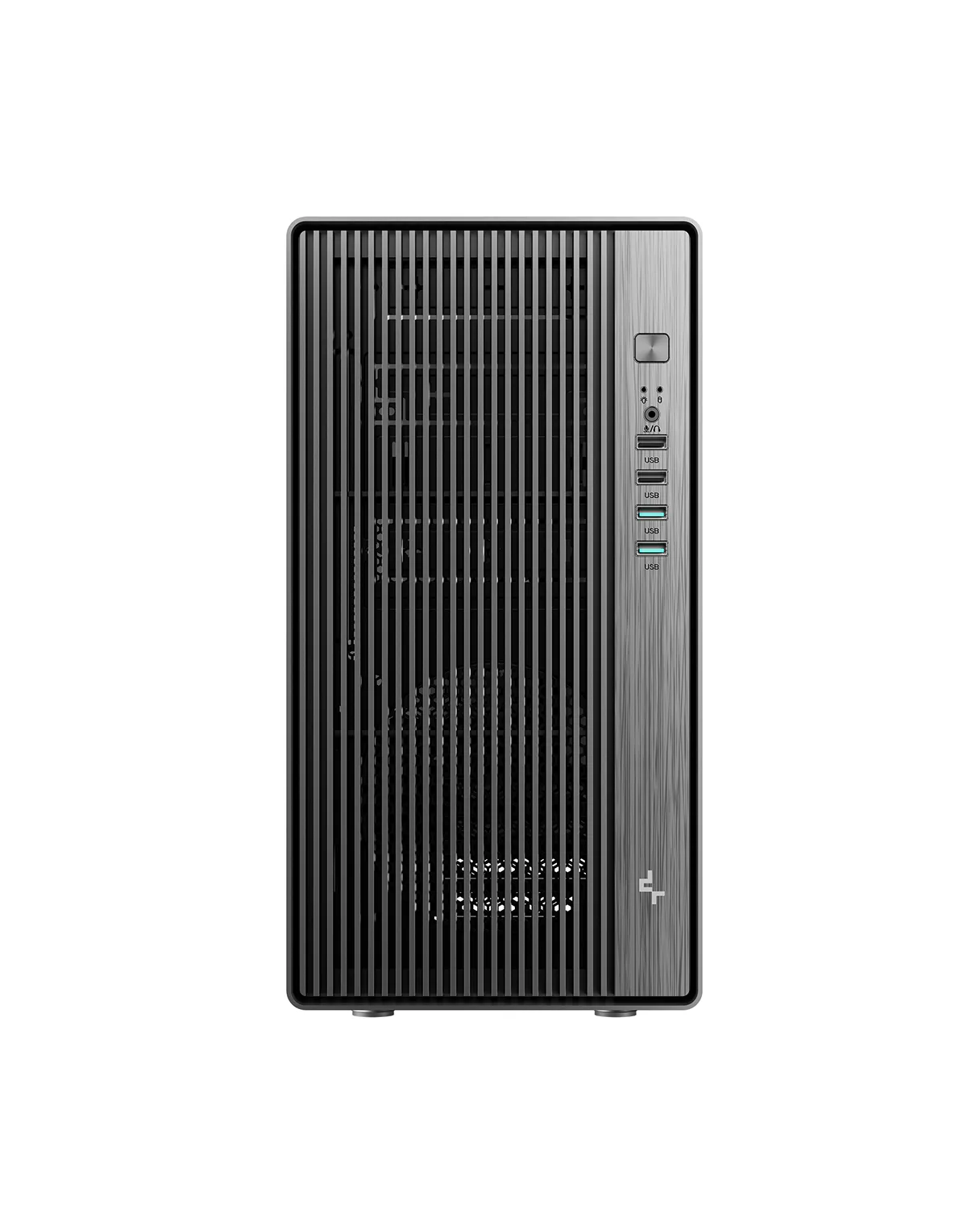

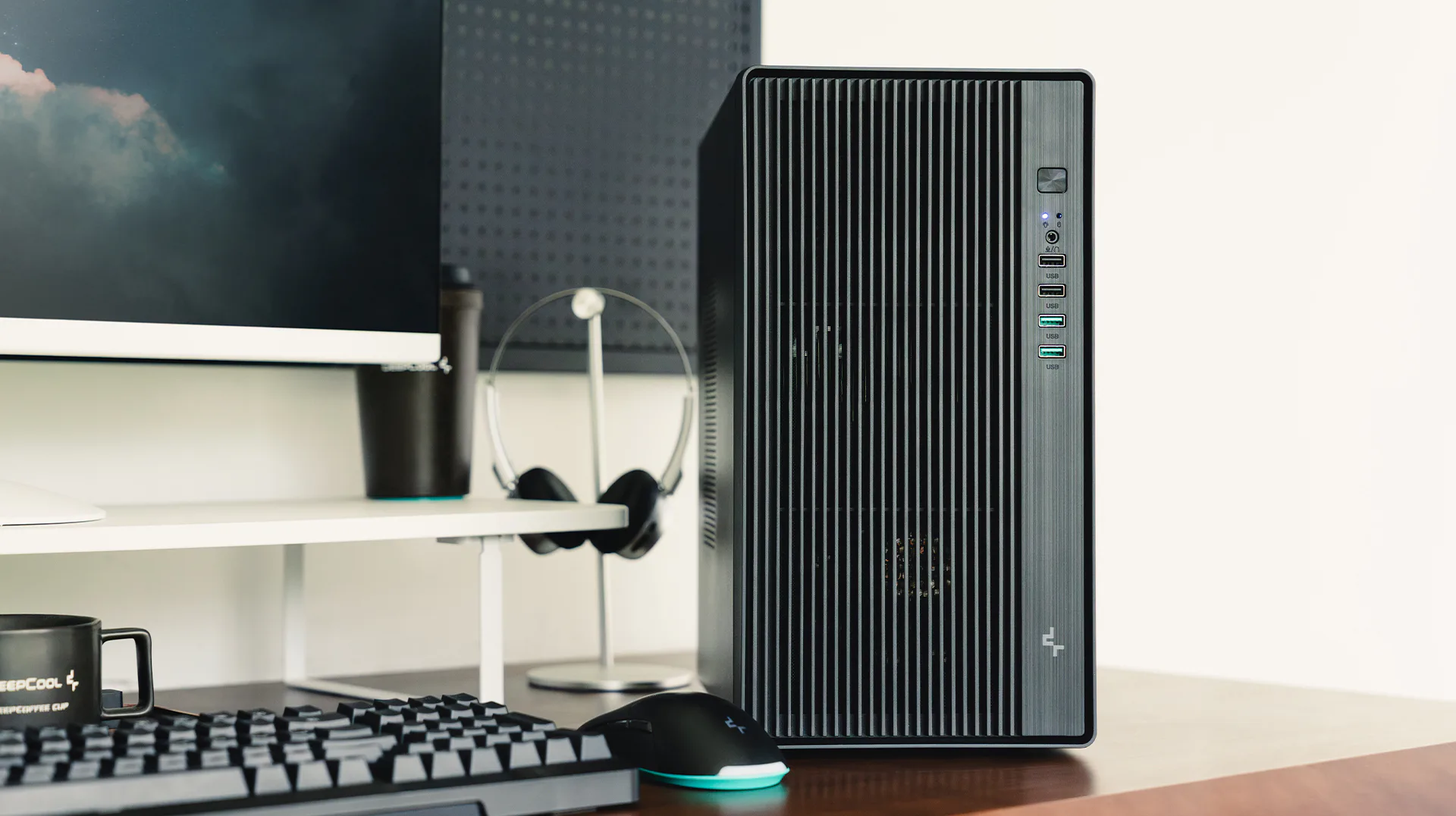

CLEAN FRONT GRILLE DESIGN

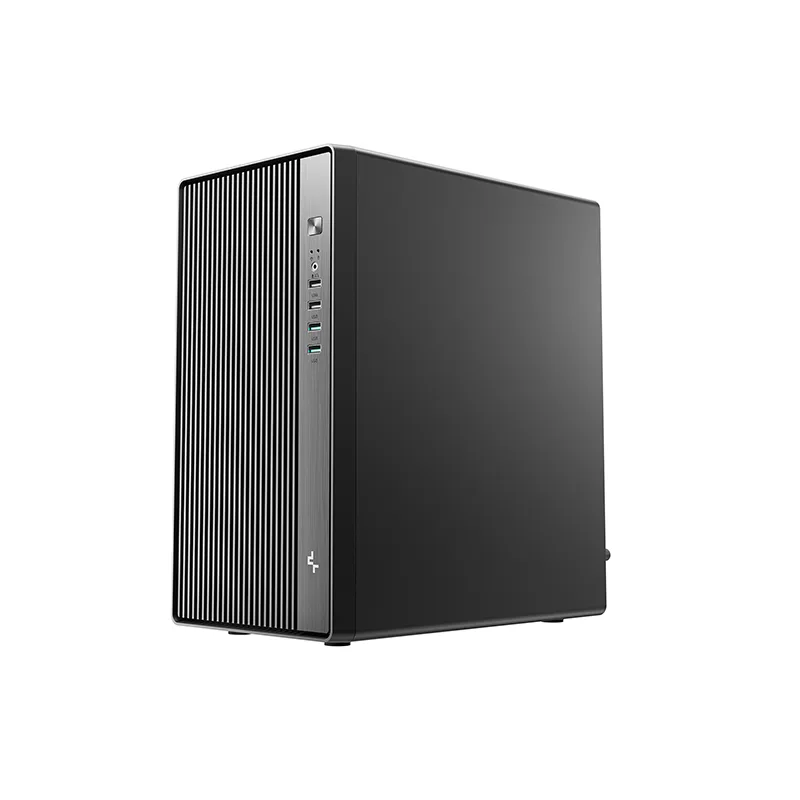

The grille-style front panel gives the case a clean, understated look while allowing ample ventilation for internal components.

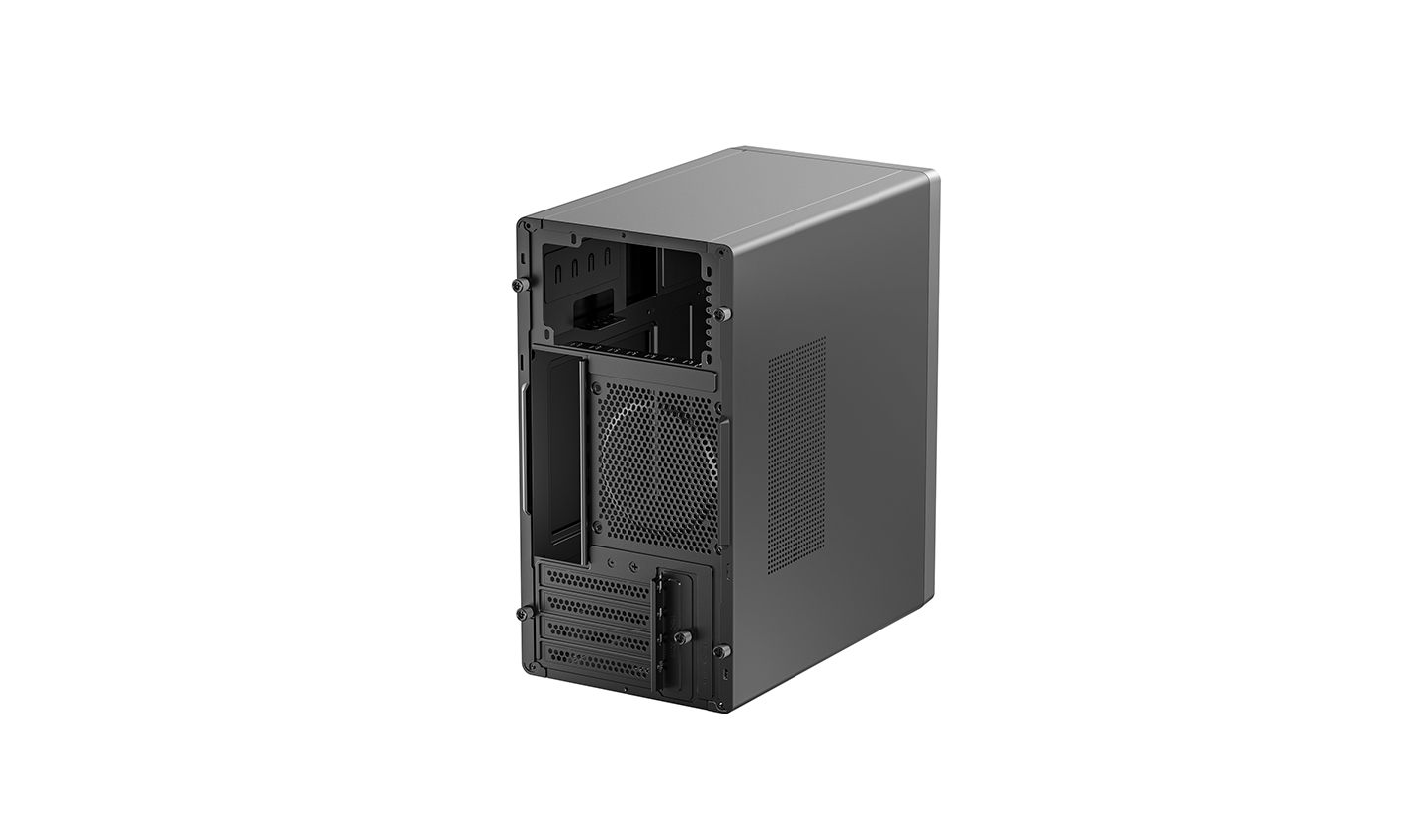

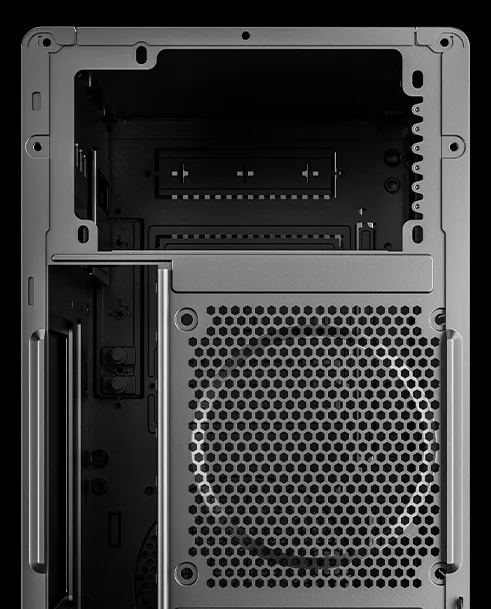

ESSENTIAL COOLING SUPPORT
Supports one 120mm front fan, one 120mm rear fan, and CPU air coolers up to 160mm tall, it makes cooling easy to plan.

2

120mm
CASE FANS

1

160mm
CPU AIR COOLER

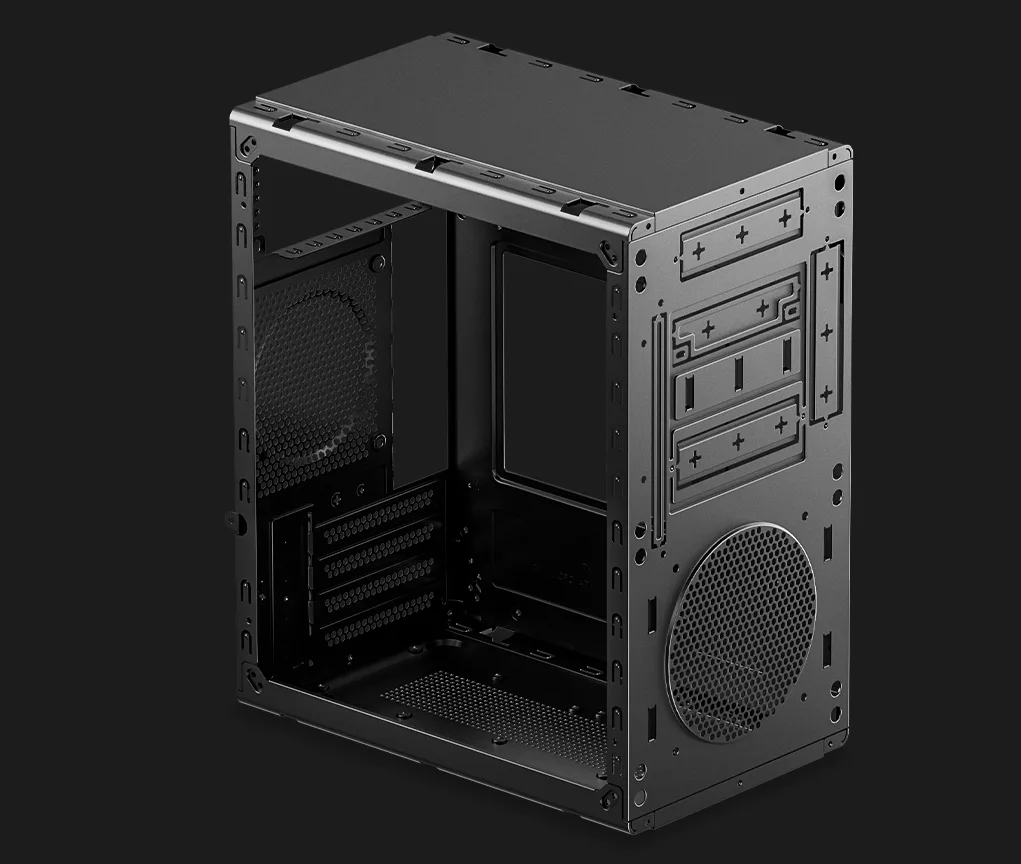

PARCTICAL HARDWARE COMPATIBILITY

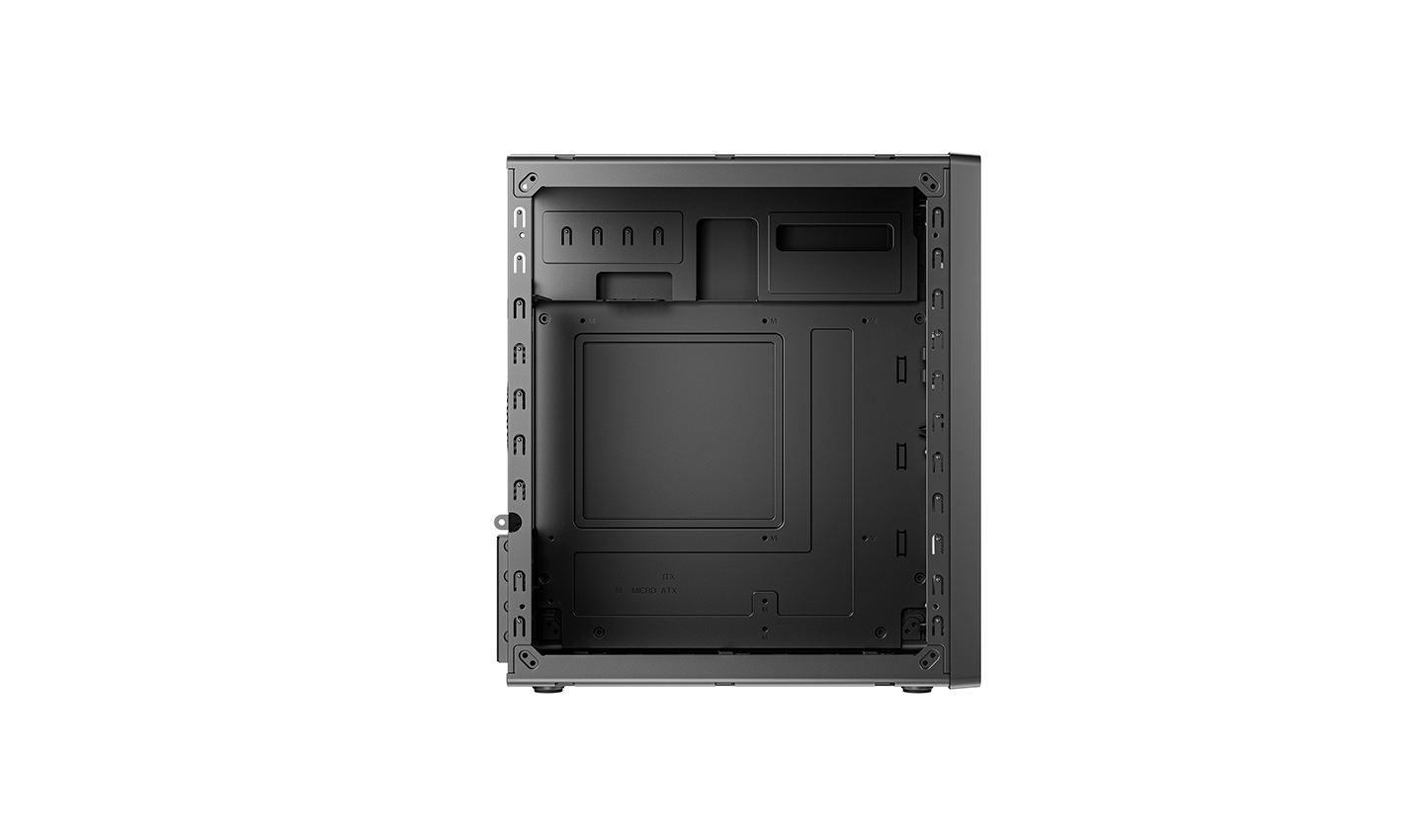

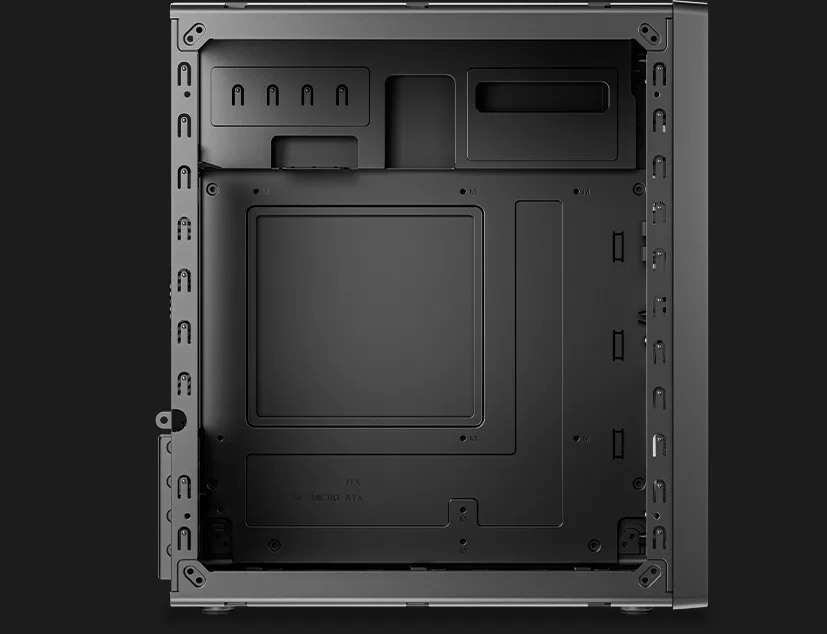

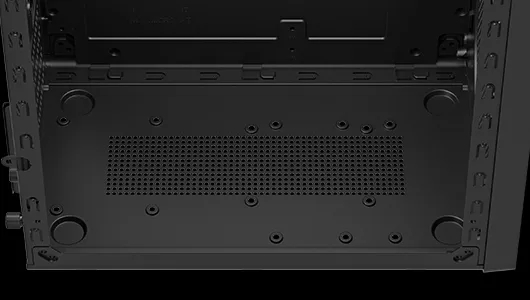

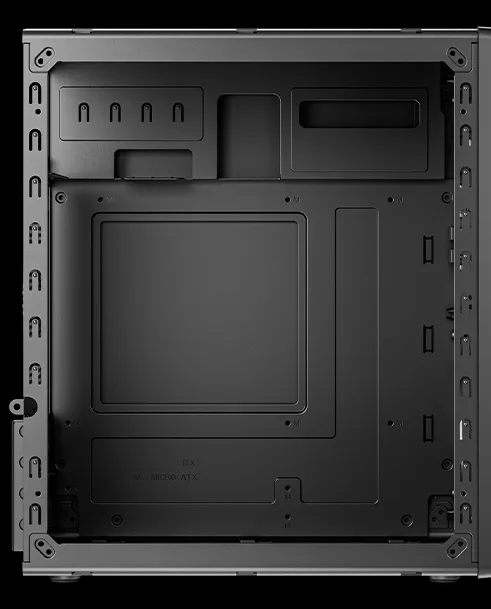

Despite its compact size, the CC310 supports GPUs up to 280mm in length, and ATX PS2 power supplies up to 160mm. For storage, it provides room for up to two 2.5” drives and one 3.5” drive.

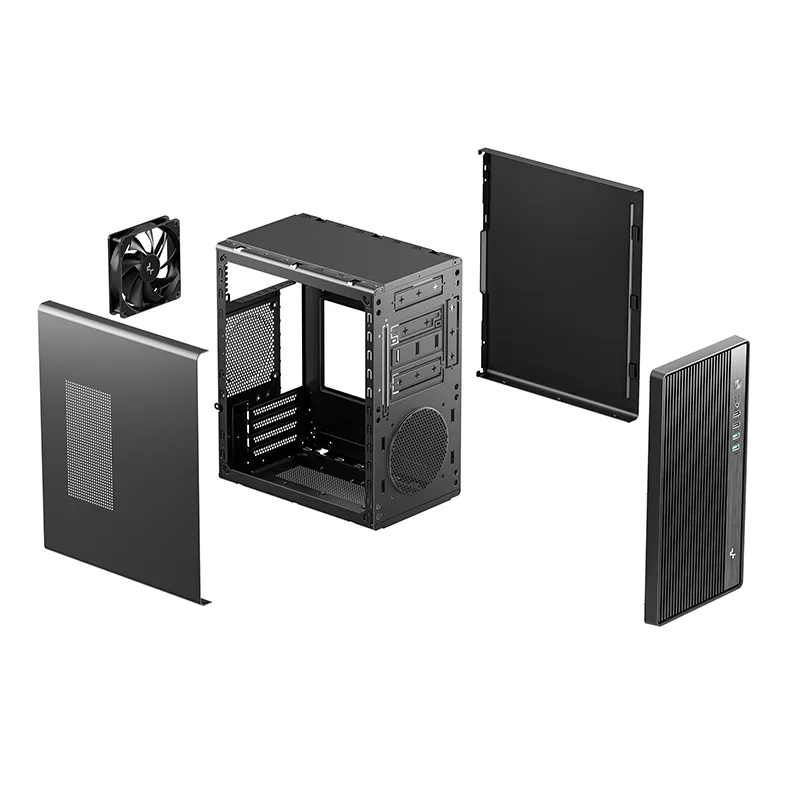

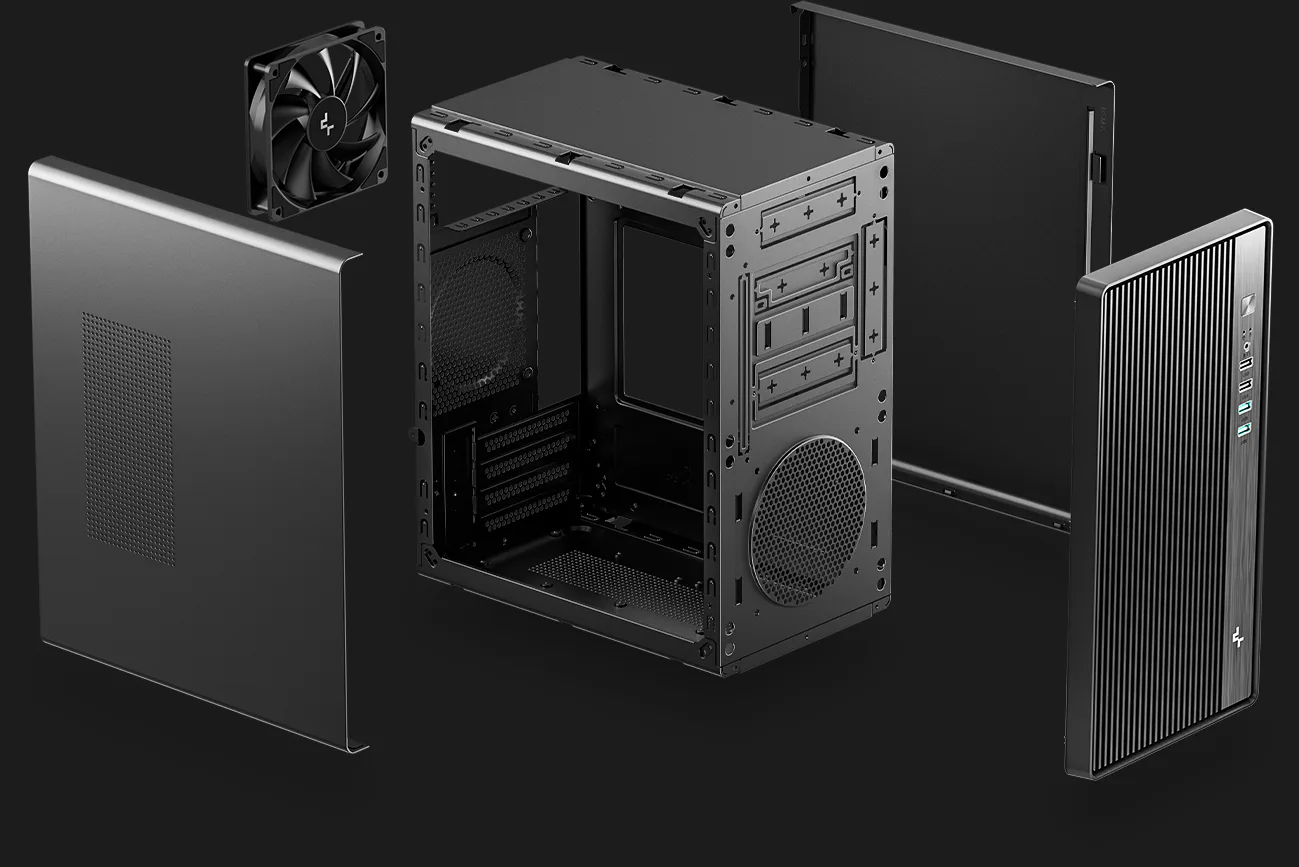

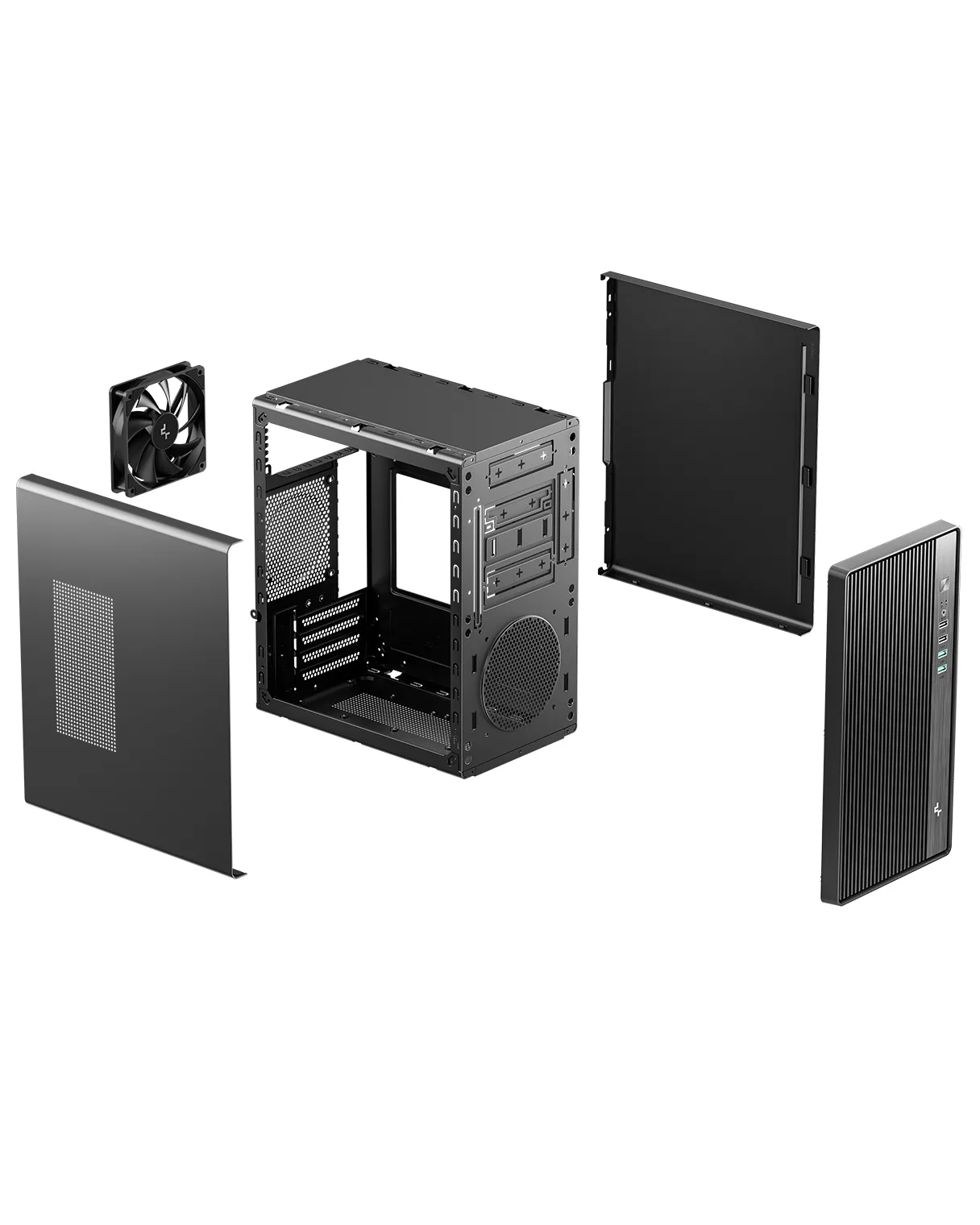

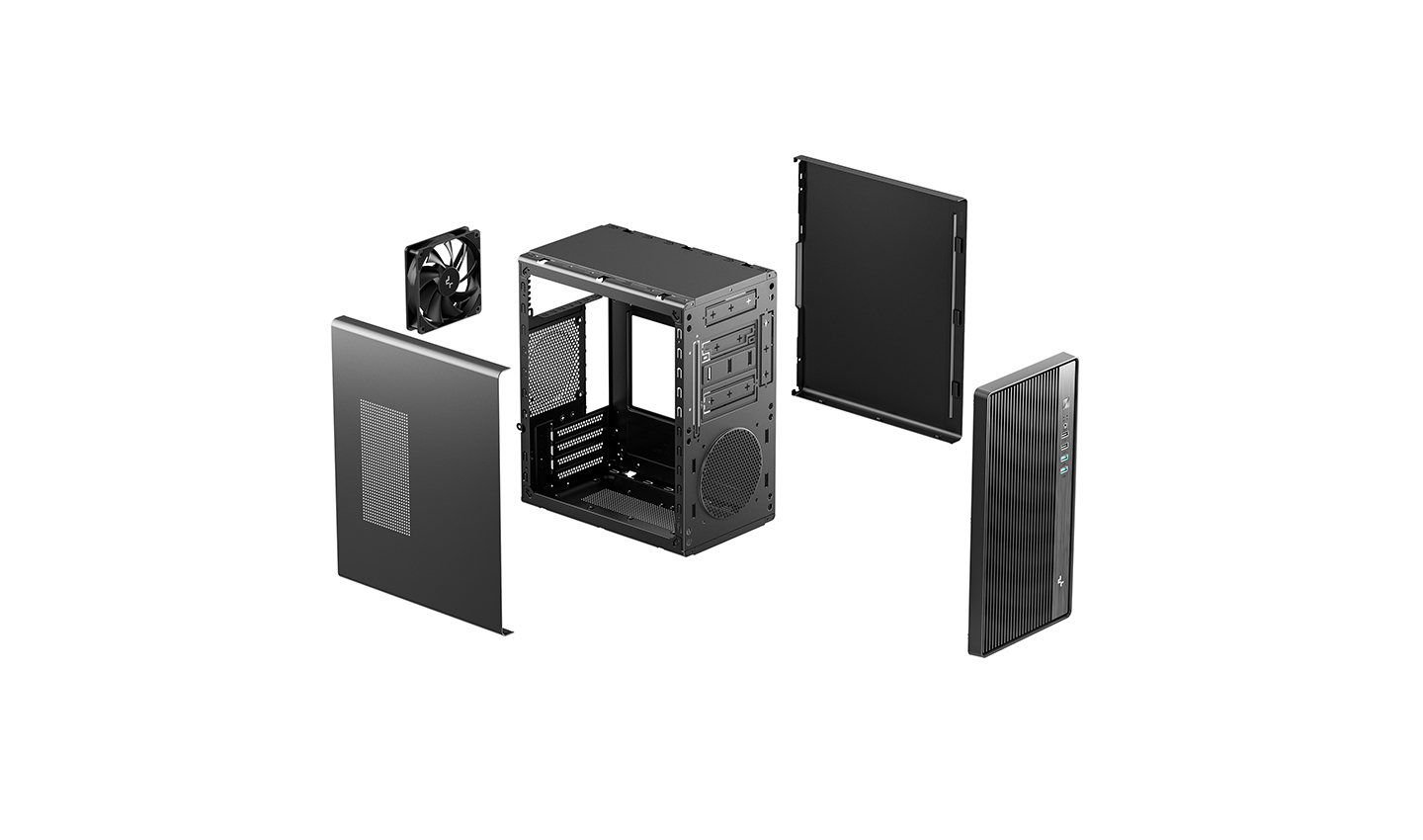

TOOL-FREE PANEL ACCESS
All panels are designed for quick removal with thumb screws, making it easier to build in and maintain.

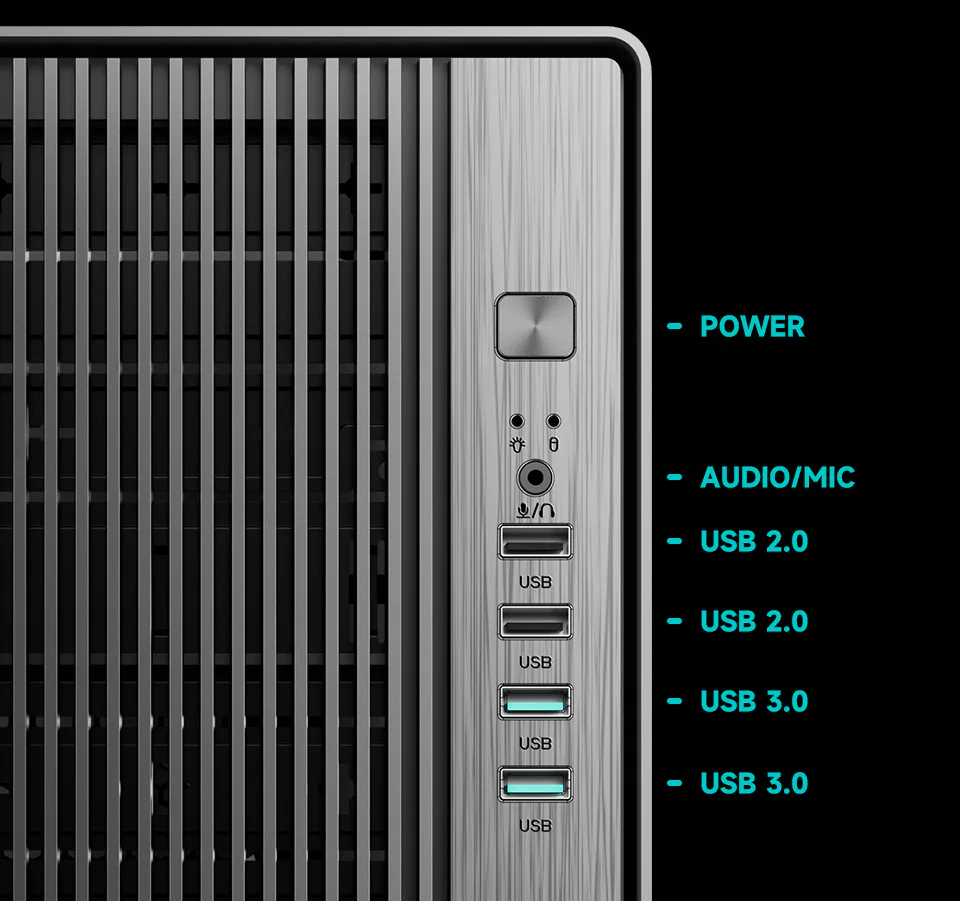

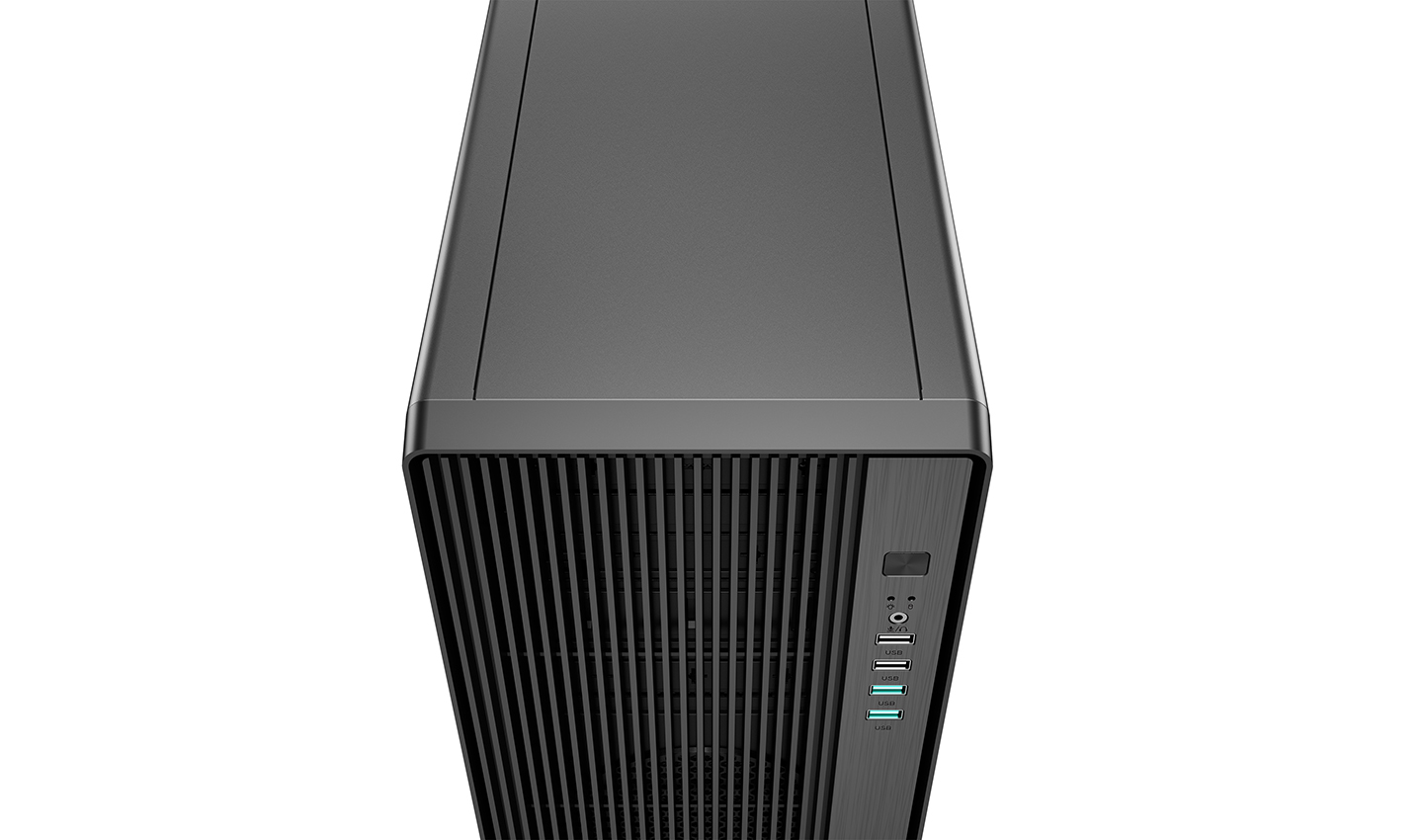

I/O CONNECTIVITY
The front I/O panel includes two USB 3.0 ports, two USB 2.0 ports, and a combined audio/mic jack for convenient daily use.
Technical Spec
Product Dimensions308x185x356mm(L×W×H)
Net Weight3.10KG
MaterialsABS+SPCC

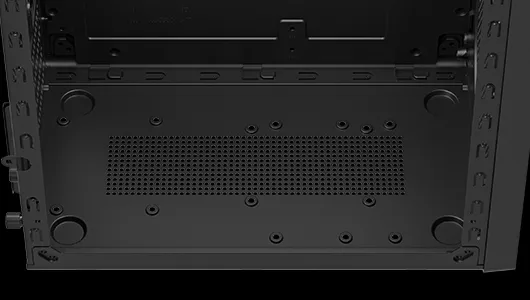

Motherboard SupportITX/Micro-ATX
Front I/O PortsUSB3.0 x2/USB2.0 x2/Audio&Mic x1
3.5" Drive Bays1
2.5" Drive Bays1+1
Expansion Slots4Slots
Pre-Installed FansRear:1x120mm
Fan SupportFront:1x120mm
Rear:1x120mm
Radiator Support/
CPU Cooler Height Limit160mm
GPU Length Limit280mm
Power Supply TypeATX PS2(maximum length: 160mm)
EAN6933412765936
P/NR-CC310-BKNNM0-G
Download
CC310 Manual.pdf
