MATREXX 55 MESH PWM 2F

Minimalism Housing Infinite

As a mid-tower case, MATREXX 55 MESH PWM 2F is endowed with abundant space that supports up to E-ATX specification motherboards. Equipped with a meshed front panel, the intake channel provides abundant airflow for your system and keeps your entire build at a steady, sustainable temperature. As a minimalist case built for optimal airflow, the spacious interior of the MATREXX 55 MESH PWM 2F keeps the case well-ventilated and will help solve all your thermal issues

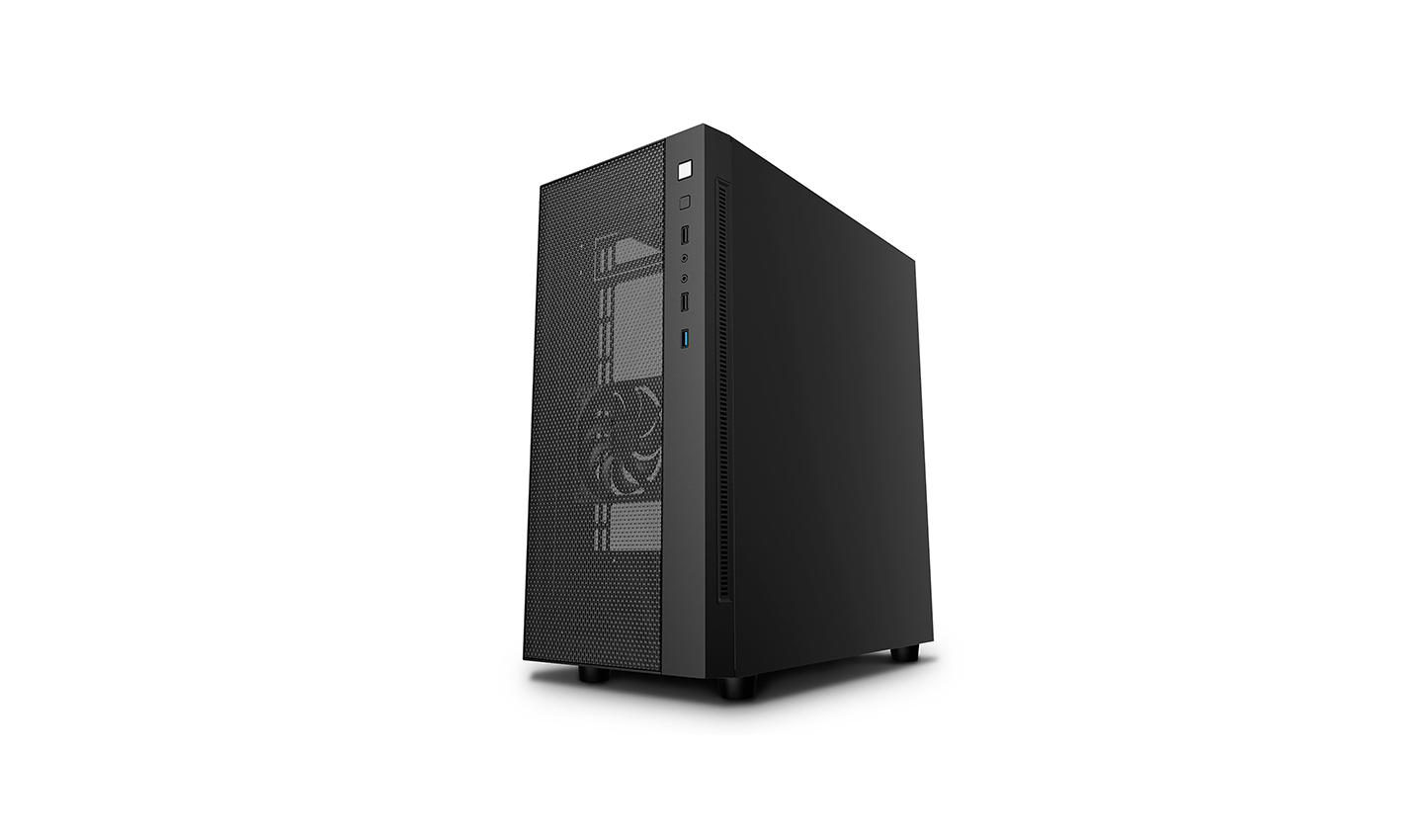

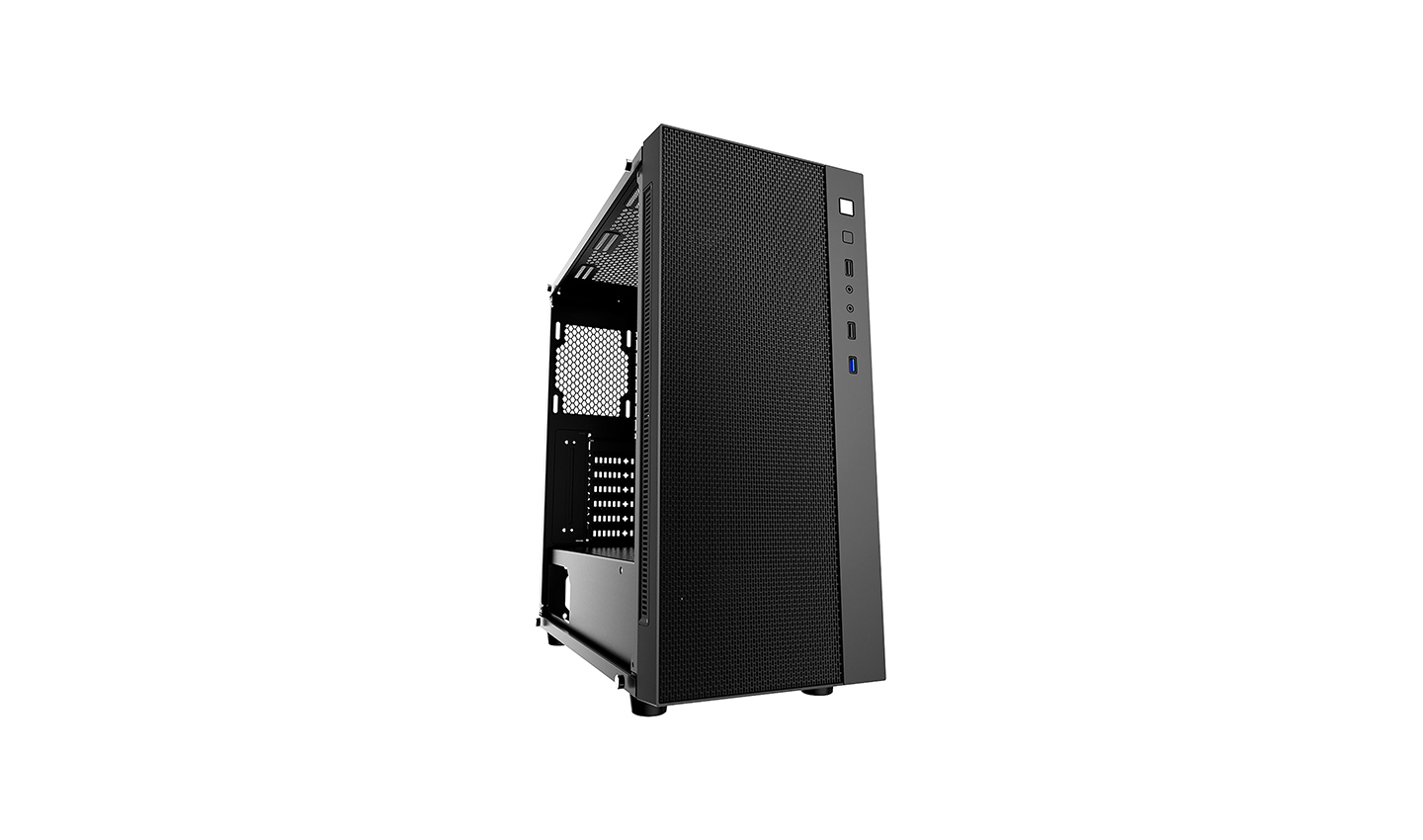

High Airflow Design

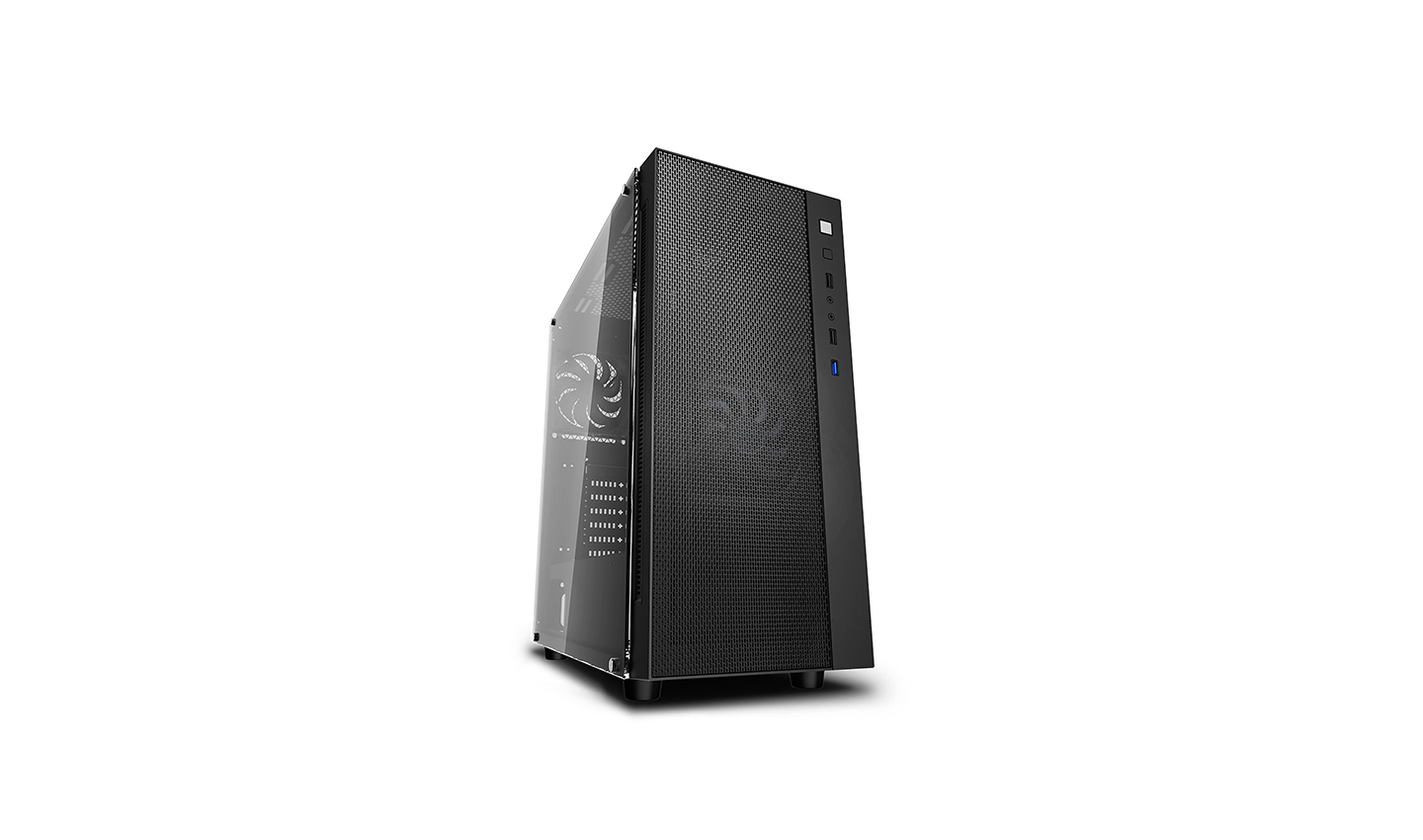

In terms of design, MATREXX 55 MESH PWM 2F features a meshed front panel and features a dust filter. With a meshed front panel, the intake channel provides abundant airflow for your system and maintains your entire build at a steady, sustainable temperature. MATREXX 55 MESH PWM 2F solves all your thermal issues

High Airflow Design

In terms of design, MATREXX 55 MESH PWM 2F features a meshed front panel and features a dust filter. With a meshed front panel, the intake channel provides abundant air flow for your system and maintains your entire build at a steady, sustainable temperature. MATREXX 55 MESH PWM 2F solves all your thermal issues

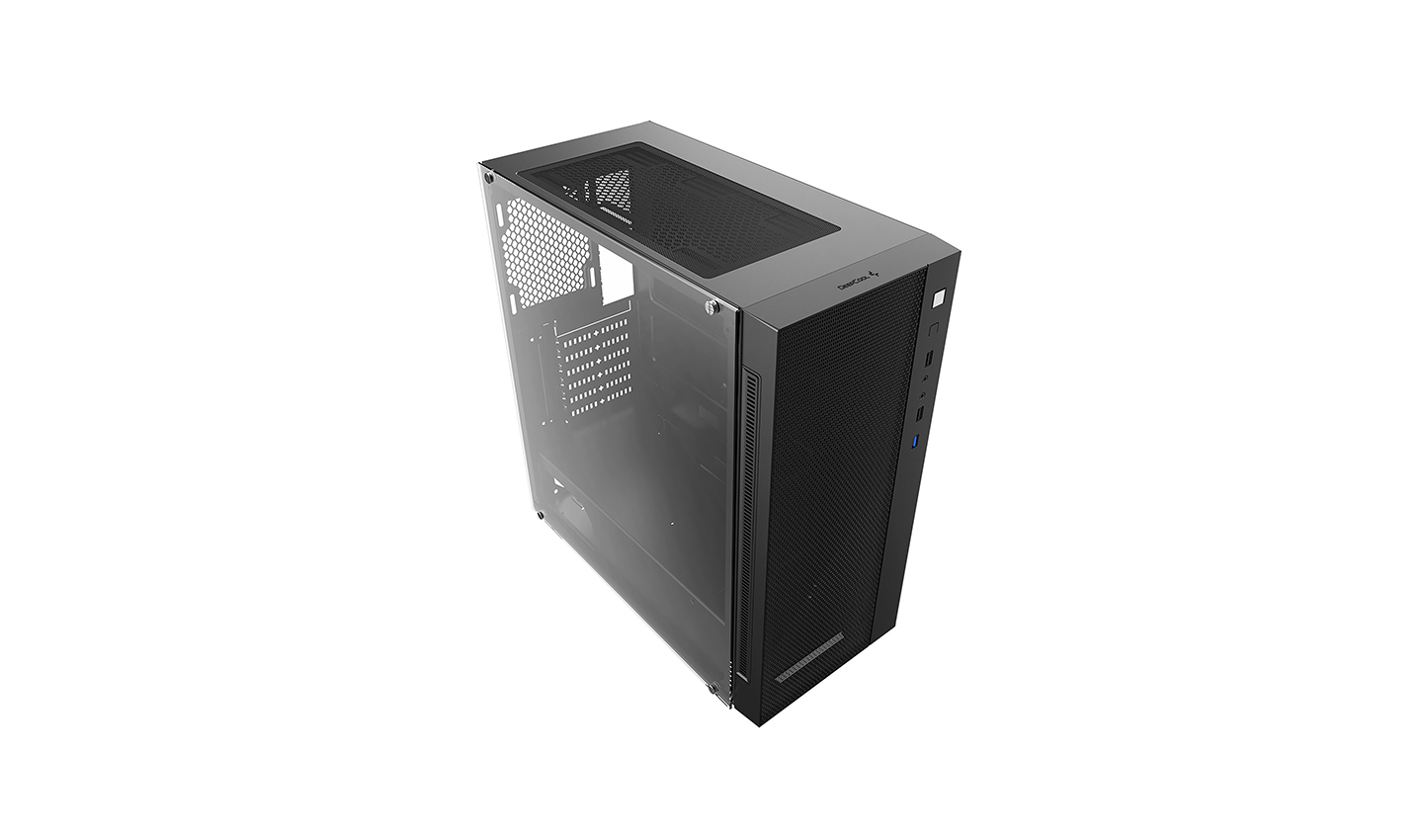

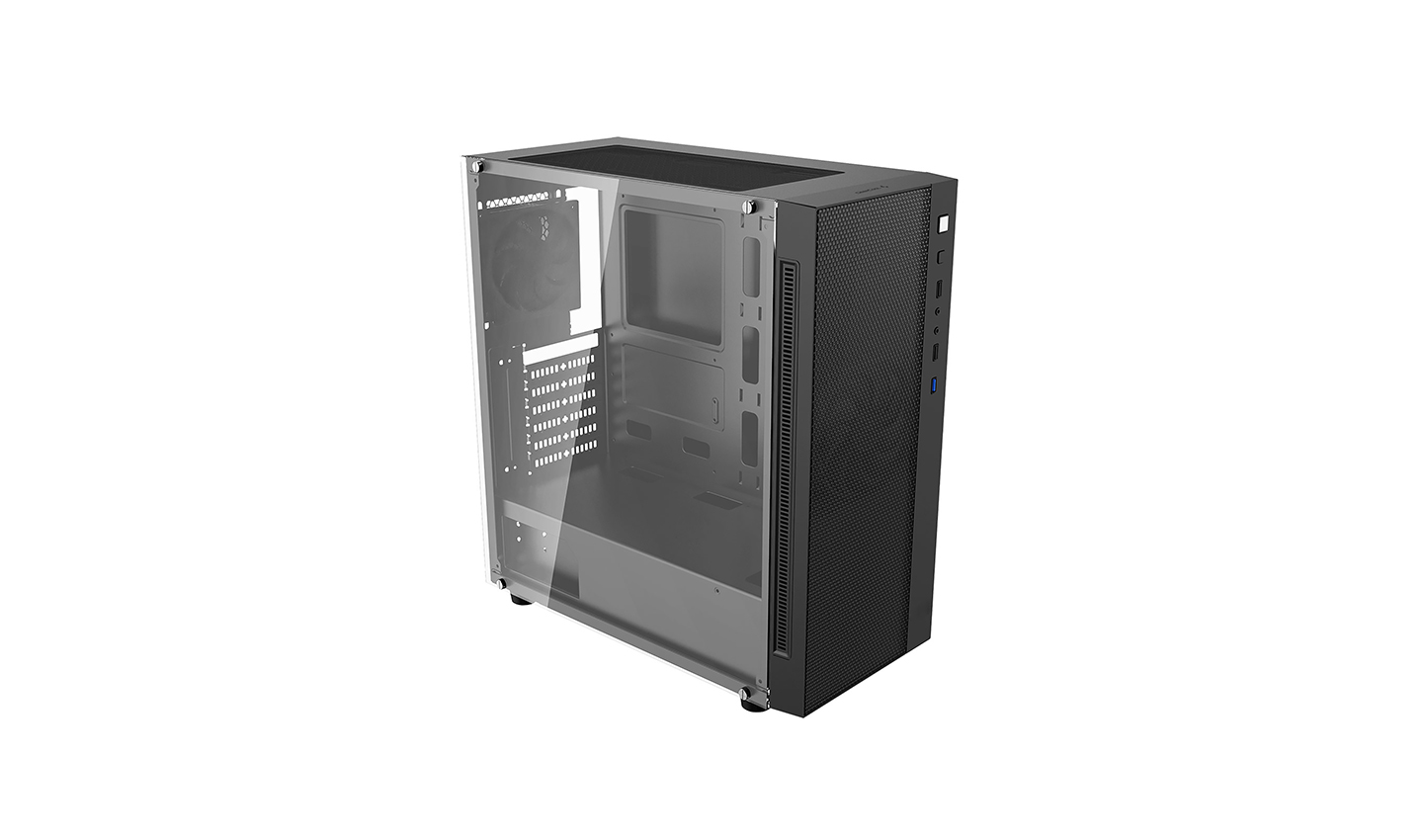

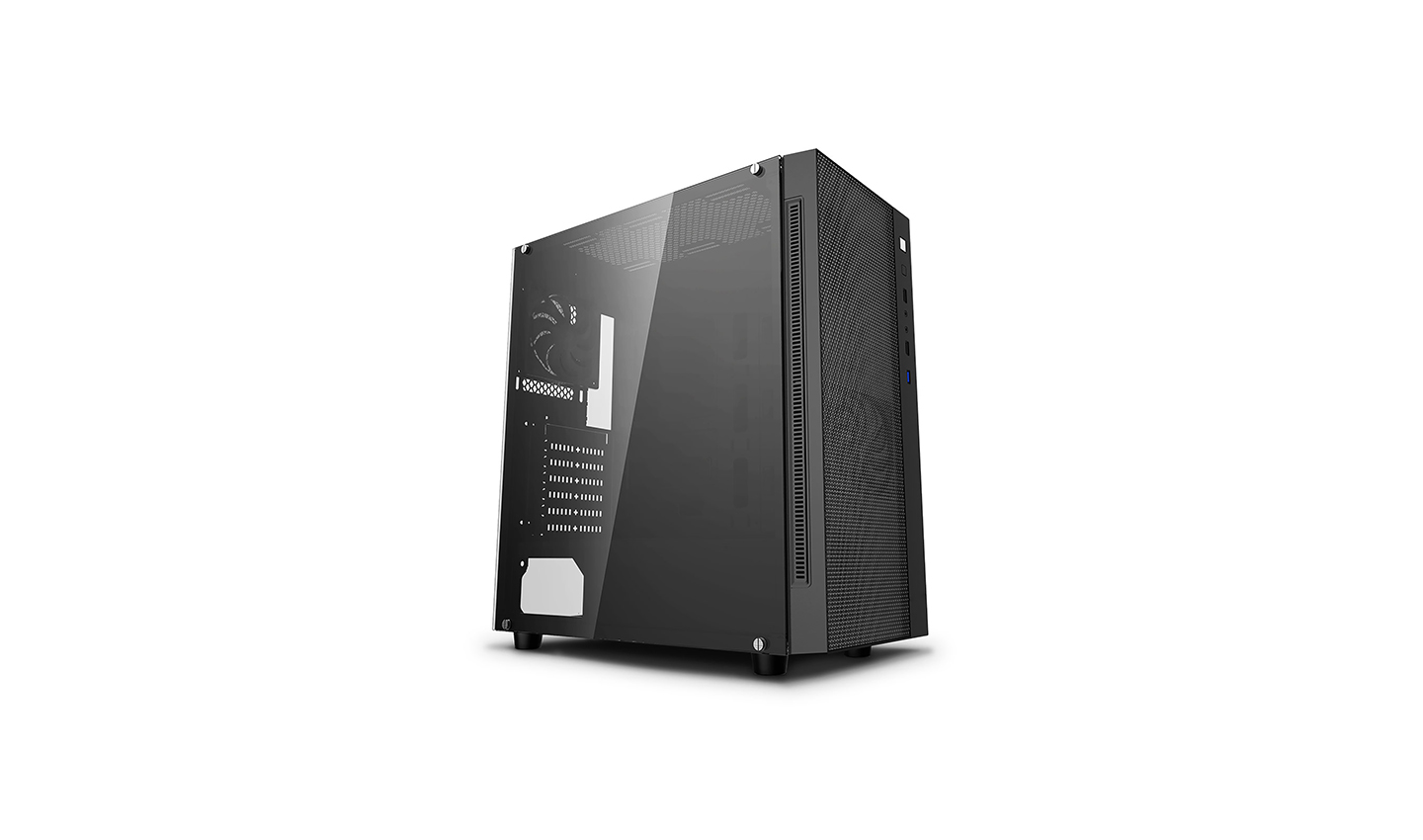

4mm Tempered Glass

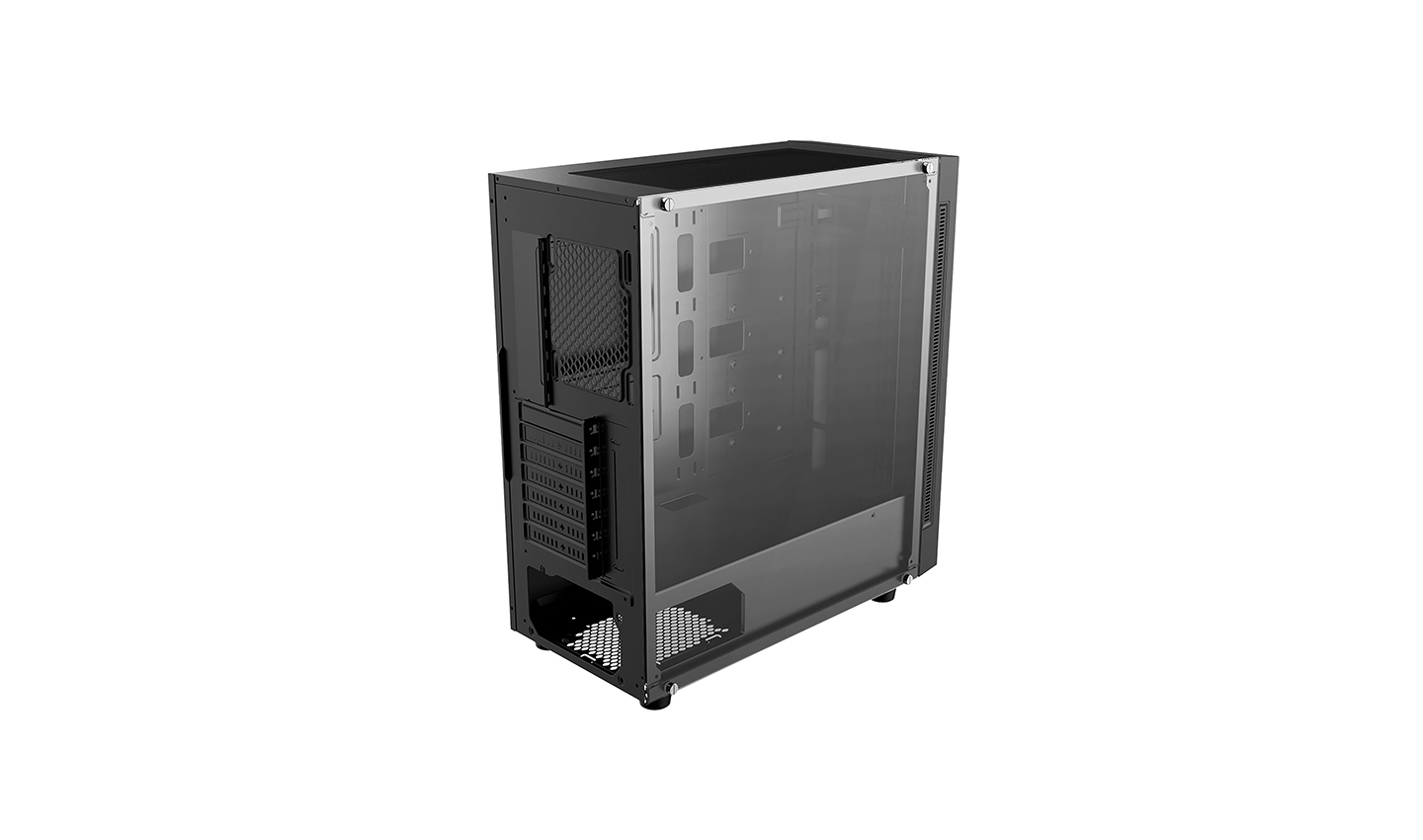

Full sized 4mm thickness, tempered glass side panel gives the case a unique look to perfectly show off your inner structure

Massive Cooling Compatibility

Optimized airflow is guaranteed with large air intakes both sides of the front panel and an air exhaust in the back and on top, to keep your components cool

Cooling Compatibility:

Supports the installation of liquid cooler :

120/240mm radiator liquid cooling system on the top

120mm radiator liquid cooling system at the rear

120/140/240/280/360mm radiator liquid cooling system at the front

Supports the installation of cooling fans :

2×120/ 2×140mm fan on the top

1×120mm fan at the rear

3×120mm/2×140mm fan at the front

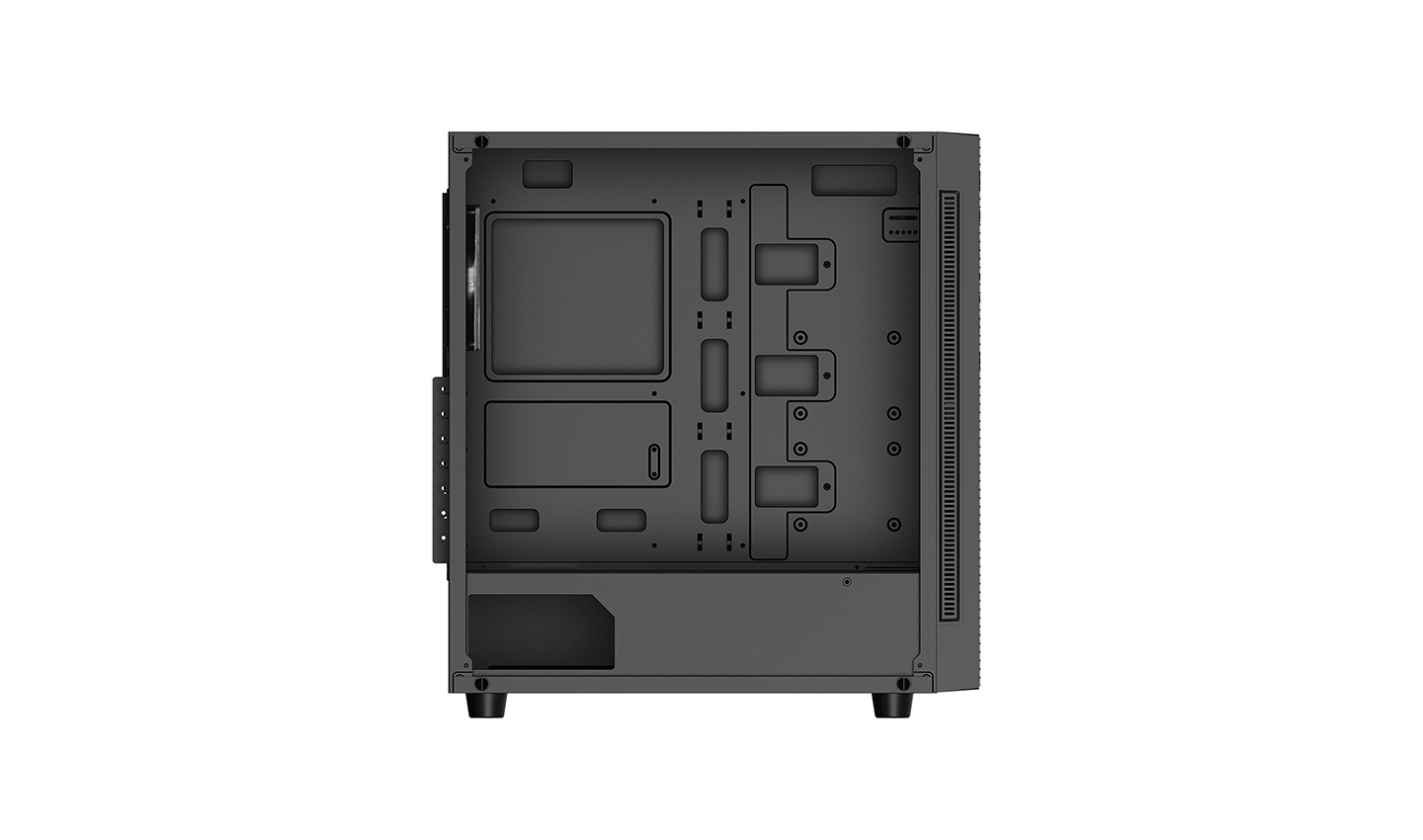

PSU Shroud Added

The MATREXX 55 MESH PWM 2F version is equipped with a PSU Shroud to hide the cables and to keep the system neat and tidy

PSU Shroud Added

The MATREXX 55 MESH PWM 2F version is equipped with a PSU Shroud to hide the cables and to keep the system neat and tidy

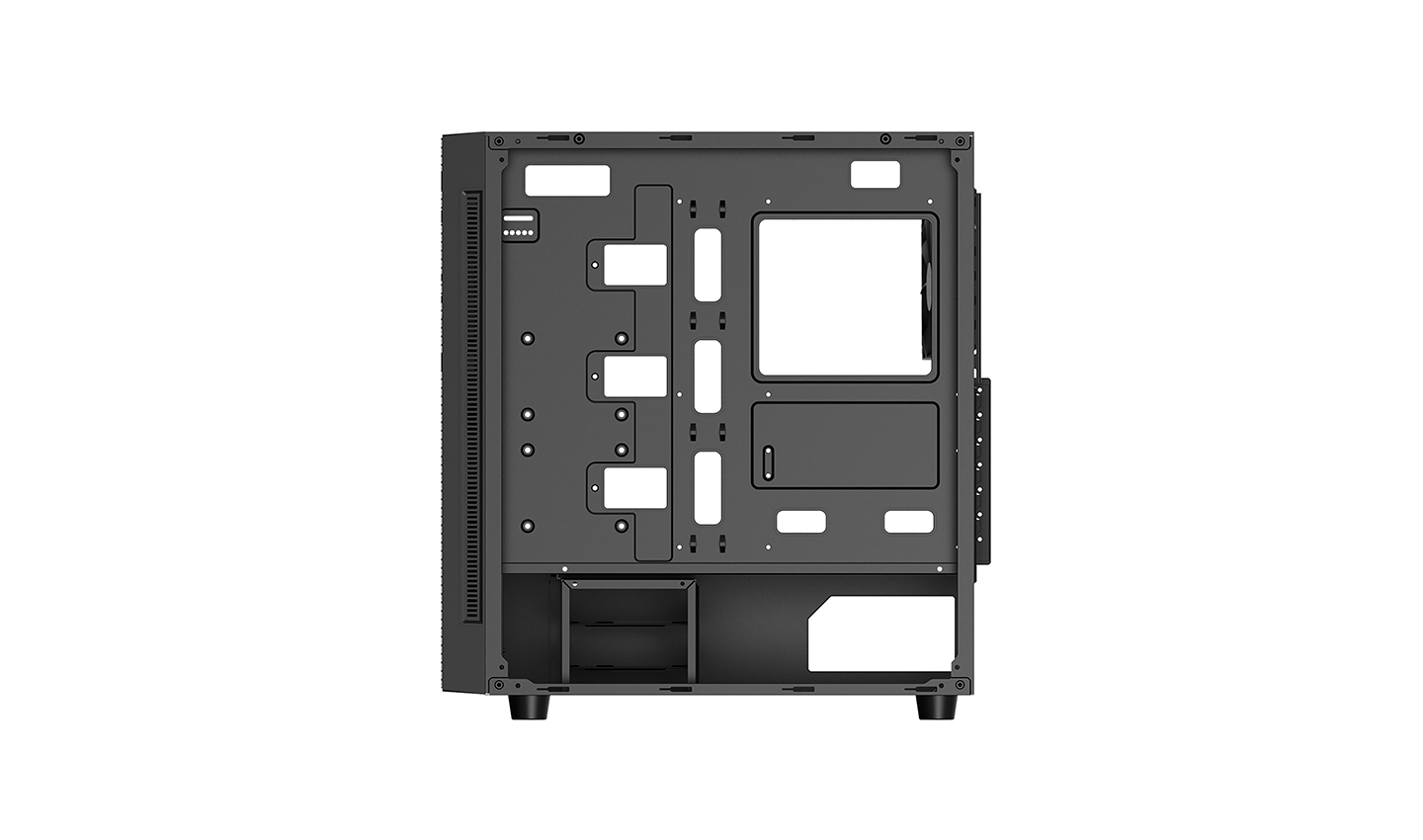

Easy Cable Management

Cable managing is now easy with a 210mm wide tower compartment (23mm clearance)

Supports motherboards up to E-ATX

Power Supply: ATX PS2 (Length less than 170mm)

Supports 370mm (Max) graphic cards installation

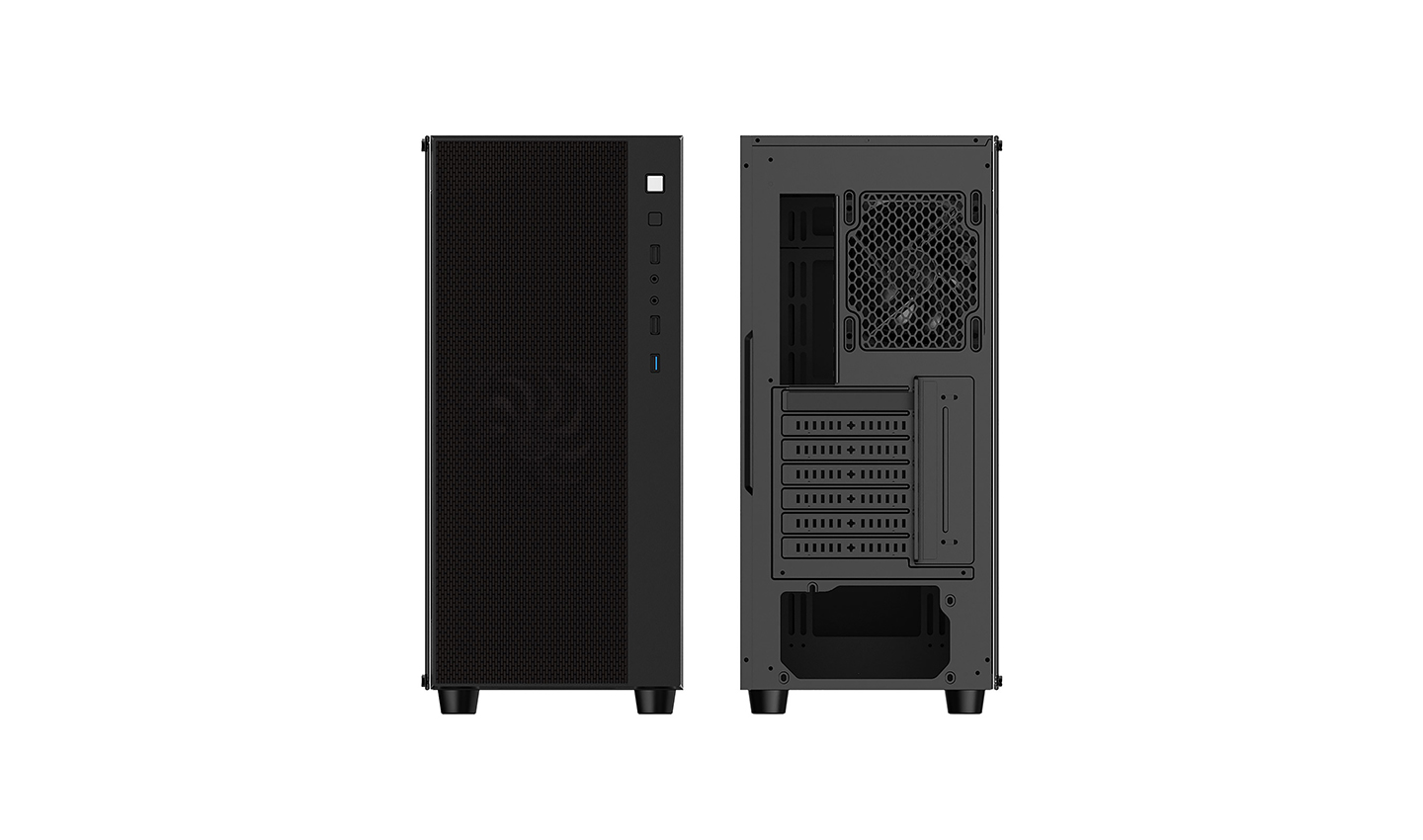

The large area of air-intake at two sides of the front panel ensures sufficient airflow for the systems

The magnet-mounted dust filter provided at the front panel, offers users easy removal and cleaning

1×USB3.0/2×USB2.0/1×Audio (HD)/1×Mic

Technical Spec

Motherboard	Mini-ITX/Micro-ATX/ATX/E-ATX
Case Type	Middle Tower
Materials	ABS+SPCC+Tempered Glass
Product Dimensions	435×210×478mm(L×W×H)
Carton Dimensions	523X277X514mm
Net Weight	6.79Kg
Gross Weight	7.64Kg
5.25" Drive Bays	0
3.5" Drive Bays	2
External 3.5'' Drive Bays	0
2.5" Drive Bays	4

I/O Ports	USB2.0×2、USB3.0×1、Audio×1、Mic×1
Expansion Slots	7 Slots
Power Supply Type	ATX PS2 （Length less than 170mm）
Cable Management	23mm clearance
CPU Cooler Height Limit	165 mm
VGA Length Limit	370mm
Cooling Fans Support	Optional: Front:3×120 / 2×140mm; Top:2×120 / 2×140mm; Rear:1×120mm; Pre-installed:Front:2×120mm
Liquid Cooler Support	Front:120/140/240/280/360mm;Top:120/240mm; Rear:120mm
P/N	DP-ATX-MATREXX55-MESH-PWM-2F
EAN	6933412714262

Product Dimension

Download

MATREXX 55 MESH PWM 2F Manual.pdf
