RGB convertor
COLOR
black
MODEL
RGB convertor
5V ADD-RGB to 12V RGB Transfer Hub

5V ADD-RGB to 12V RGB Transfer Hub
5V ADD-RGB equipment can be compatible with 12V RGB motherboard via the convertor, to achieve synchronous lighting compatibility.
(Rainbow and breathing mode for some motherboard models are not compatible)

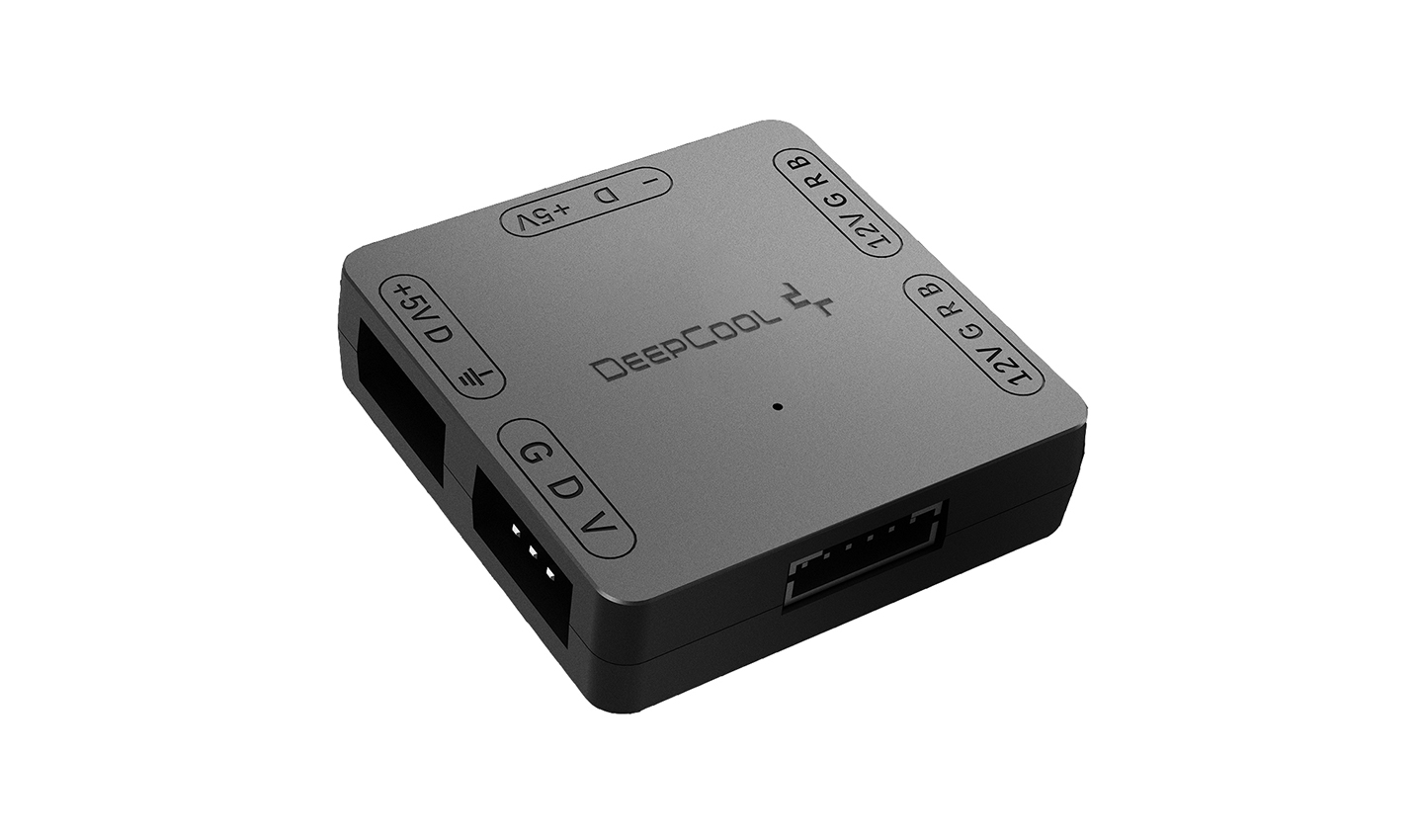

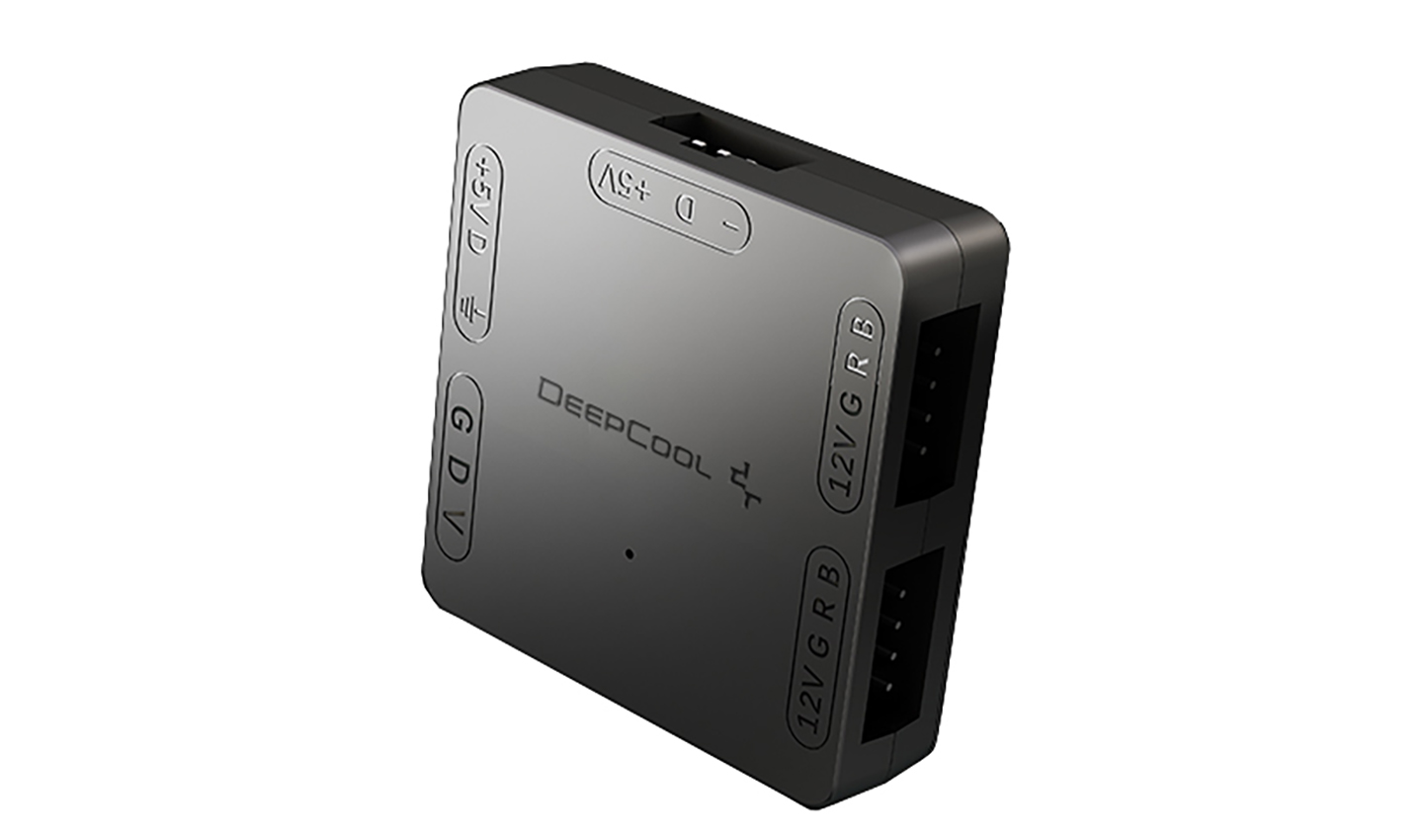

Compatible with Multiple RGB Connectors
Compatible with the 3PIN interface RGB products of mainstream M/B brands like ASUS, Gigabyte and MSI

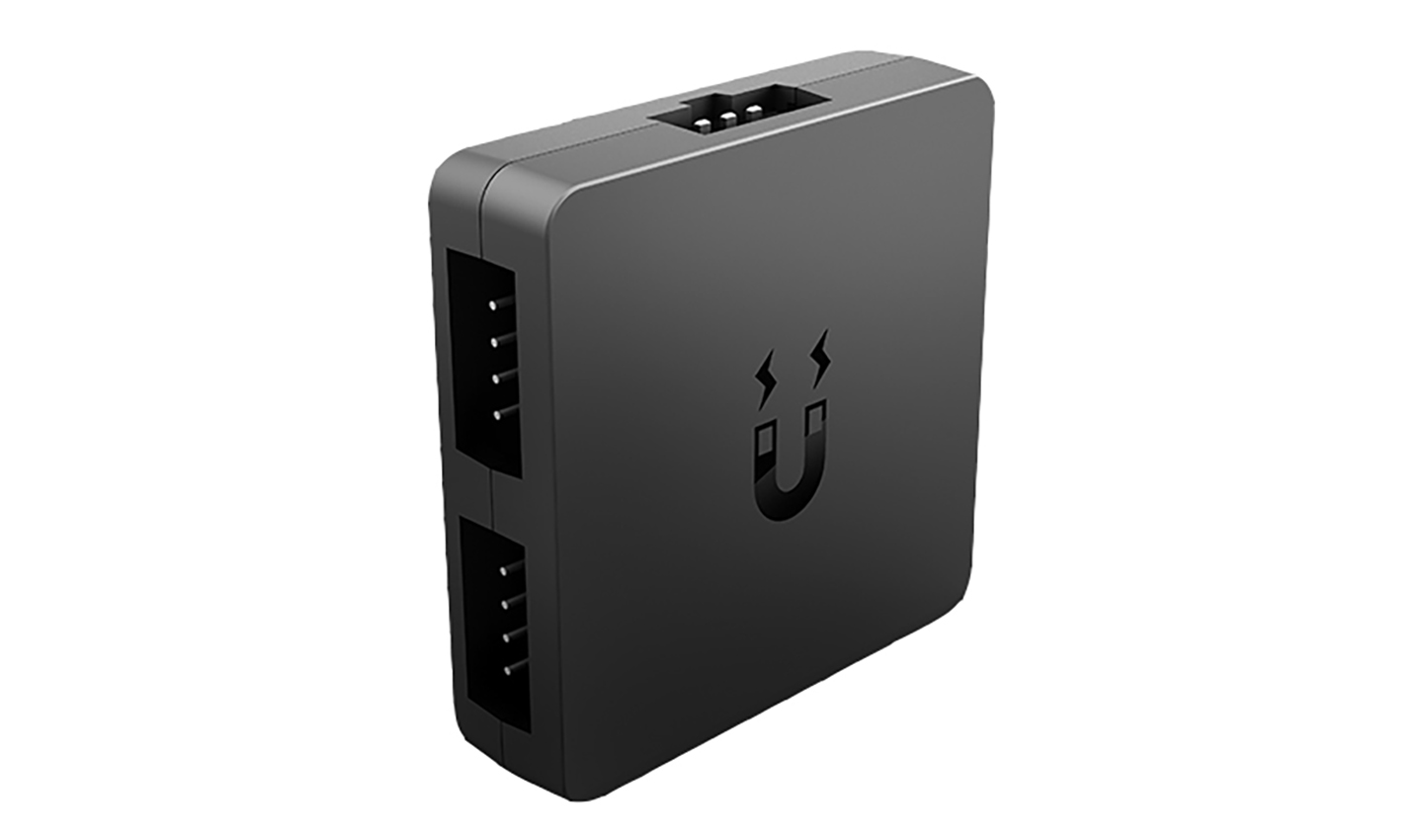

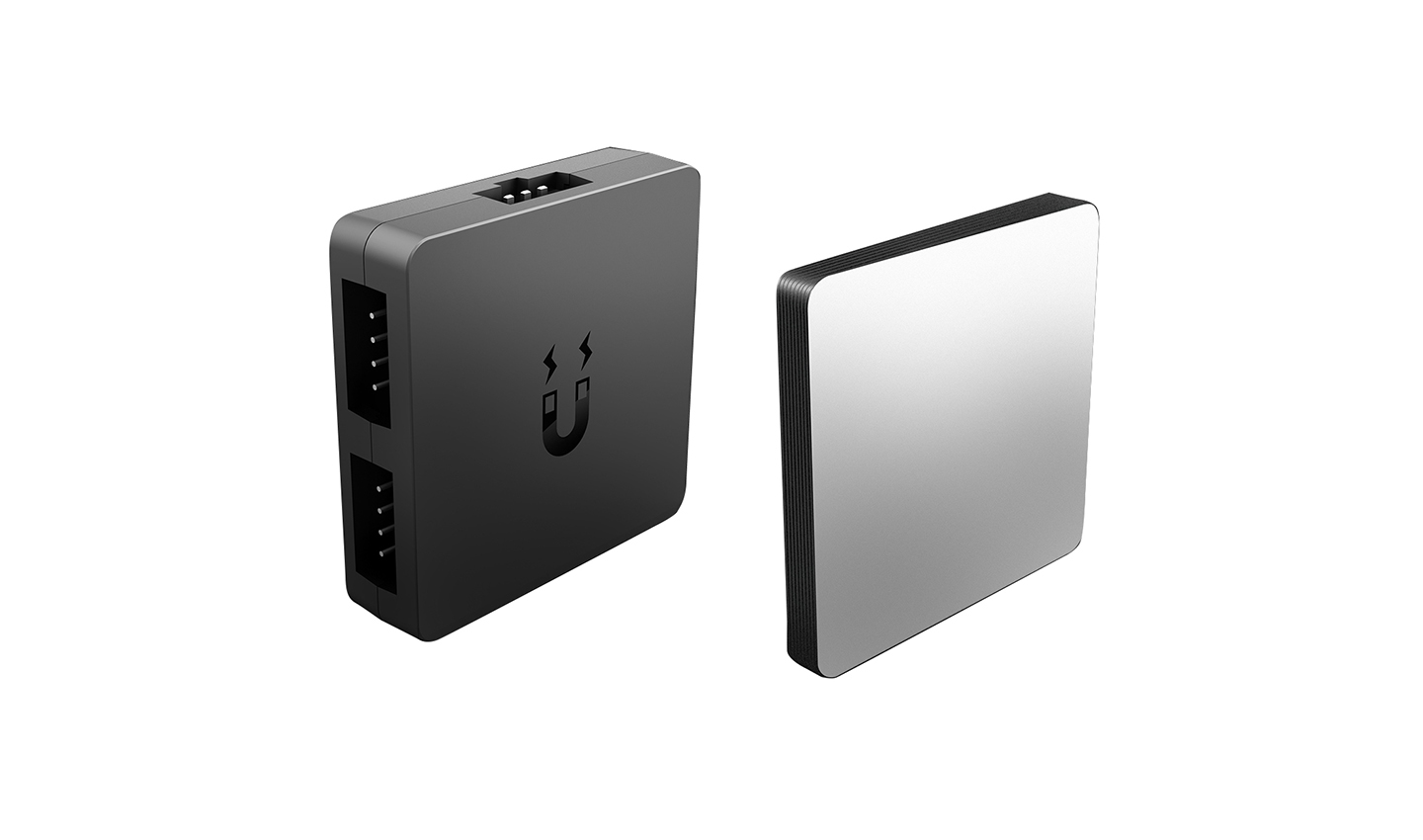

Magnet & Velcro Installation
Can be easily fixed onto iron surfaces using the built-in magnet or using the Velcro included, keeping the cables neat and tidy.
SATA 5V
4-pin(+12V-G-R-B)

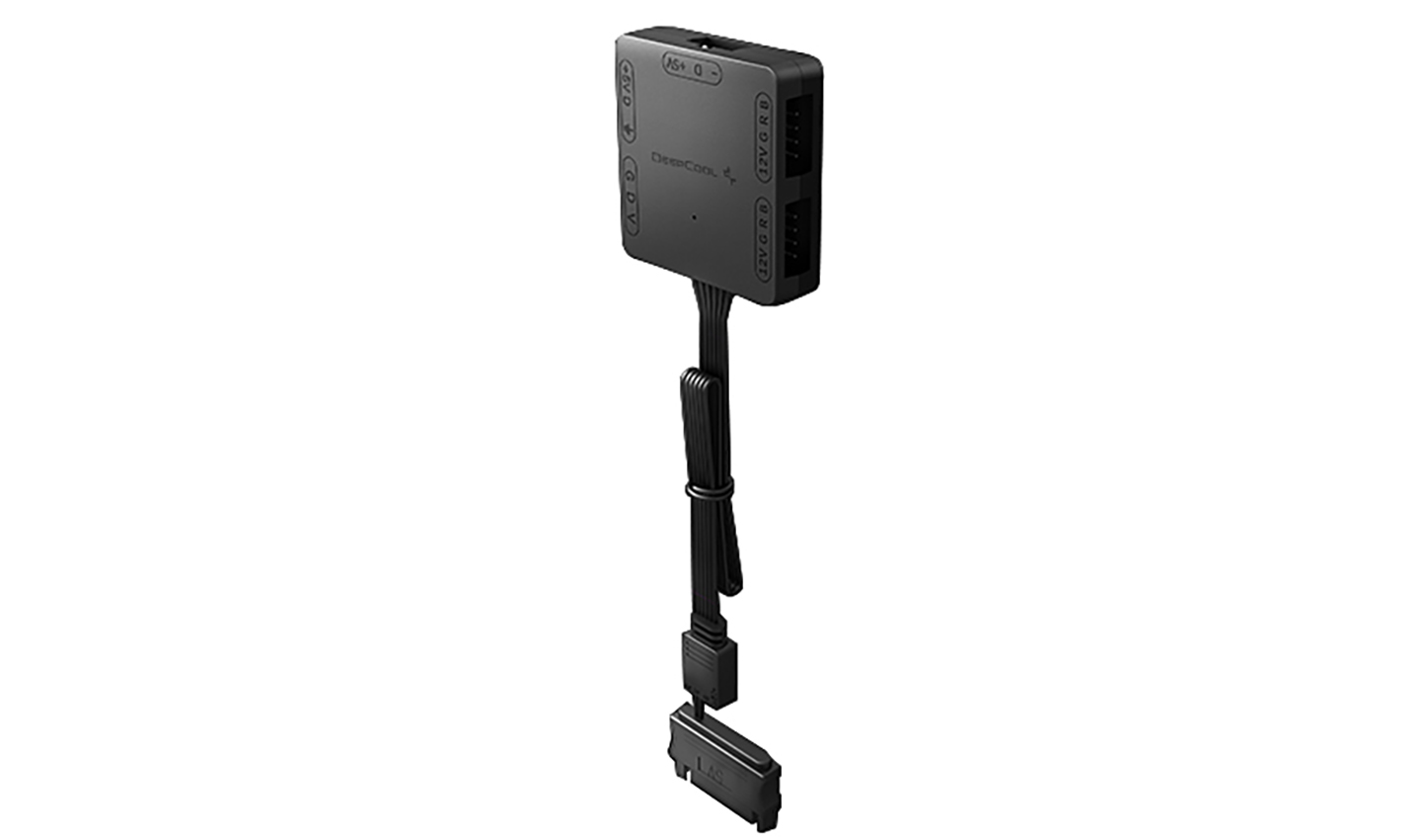

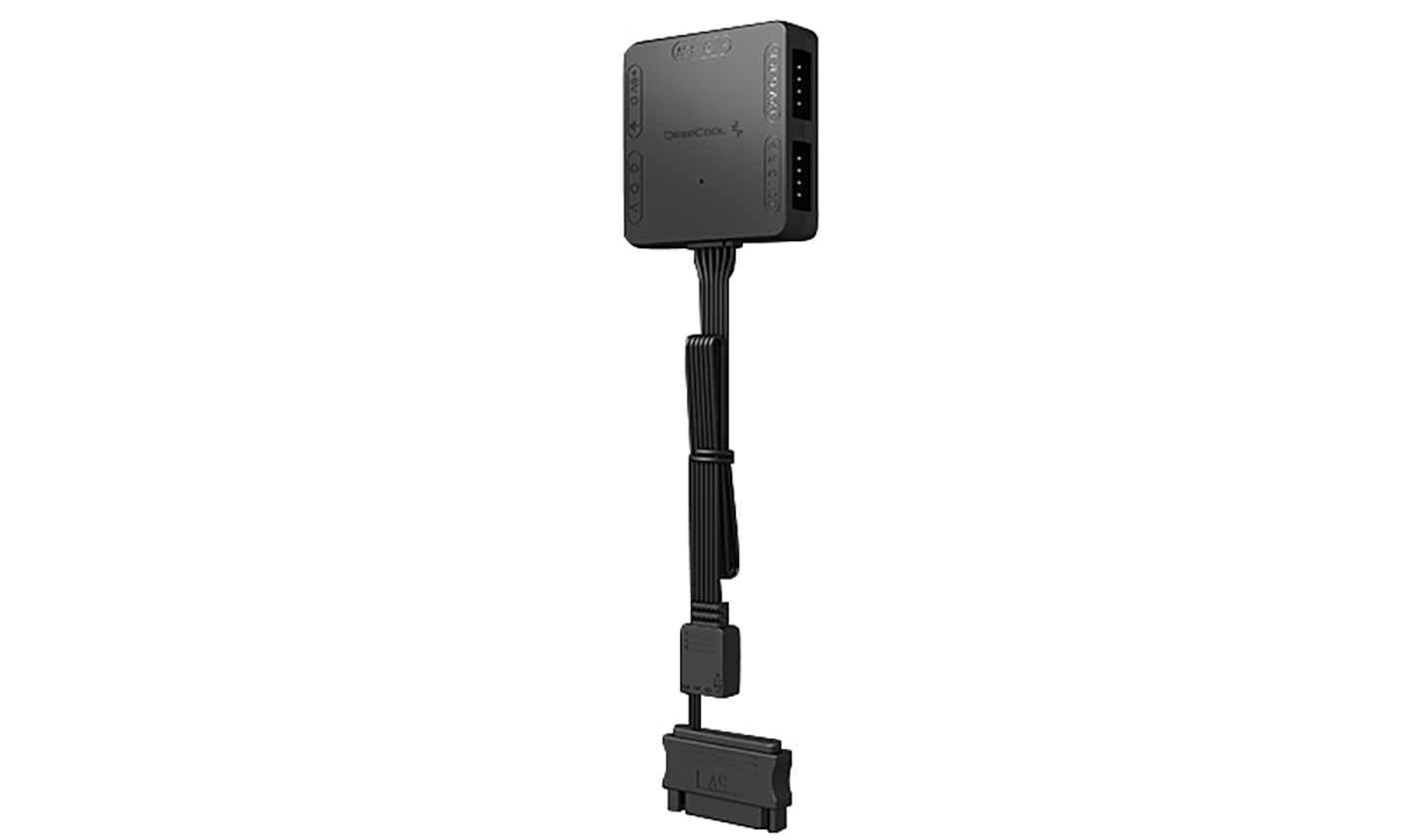

RGB convertor Powered by SATA
Voltage transformer within 5V to 12V RGB Transfer Hub powered by SATA.
Technical Spec
Product Dimension 45×45×12 mm
Port Type SATA 5V×1 、4-pin(+12V-G-R-B)×1
Net Weight 33 g
Extension Port 4-pin(+12V-G-R-B)×2、3-pin(+5V-D-G)×3
Length of HUB Strip Cable 600 mm
EAN 6933412796114
P/N DP-FRGB-CHUB5-12V
Download
RGB convertor Manual.pdf
