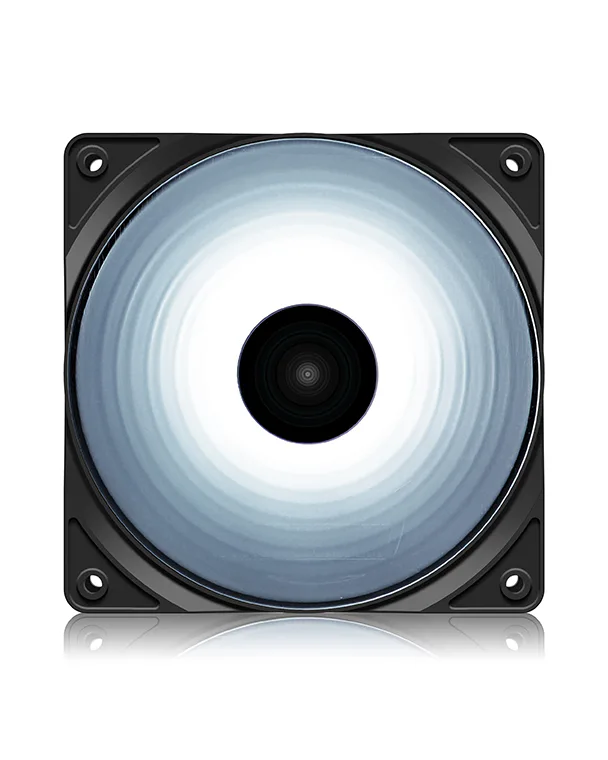

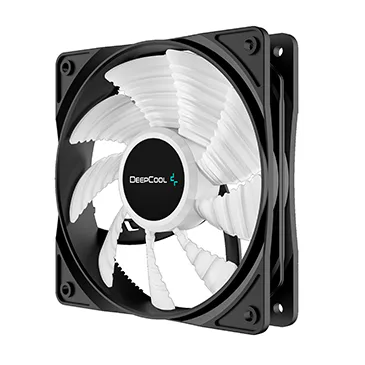

RF120W

High brightness case fan with built-in white LED

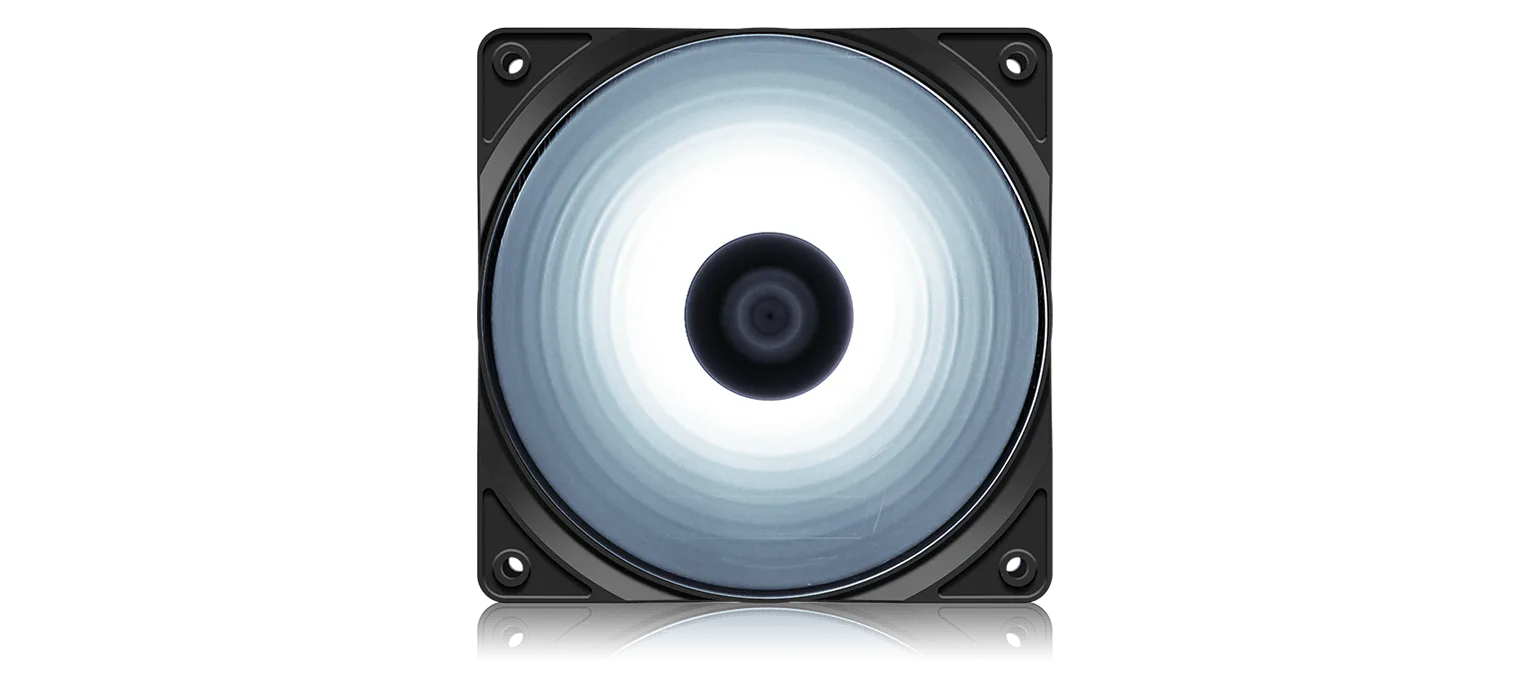

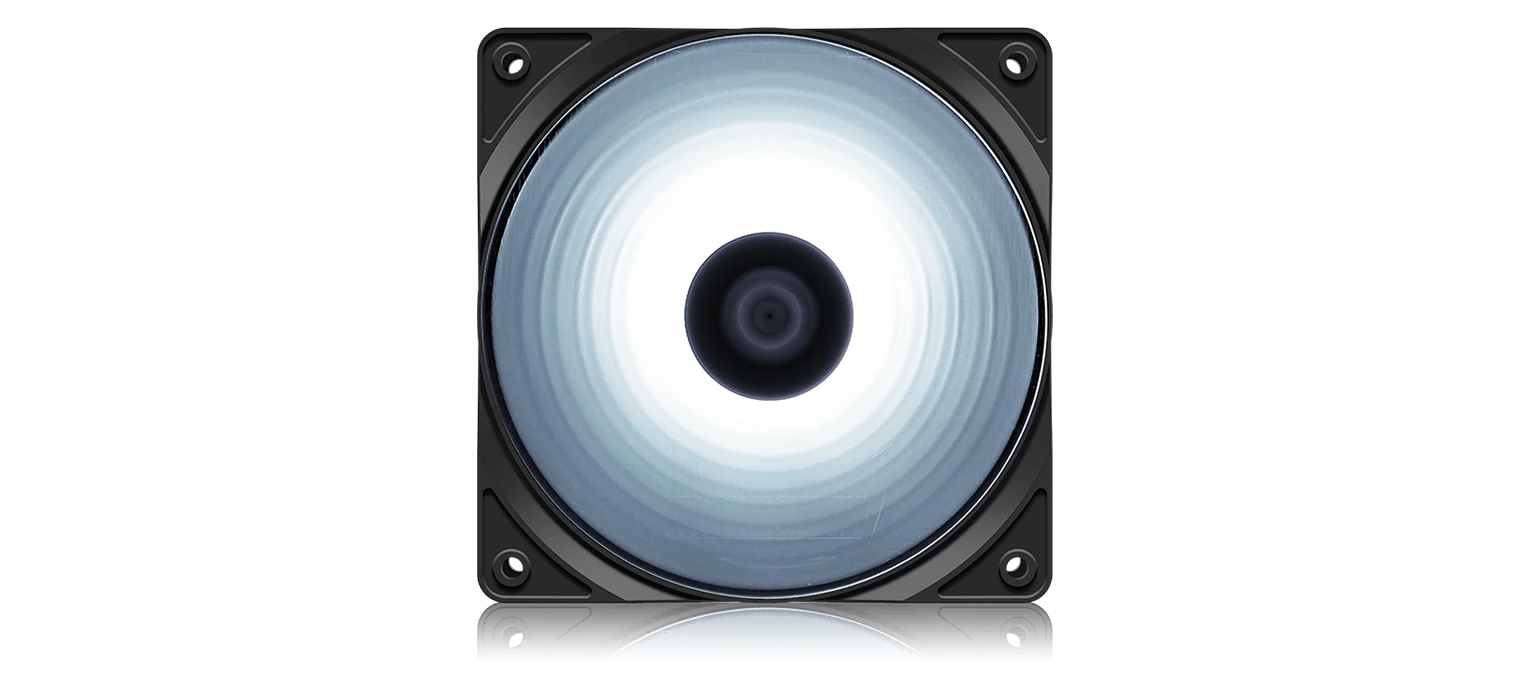

Single Color Lighting

The RF120W, a new member of the RF series fan, provides a targeted single-color case fan at a favorable price.
It is also available in the other two colors: Blue and Red.

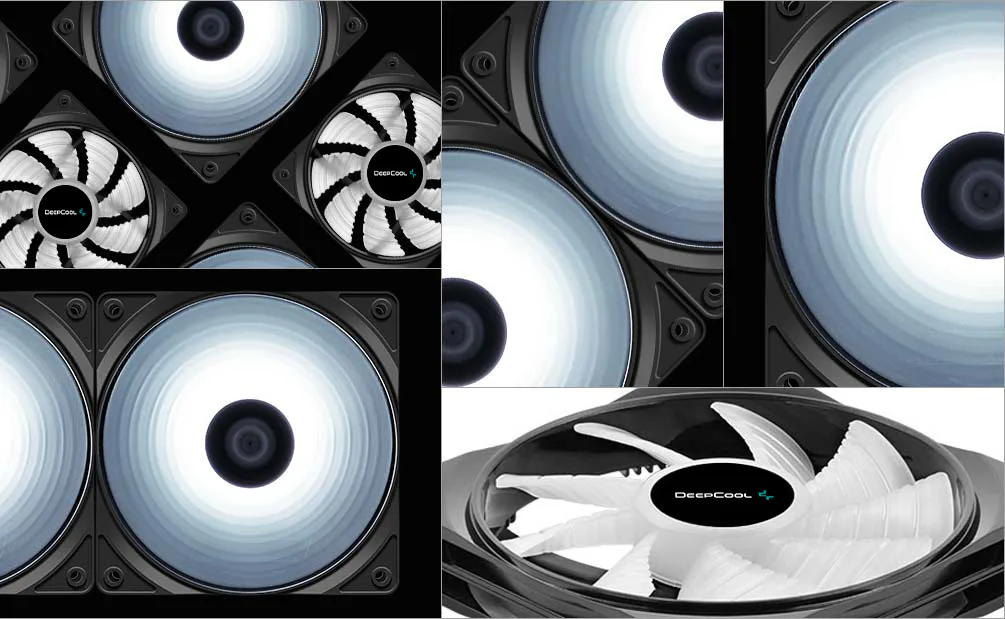

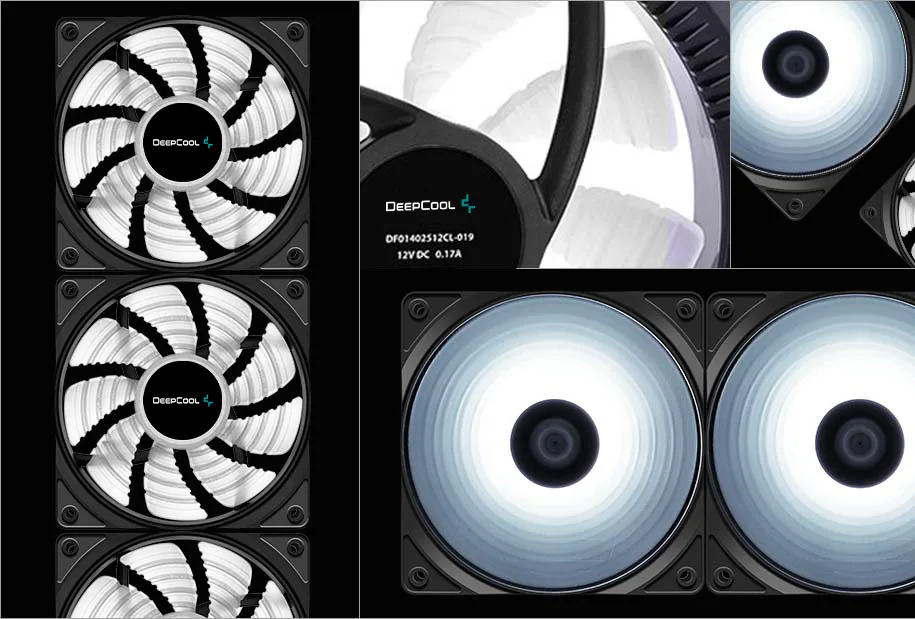

High Brightness

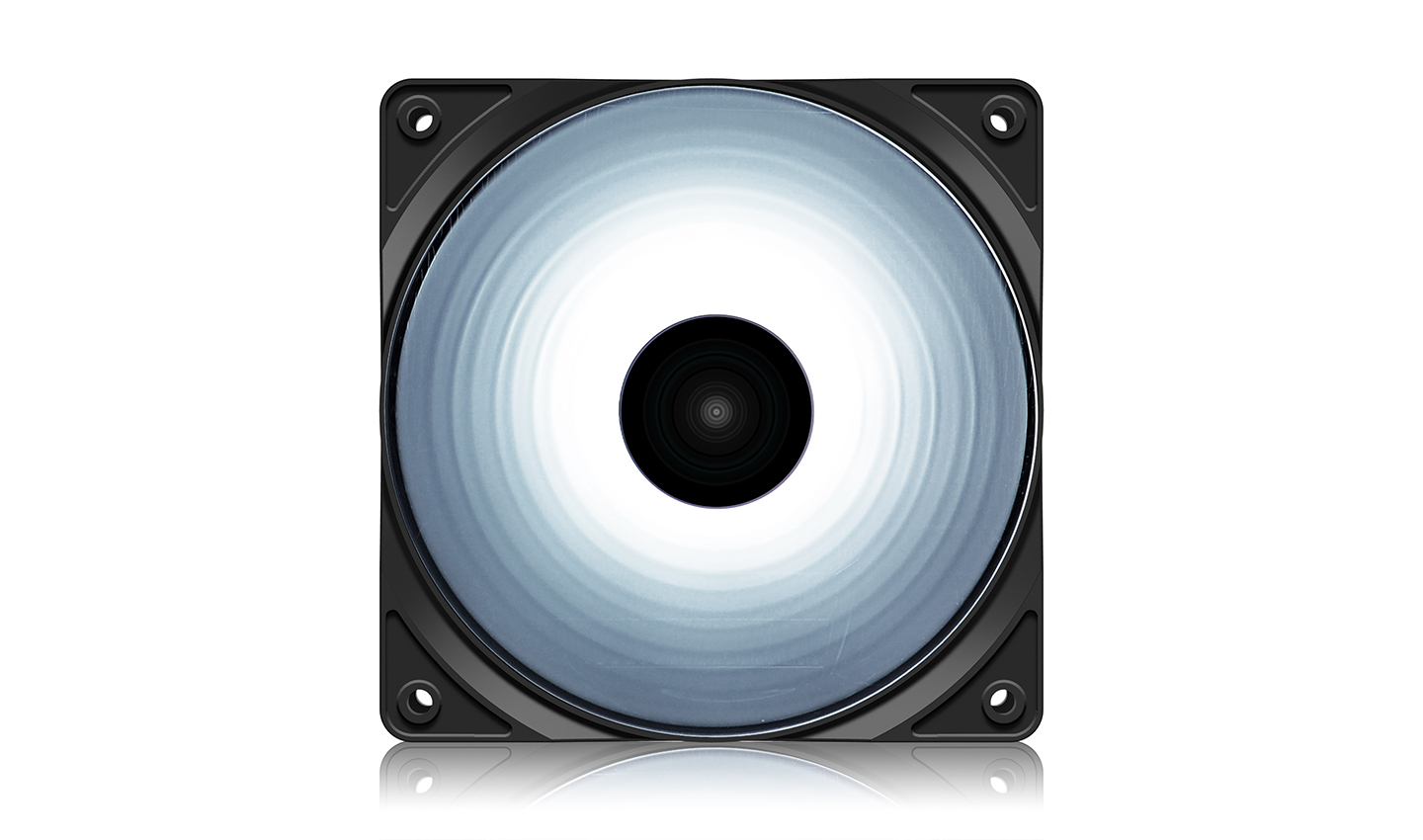

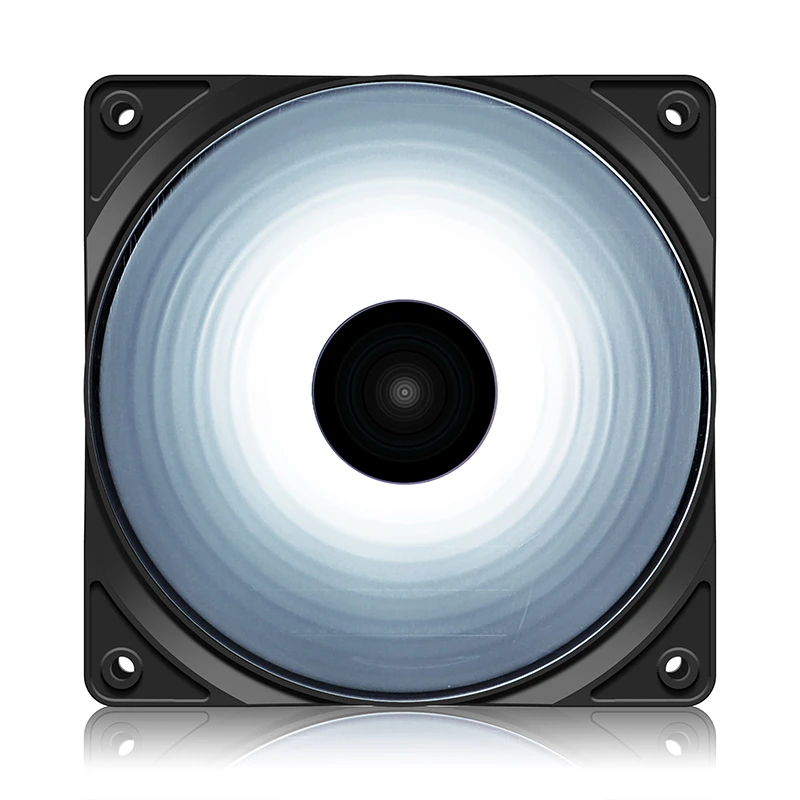

With 4 ultra-bright LED lights, RF120W gives you bright and clean visual experience.

High Brightness

With 4 ultra-bright LED lights, RF120W gives you bright and clean visual experience.

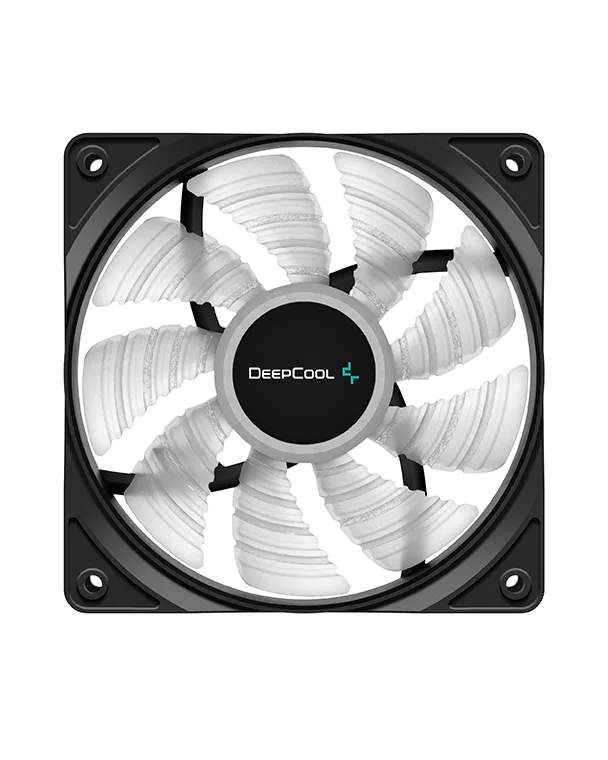

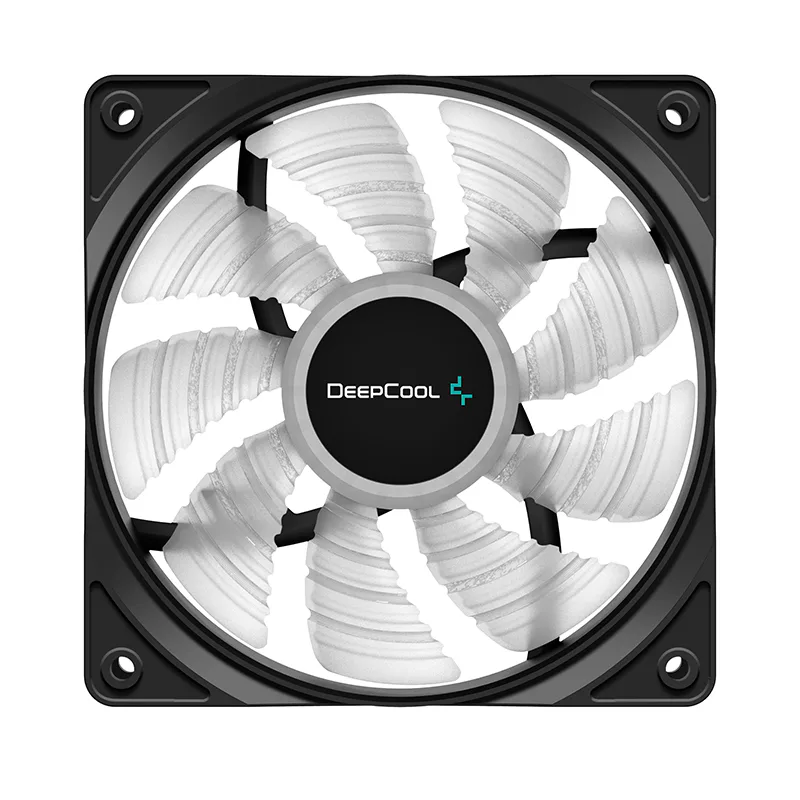

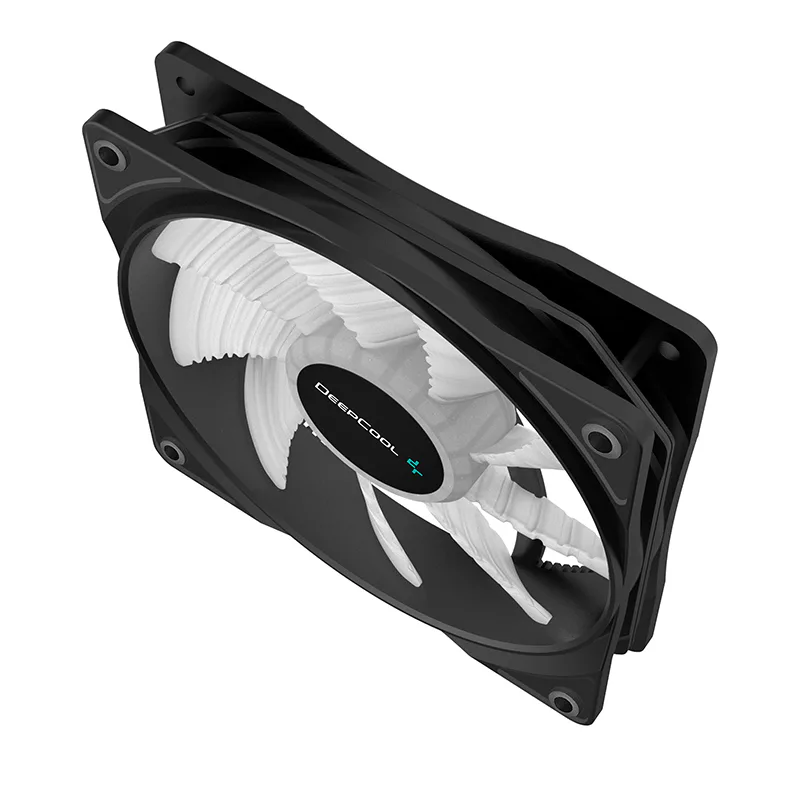

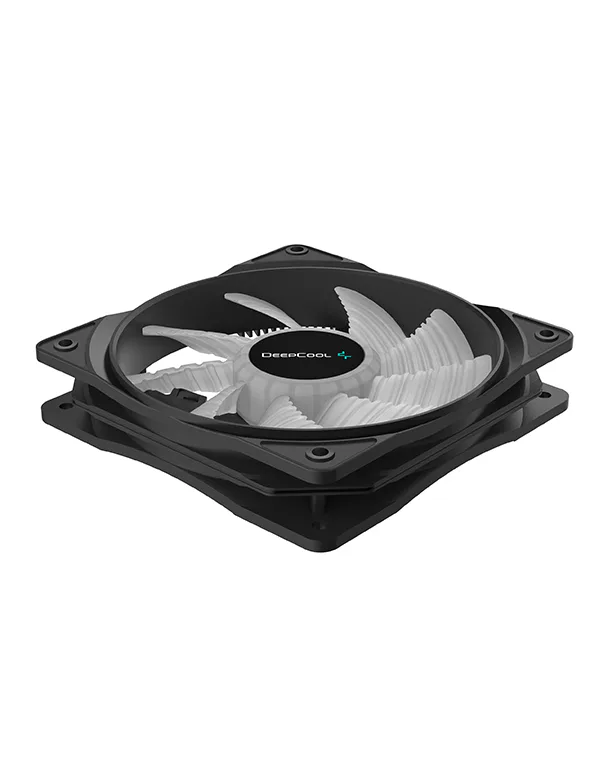

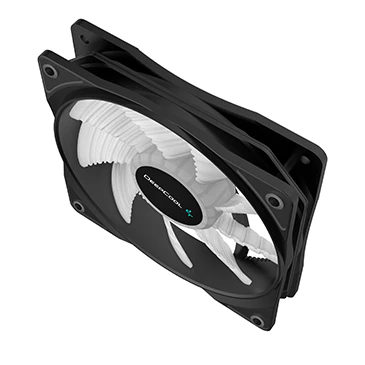

Optimized Cooling Performance

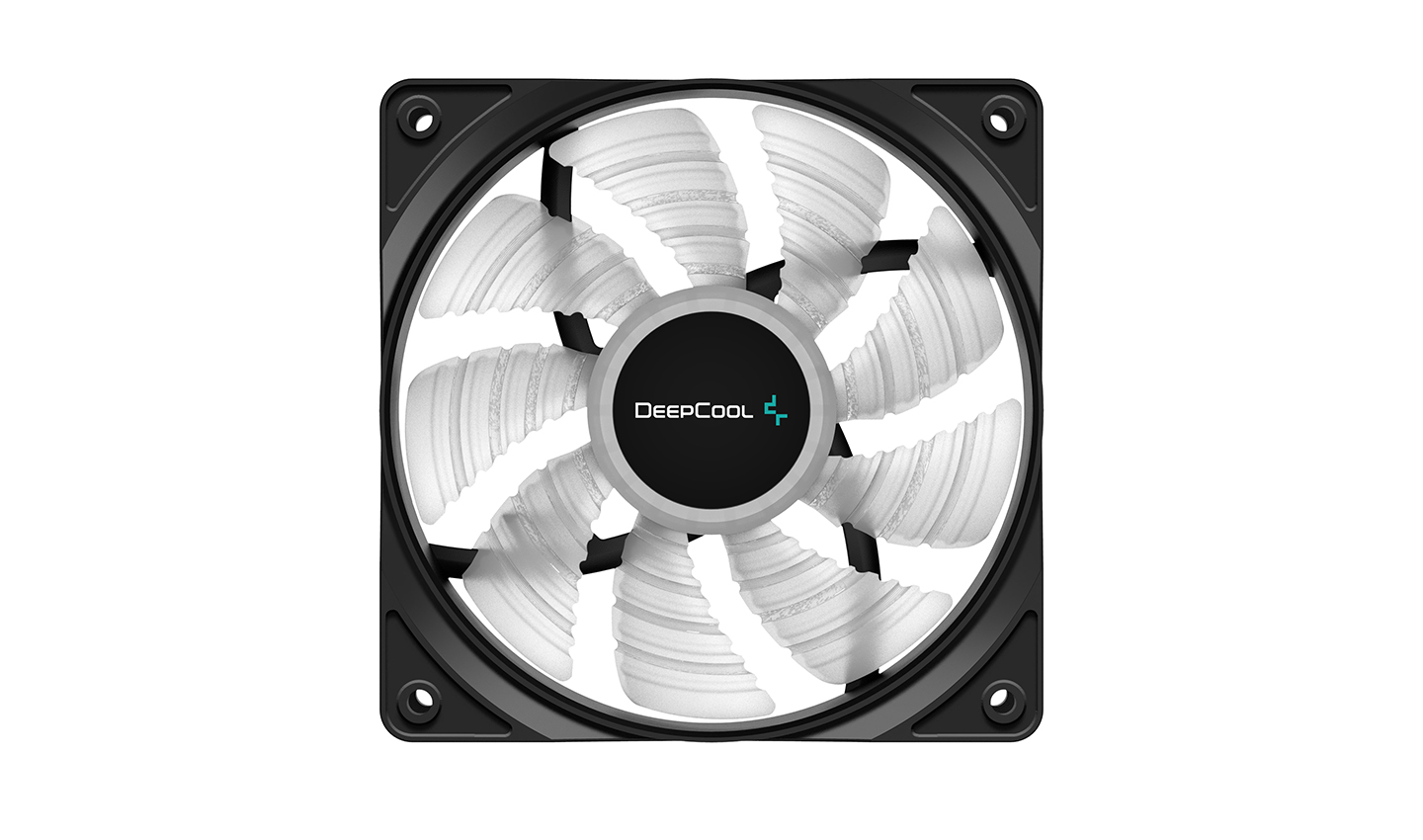

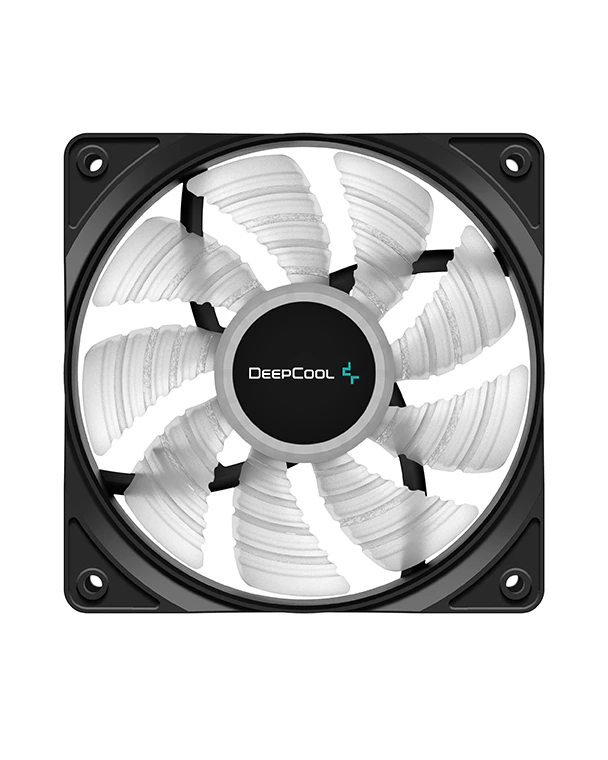

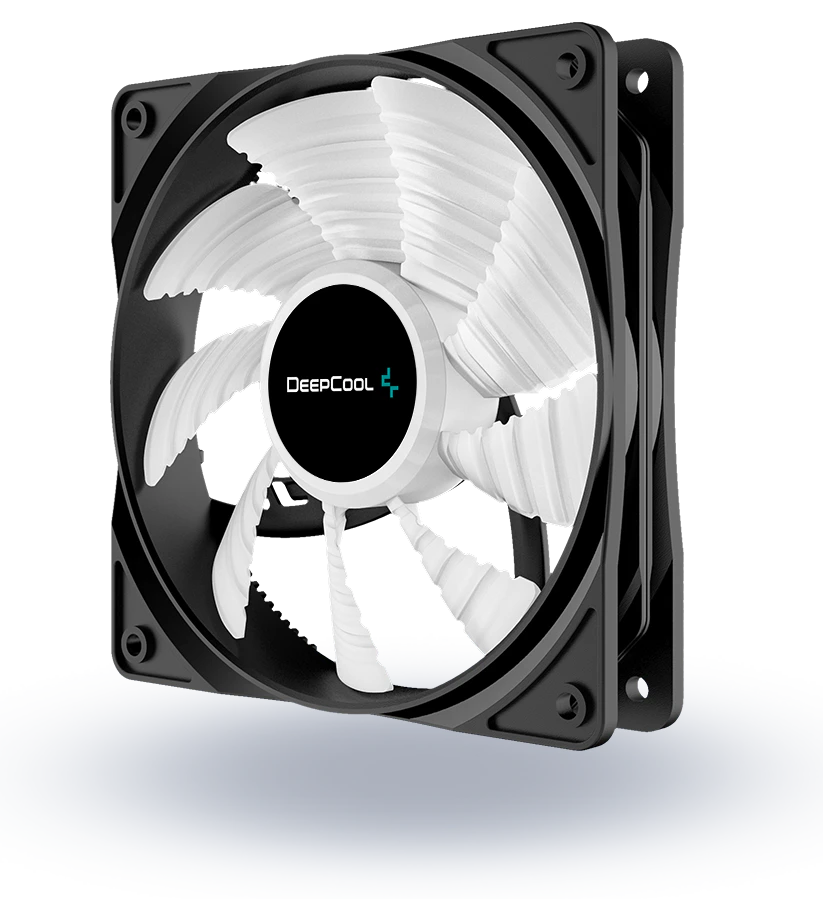

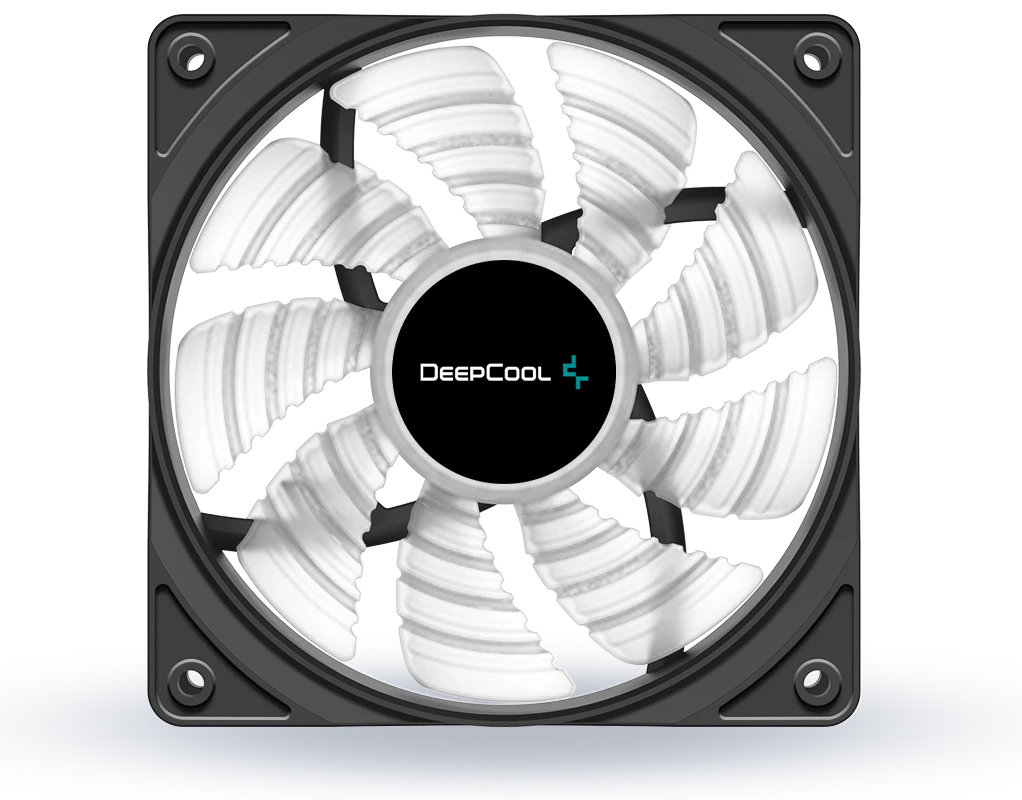

The 9-blade fan provides balanced airflow and air pressure, offering perfect compatibility with your case or cooler.

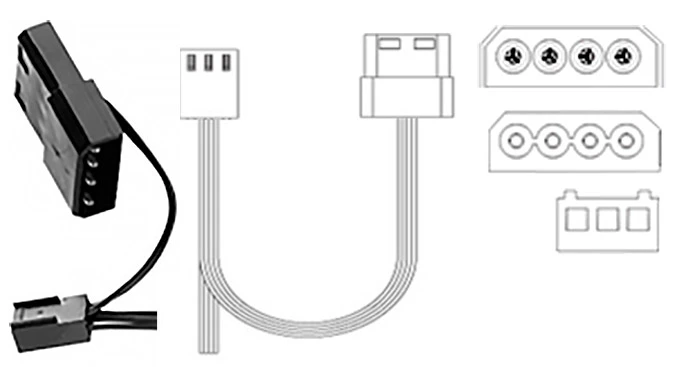

Powered in Two Ways

Multifunction Interface

RF120W can be powered by either 4 pin Molex connector or motherboard 3 pin connector.

Note: Do not use the two powering ways at the same time.

Technical Spec

Specification	RF120W
Overall Dimensions	120X120X25 mm(L×W×H)
Net Weight	150g
Bearing Type	Hydro Bearing
Rated Voltage	12VDC
Rated Current	0.24 A
Power Input	2.88 W
Fan Speed	1300 RPM+10%
Max. Air Flow	48.9 CFM
Fan Air Pressure	1.32 mmAq
Noise	21.9 dB(A)
Fan Connector	3-pin & 4-pin Peripheral
LED Type	White LED
EAN	6933412710424
P/N	DP-FLED-RF120-WH

Product Dimension

Download

RF120W Manual.pdf
