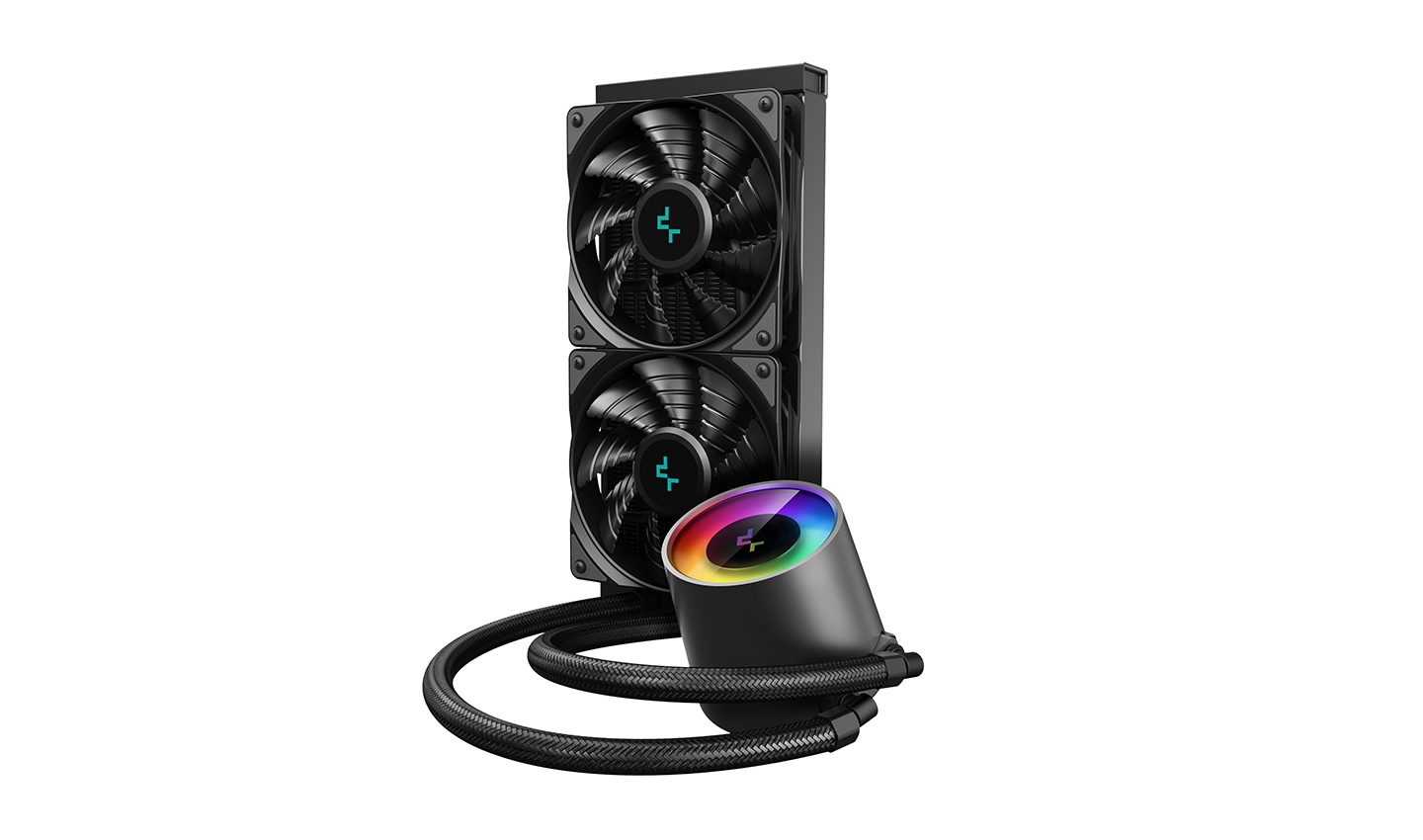

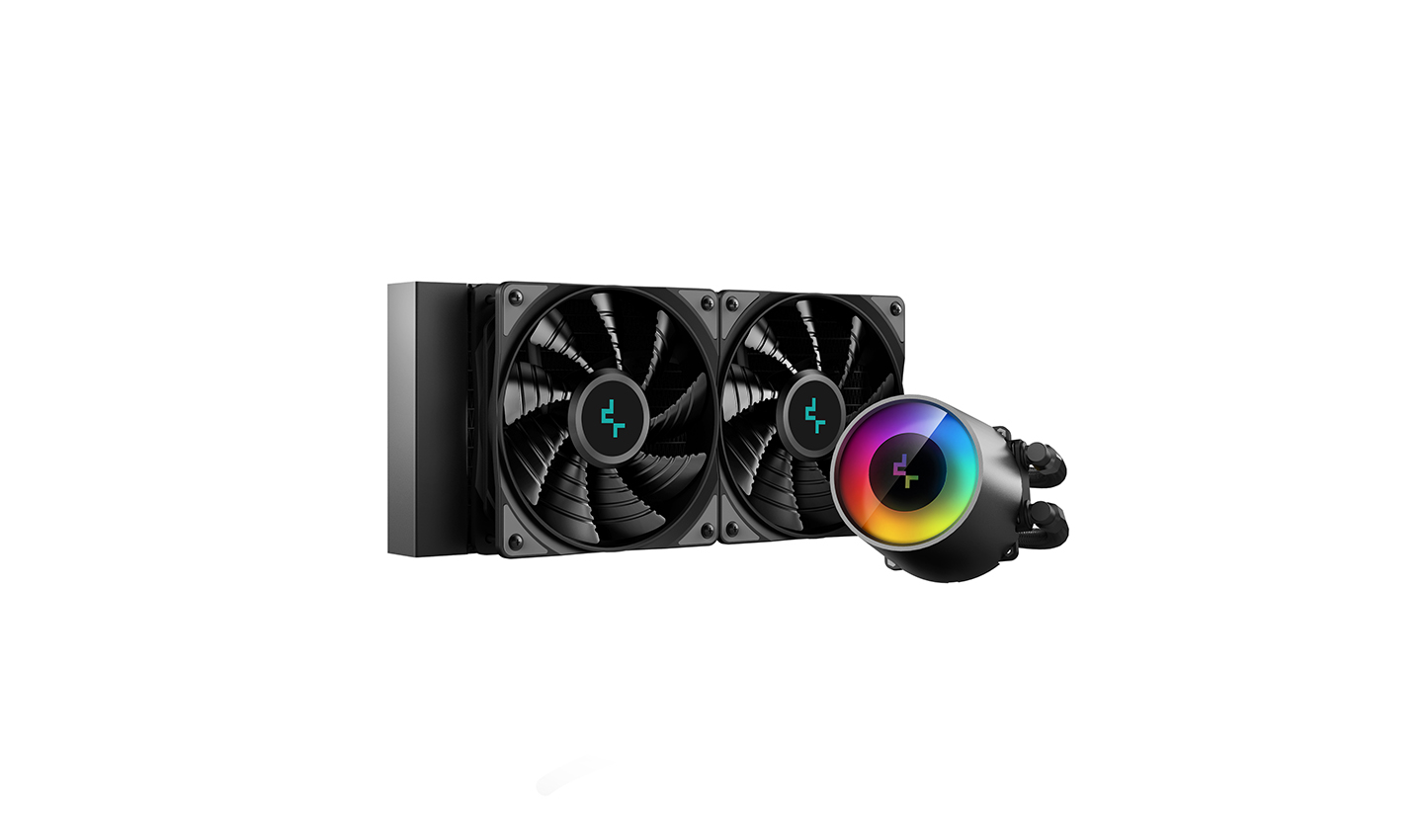

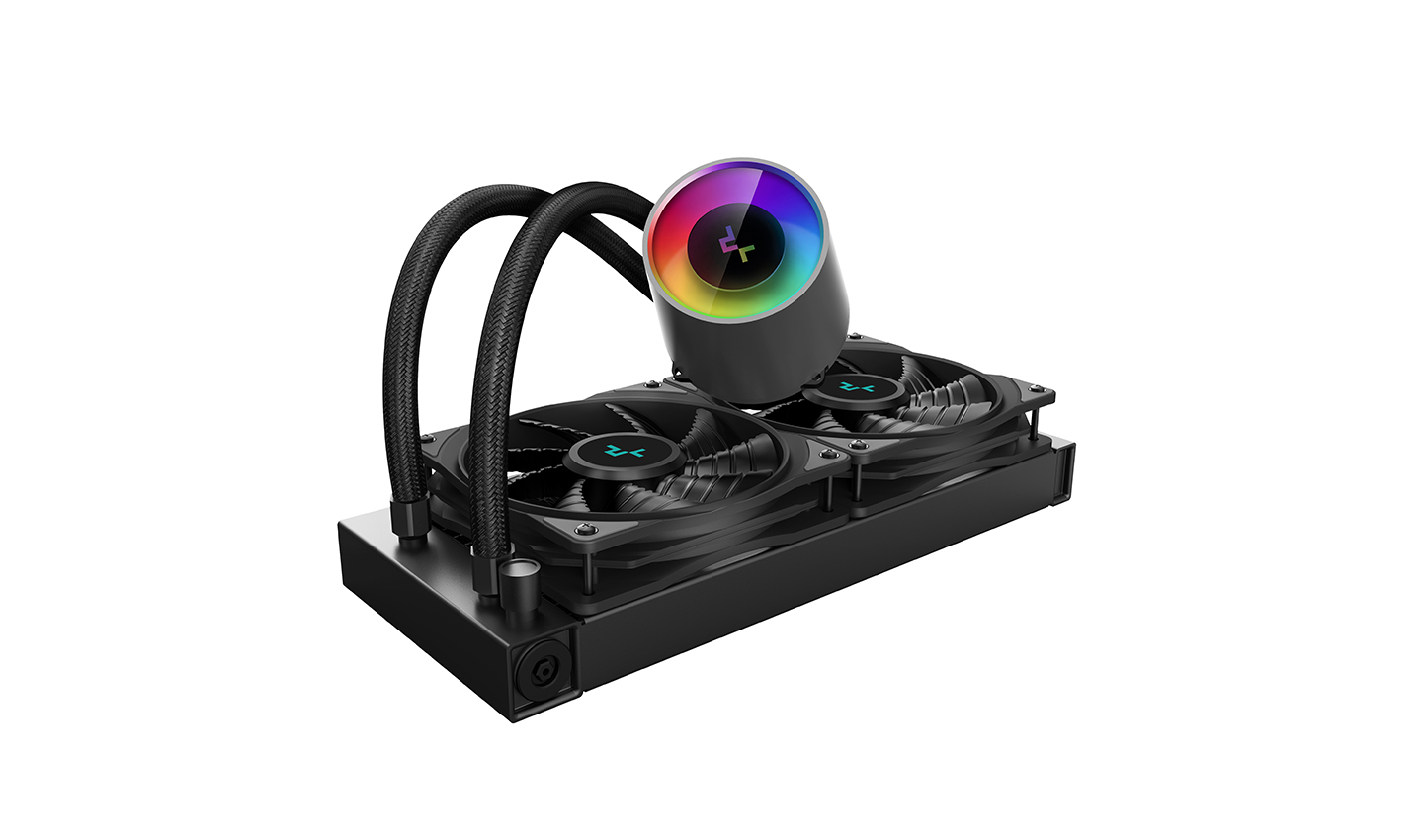

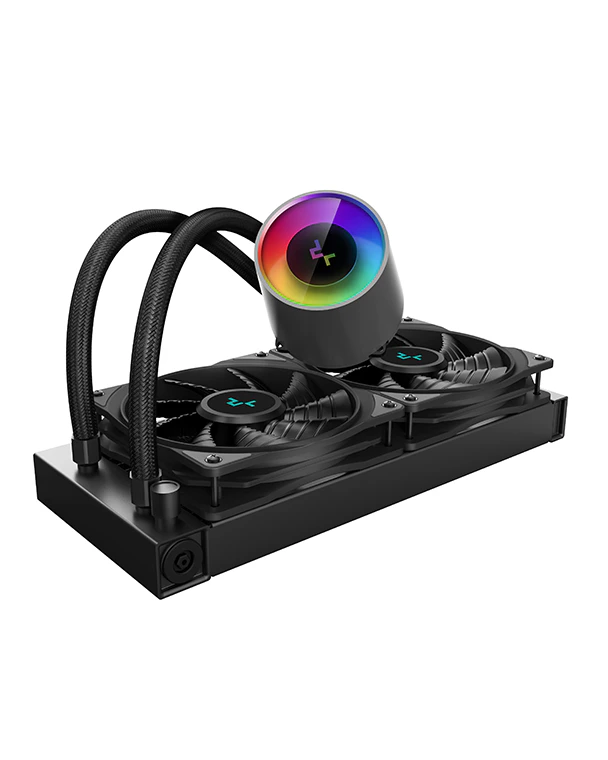

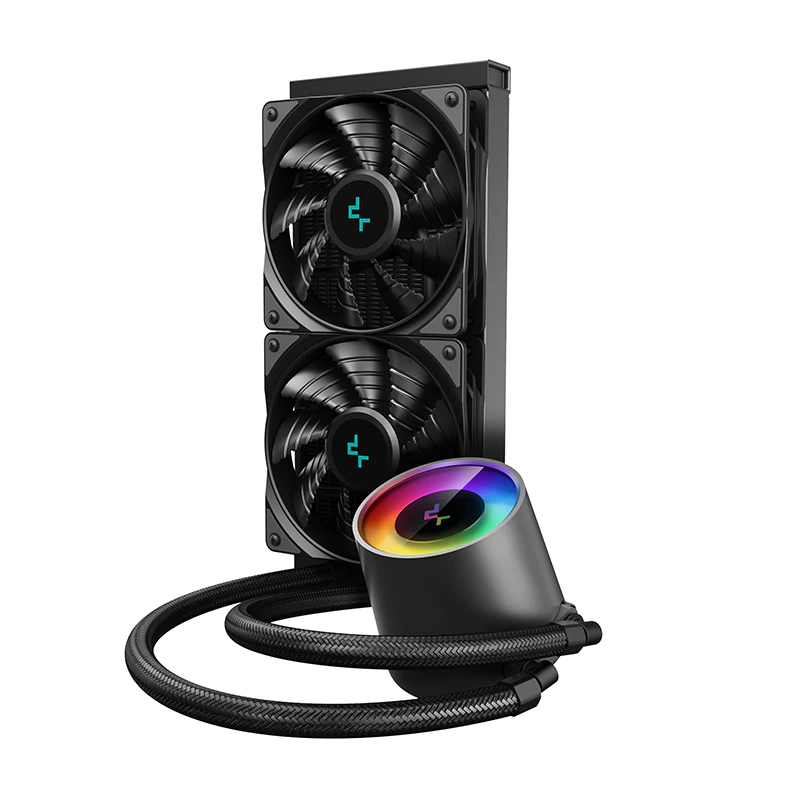

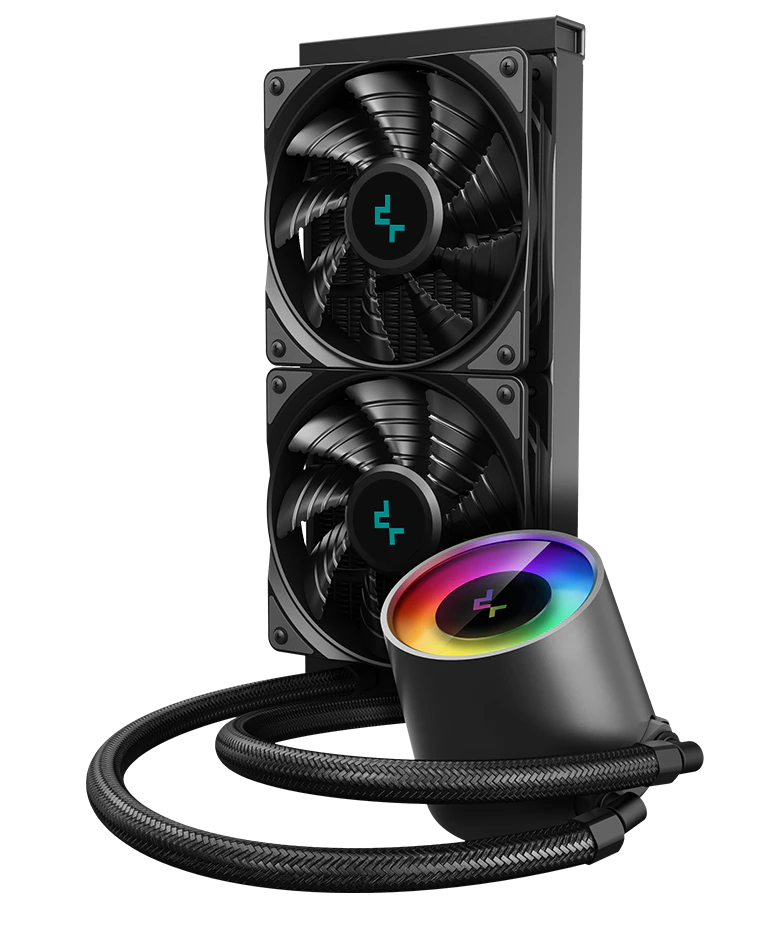

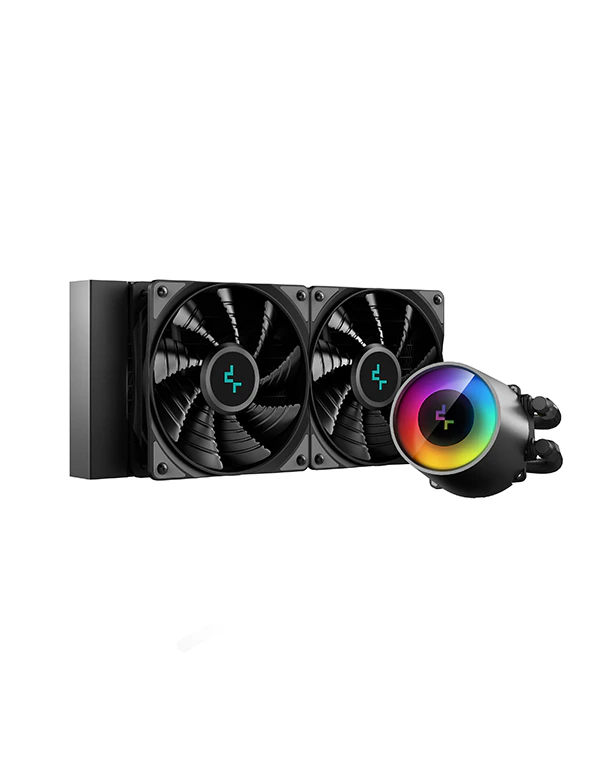

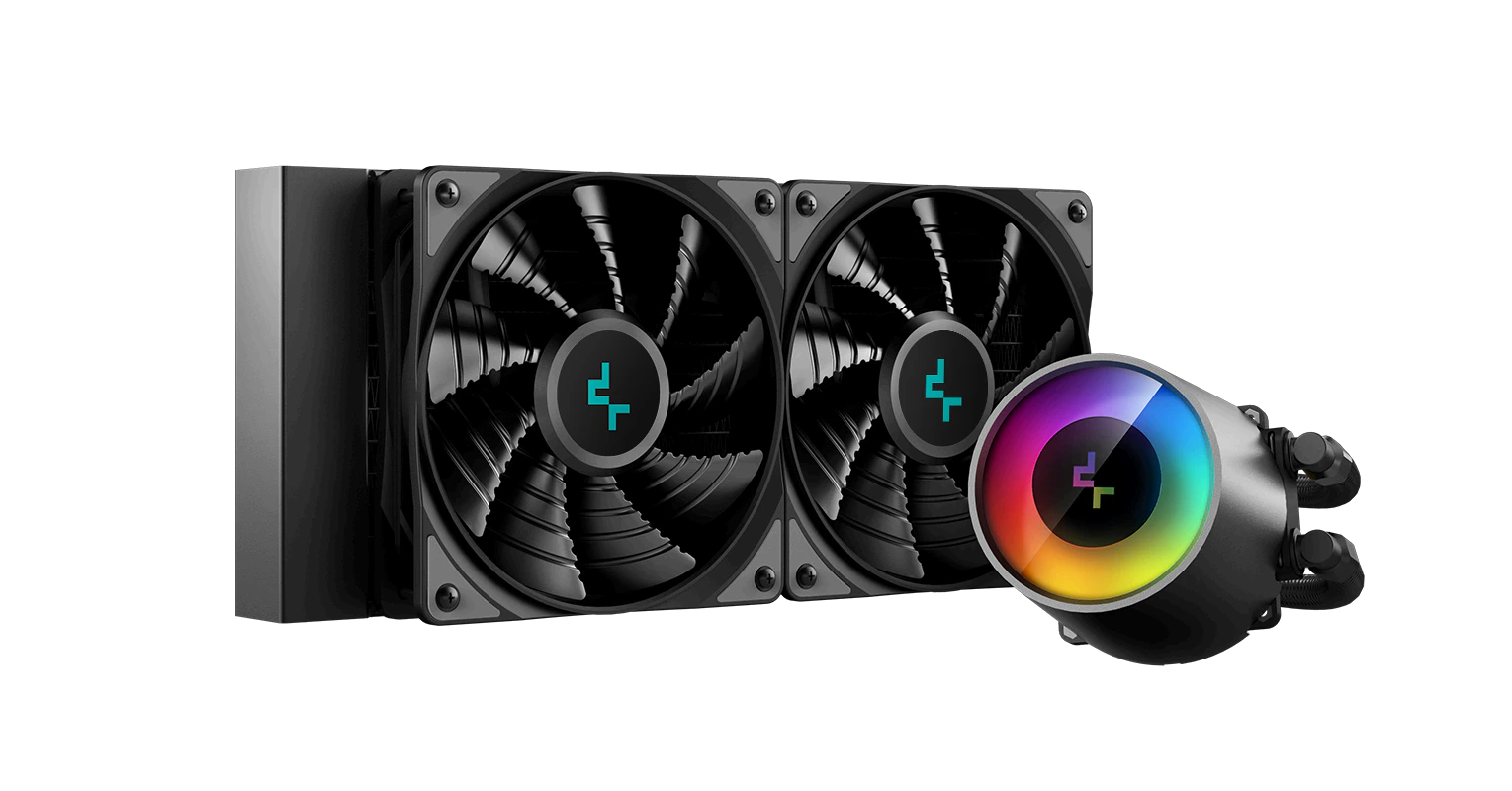

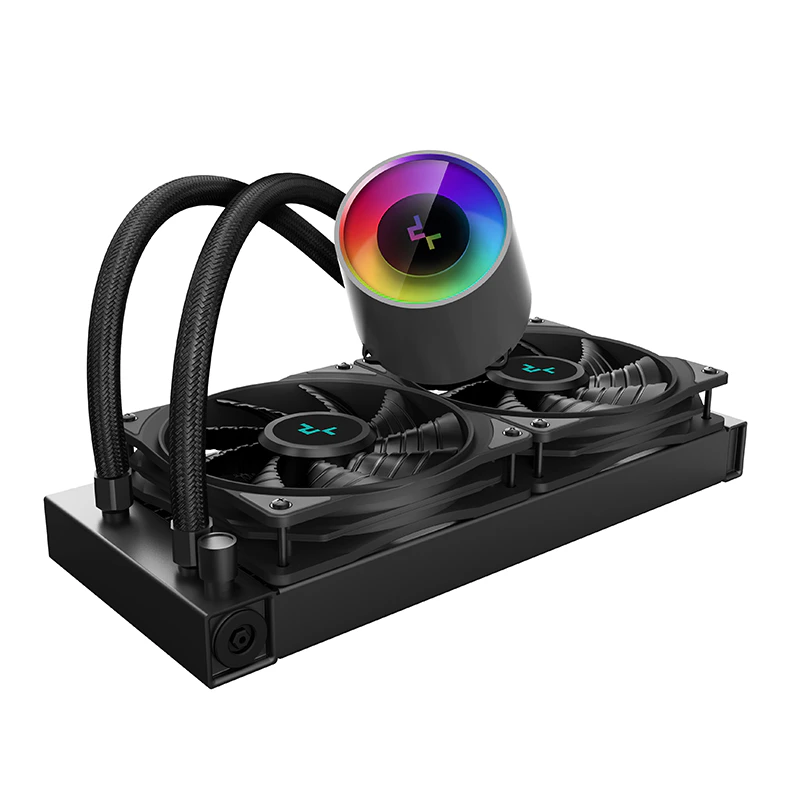

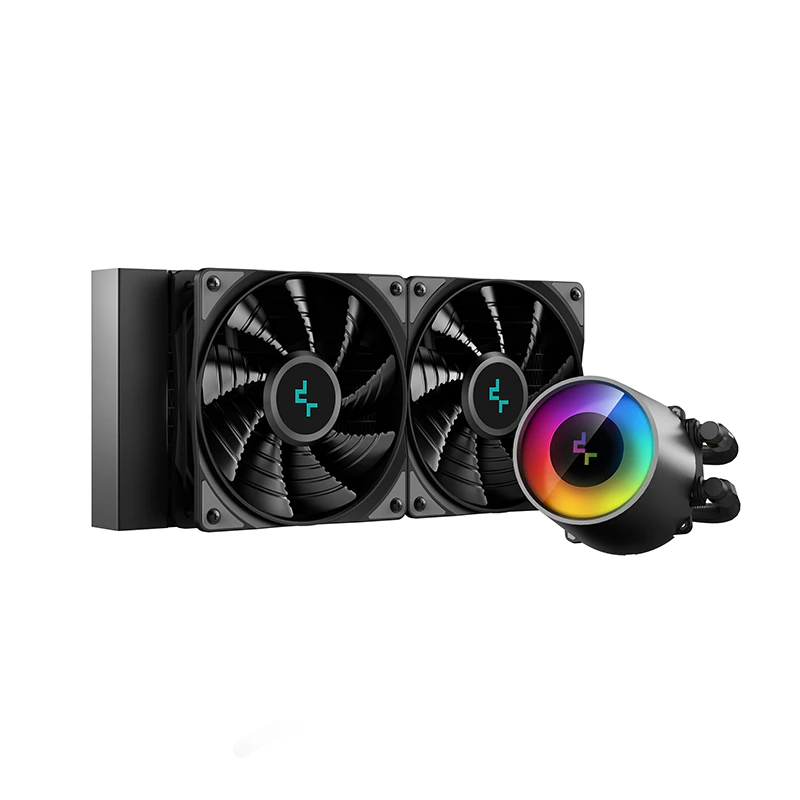

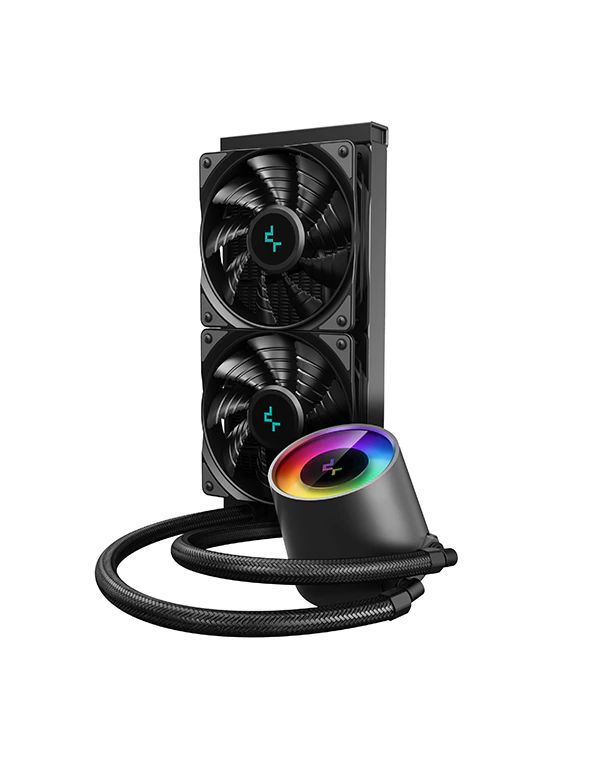

CASTLE 240 V2
COLOR
black
MODEL
CASTLE 240 V2
Anti-leak Tech and Fabulous Aesthetics Inside
About Anti-leak Tech Inside
After 3 years of R&D, DeepCool launched the new standard of liquid cooling system - The Anti-leak Tech.
The technology helps the system achieve an automated pressure balance, which will significantly improve operation safety of AIO liquid cooling systems. With this technology, DeepCool is setting a new standard for liquid cooling systems.
Fabulous Aesthetics Inherited

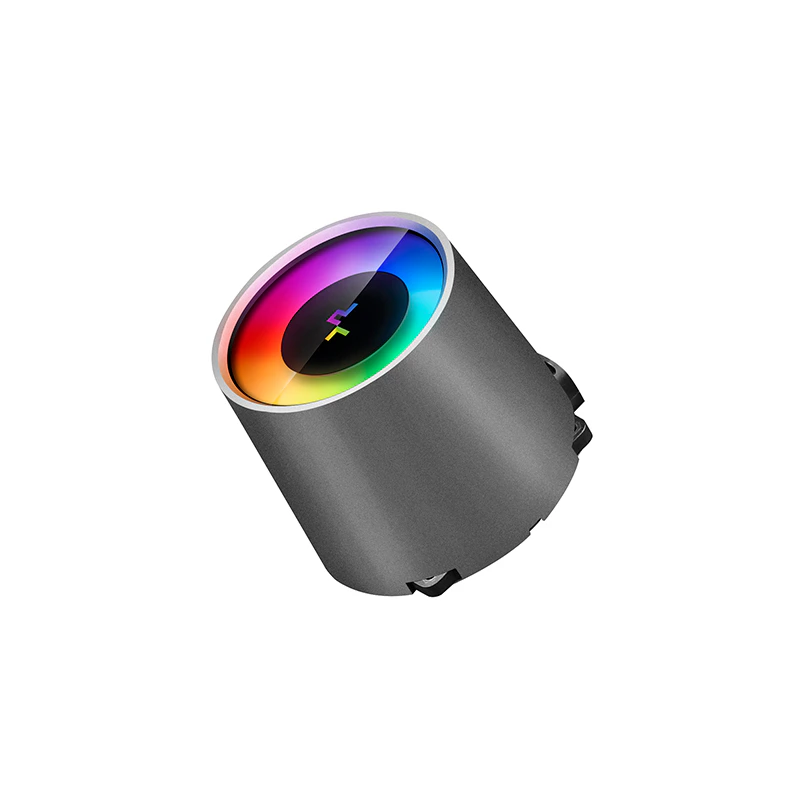

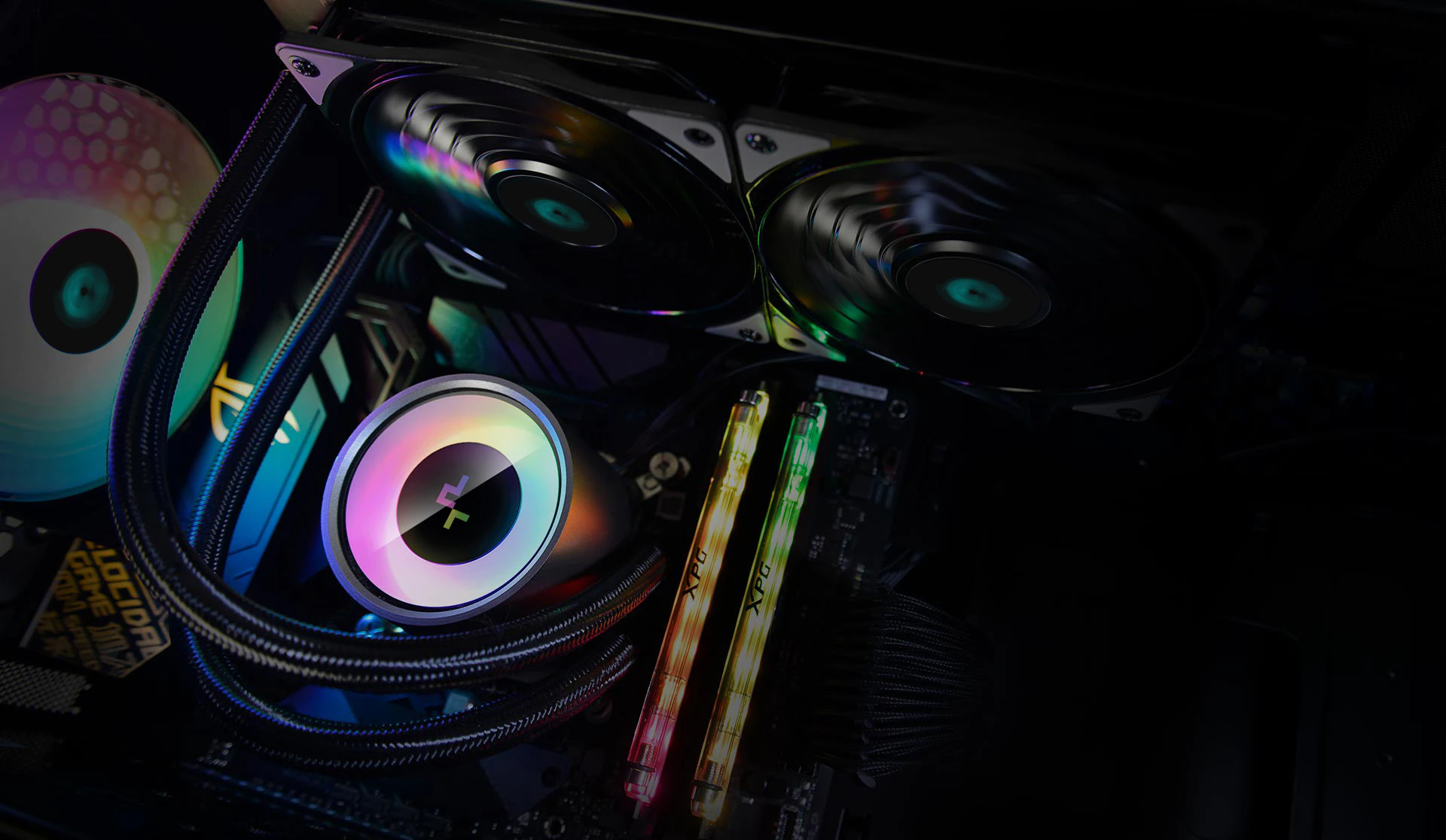

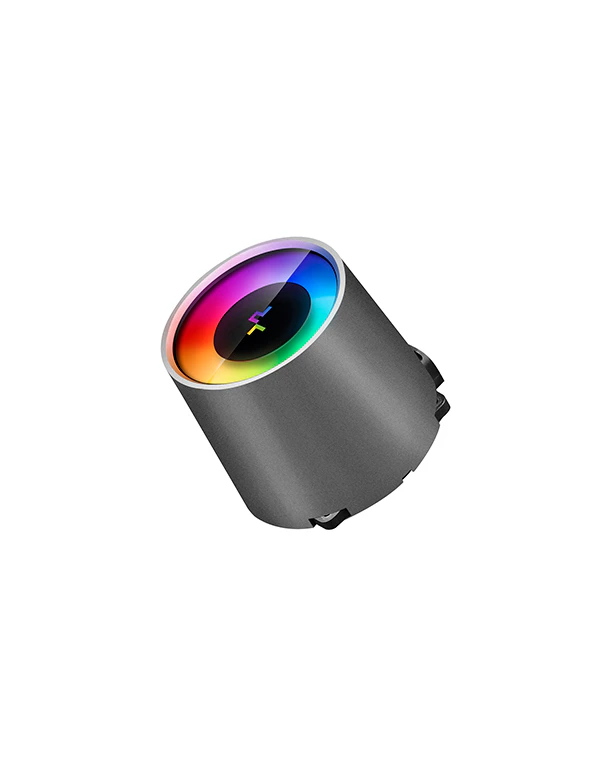

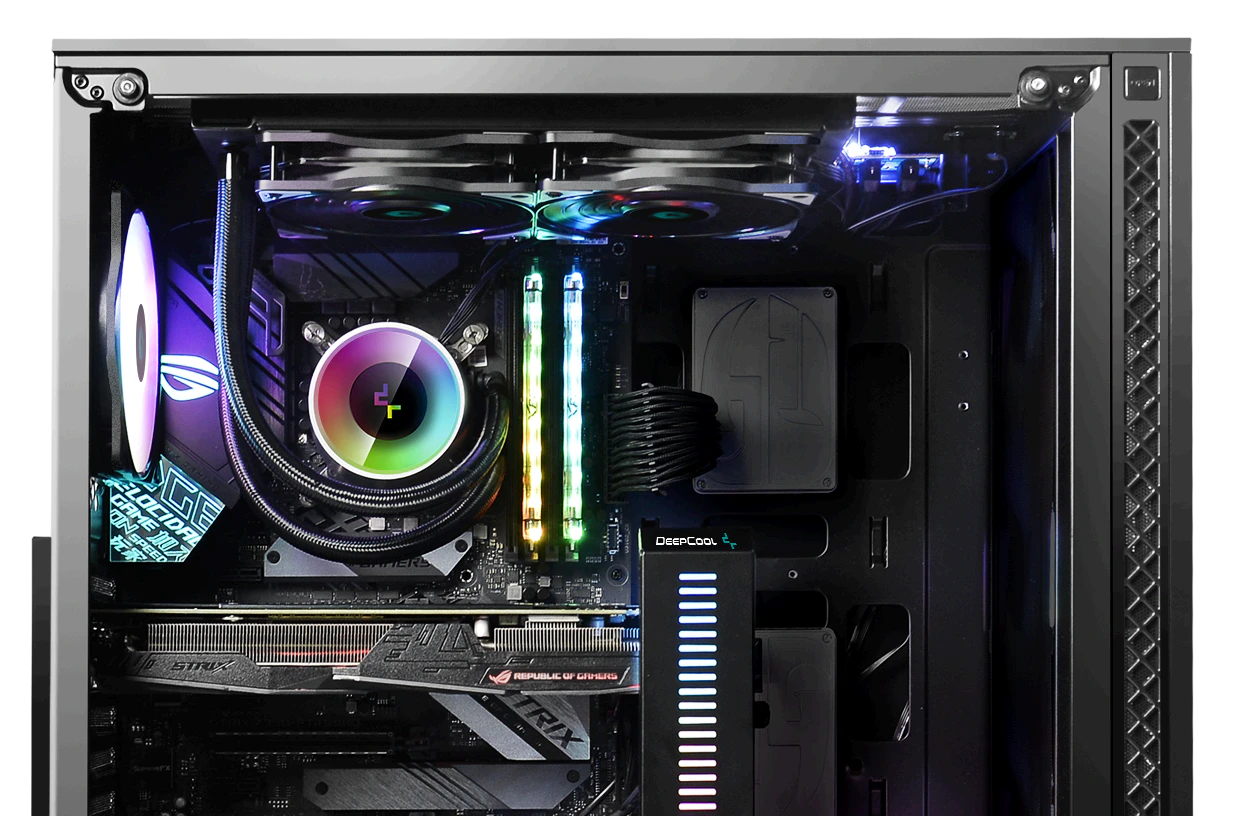

From its original version, CASTLE 240 V2 inherited the mirror finish and immersive ambient lighting on the pump, thereby pushing your rig’s aesthetics to next level.
Mode +
Speed (Hold for 3 seconds to switch on/off)
Mode -

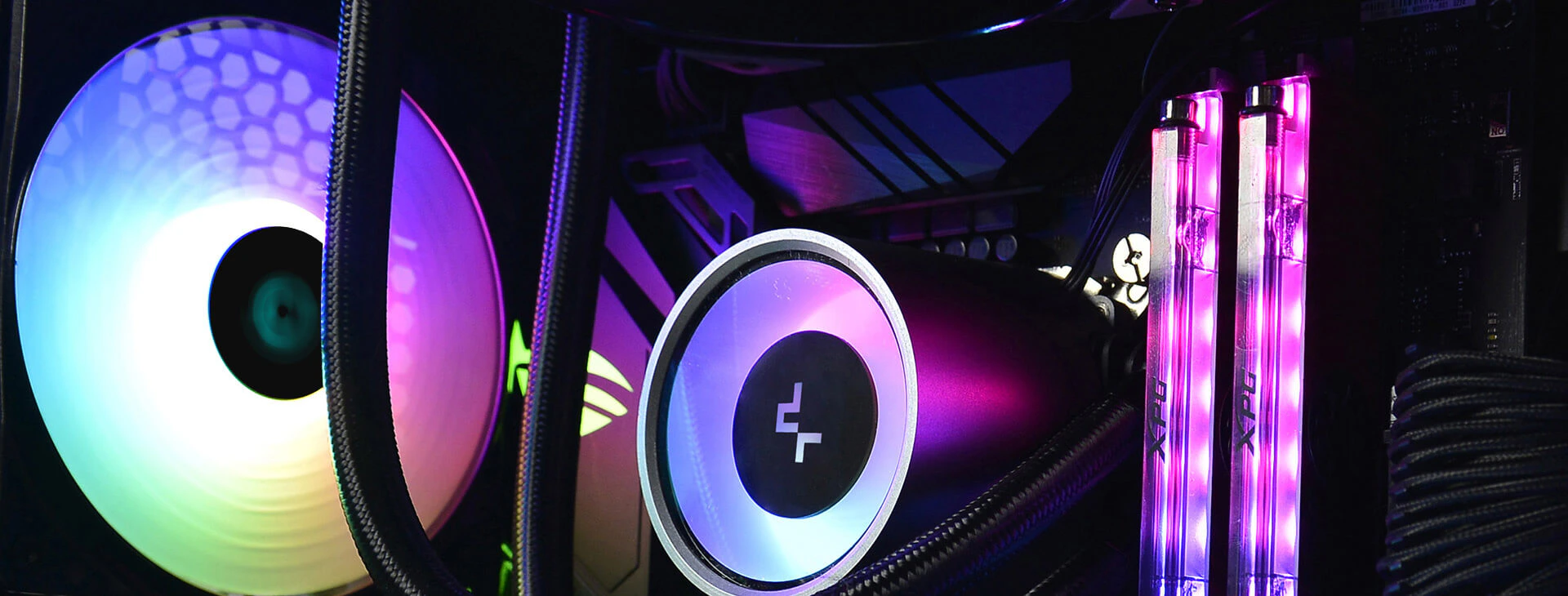

The 16.7M true color flowing RGB system can be easily synchronized and controlled by the included wired controller.
The lighting system has 5 in-built effects (dynamic, static, breathing, comet, and fashion collision) and 36 interchangeable lighting modes.
Dynamic
Static
Breathing
Comet
Fashion Collision
It also supports SNYC control by motherboards*.
1Motor: High efficient induction motors deliver stronger liquid flow and pressure.
2Impeller: The ceramic axle bearings and axle cores guarantee an ultra-long service life.
1Motor: High efficient induction motors deliver stronger liquid flow and pressure.
2Impeller: The ceramic axle bearings and axle cores guarantee an ultra-long service life.
3Axle: Closed impellers are designed to enhance liquid pressure.
4Copper Base: An ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.
3Axle: Closed impellers are designed to enhance liquid pressure.
4Copper Base: An ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.

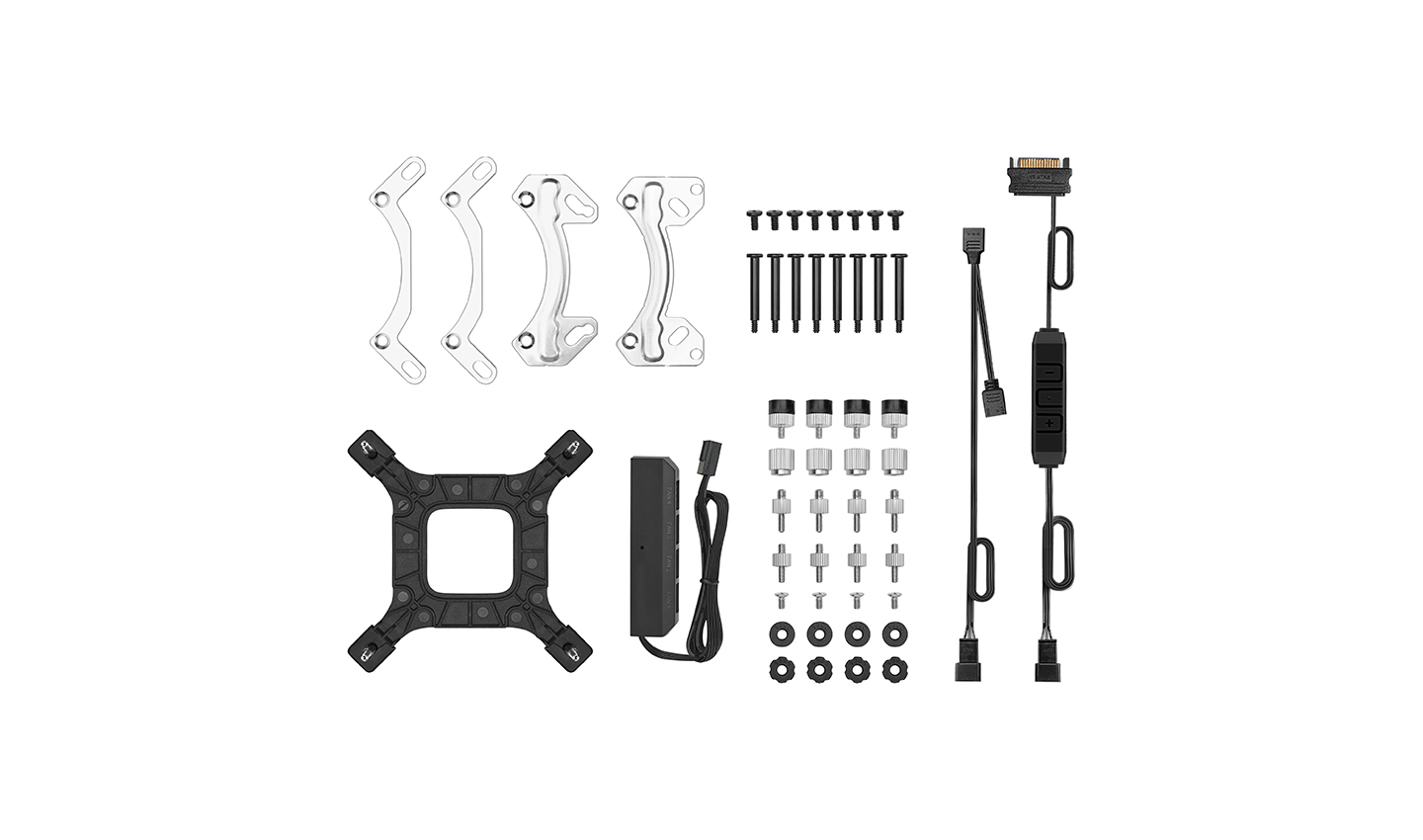

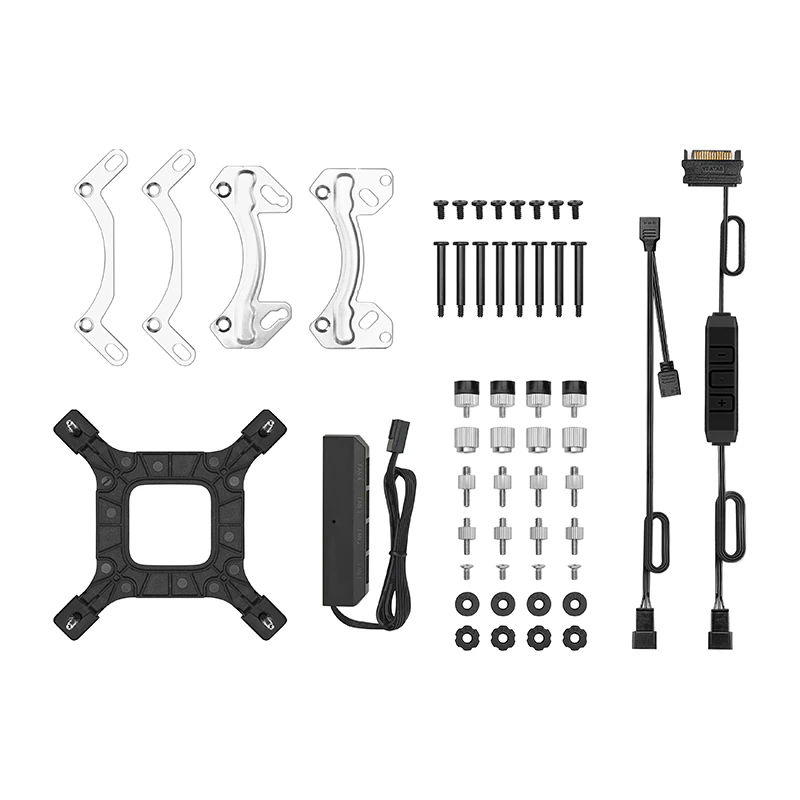

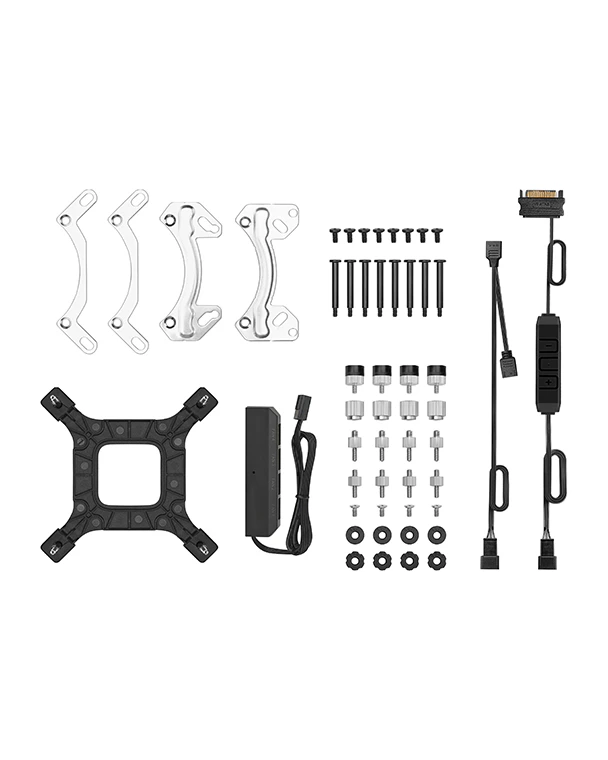

Supports the TR4/AM4 and mainstream Intel & AMD socket types.

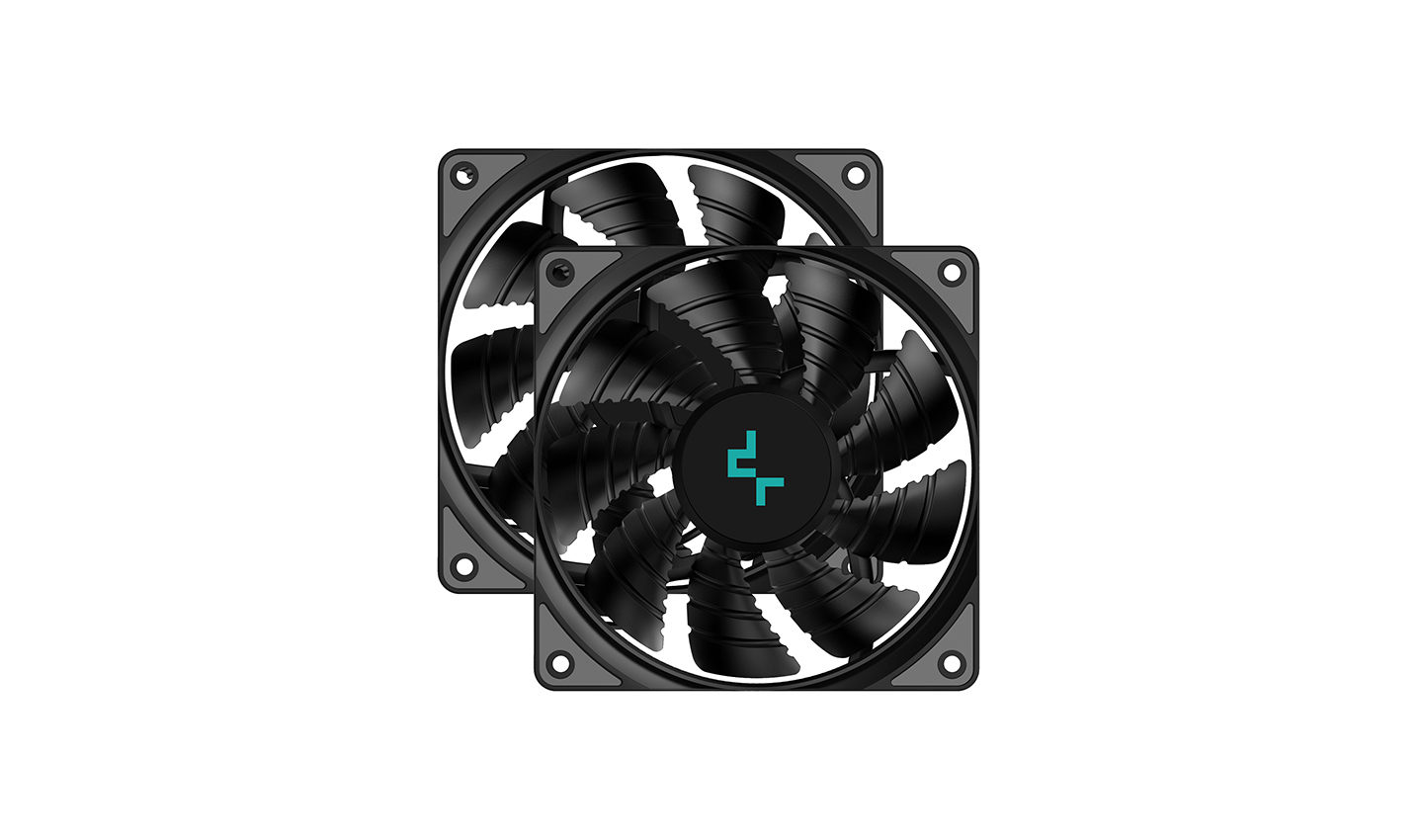

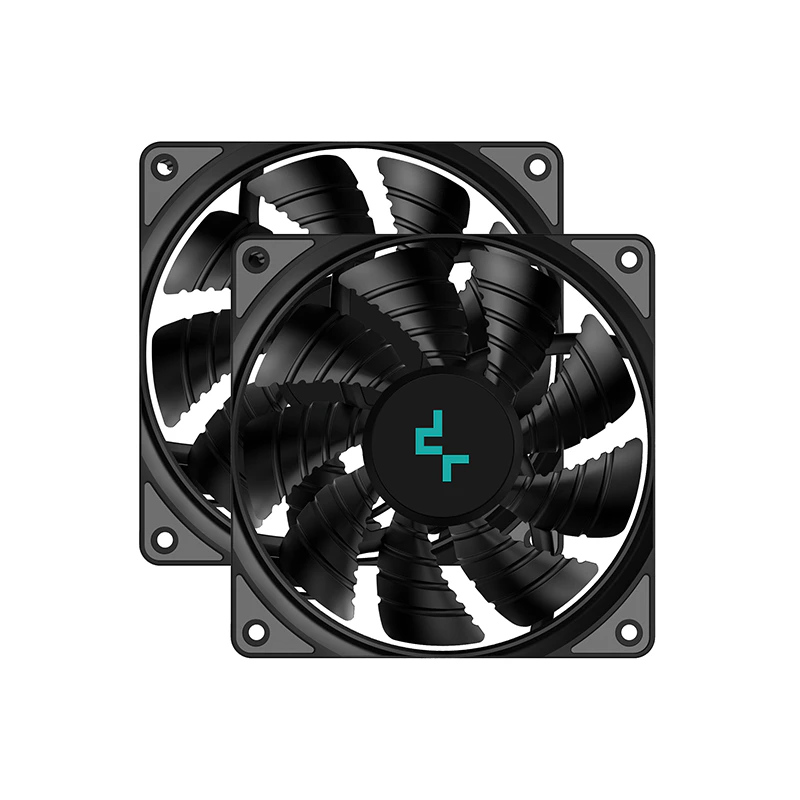

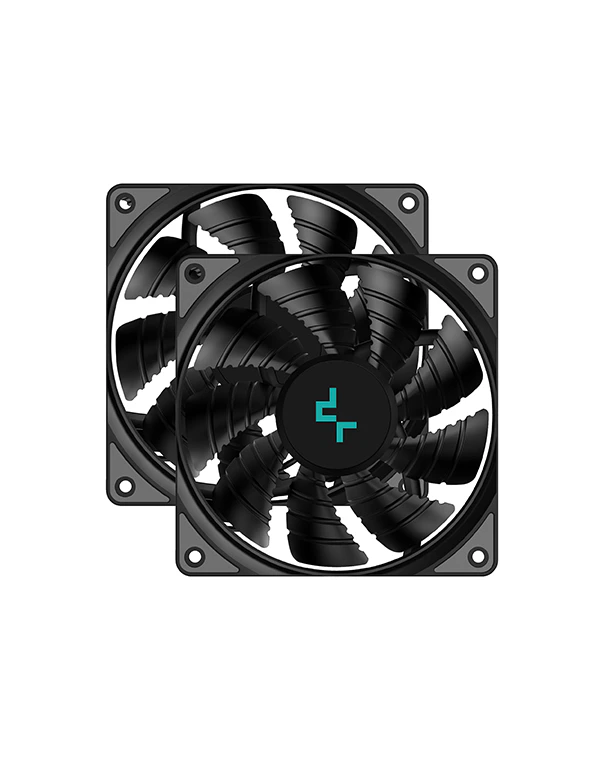

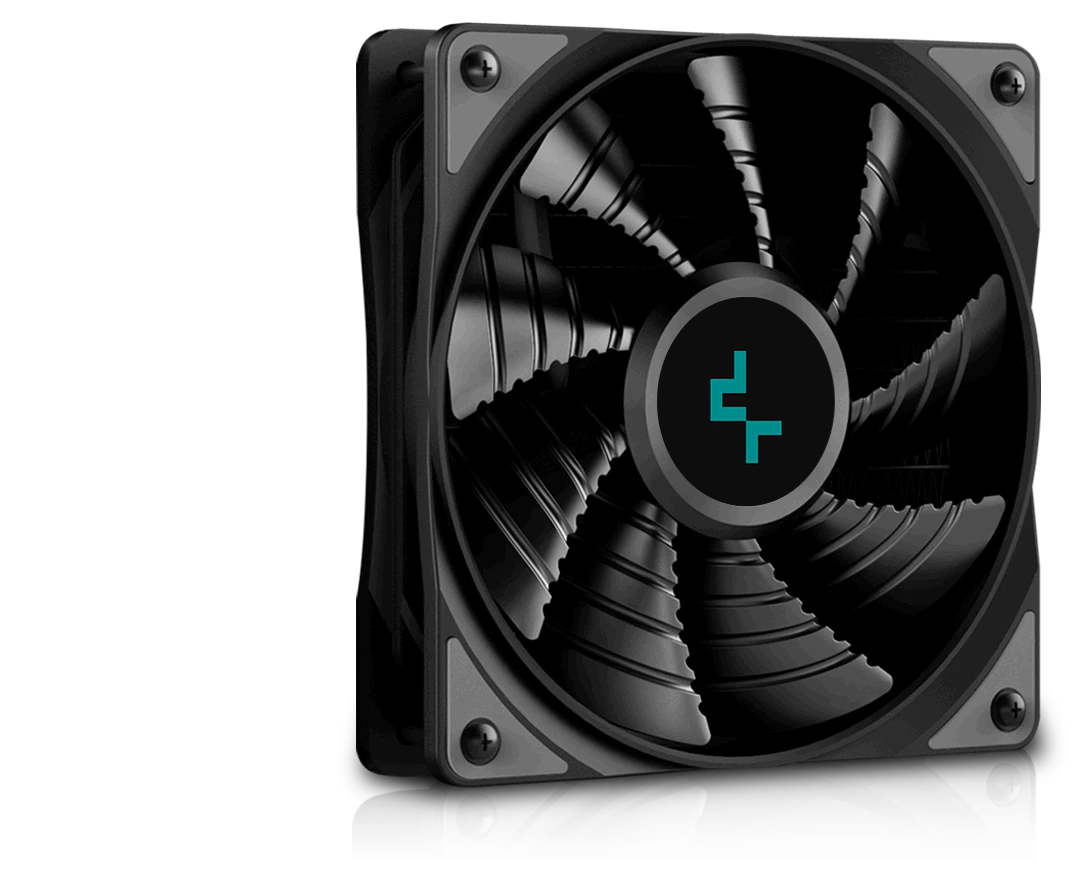

Two 120mm high-performance fans are included. The damping pads and the PWM function of the fans can vastly lower noise while maximizing airflow.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
sTRX4/sTR4/AM5/AM4
Technical Spec
Pump Dimensions91×79×71 mm(L×W×H)

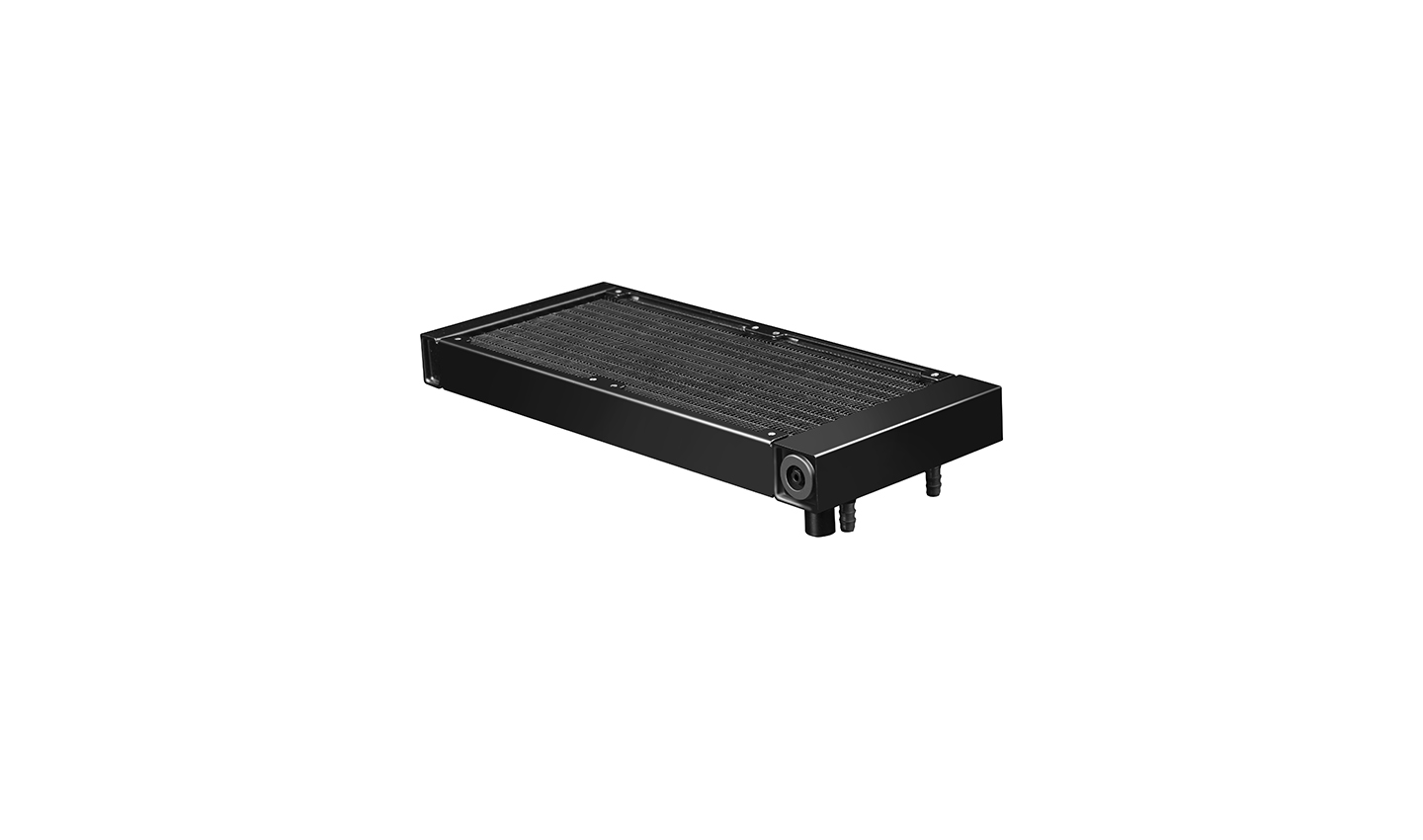

Radiator Dimensions282×120×27 mm(L×W×H)
Radiator MaterialAluminum
Net Weight1416 g
Tube length380 mm(L×W×H)
Pump Speed2550 RPM±10%
Pump Noise17.8 dB(A)
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.21 A
Pump Power Consumption2.52 W
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~1800 RPM±10%
Fan Airflow69.34 CFM
Fan Air Pressure2.42 mmAq
Fan Noise≤30 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.17 A
Fan Power Consumption2.04 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption2.25 W(PUMP)
EAN6933412727255
P/NDP-GS-H12AR-CS240V2
Product Dimension
