AS500

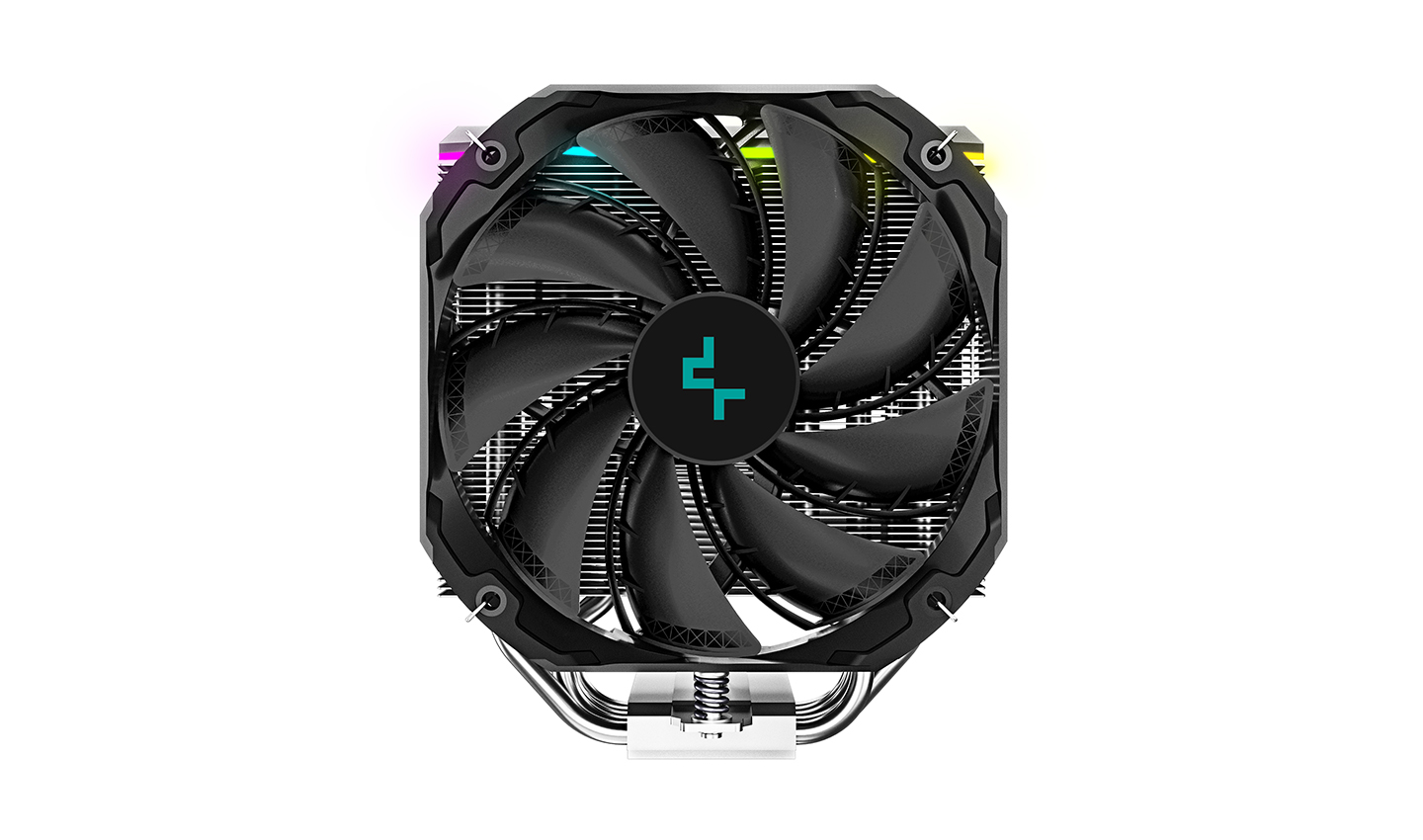

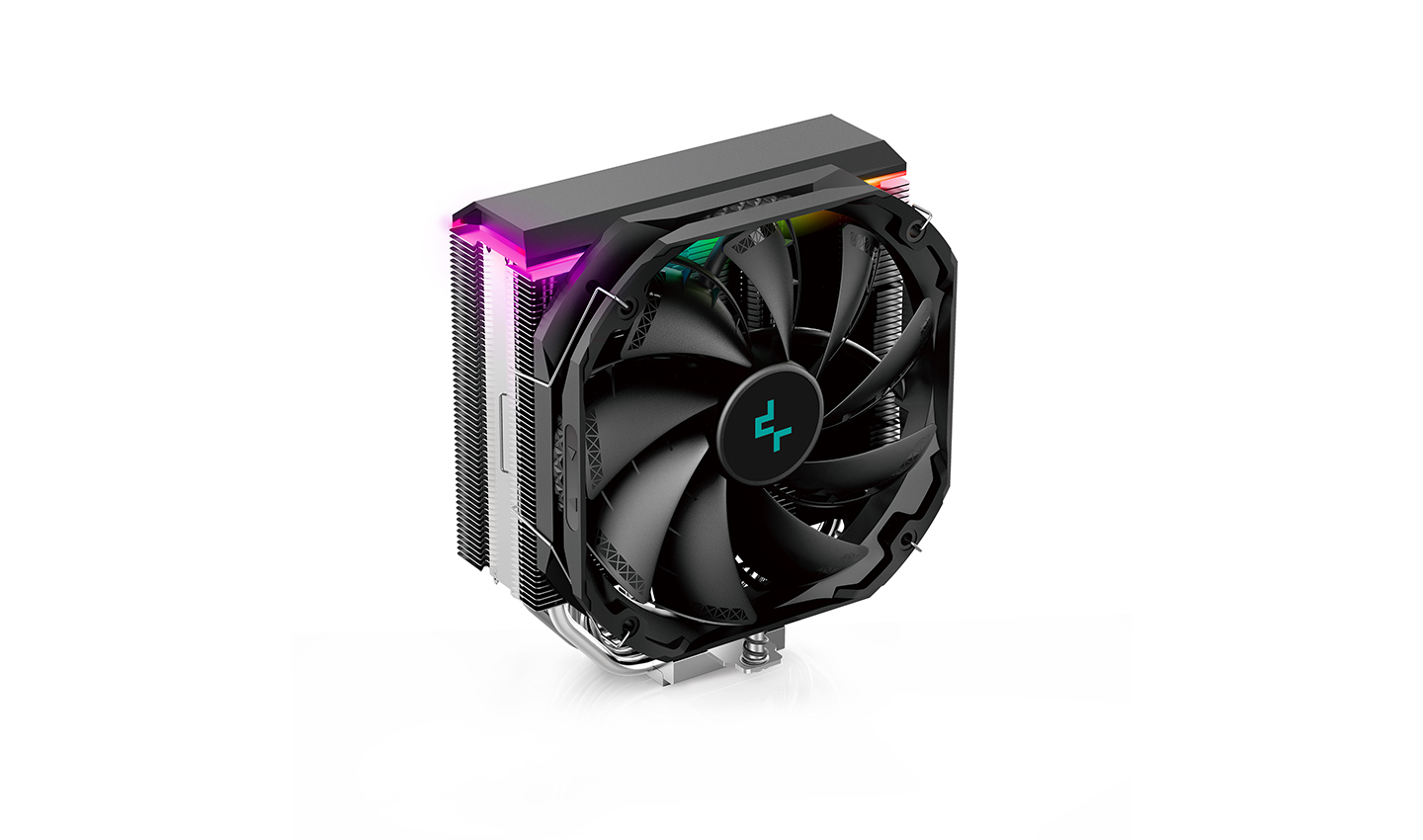

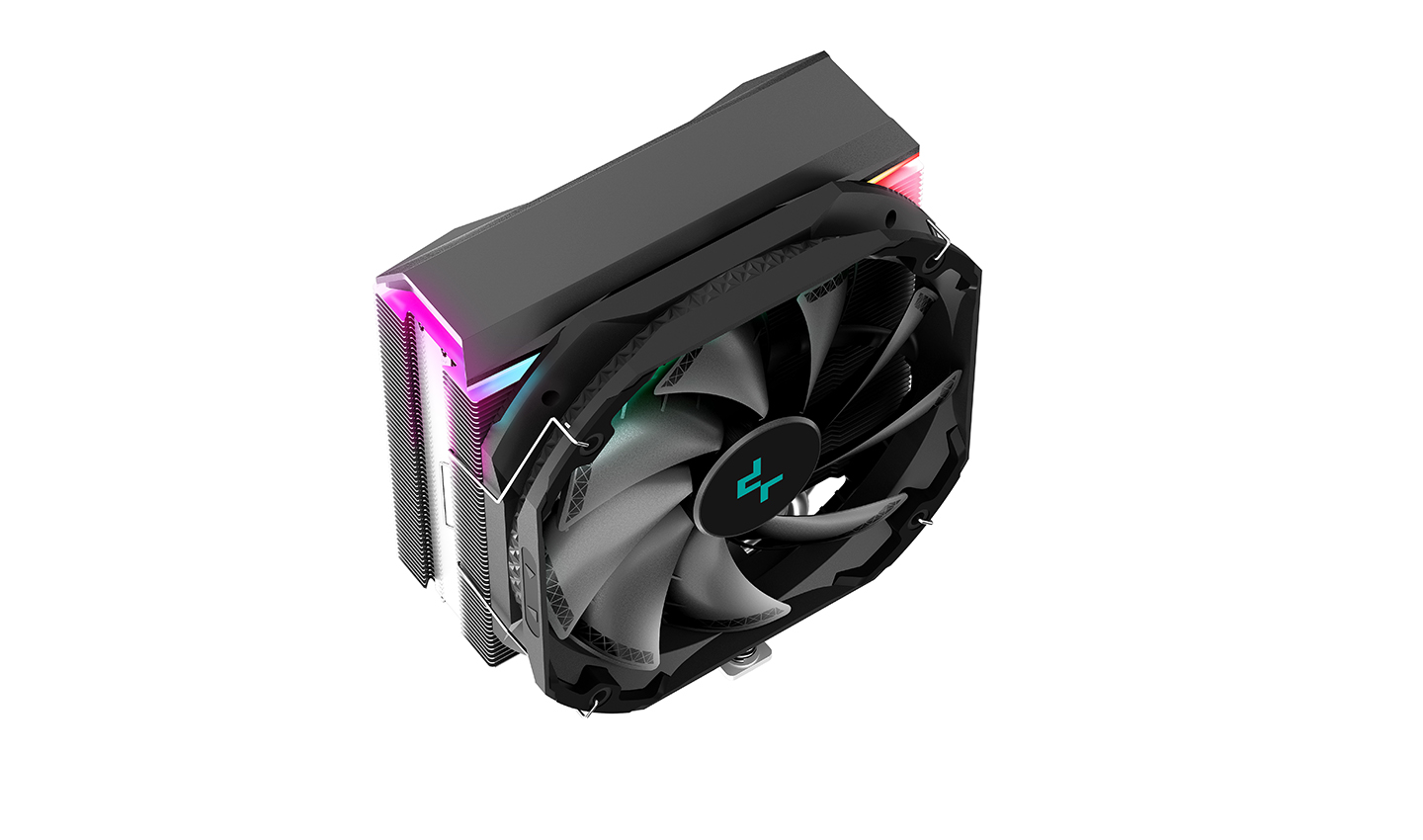

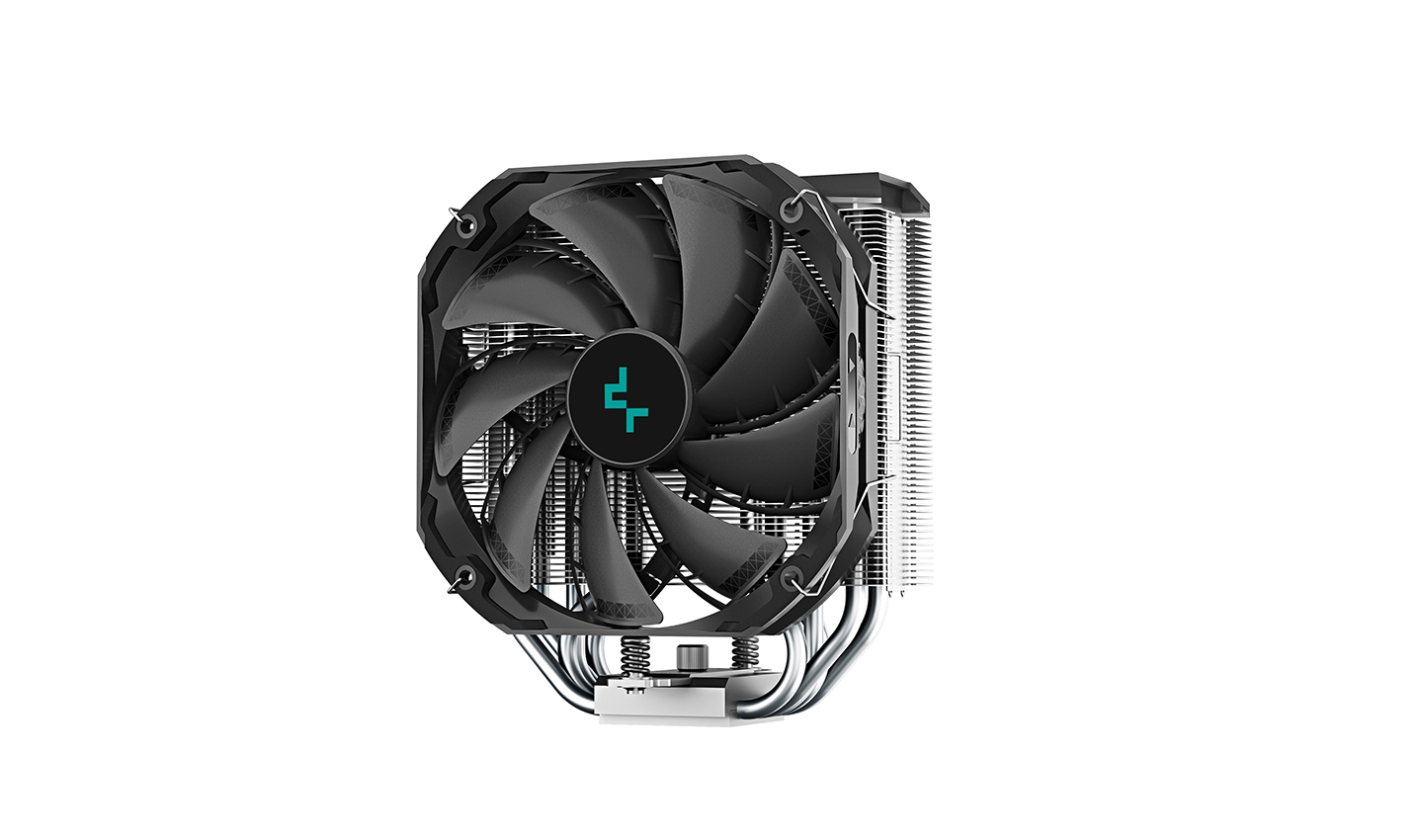

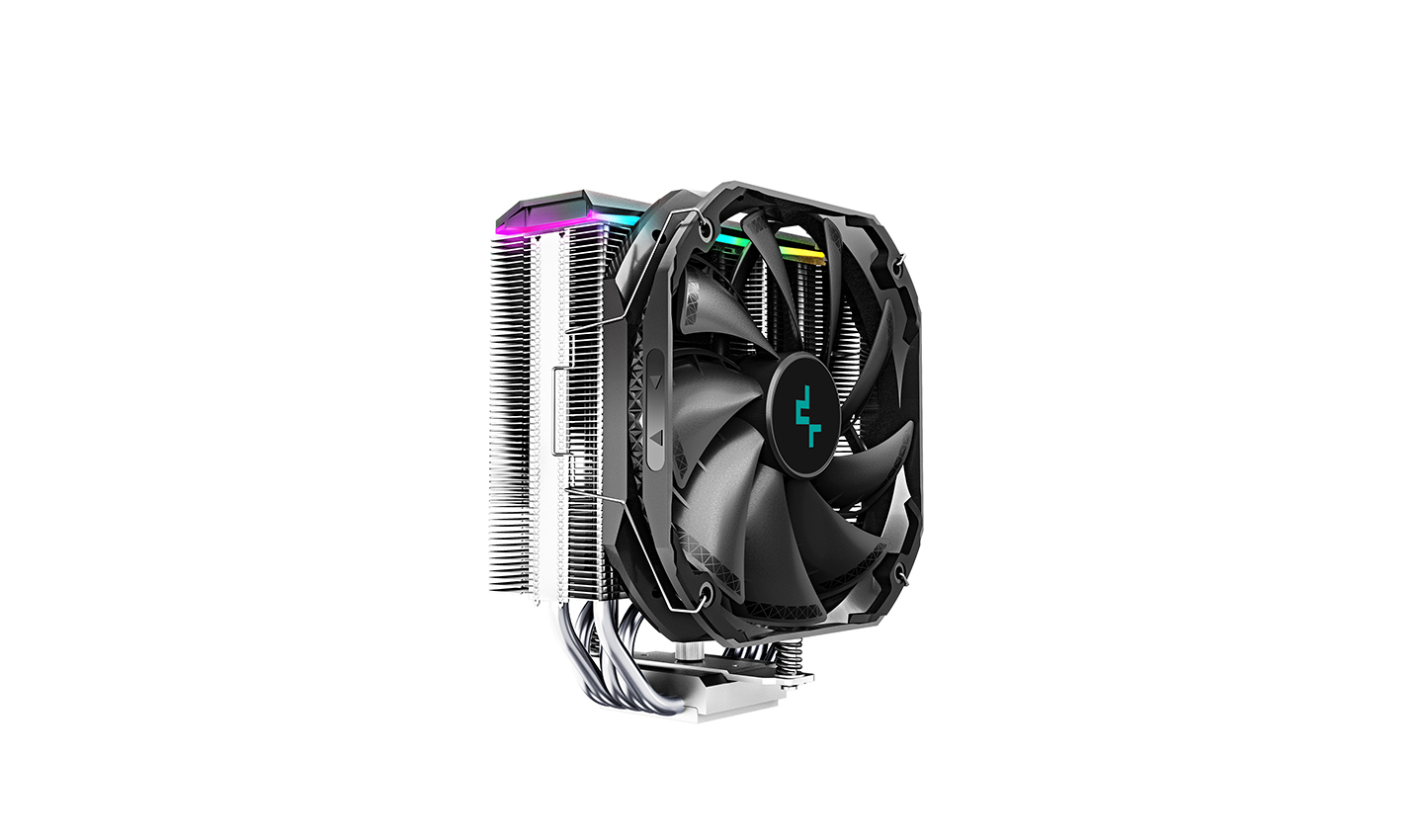

The DeepCool AS500 single tower CPU cooler boasts a five heat pipe design with a 140mm PWM fan for great performance in a slim profile.
MODEL
AS500
Optimized Efficiency. Unrivaled Compatibility
Overview
The DeepCool AS500 single tower CPU cooler boasts a five heat pipe design with a 140mm PWM fan for great performance in a slim profile.

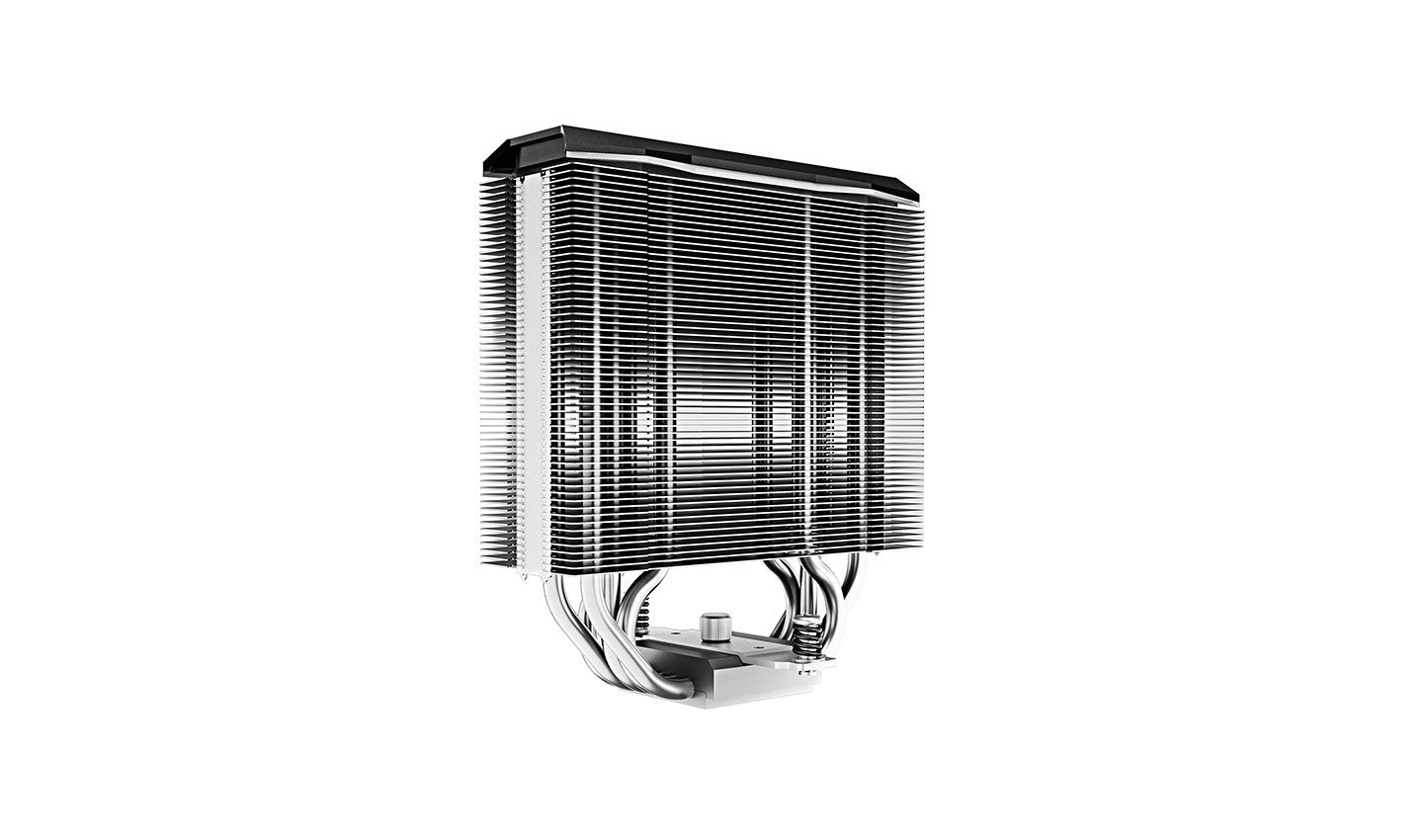

Elevated cooling performance

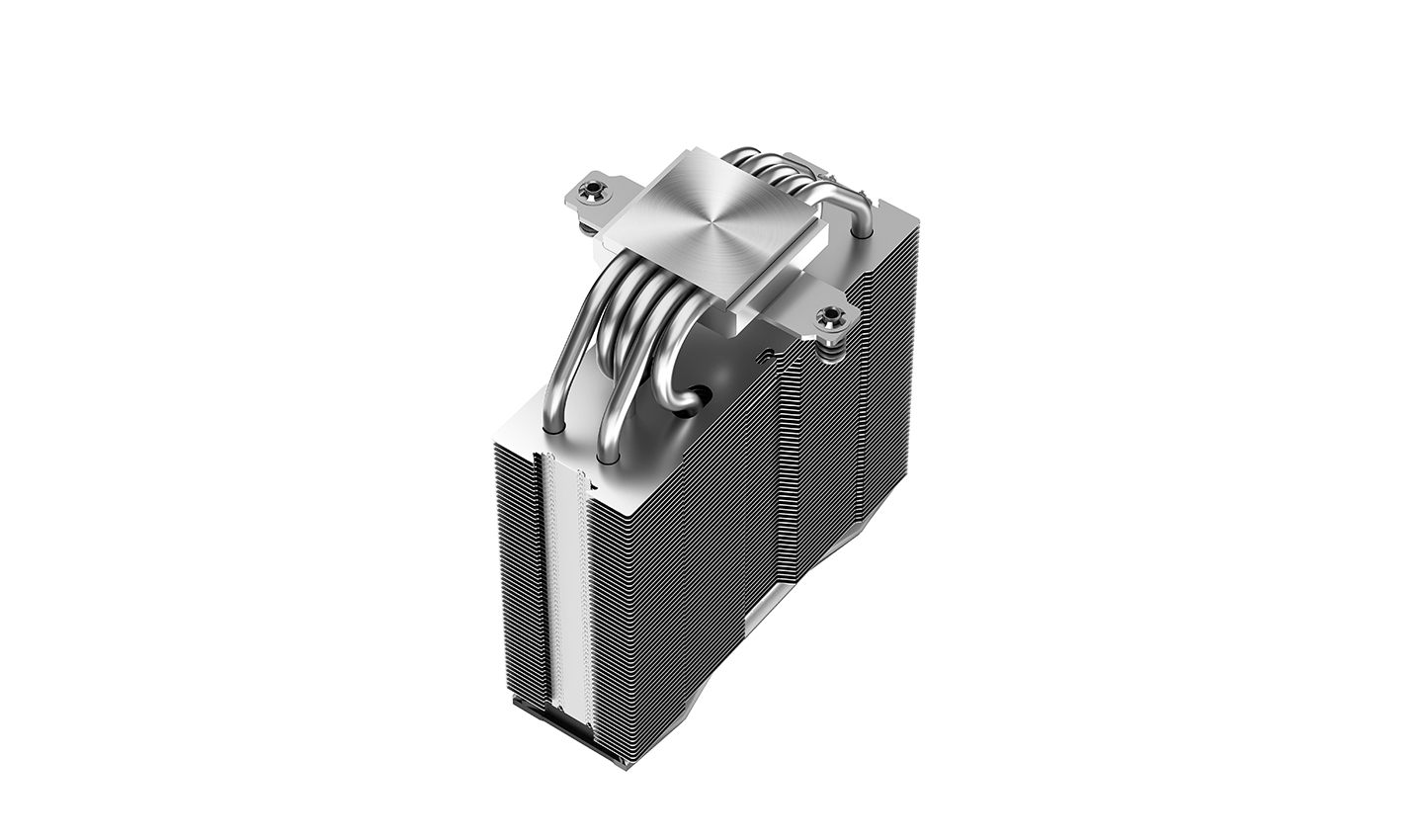

Optimize heat exchange through a solid copper base with optimal surface contact that runs five 6mm heat pipes in a single tower with high fin density.

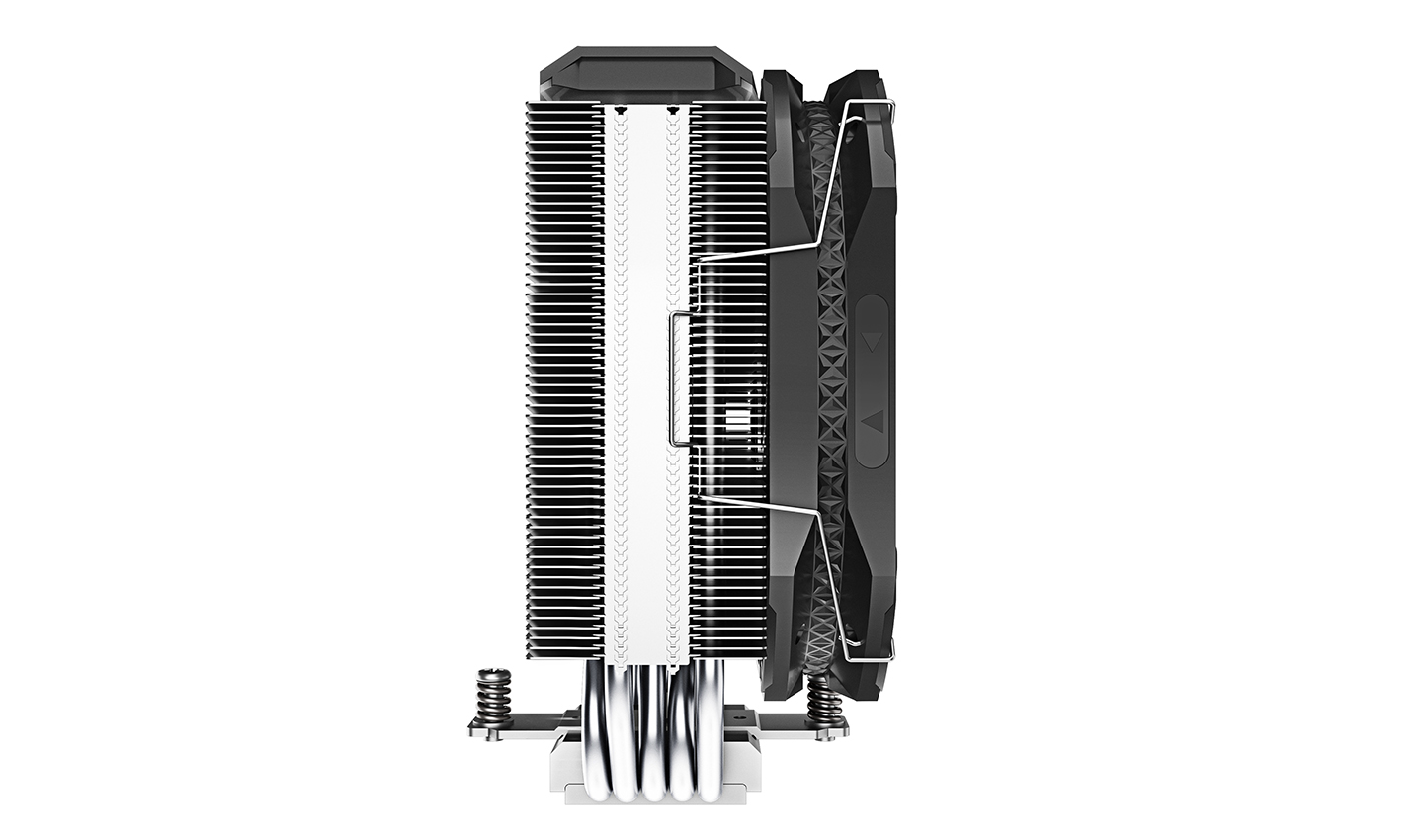

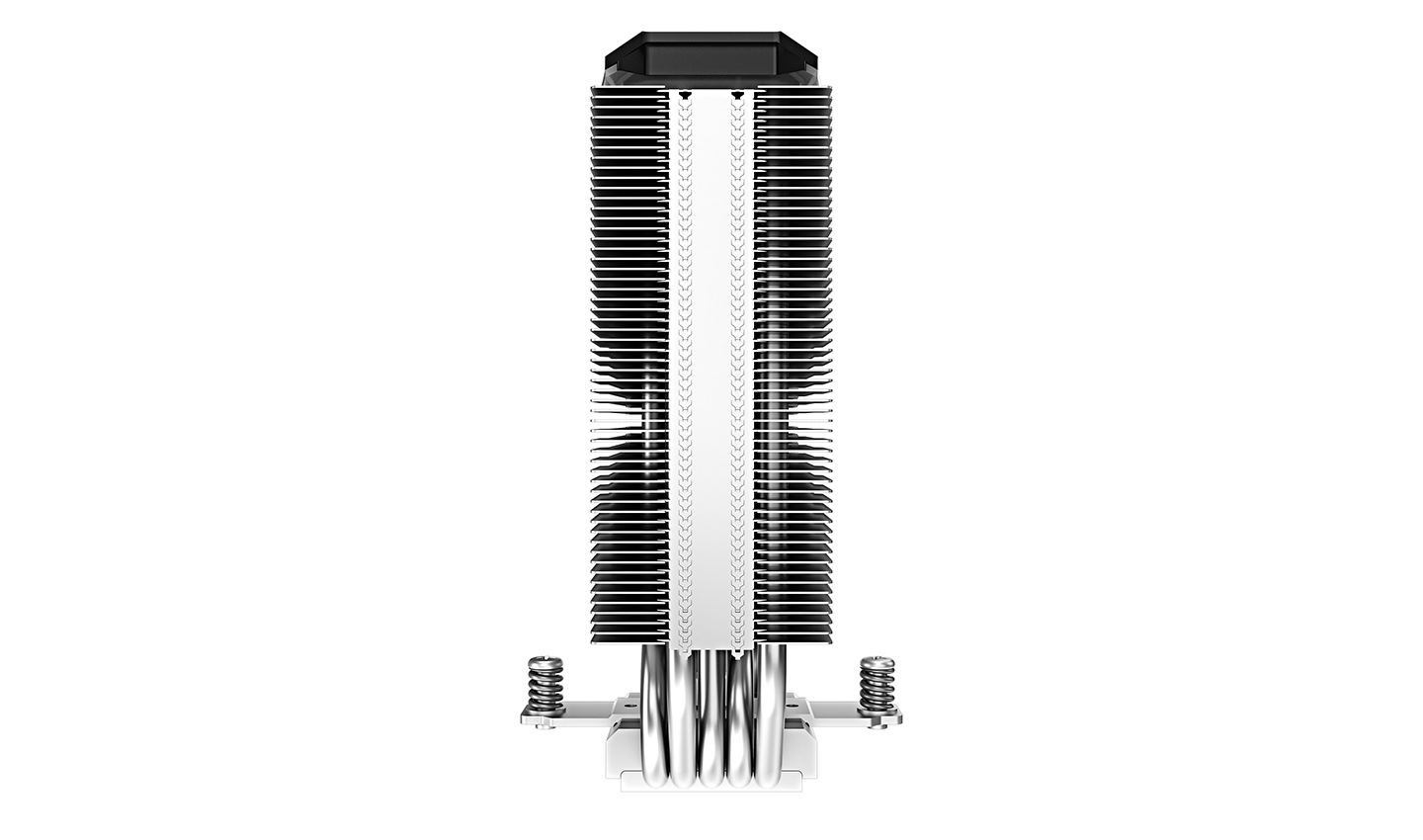

Sized just right

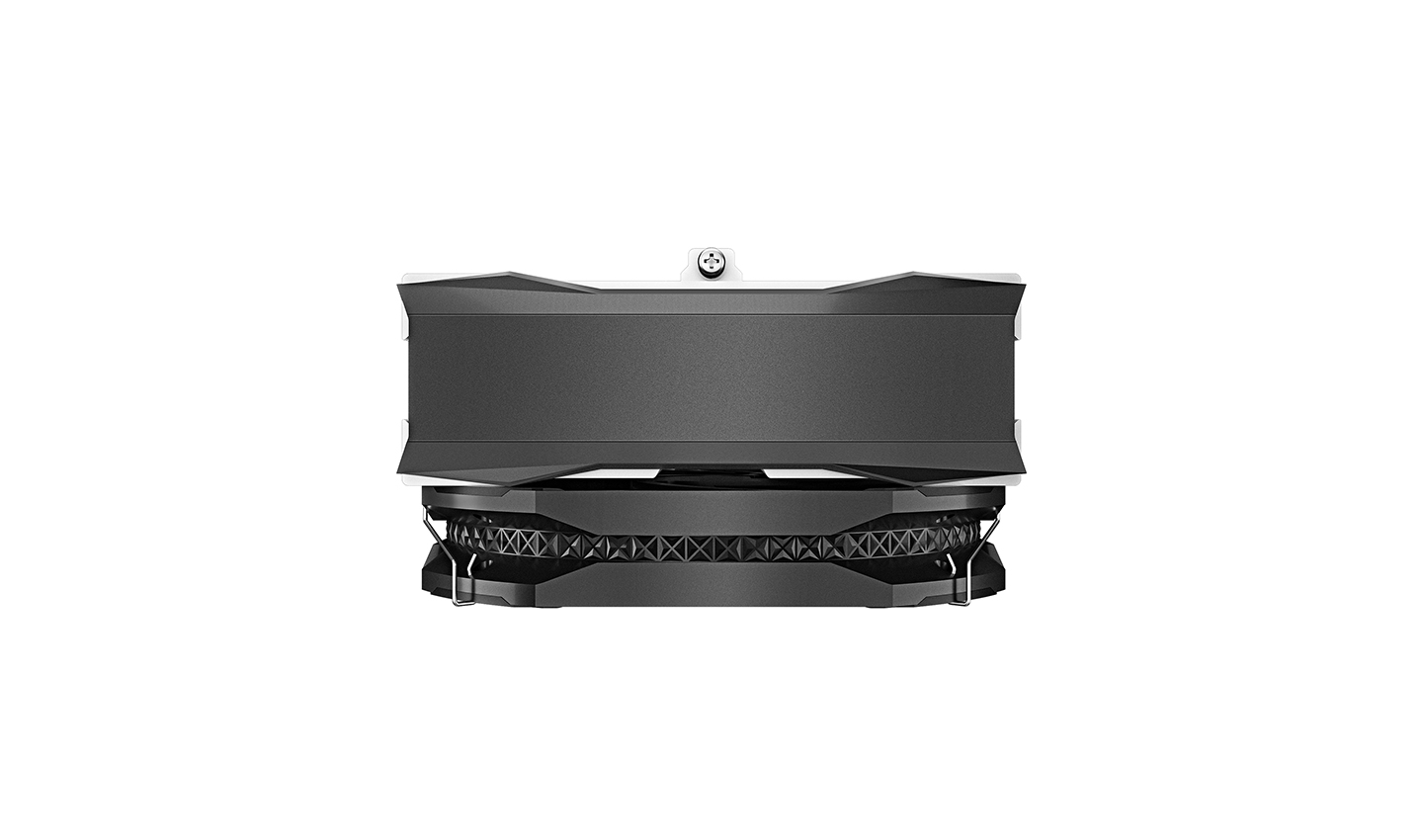

Designed for maximum RAM height compatibility in a slim (48mm) profile.

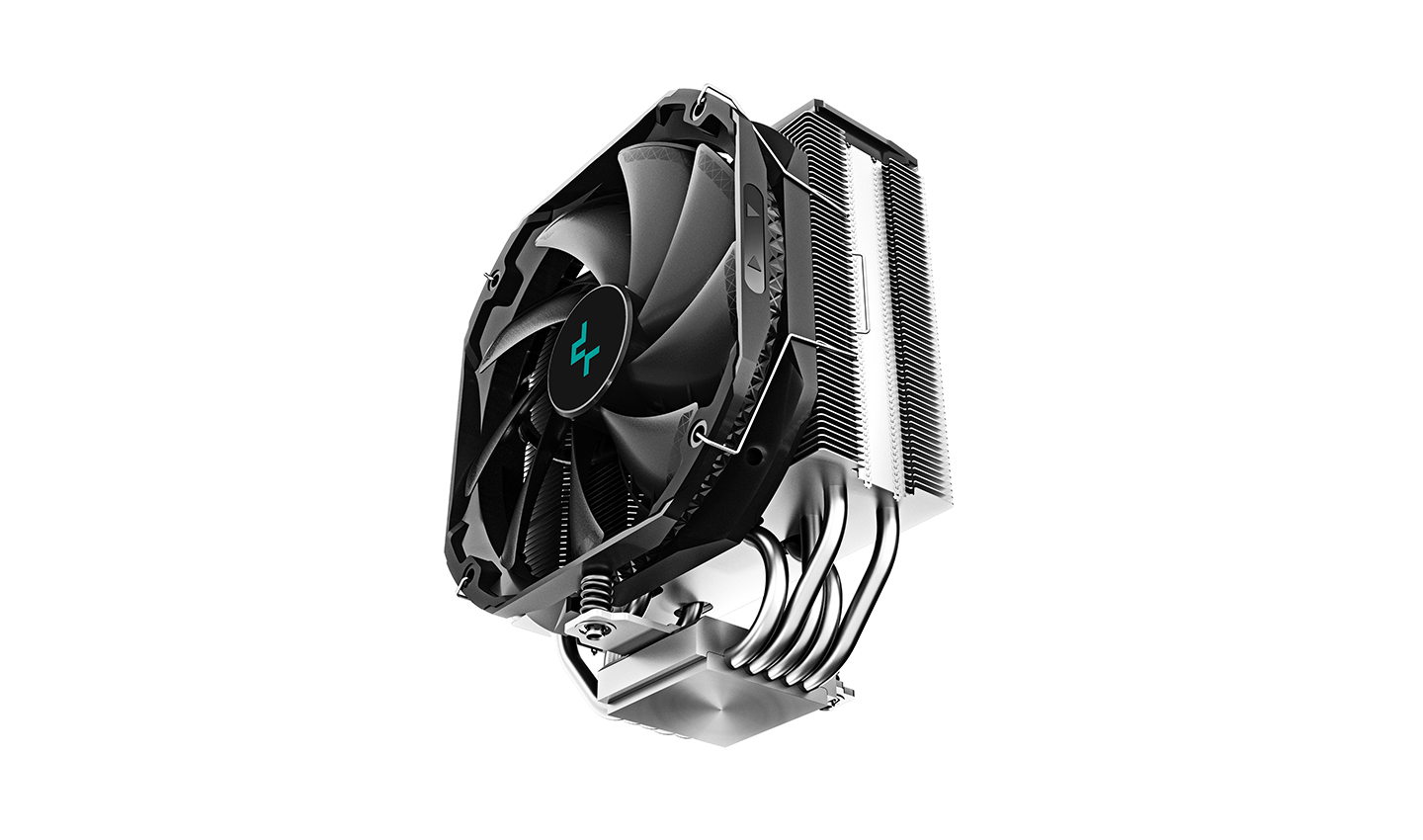

Control your temps

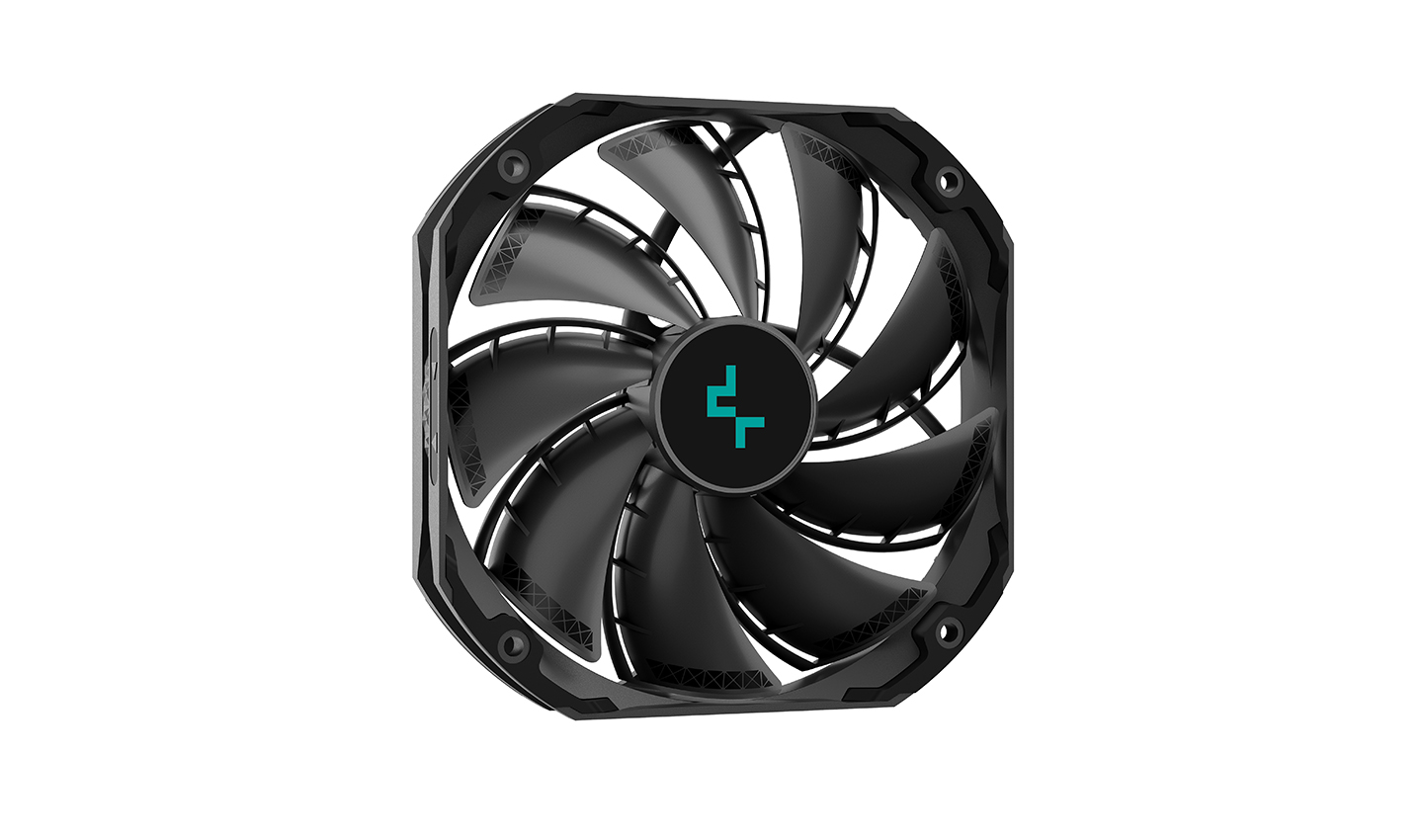

The high-performance 140mm PWM fan provides precise control between extreme cooling or low-noise operation with long-life durability.
500~1200 RPM±10%
Wide Speed Range
70.81 CFM
Ultra Airflow
≤26 dB(A)
Super Silent
Control your temps
The high-performance 140mm PWM fan provides precise control between extreme cooling or low-noise operation with long-life durability.
500~1200 RPM±10%
Wide Speed Range
70.81 CFM
Ultra Airflow
≤26 dB(A)
Super Silent
A-RGB LED controller
An included wired controller allows for a quick and easy way to adjust lighting effects without installing additional software.
Appropriate A-RGB connector cables for motherboard control are also provided.

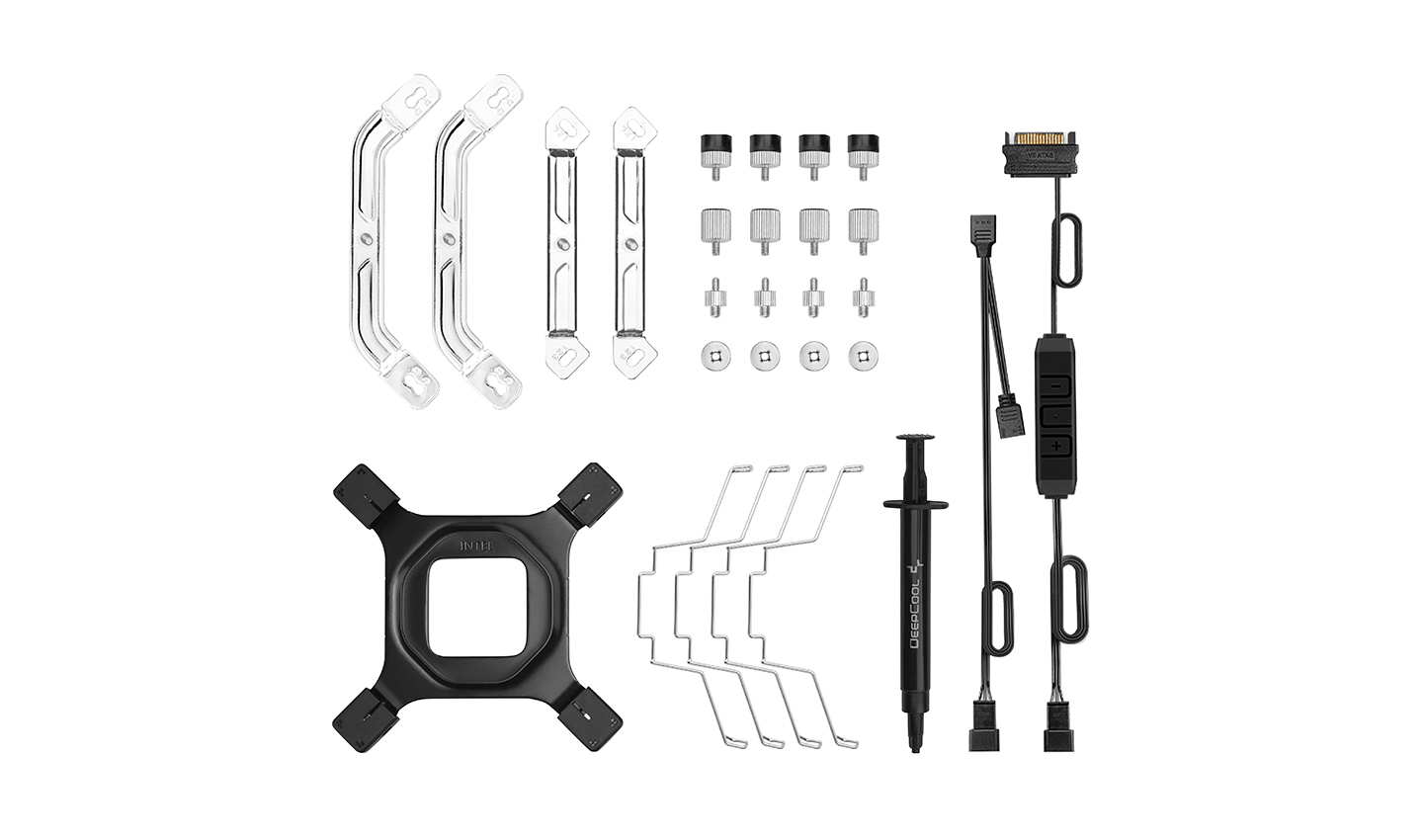

What’s in the box
What’s in the box
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions142×98×164 mm(L×W×H)
Heatsink Dimensions140×49×159 mm(L×W×H)
Net Weight 1030 g
Heatpipe Ø6 mm×5 pcs
Fan Dimensions140×140×25 mm(L×W×H)
Fan Speed 500~1200 RPM±10%
Fan Airflow 70.81 CFM
Fan Air Pressure 1.14 mmAq
Fan Noise ≤29.2dB(A)
Overall Noise ≤26 dB(A)
Fan Connector 4-pin PWM
Bearing Type FDB
Fan Rated Voltage 12 VDC
Fan Rated Current 0.11 A
Fan Power Consumption 1.32 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 1.4 W
EAN 6933412727064
P/N R-AS500-BKNLMN-G
Product Dimension
