ICE EDGE MINI FS V2.0
HOME > PRODUCT > CPU Air Coolers - ICE EDGE MINI FS V2.0
PC COMPATABILITY CHECKER
  • Features
  • Spec
  • Downloads
AMD AM4 Ready.NOTE: For manuals, please refer to FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2

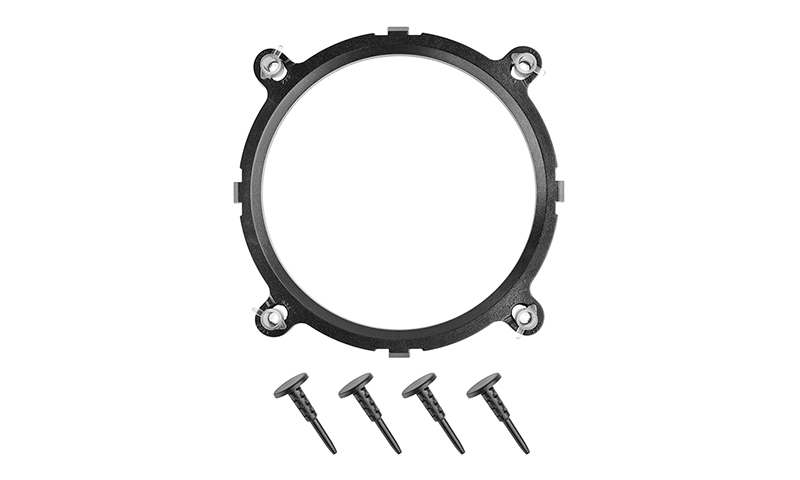

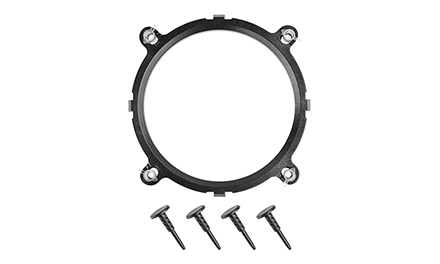

Equipped with multiple clips to support Intel LGA1155/1156/775 and AMD AM4/AM3/AM2+/AM2/K8.

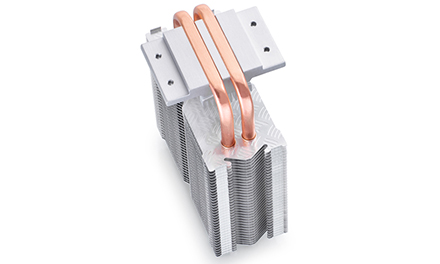

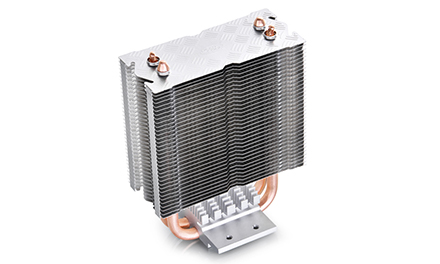

2 sintered powder heatpipes directly touch the CPU surface and conduct heat from the processor quickly to protect it from overheating.

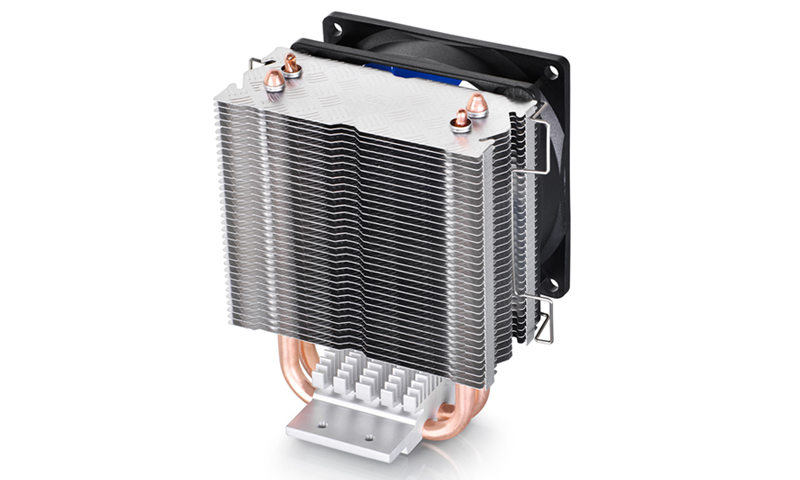

Well built aluminum heatsink dissipates heat efficiently.

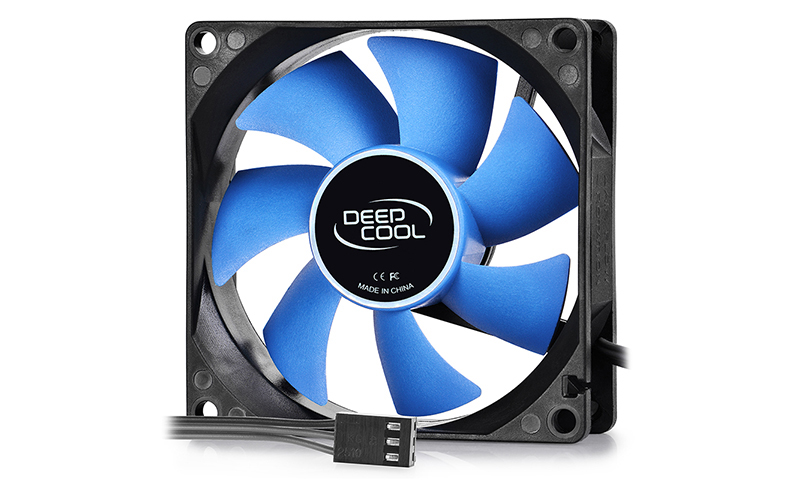

TPE Fan Cover helps absorb operating vibration and reduce fan noise.
Application For
Intel Socket 95W  AMD Socket 100W
LGA1156/LGA1155/LGA1151/LGA1150/LGA775  AM4/FM2/FM1/AM3+/AM3/AM2+/AM2/940/939/754
NOTE: Manuals for AM4, please refer to FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
Core i7/i5/i3
Core 2 Extreme
Core 2 Quad
Core 2 Duo
Pentium/Pentium G
Pentium D/Pentium 4
Celeron Dual-Core
Celeron/Celeron D
APU A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Phenom X4/X3/X2
Athlon II X4/X3/X2
Athlon X4/X2
Athlon
Sempron
Business Class

Technical Spec
Overall Dimension Fan Dimension Net Weight Bearing Type
119X75X112mm
80X80X25mm
276g
Hydro Bearing
Rated Voltage Operating Voltage Started Voltage Rated Current
12VDC 10.8~13.2VDC 7VDC
0.12±10%A
Power Input Fan Speed Max. Air Flow Noise
1.44W
2200±10%RPM
25.13CFM
24.7dB(A)

Product Dimension
