AG300

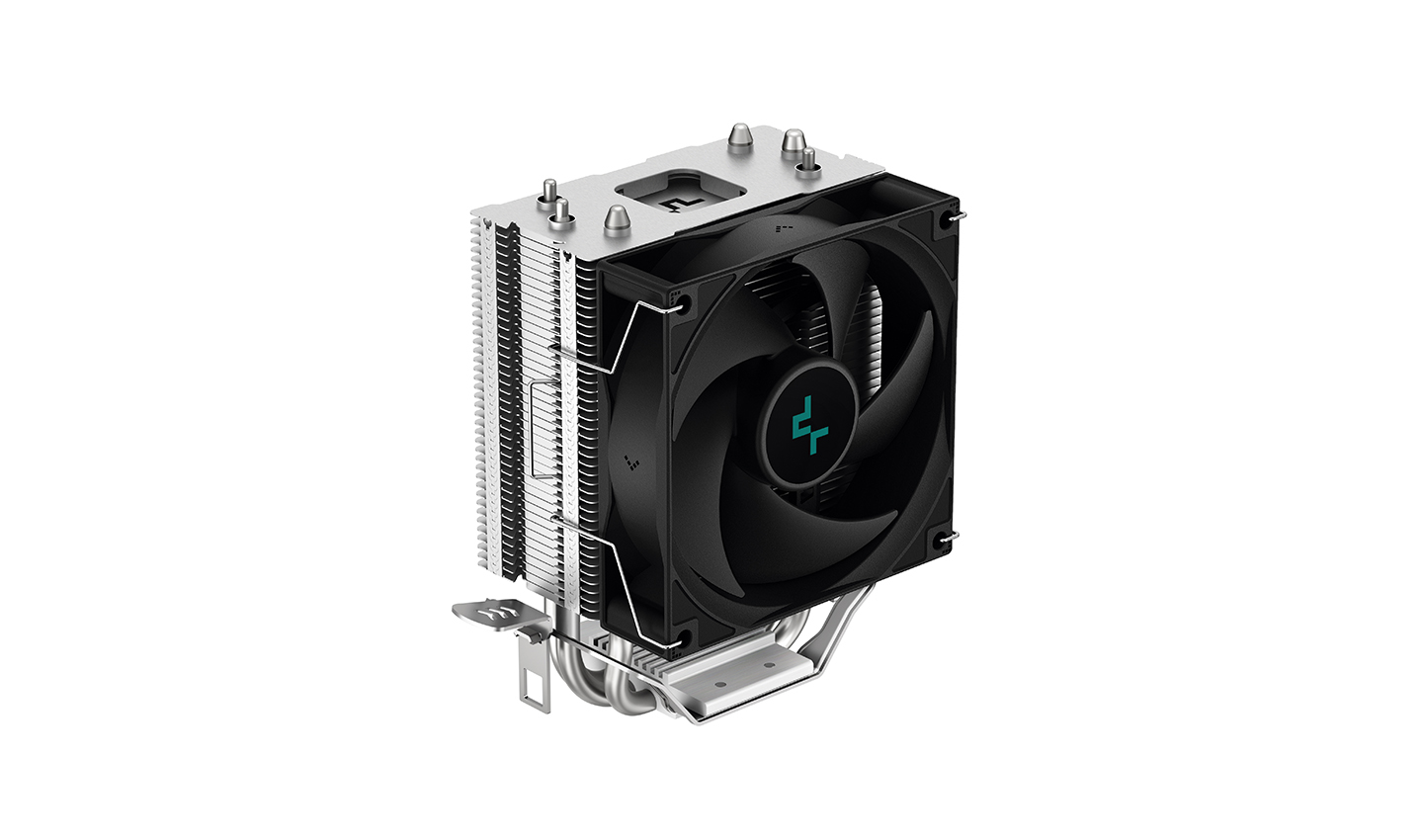

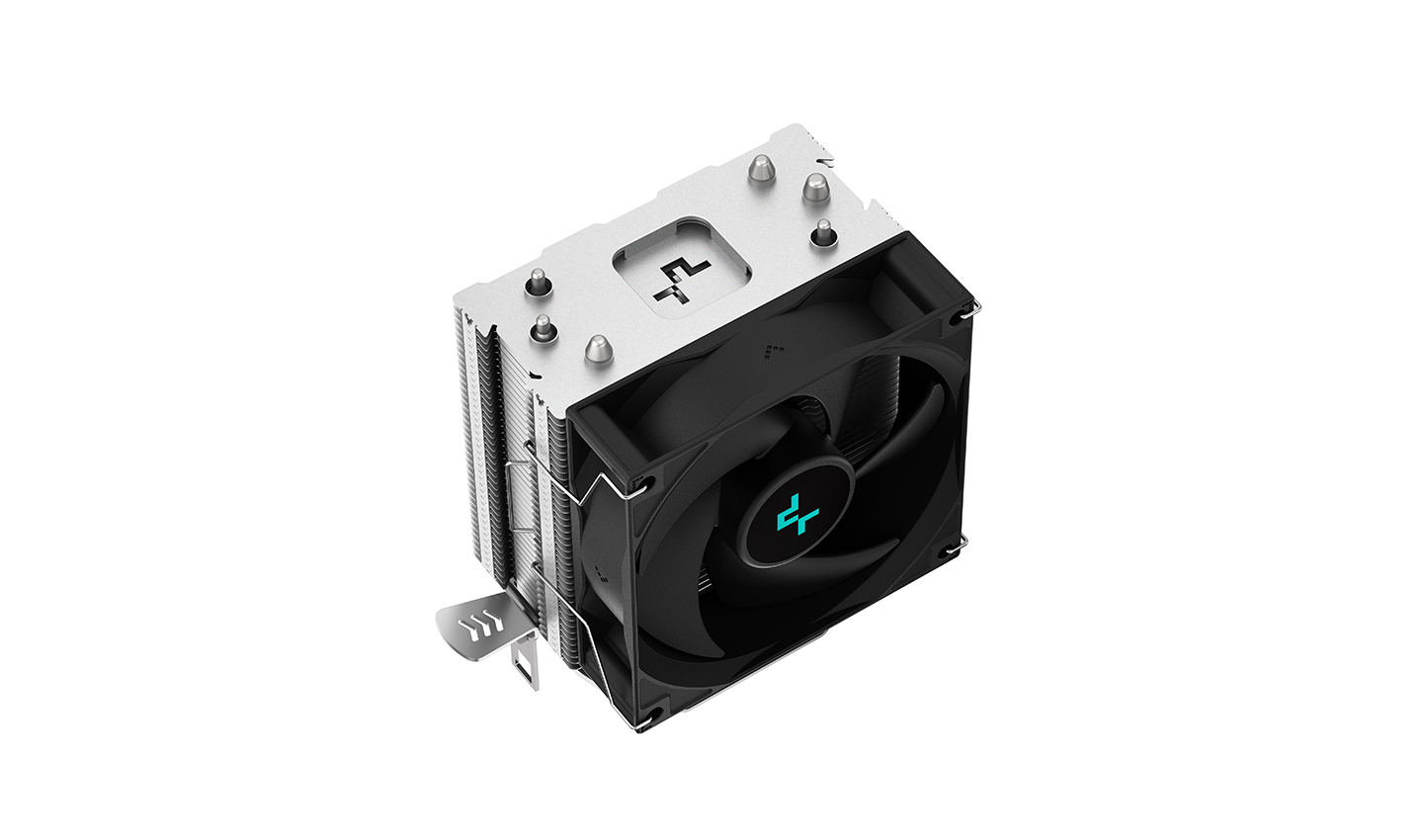

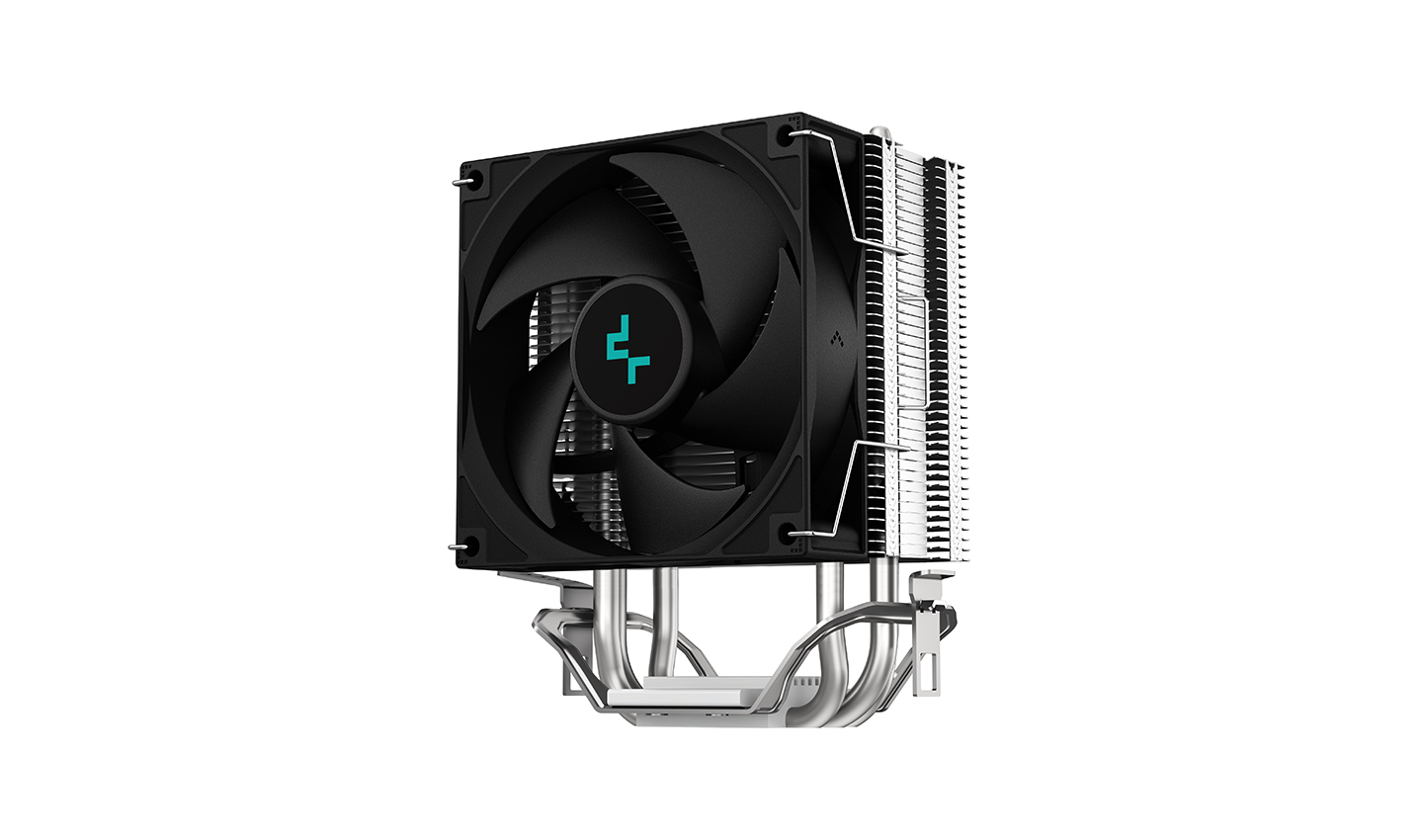

The AG300 is a compact single-tower CPU cooler representing a new generation update from the classic GAMMAXX basic coolers with upgraded appearance and efficiency at 150W heat dissipation power.
MODEL
GAMMAXX SERIES
AG300
Single-Tower CPU Cooler
Efficient
Cooling Power

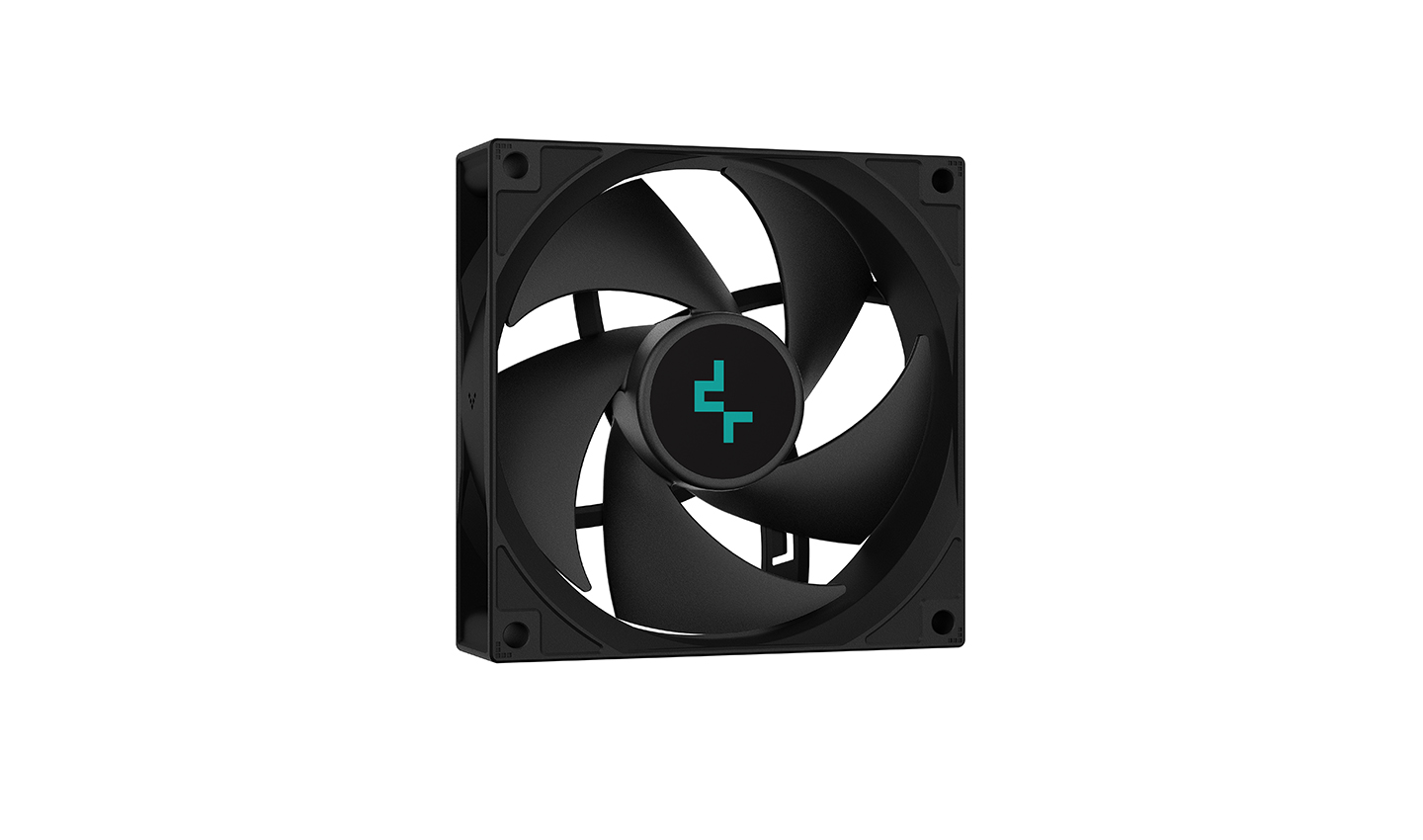

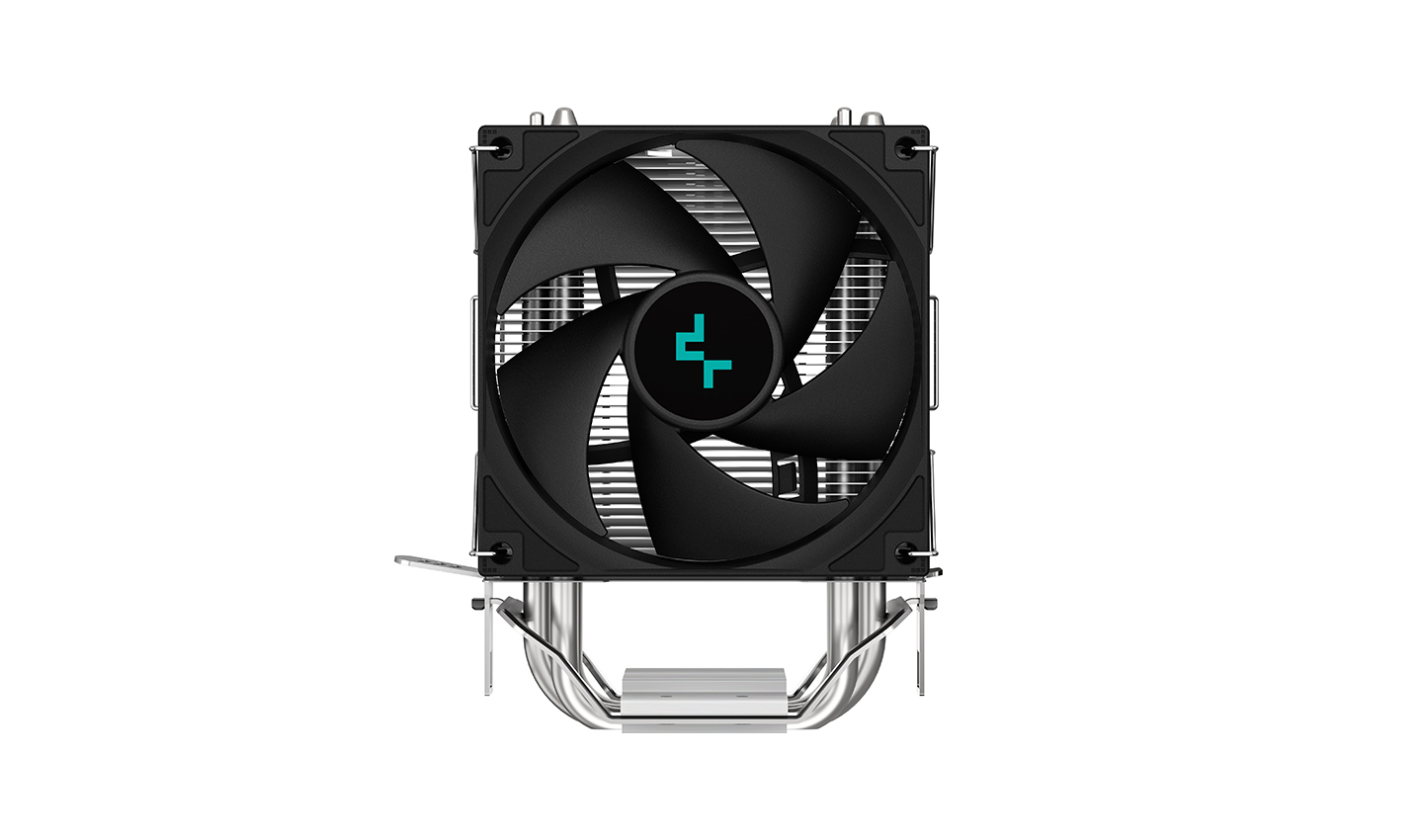

Three direct contact copper heat pipes effectively transfer heat for optimal dissipation through the heat sink tower. The 92mm PWM fan outputs balanced airflow for performance and silence.
Efficient
Cooling Power
Three direct contact copper heat pipes effectively transfer heat for optimal dissipation through the heat sink tower. The 92mm PWM fan outputs balanced airflow for performance and silence.
New Family Appearance

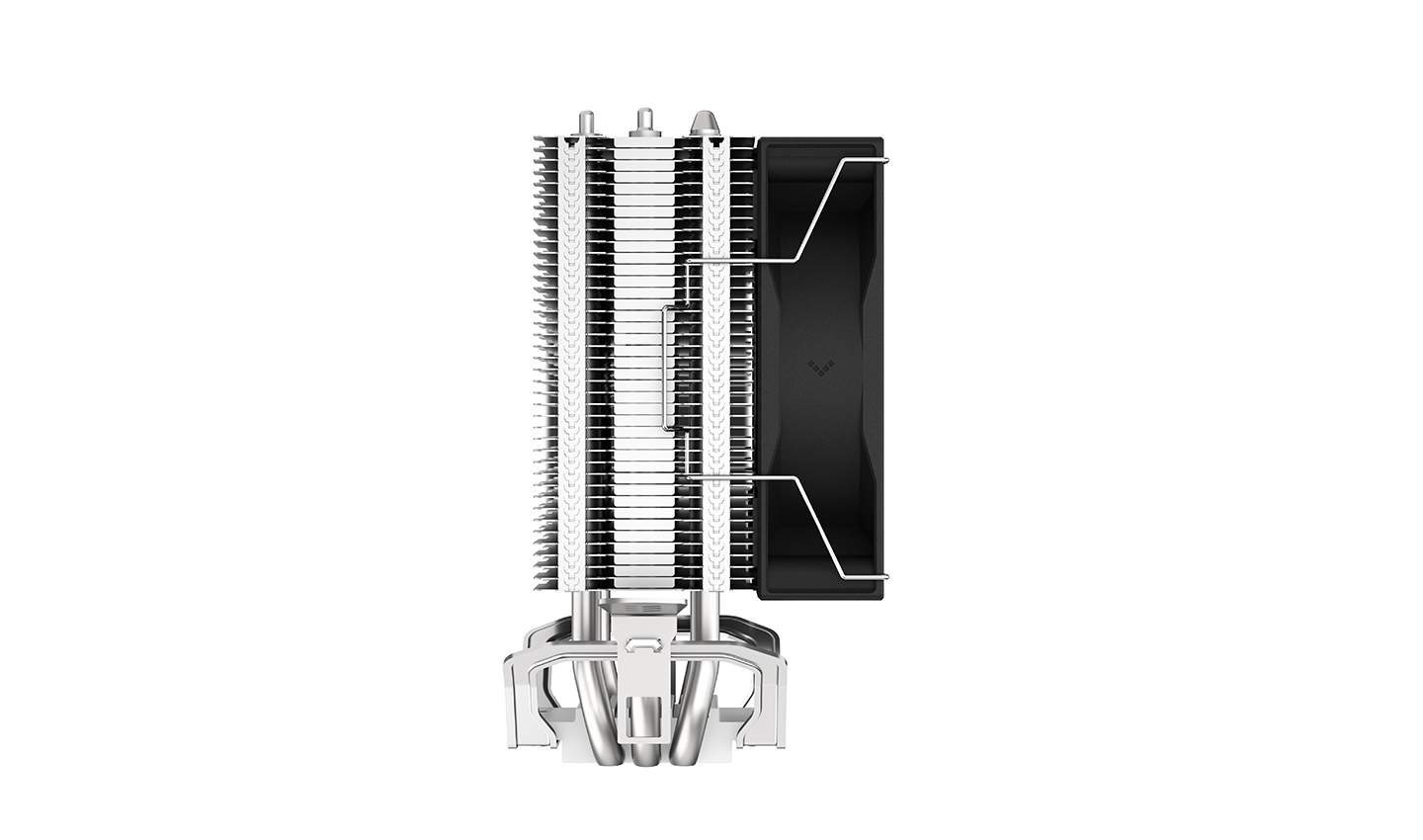

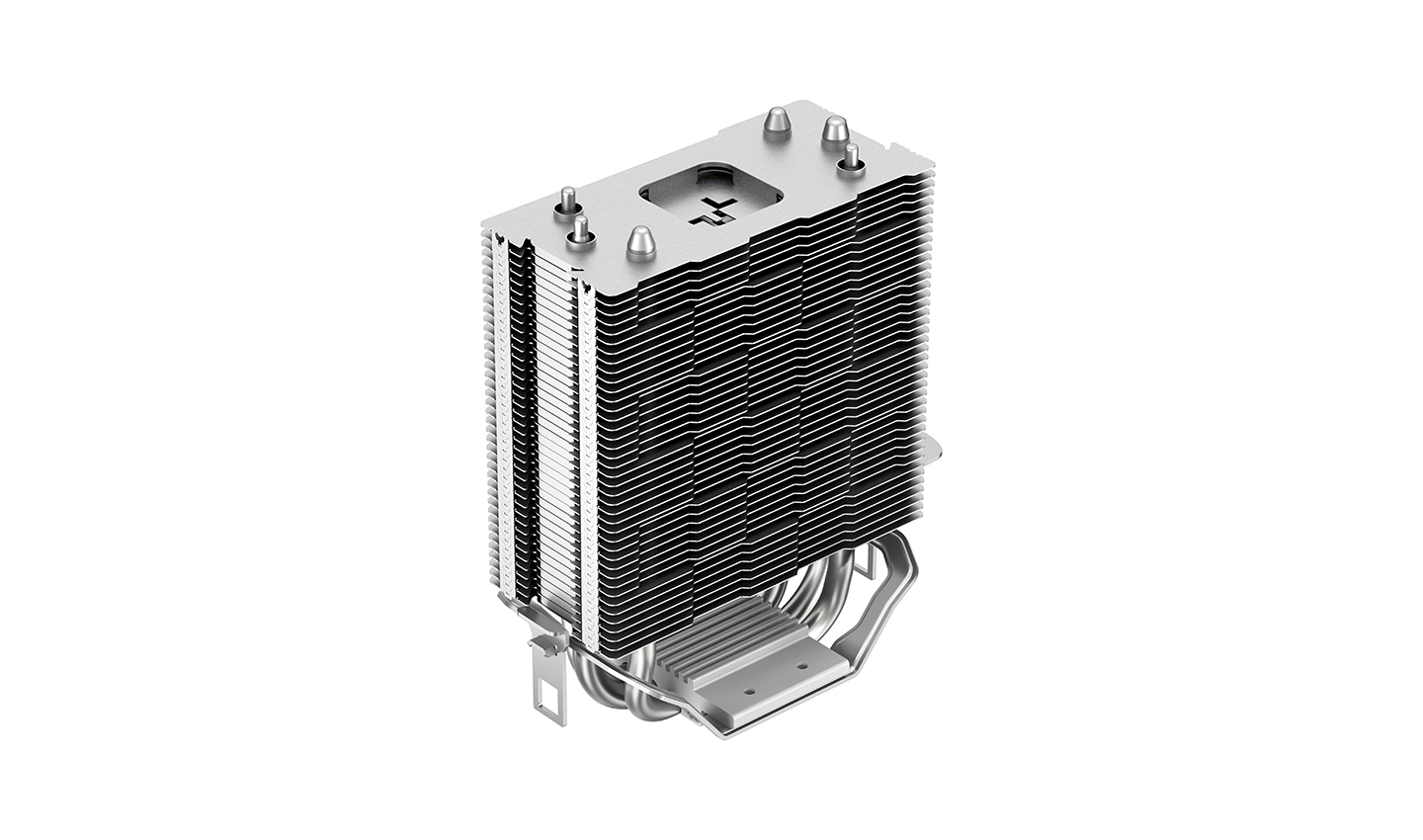

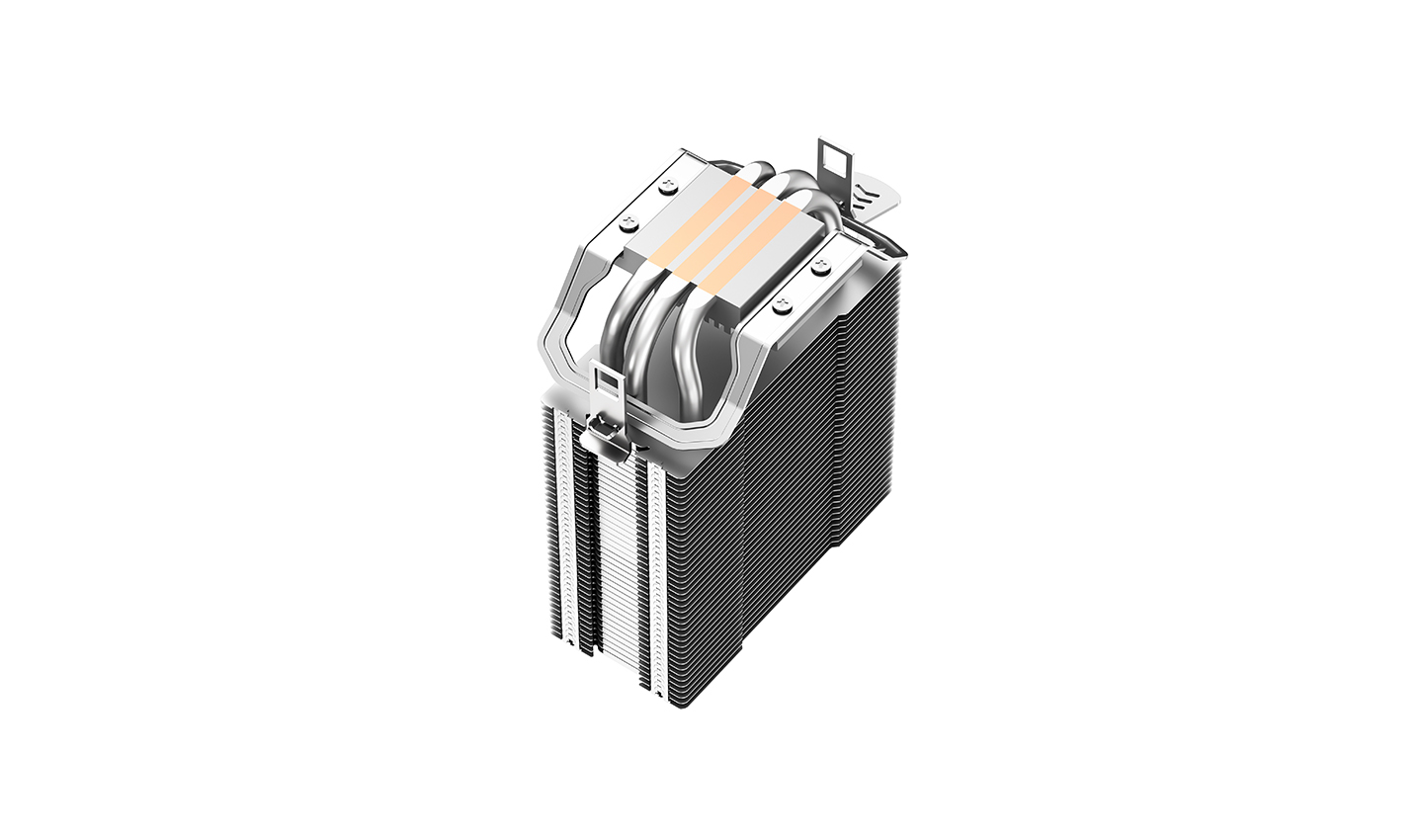

The AG300 adopts a new DeepCool family design and features a unique matrix fin array that densely packs each fin for a neat and firm construction. The nickel plated heat pipes provide extra protection against copper corrosion.
Easy Installation

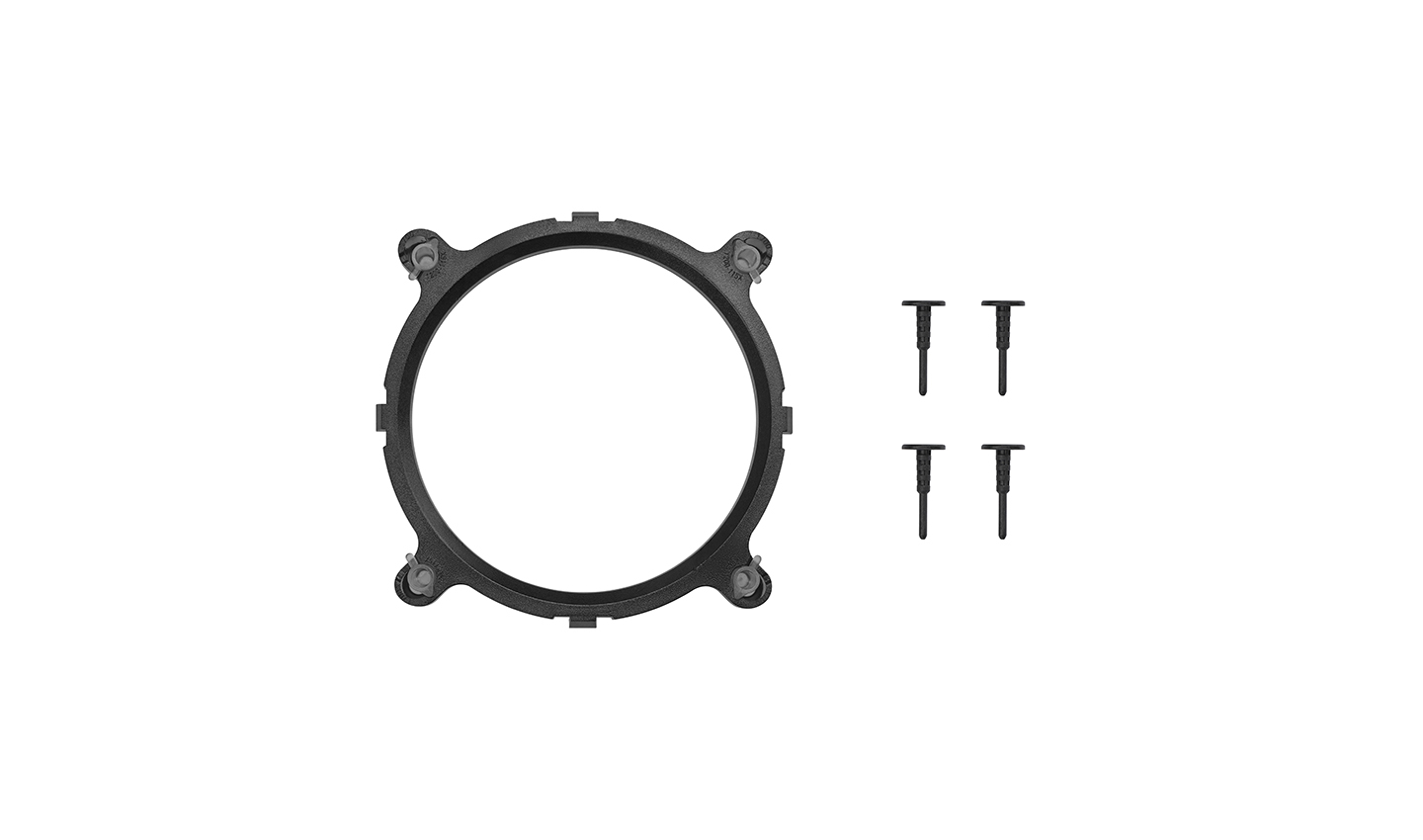

Compatible with multiple socket platforms from Intel and AMD with support for the latest changes. Ensure a proper mount pressure with the included brackets for a seamless installation.
*High thermal resistance paste is pre-applied
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions119×77×129 mm(L×W×H)
Heatsink Dimensions94×57×129 mm(L×W×H)
Net Weight350 g
HeatpipeØ6 mm×3 pcs
Fan Dimensions92×92×25 mm(L×W×H)
Fan Speed500~3050 RPM±10%
Fan Airflow36.75 CFM
Fan Air Pressure2.89 mmAq
Fan Noise≤30.5 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.13 A
Fan Power Consumption1.56 W
EAN6933412727897
P/NR-AG300-BKNNMN-G
Product Dimension
