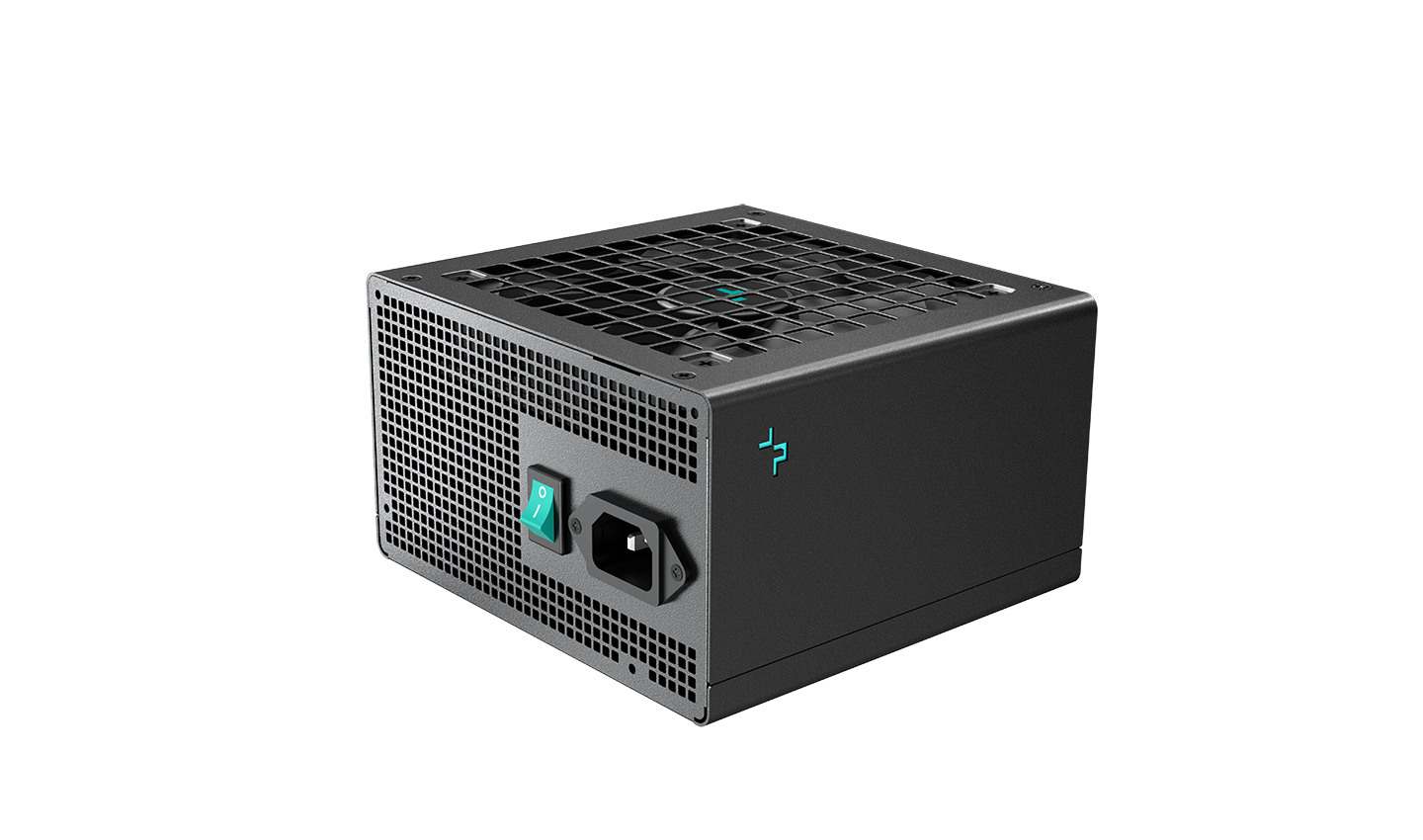

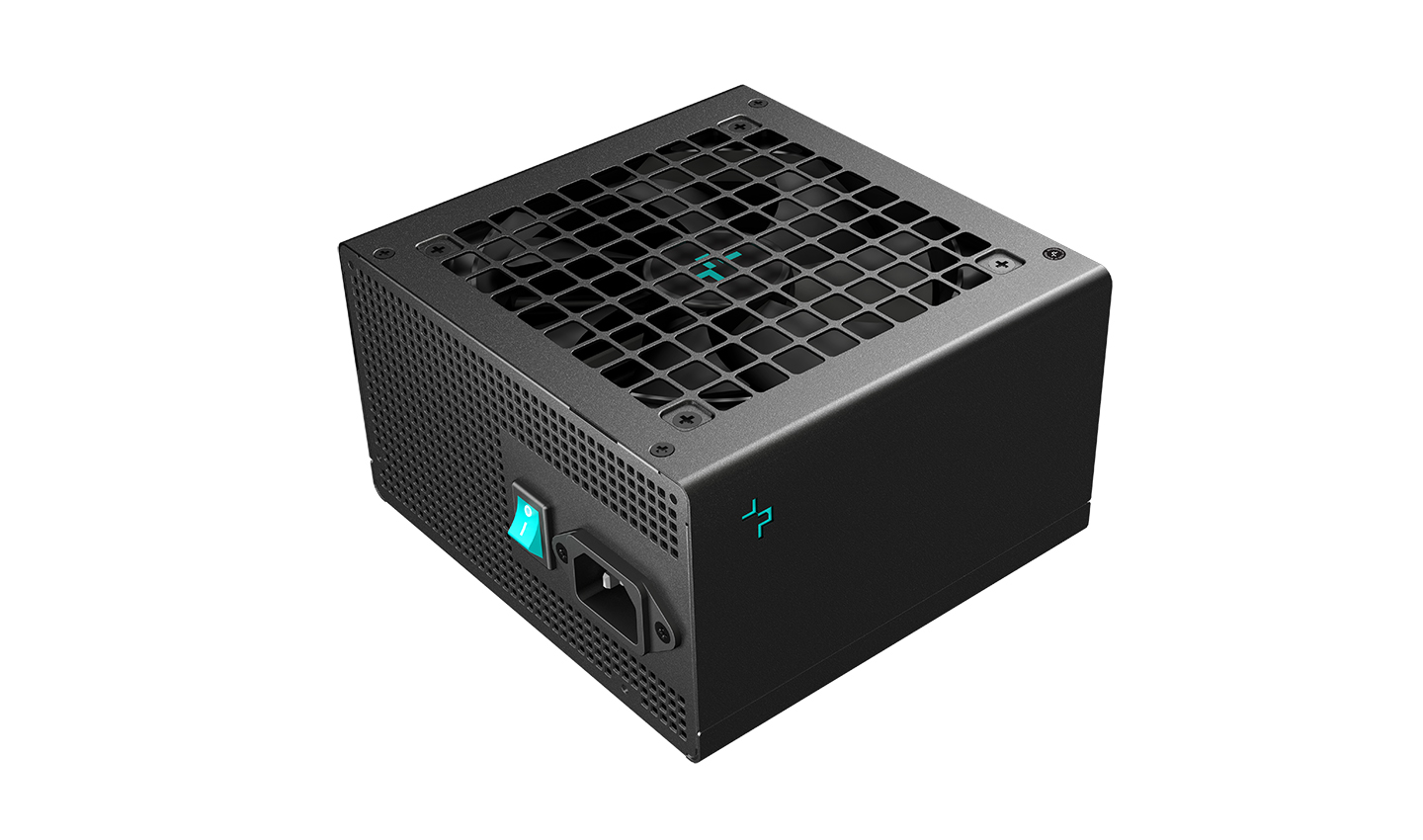

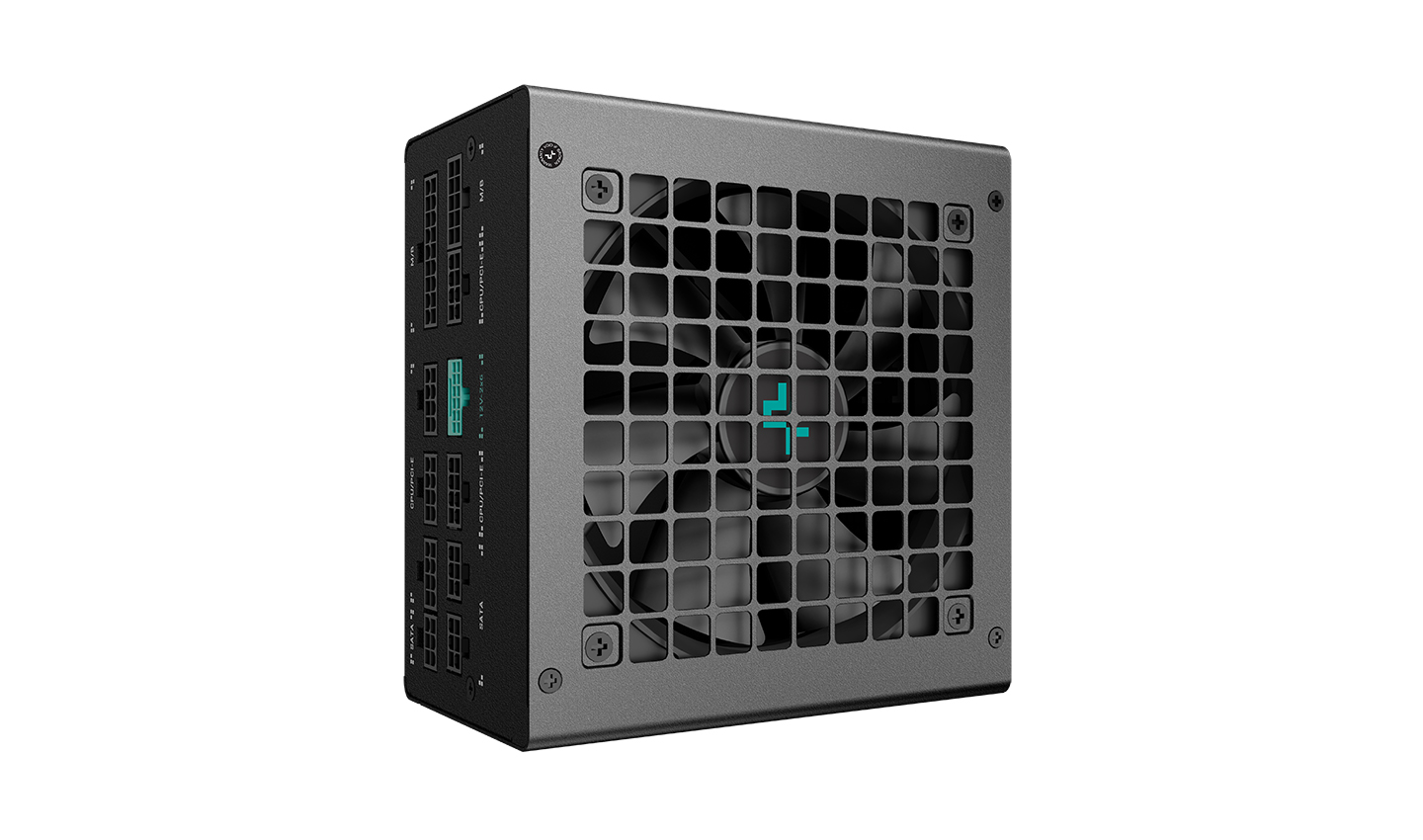

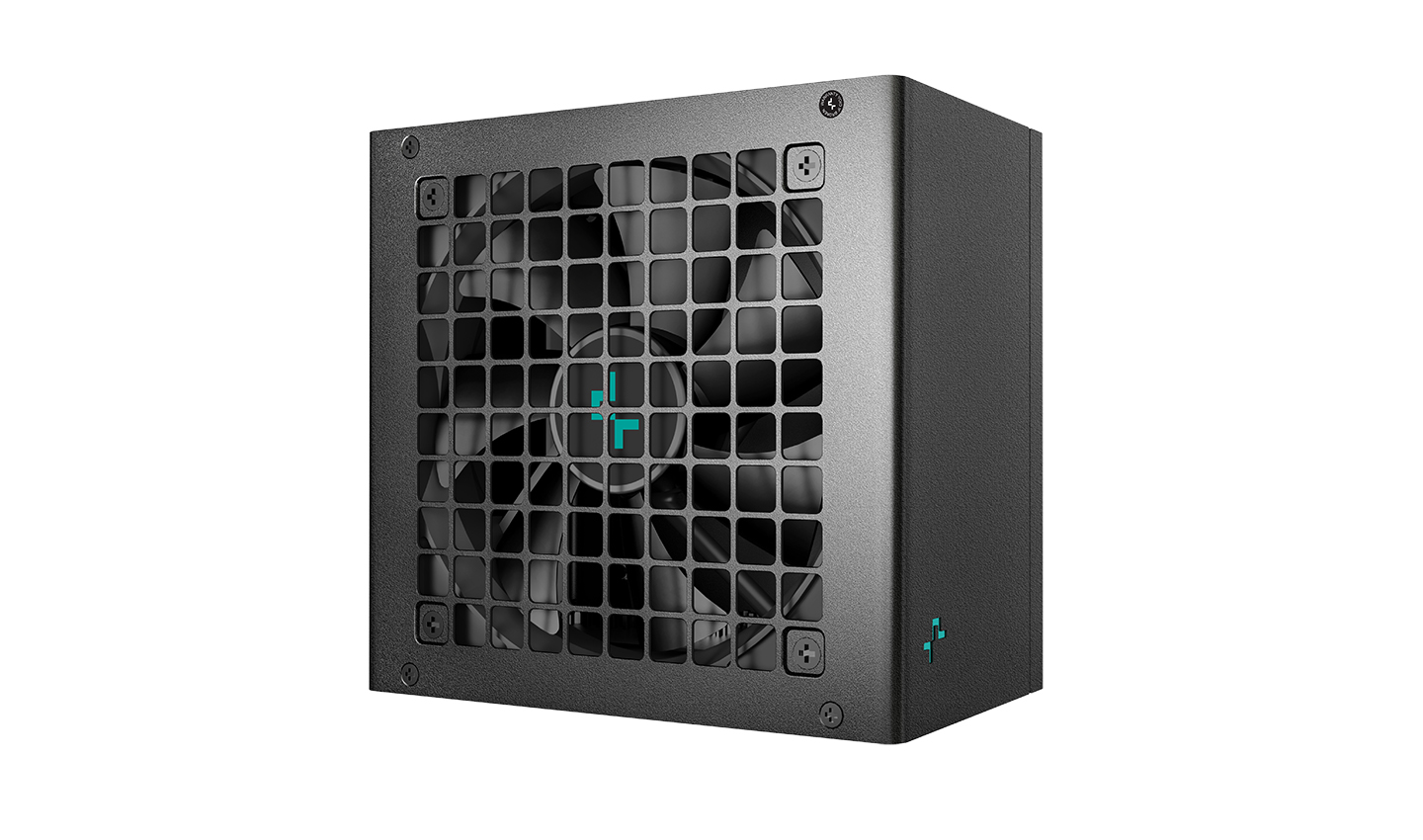

PN850M
The DeepCool PN850M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN850M provides stable power for a wide range of modern high-power components.
COLOR
black
MODEL
PN850M
NATIVE ATX3.1
FUTURE PROOF
With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN850M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.
GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.
POWER YOU CAN TRUST

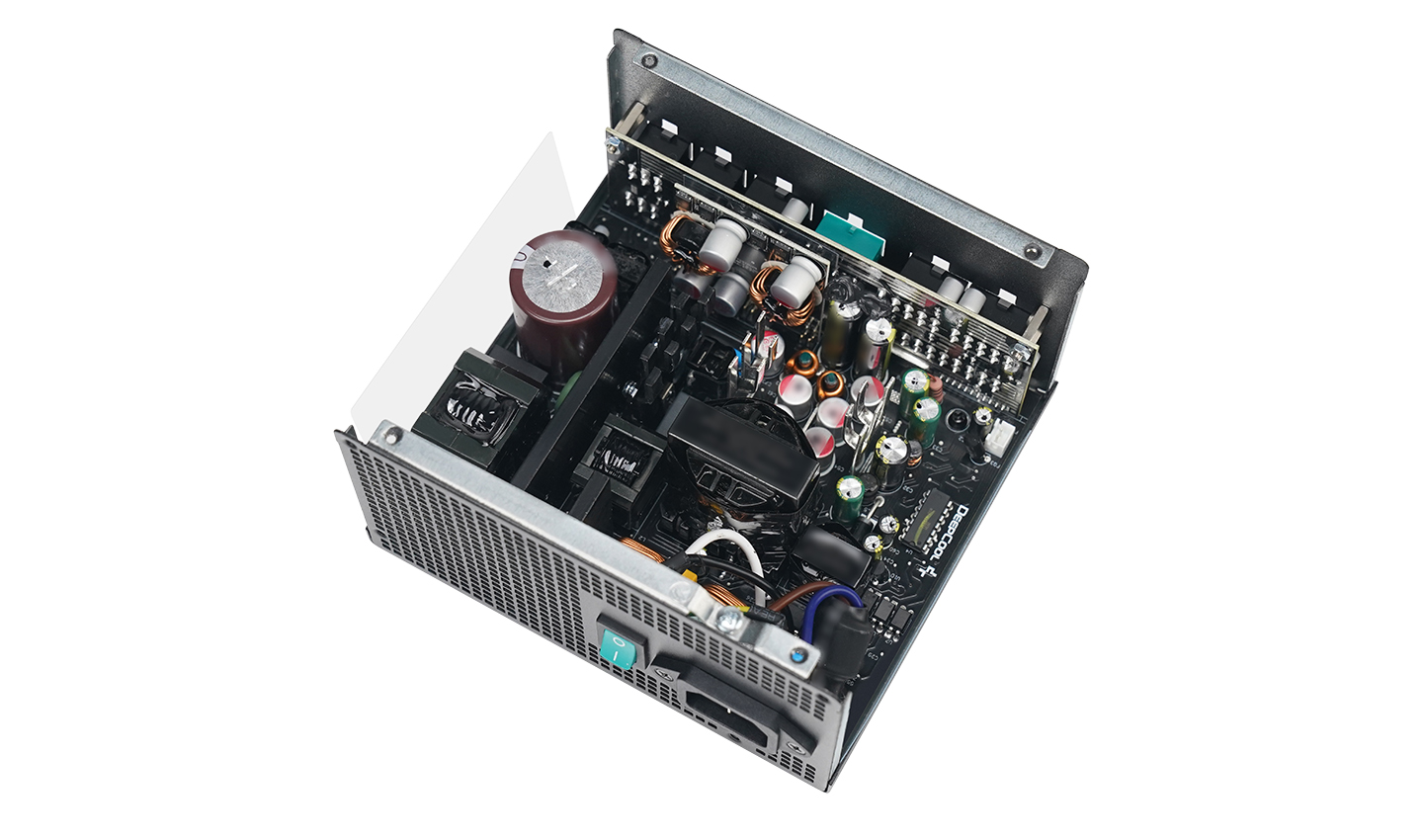

Through the use of a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN850M can keep the hold-up time to ≥ 16 ms under a high load of 80%.
12V-2x6
CABLE
PCI-E 5.1 POWER

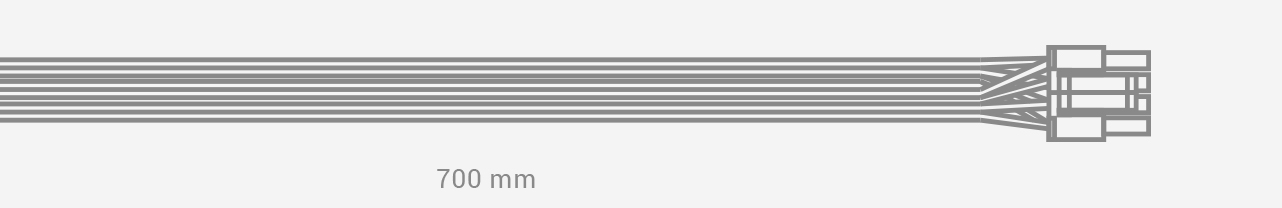

Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2x6 cable, the PN850M provides up to 600W for modern GPUs.

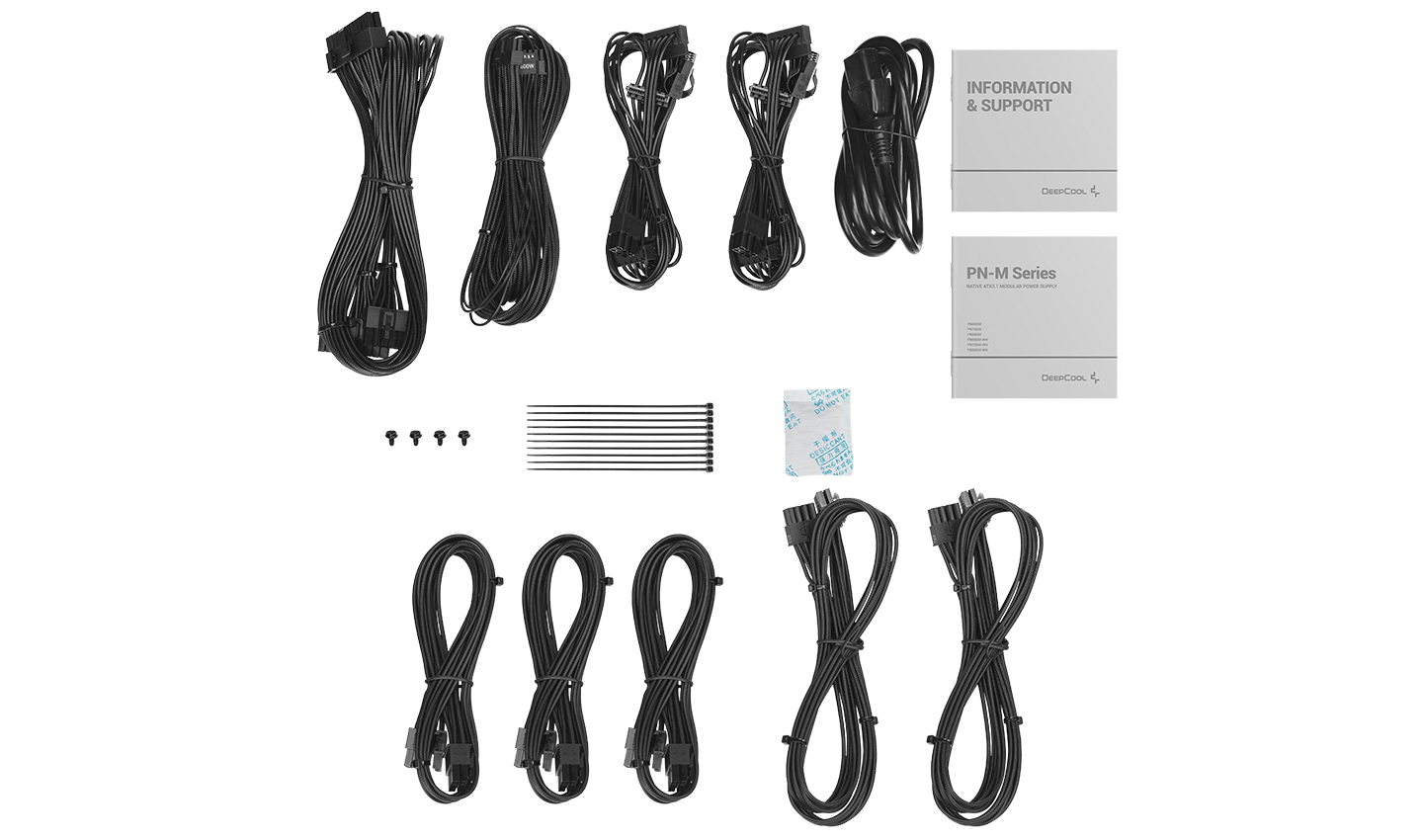

SLEEVED CABLES
The PN850M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.
DYNAMIC FDB FAN

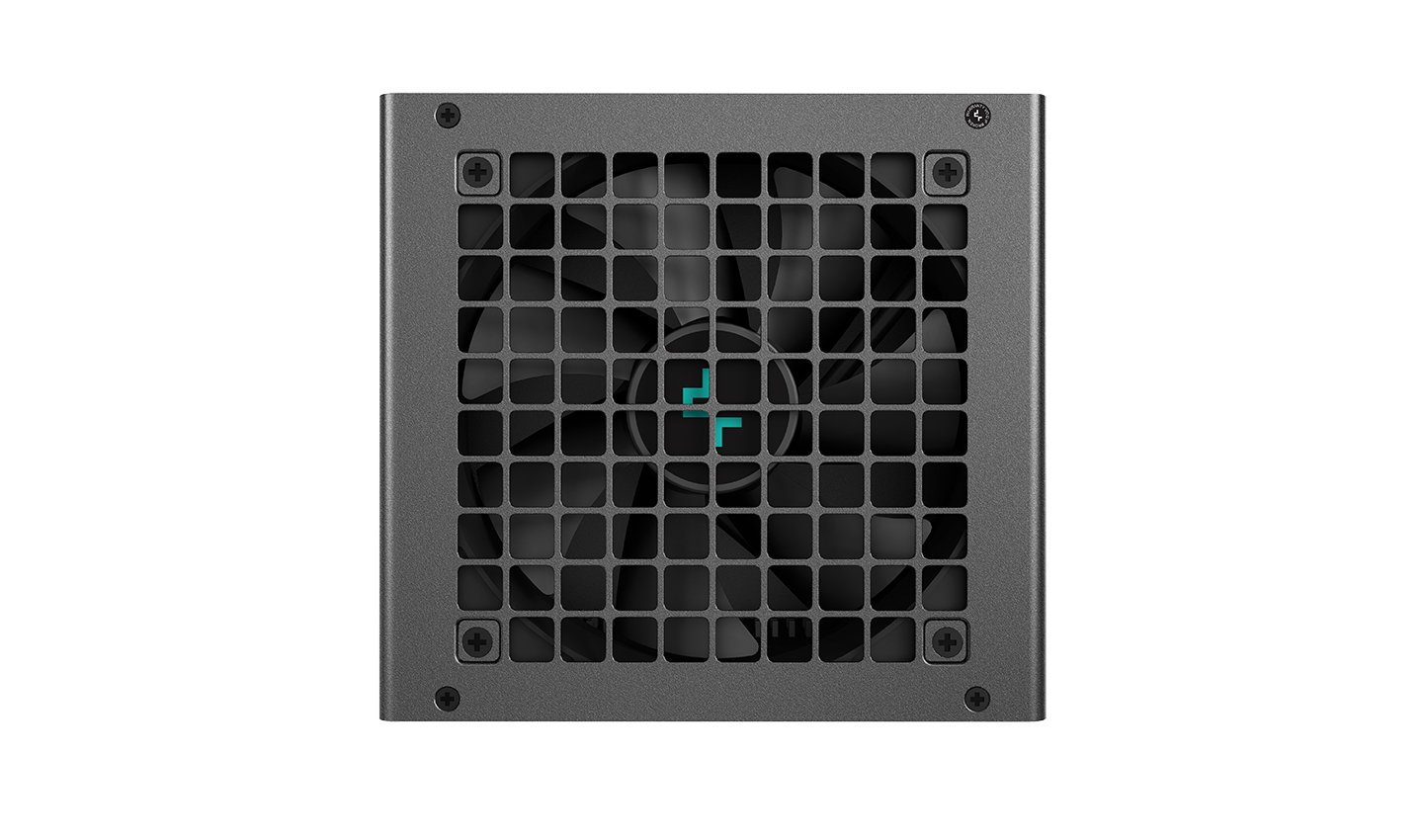

The PN850M comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the PSU.
HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN850M will operate at altitudes up to 5000 meters above sea level.
PEACE OF MIND
The PN850M comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temp Protection
Over Current Protection
Under Voltage Protection
No Load Operation
Surge & Inrush Protection
EXCELLENT COVERAGE
The PN850M is engineered and manufactured at such a high level that DeepCool is offering a lengthy 10 years of trouble-free limited warranty coverage.
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.
EXCELLENT COVERAGE
The PN850M is engineered and manufactured at such a high level that DeepCool is offering a lengthy 10 years of trouble-free limited warranty coverage.
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.

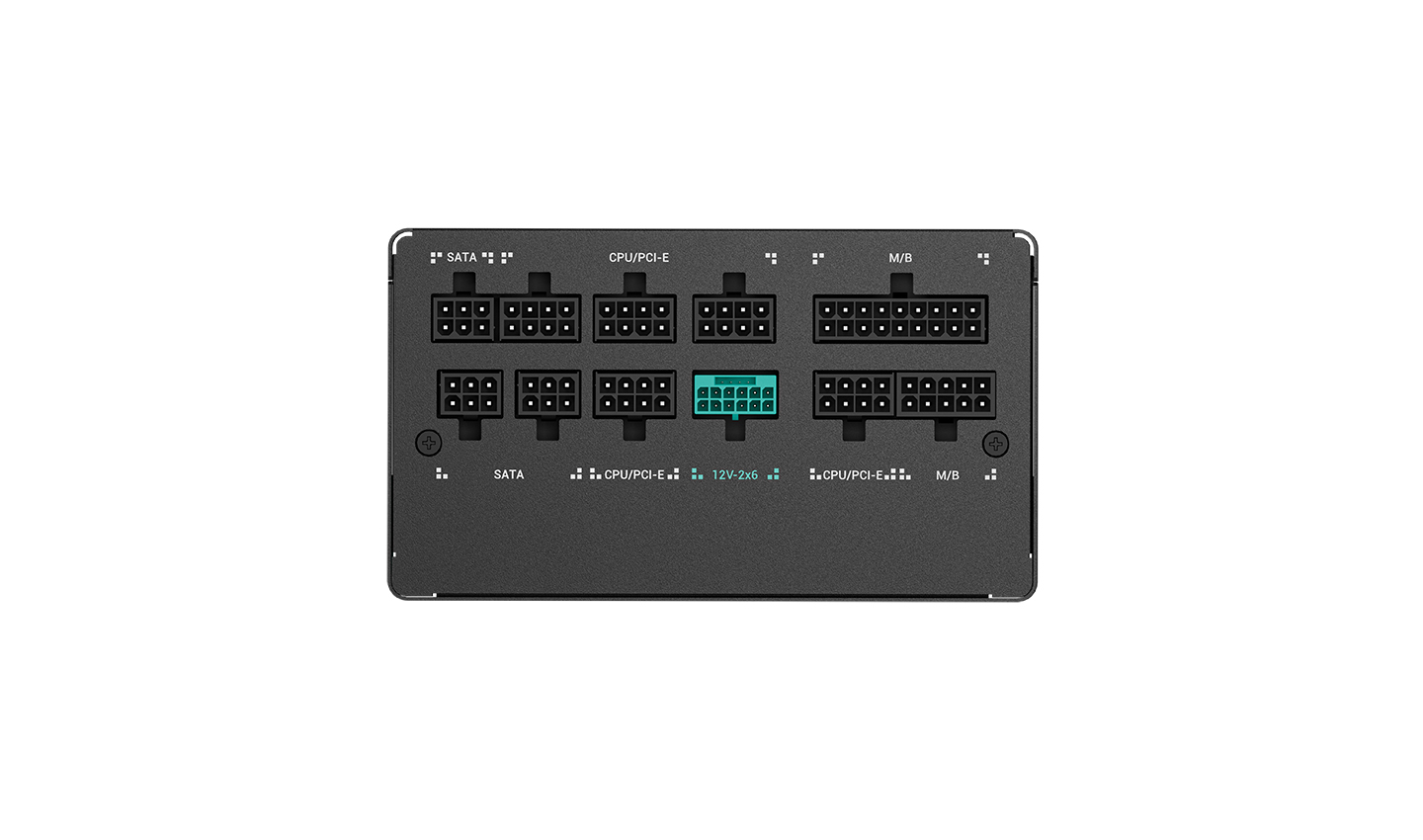

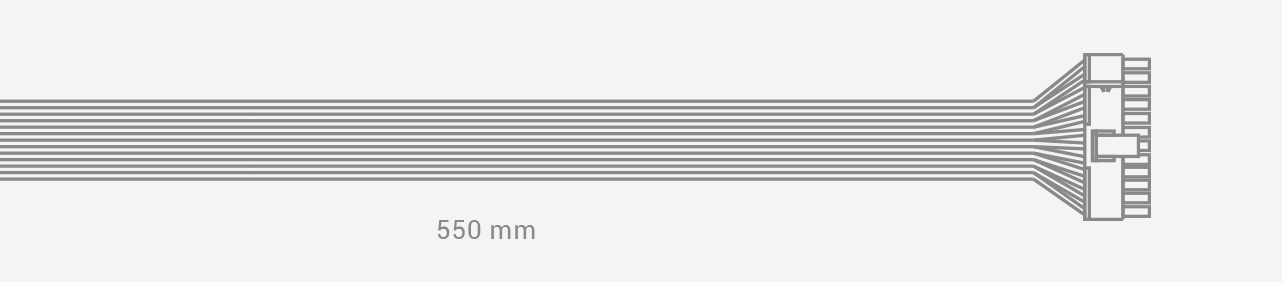

Main Power Connector (20+4)Pin x 1
X1

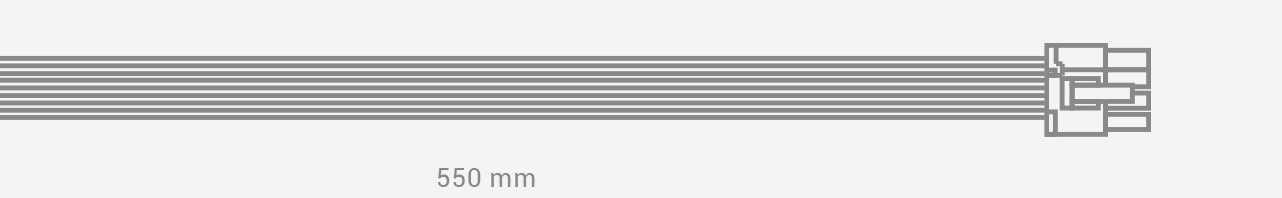

CPU(4+4)Pin x 1
X2

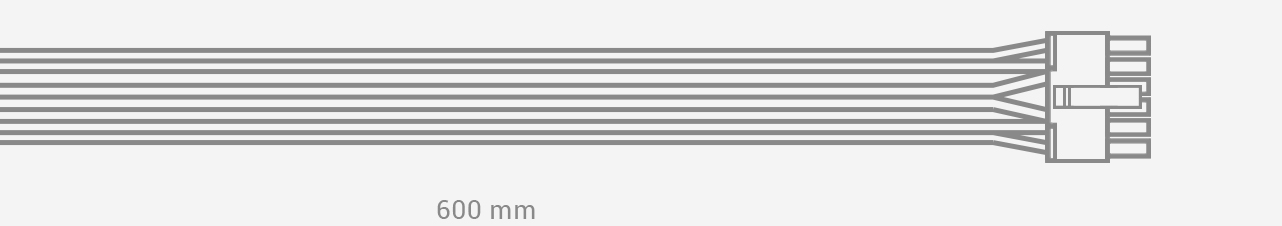

PCI-E(6+2)Pin x 1
X3
12V-2x6(16Pin) x 1
X1

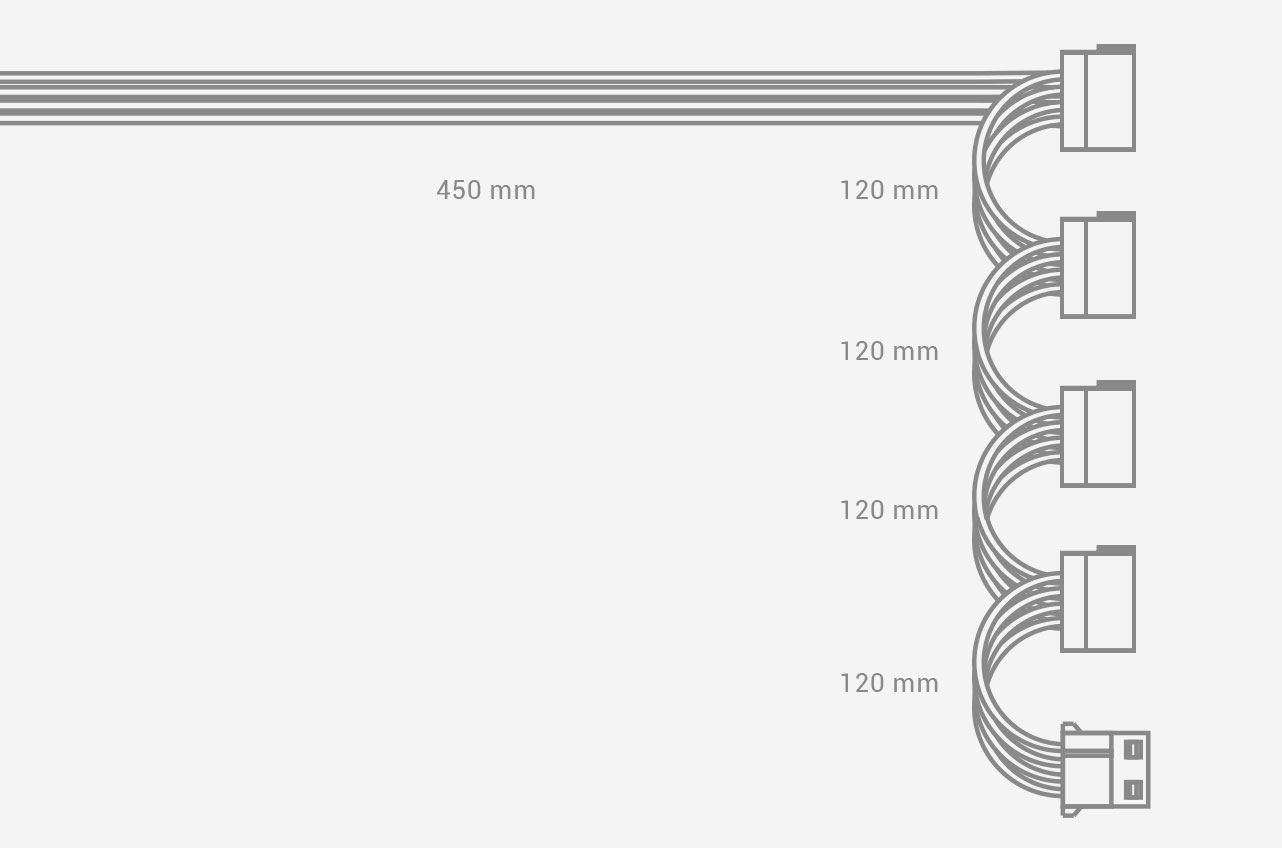

SATA x 4 + 4Pin Peripheral x 1
X2
Technical Spec
TypeATX12V V3.1
Product Dimensions150×140×86mm (W x L x H)
Efficiency certification80Plus Gold
Fan Size120mm
Fan BearingFDB (Fluid Dynamic Bearing)
TopologyActive PFC + Full Bridge SRC LLC + DC to DC
CapacitorsJapanese Bulk Capacitor
Power Good Signal100-150ms
Hold Up Time≥16ms(80% Load)
Efficiency≥90% Under Typical Load(50% Loading)
ProtectionOPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature0 - 40℃
RegulatoryCE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH
Erp RegulationErP 2014
Environment ProtectionWEEE/中国 RoHS/Triman/P65
MTBF100,000 Hours
EAN P/N6933412719540 R-PN850M-FC0B-CN
6933412719557 R-PN850M-FC0B-AU
6933412719564 R-PN850M-FC0B-EU
6933412719571 R-PN850M-FC0B-JP
6933412719588 R-PN850M-FC0B-UK
6933412719595 R-PN850M-FC0B-US
6933412719601 R-PN850M-FC0B-IN
6933412719618 R-PN850M-FC0B-WO
6933412719625 R-PN850M-FC0B-BP
